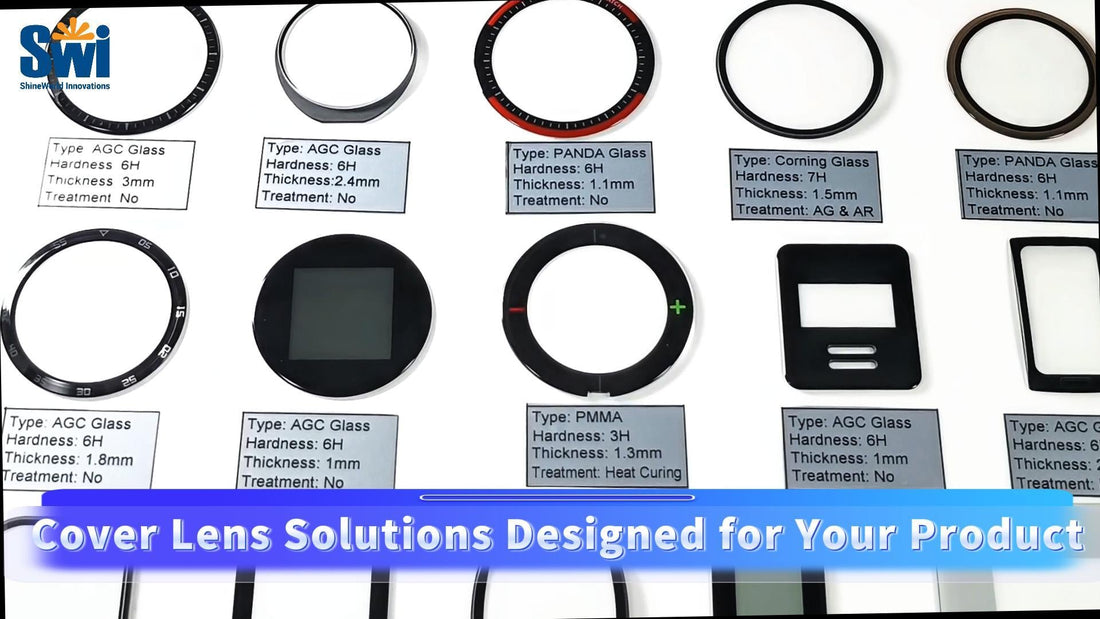

LCD Cover Lens Bonding Explained

A display that looks fine on a bench can fail quickly once it moves into a medical handheld, industrial controller, or outdoor terminal. In many of those cases, the weak point is not the LCD itself. It is the air gap and mechanical stack above it. That is why lcd cover lens bonding matters so much in real product development. It directly affects readability, impact resistance, touch behavior, sealing, and long-term field reliability.

For OEM buyers, hardware engineers, and sourcing teams, bonding is not a cosmetic upgrade. It is a structural and optical decision that changes how the full module performs in production and in use. The right bonding approach can reduce reflection, improve perceived contrast, and strengthen the front surface. The wrong one can add cost without solving the real use-case problem.

What lcd cover lens bonding actually does

In a typical display stack, the LCD sits below a cover lens, and in touch products there may also be a capacitive touch panel between them or integrated into the front assembly. If those layers are separated by air, light reflects at multiple interfaces. That reduces optical efficiency and makes the screen harder to read, especially in bright environments.

LCD cover lens bonding fills or eliminates that gap by attaching the lens to the display stack with a bonding material or pressure-sensitive layer. The result is a more integrated module. Depending on the method, the assembly can gain better optical performance, more stable touch response, and improved resistance to dust or moisture intrusion.

This is why bonded structures are common in equipment where the display is part of the working surface rather than a protected internal component. Industrial HMIs, medical instruments, portable test devices, banking terminals, and smart home control panels all benefit, but the level of bonding sophistication should match the operating environment.

The main lcd cover lens bonding methods

There is no single bonding method that fits every project. The correct choice depends on display size, required optical quality, touch structure, environmental exposure, and cost target.

Air-gap lamination

In basic assemblies, the cover lens is attached mechanically or with perimeter adhesive while an air space remains over the active display area. This is the lowest-cost approach and can be acceptable for indoor products with limited brightness demands. It also simplifies rework in some cases.

The trade-off is optical loss. Air gaps increase internal reflection and usually reduce readability under ambient light. They can also create a more noticeable parallax effect, where the image appears visually deeper below the top surface.

Tape bonding

Optically clear double-sided adhesive tape can bond layers together without a large open air gap around the viewing area. This is suitable for many standard modules and moderate-volume designs where thickness control and process speed matter.

Tape bonding is practical, but it is less effective than liquid optical bonding when the goal is maximum sunlight readability or the lowest possible reflection. It can also be less forgiving if the design includes uneven surfaces or very tight cosmetic requirements.

OCA bonding

Optically Clear Adhesive, or OCA, is a solid adhesive film used to laminate the cover lens to the touch panel or display. OCA provides good transparency, controlled thickness, and clean appearance. It is widely used in consumer and commercial electronics because it supports a refined front-of-screen finish.

For many mid-size and compact displays, OCA offers a strong balance between optical performance and process consistency. However, it requires precise lamination conditions and careful particle control. Any contamination, bubble, or alignment issue is immediately visible.

OCR or liquid optical bonding

Liquid bonding materials, often referred to as OCR in some manufacturing contexts, are dispensed between layers and cured after assembly. This method can better conform to dimensional variation and fill the full interface more completely. It is often selected when the application needs higher shock resistance, better readability, or stronger environmental performance.

Liquid optical bonding usually brings the best optical result, especially for high-brightness and outdoor-facing products. It also adds complexity in processing, inspection, and rework. For lower-cost devices used only indoors, that extra performance may not justify the manufacturing overhead.

Why buyers specify bonding in custom display projects

The most common reason is readability. When the air interface is reduced, reflected light drops and the displayed image looks more direct and higher contrast. This is especially important in products used under strong ambient light, such as field instruments, smart access panels, and vehicle-adjacent systems.

The second reason is durability. A bonded front stack behaves more like a single structure than a loose layered assembly. That can improve resistance to vibration and front-surface impact. For portable equipment or installations in high-traffic environments, this is a practical advantage.

Touch performance is another factor. In projected capacitive touch designs, the mechanical relationship between the sensor, cover lens, and display affects user perception. A better-integrated stack often feels more precise because the visible image and touch surface are optically closer together.

There is also a sealing benefit. Bonded assemblies can reduce internal spaces where dust, moisture, or condensation become a problem. This does not replace full enclosure engineering, but it helps the display module support stricter reliability targets.

Where lcd cover lens bonding delivers the most value

The value is highest when the display is exposed to demanding conditions. In medical devices, bonded displays can improve image clarity and support easier front-surface cleaning. In industrial control equipment, they help maintain readability under factory lighting and support stronger front panel construction.

For banking equipment and self-service terminals, a bonded stack can improve both appearance and vandal resistance. In handheld electronics and wearables, bonding helps reduce thickness while improving the premium feel of the front surface. In smart home products, it often supports a cleaner industrial design with better optical quality at close viewing distance.

Not every product needs the highest-grade optical bond. A low-cost indoor appliance with limited screen-on time may perform well with a simpler construction. The right question is not whether bonding is good. It is which level of bonding makes commercial sense for the product category.

Design factors that should be defined early

Bonding decisions should be made early in module selection, not after the mechanical design is frozen. Cover lens thickness, display brightness, touch structure, adhesive type, bezel geometry, and environmental sealing all interact.

If the cover lens is too thick for the selected touch design, sensitivity may suffer. If brightness is too low, bonding alone will not fix poor outdoor visibility. If the housing applies uneven stress to the front stack, optical artifacts or long-term delamination risk can increase.

Engineers should also define whether the module needs chemical strengthening, anti-glare or anti-reflective treatment, black printing, water resistance, IK impact goals, and glove or wet-touch performance. These are not separate purchasing details. They affect how the full bonded stack should be engineered.

Manufacturing and quality control considerations

A good bonded display depends on process discipline. Cleanroom control matters because particles trapped in the bond line become visible defects. Alignment accuracy matters because offset layers reduce both cosmetic quality and active-area consistency. Cure conditions matter because poor control can affect haze, bubble formation, or long-term stability.

Inspection should cover optical clarity, bond uniformity, edge appearance, touch function, and reliability under thermal and humidity stress. Projects going into volume production also need realistic yield planning. Some bonding methods look attractive at prototype stage but become expensive when scaled if the process window is too narrow.

This is where an experienced display manufacturer adds value. A supplier that handles LCDs, touch panels, cover lenses, and full module integration can usually identify stack-up risks earlier than a vendor supplying only one layer of the assembly. For buyers balancing performance and manufacturability, that shortens development time and reduces sourcing friction.

Choosing the right bonding approach for your product

The best approach starts with the use case. If your device operates indoors, has moderate brightness, and faces tight cost targets, tape or OCA-based lamination may be the right fit. If the product will be used in sunlight, exposed to vibration, or expected to deliver a higher-end visual result, full optical bonding often makes more sense.

Volume also matters. A process that is acceptable for low-volume industrial production may not be ideal for consumer-scale output, and the reverse is also true. Serviceability matters as well. Some highly integrated bonded structures are harder to rework, which can influence field repair strategy.

For OEM and ODM programs, the strongest results usually come from treating lcd cover lens bonding as part of the module design rather than an accessory added at the end. When the display, touch, lens, and front mechanical stack are developed together, performance targets are easier to hit and production risk is easier to control.

If you are evaluating display modules for a new device, the useful next step is simple: define the environment, define the optical target, and let the bonding method follow the application instead of the other way around.
