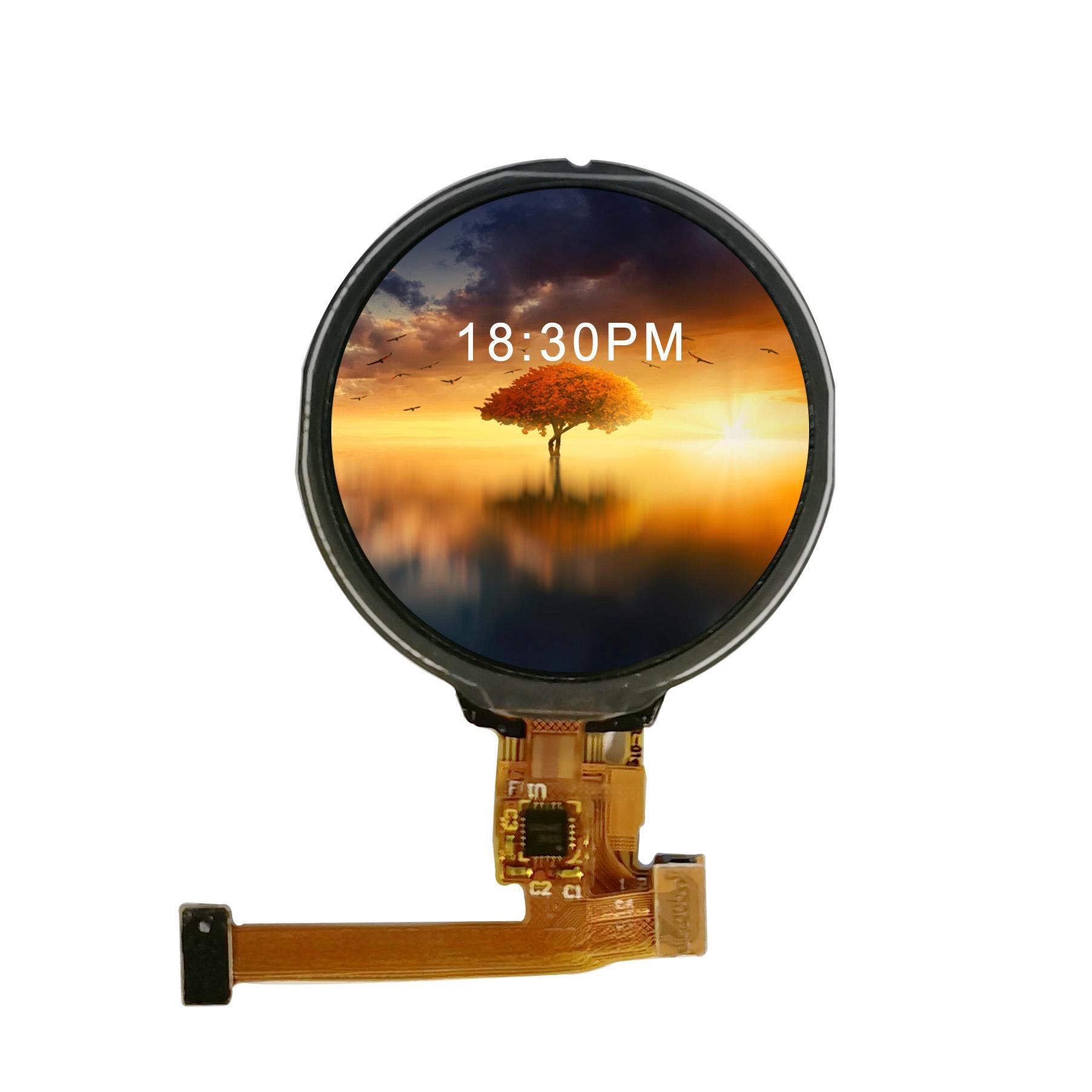

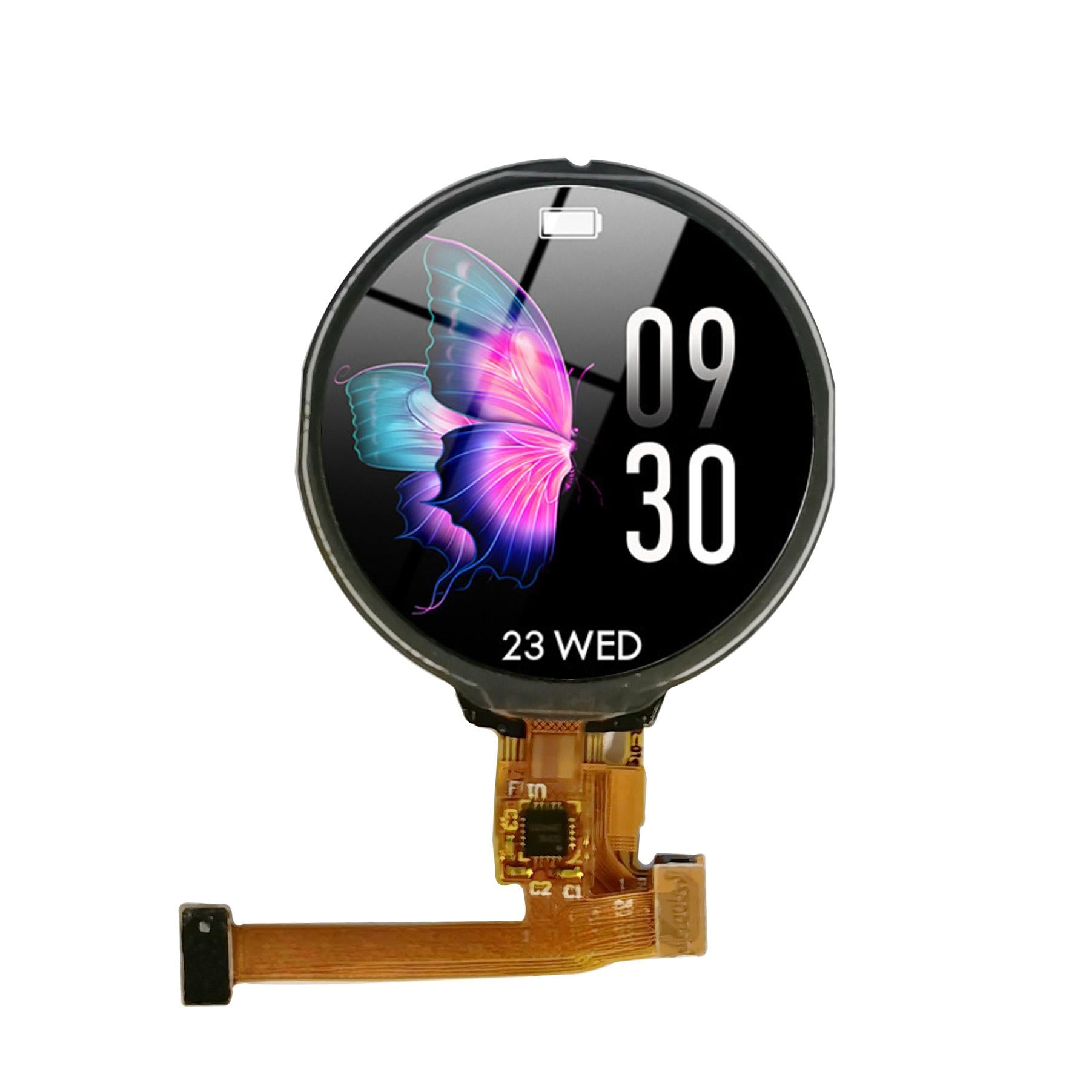

The SWICN LH128R-IC25T is a 1.28-inch round IPS TFT LCD module with a capacitive touchscreen. It incorporates a TFT panel, TFTdriver IC (GC9A01), flexible printed circuit (FPC), backlight, capacitive touch panel (CTP), and CTP driver IC (CST816S), providing a comprehensive and compact solution.
With a resolution of 240x240 RGB pixels on a black background and a typical brightness of 400cd/m2, this module delivers crisp and vibrant visuals. The capacitive touchscreen adds a responsive touch function, enabling seamless user interaction, which makes it particularly suitable for applications requiring a user-friendly interface.
The LH128R-IC25T is designed for versatility, featuring an 8-bit 8080 MCU interface for the TFT and an I2C interface for the touch panel. This design ensures compatibility with a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
The SWICN LH128R-IC25T module is highly compatible with various MCUs, such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. Its extensive compatibility allows for seamless integration into different projects, catering to diverse application needs across various industries.

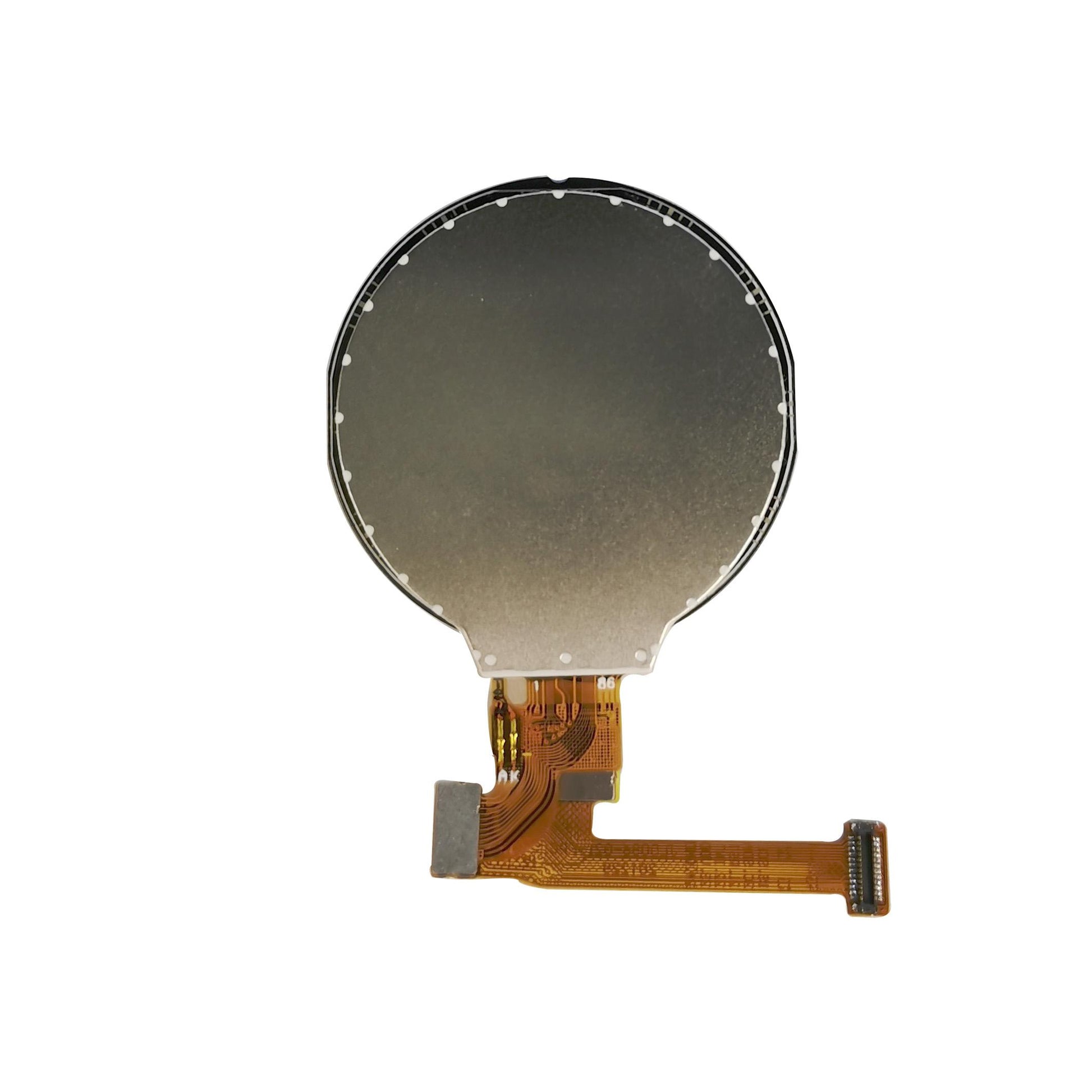

The module's FPC is designed with a Board to Board (B2B) connector, enabling easy and direct connection to the B2B connector on your PCB. This simplifies integration and ensures a secure and reliable connection.
Shineworld Innovations Limited offers tailored solutions that empower customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWI provides customized demo kits,offering a hands-on experience with the products to facilitate the evaluation and decision-making processes.
