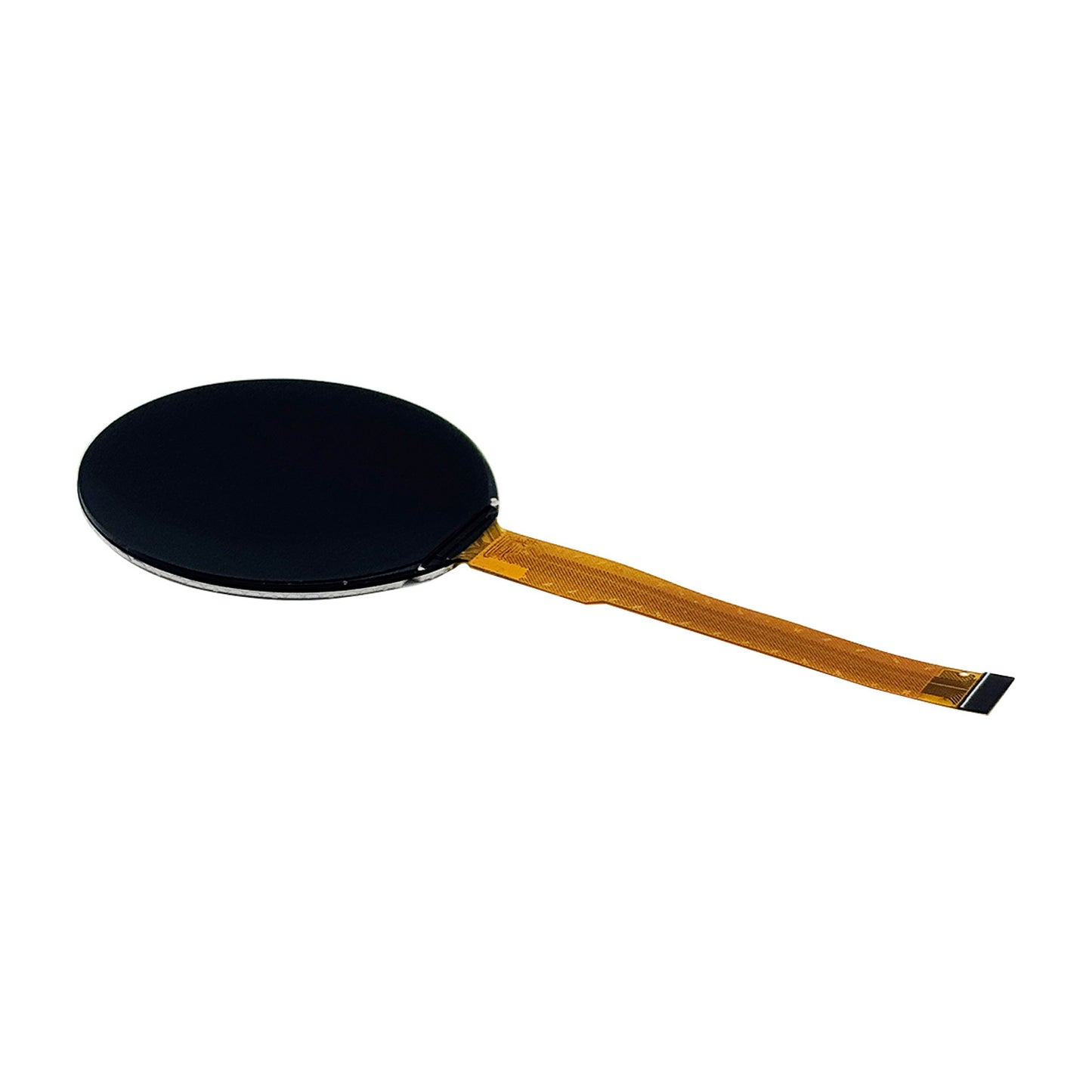

1.8-inch 360x360 Round TFT Display ST77916 QSPI Interface Circular LCD for Smart Home Round Display

1.8-inch 360x360 Round TFT Display ST77916 QSPI Interface Circular LCD for Smart Home Round Display

Model No.
  • LB180R-IF02
Resolution
Diagonal Size
Color

Please check stock availability with the seller before buying samples

Sample Price:
Regular price $8.90 USD
Regular price Sale price $8.90 USD
Sale Sold out
Send Inquiry View full details

SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 TFT -
2 Diagonal Size 尺寸 1.8 Inch
3 Resolution 分辨率 360(RGB)x360 Dots
4 Active Area 有效显示区域 45.68(H) x 47.25(V) mm
5 Outline Dimension 外围尺寸 48.08(H) x 49.95(V) mm
6 Thickness 厚度 1.92±0.1 mm
7 Pixel Pitch 像素间距 0.1269(W) x 0.1269(H) mm
8 Pixel Size 像素尺寸 0.1269(W) x 0.1269(H) mm
9 Display Driver IC 显示驱动 IC ST77916 -
10 Touch Driver IC 触控驱动IC No Touch -
11 Display Color 显示色彩 262K Color
12 Gray Scale 灰阶 8 bit
13 Brightness 亮度 250 (Typ.) cd/m2
14 Contrast Ratio 对比度 1200:1(Typ.) -
15 Interface 接口 QSPI -
16 IC Package Type IC 封装类型 COG -
17 Module Connecting Type 模块连接方式 ZIP Connector(Pitch:0.5mm) -
18 Weight 重量 TBD g
19 Viewing Direction 视角方向 All View O'Clock
20 Pins 引脚数 16 Pins
21 Operating Temperature 操作温度 -20~70
22 Storage Temperature 存储温度 -30~80
Drawings​
