Embedded TFT Display Customization Process

An embedded product rarely fails because the display is too simple. It fails because the display was treated as a part number instead of a system. The embedded TFT display customization process matters when your device has strict constraints around space, power, interface, brightness, touch performance, operating temperature, and long-term supply.

For OEMs and product teams, customization is not just about changing the outline size or adding a touch panel. It is a structured engineering path that aligns the display module with the electrical, mechanical, optical, and manufacturing needs of the final device. When that process is managed correctly, development moves faster, validation is cleaner, and mass production becomes more predictable.

Why the embedded TFT display customization process starts with the full product requirement

The first stage is requirement definition, and this is where many projects either gain momentum or create delays that surface later. A display cannot be specified in isolation. Engineers need to define the application environment, host platform, use case, and mechanical envelope before selecting panel parameters.

At this point, buyers and engineers usually focus on visible specifications such as screen size, resolution, and brightness. Those are necessary, but they are not enough. The real decision set includes interface type, viewing direction, display mode, touch structure, backlight current, operating temperature, cover lens requirements, EMC considerations, and expected product lifecycle. A handheld medical device and an indoor smart home controller may use similar diagonal sizes, but their requirements for luminance stability, glove touch, optical bonding, and validation are very different.

Good customization work begins with a clear target around these questions: What is the host MCU or MPU? Which interface is preferred - RGB, MIPI, LVDS, SPI, or MCU? Is the product battery-powered? Will the unit be used in sunlight? Does the design require capacitive touch, a custom cover glass, or a fully integrated module? Is there a fixed connector location or FPC bend direction? These details shape the solution more than the panel size alone.

Display architecture selection

Once the product requirements are stable enough, the display architecture can be defined. In some cases, a standard TFT module with a minor FPC adjustment is enough. In other cases, the project requires a more complete custom build with tailored backlight design, a bonded capacitive touch panel, reinforced cover lens, and a specific driver IC strategy.

This stage is usually a balance between performance, development speed, and cost. A fully custom structure gives more control over industrial design and integration, but it can increase tooling, engineering verification, and lead time. A semi-custom approach based on an existing platform often reduces risk and moves faster into prototype testing. For many embedded projects, the most efficient path is not maximum customization. It is the right level of customization.

Panel technology also needs practical review. IPS TFT is often selected for wider viewing angles and better image consistency, while TN may still fit cost-sensitive designs with controlled viewing direction. Brightness targets should be tied to actual operating conditions. Higher brightness improves readability in bright environments, but it also affects power budget, thermal design, and LED lifetime. This is a typical trade-off where application context matters more than headline specification.

Interface and controller decisions

Interface choice has a direct effect on compatibility and software workload. MIPI may be attractive for high-resolution systems using application processors, while RGB can remain a practical option for many embedded boards. SPI and MCU interfaces simplify some lower-data-rate designs, but they may limit refresh performance for graphic-heavy applications.

Controller and driver IC selection should also consider long-term procurement and design stability. A display that performs well in prototype stage but relies on a constrained IC supply can create future sourcing pressure. For B2B device programs, lifecycle planning is part of customization, not a separate procurement issue.

Mechanical and optical customization

After the display architecture is chosen, the project moves into mechanical and optical matching. This is where the module starts to fit the actual device instead of remaining a generic screen.

Mechanical customization typically covers module outline, active area alignment, bezel width, mounting method, FPC shape, connector type, pin definition, and component placement. Small changes here can have large effects on assembly efficiency. For example, an FPC exit in the wrong direction may force a board redesign. A connector position that seems acceptable in CAD can become a yield problem during production assembly.

Optical customization usually addresses brightness, viewing angle, surface treatment, contrast expectations, and cover lens integration. If the product will operate in outdoor or high-ambient-light conditions, the stack-up may require optical bonding or anti-glare treatment. If the device is used indoors and cost is tightly controlled, a simpler structure may be sufficient. Again, it depends on where the product is used and what the end user must see under real conditions.

Touch and cover lens integration

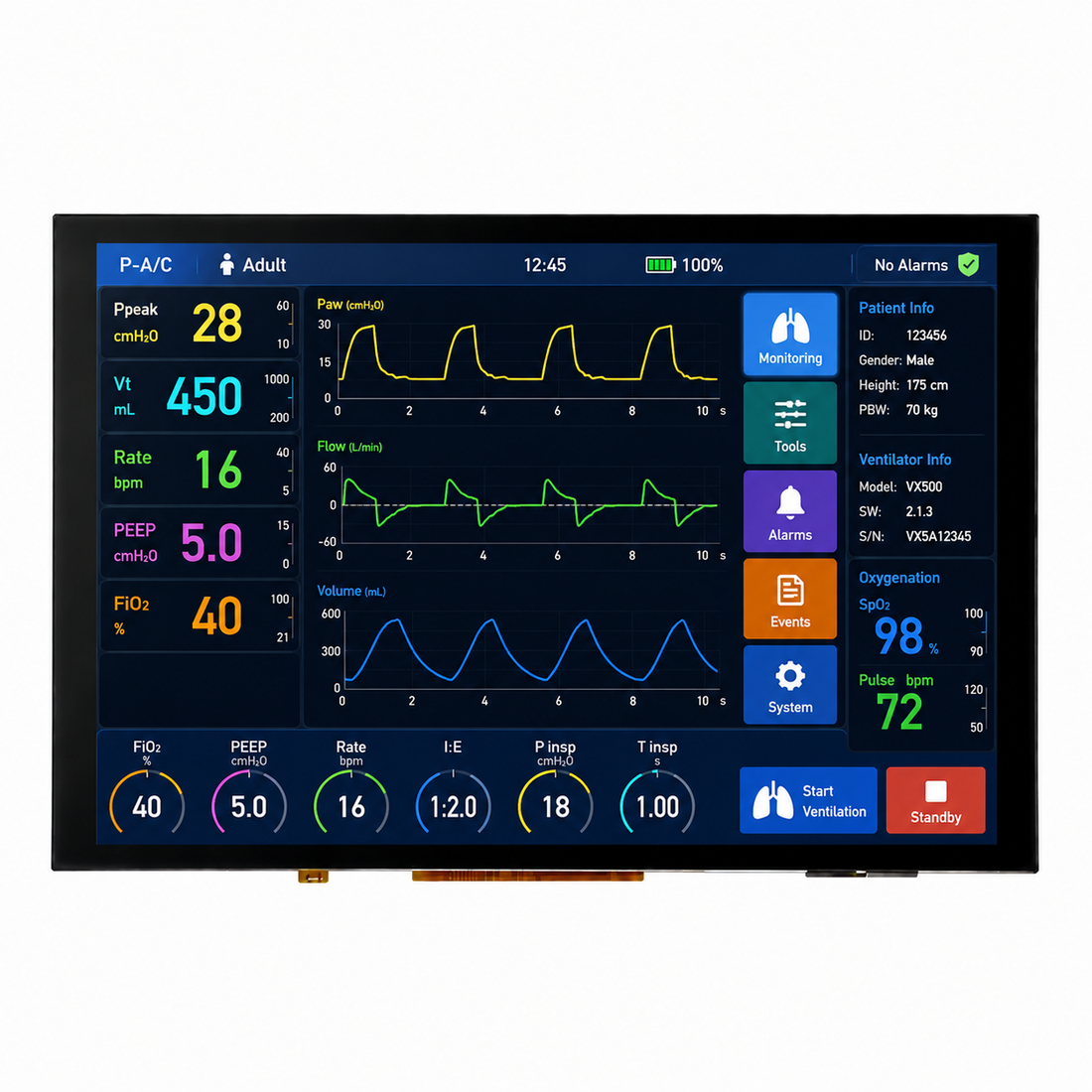

For many embedded devices, the display is no longer just a TFT panel. It is a complete display subsystem with projected capacitive touch and a custom cover lens. Touch integration requires decisions around sensor pattern, controller compatibility, glove or water tolerance, cover thickness, surface hardness, printing, and edge profile.

The cover lens is often treated as a cosmetic part, but in practice it affects usability, stack thickness, impact resistance, and optical performance. A custom lens with black printing, logo window, or specific edge treatment may be necessary for the product design, yet every added requirement should be reviewed against manufacturability and tolerances. A well-designed integrated module reduces assembly steps for the OEM. A poorly defined one creates fit and functional issues that appear late.

Prototype development and engineering validation

The prototype stage translates drawings and specifications into a physical sample for test. This is where assumptions are checked against reality. Electrical compatibility, luminance, color consistency, touch response, EMC behavior, viewing performance, and mechanical fit all need verification.

In a disciplined embedded TFT display customization process, prototype evaluation is not only about whether the screen lights up. It should confirm whether the display behaves correctly within the final system. That includes startup timing, signal integrity, backlight control, ESD performance, power consumption, and software driver interaction. A module that works on a bench setup can still fail under actual enclosure pressure, cable routing, or temperature conditions.

This stage often produces revisions. That is normal. The key is to resolve them before the project enters tooling lock or volume planning. Common changes include FPC length adjustment, brightness tuning, touch firmware updates, adhesive changes, and viewing direction correction. Fast iteration depends on clear communication between the OEM team and the display manufacturer.

Reliability testing and production readiness

Before mass production, the module should pass application-relevant validation. Depending on the end market, this may include high-low temperature storage, operating temperature tests, humidity exposure, vibration, drop, ESD, aging, and optical inspection standards. Medical, industrial, and banking devices often require more disciplined validation than short-lifecycle consumer products.

Production readiness also means process control. A custom module is only valuable if it can be manufactured consistently. That includes control over bonding, backlight assembly, touch lamination, cleanroom handling, incoming material consistency, and final inspection criteria. Engineering approval without production discipline creates unnecessary field risk.

For sourcing teams, this is also the point to confirm forecast assumptions, MOQ expectations, tooling ownership, revision control, and long-term supply planning. A technically suitable display with weak production planning can still disrupt launch schedules.

What buyers should prepare before requesting customization

A stronger RFQ usually leads to a faster and more accurate proposal. At minimum, buyers should provide the target size, resolution, interface, brightness target, touch requirement, operating environment, mechanical drawing if available, and expected annual volume. If there is a host board already selected, that information should be shared early.

It also helps to state what is fixed and what is flexible. Some projects have a non-negotiable front cosmetic design but open electrical options. Others have strict firmware constraints but flexible industrial design. When those priorities are clear, the display partner can recommend whether a standard platform, semi-custom module, or fully custom solution is the best fit.

For companies managing multiple SKUs, it may be worth standardizing around a display family rather than customizing every model independently. That can simplify software maintenance, improve purchasing leverage, and reduce qualification effort across the product line.

Shineworld Innovations Limited works with this type of requirement set every day across consumer, industrial, medical, and integrated display module programs. The practical value is not customization for its own sake. It is reducing mismatch between the display and the device.

The best custom display projects are usually the ones that look straightforward by the time they reach production. That result comes from doing the hard specification work early, making trade-offs visible, and building a module that fits the product as a whole rather than the drawing alone.
