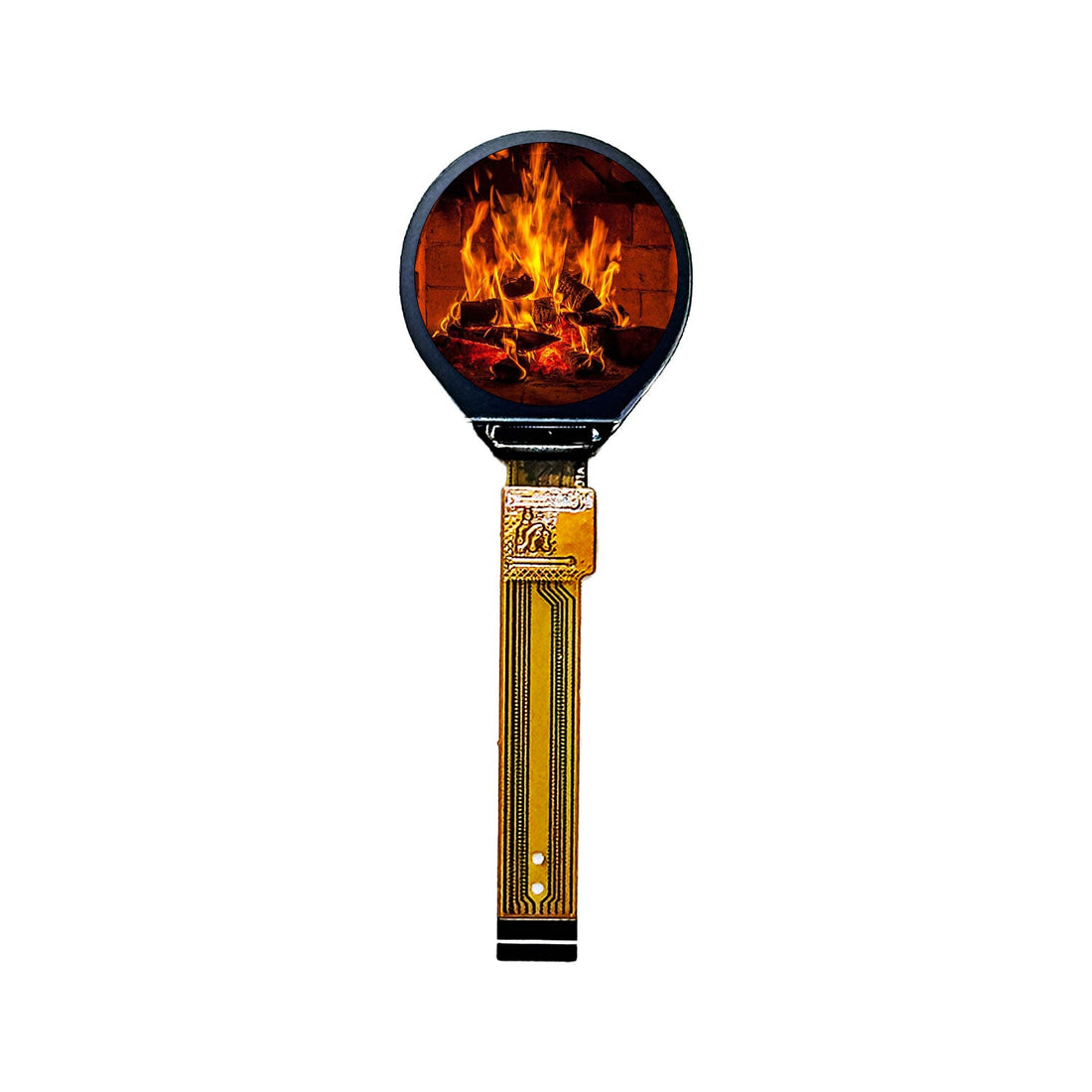

Choosing an Industrial TFT LCD Display

An industrial TFT LCD display is rarely selected on resolution alone. In industrial equipment, the display has to stay readable under harsh lighting, respond correctly through gloves or cover glass, fit the control board architecture, and remain available through the product lifecycle. For OEMs and equipment makers, that changes the buying decision from a simple component purchase into a specification and supply-chain exercise.

This is where many projects run into avoidable delays. A module may look correct on paper, but if the interface does not match the host platform, the brightness is too low for field use, or the mechanical stack is not designed for the enclosure, redesign costs arrive quickly. Choosing the right display means evaluating electrical, optical, mechanical, and manufacturing factors together.

What makes an industrial TFT LCD display different

A consumer-grade panel and an industrial TFT LCD display can share similar sizes or resolutions, but they are built for different expectations. Industrial applications typically require longer production support, stricter quality consistency, and performance across wider operating conditions. The display is often part of a machine interface, a handheld instrument, a medical device, or a banking terminal where failure is expensive and replacement is not simple.

That difference affects nearly every specification. Brightness may need to be high enough for daytime readability. The temperature range may need to support cold starts or hot enclosures. Touch integration may need to work with thicker cover lenses, wet conditions, or gloved operation. Even the backlight design matters because service life targets in industrial systems are usually much longer than in consumer products.

Start with the use environment, not the panel size

Many teams begin with diagonal size because it is easy to compare. In practice, the operating environment should come first. A 7-inch display used inside a factory control panel has different requirements from a 7-inch display in a portable diagnostic device or an outdoor payment terminal.

Ambient light is one of the first filters. If the equipment will operate in bright indoor settings, standard brightness may be enough. If it will face direct or partial sunlight, high-brightness options become necessary, and optical bonding may also become relevant to reduce internal reflections. Higher brightness improves visibility, but it also adds power and thermal considerations, so the best choice depends on the enclosure and system power budget.

Temperature is another early checkpoint. Industrial deployments often require operation well beyond office conditions. If the module will be installed in unconditioned spaces, vehicles, or sealed housings, the LCD and touch stack must be reviewed for the full operating and storage range. It is better to resolve this early than to discover display lag, contrast shift, or touch instability during validation.

Core specifications that affect system performance

Resolution still matters, but it should be matched to the interface design and viewing distance. Higher resolution can improve graphics and text rendering, especially in HMIs and data-rich instruments, but it also increases processor load and may require a different interface or stronger graphics support. For basic control screens, a moderate resolution can be the more efficient and stable choice.

Viewing angle is often underestimated. In industrial equipment, operators do not always stand directly in front of the screen. IPS TFT technology is commonly preferred where off-axis readability and color stability are required. In simpler fixed-angle installations, other panel structures may still be acceptable if cost pressure is high.

Brightness, contrast, and surface treatment should be evaluated together. A bright panel with poor anti-glare performance may still be difficult to read. Likewise, a very clear top surface may look excellent indoors but become reflective in factory lighting. There is no universal best combination. It depends on whether the device is used indoors, outdoors, handheld, or behind a protective front panel.

Interface choice is equally practical. RGB, LVDS, MIPI, SPI, and MCU interfaces all have different implications for board design, cable routing, EMI behavior, and processor compatibility. Teams that select a display before confirming host support often create unnecessary integration work. The right module is the one that fits the system architecture with the least friction, not just the one with the best standalone specifications.

Touch and cover lens integration are part of the display decision

For many devices, the display is not only a panel. It is a complete front-end assembly that may include capacitive touch, cover glass, printing, and bonding. This matters because touch performance, mechanical thickness, and optical quality are interconnected.

Projected capacitive touch is common in industrial equipment because it supports multi-touch, strong optical performance, and a modern user interface. But not every capacitive solution is equal. Glove support, water rejection, EMI tolerance, and thicker cover lens performance should all be reviewed if the product will be used in demanding conditions. Resistive touch may still be the better choice in some legacy systems or cost-sensitive designs, especially where simple input is enough.

Integrated display modules can reduce assembly complexity and sourcing risk. Instead of qualifying the LCD, touch panel, cover lens, and bonding process separately, buyers can source a combined solution designed to meet the mechanical and optical requirements as one assembly. For OEMs managing tight schedules, this often shortens development time and improves consistency in volume production.

Lifecycle, customization, and supply stability

An industrial TFT LCD display should be judged not only by current fit, but by long-term supply viability. Industrial products often remain in the market for years, and a display change in mid-cycle can force enclosure updates, firmware changes, recertification work, or new tooling. For that reason, lifecycle support and second-source planning deserve as much attention as image quality.

Standard modules are usually the fastest route for prototyping and early production. They help teams move quickly, validate layouts, and reduce upfront engineering time. But standard products are not always the right endpoint. When interface constraints, mounting requirements, touch stack thickness, brightness, or branding elements become more specific, customization can reduce overall project risk.

This is where supplier capability becomes a real purchasing factor. A manufacturer with a wide standard catalog and OEM/ODM capacity can support both early-stage selection and later design refinement. That flexibility is especially useful when a product line expands across sizes, variants, or regional specifications. Shineworld Innovations Limited, for example, serves this model by supporting both standard modules and custom display assemblies for OEM development and scale production.

Common mistakes buyers make

One common mistake is treating the display as a late-stage cosmetic decision. By the time enclosure dimensions, processor selection, and board layout are fixed, display options become narrower and more expensive to adapt. The display should be reviewed early with electrical, mechanical, and procurement input aligned.

Another mistake is over-specifying without checking system cost. A very high-brightness IPS module with advanced touch features may sound safe, but if the device is used in controlled indoor conditions, that specification may only raise BOM cost and power demand. The right approach is to specify to the application, not to the maximum possible condition.

A third issue is underestimating integration details. FPC orientation, mounting points, active area versus outline size, backlight power requirements, and cover lens tolerance all affect manufacturability. Minor mismatches in these details can lead to redesign loops even when the display itself is technically functional.

How technical buyers should evaluate suppliers

A strong display supplier should provide more than a datasheet. Technical teams need clear support on interface compatibility, optical options, touch structure, environmental range, and customization feasibility. For procurement teams, consistency, production capacity, export readiness, and communication speed also matter because delays often come from coordination gaps rather than component shortages alone.

It helps to ask practical questions early. Can the supplier support long-term production planning? Are there standard and custom paths available? Can the module be delivered as display only, display plus touch, or a complete bonded assembly? Is there experience across medical, industrial, handheld, or banking applications? These questions reveal whether the supplier can support the product beyond sample approval.

The best sourcing decisions usually come from balancing three things: application fit, engineering efficiency, and supply reliability. A display that is slightly less impressive in a lab comparison may be the better industrial choice if it integrates cleanly, stays available, and scales predictably into mass production.

When you are selecting an industrial TFT LCD display, the goal is not to find the most advanced panel on the market. It is to specify the display that makes the finished device easier to build, easier to support, and more dependable in the field.
