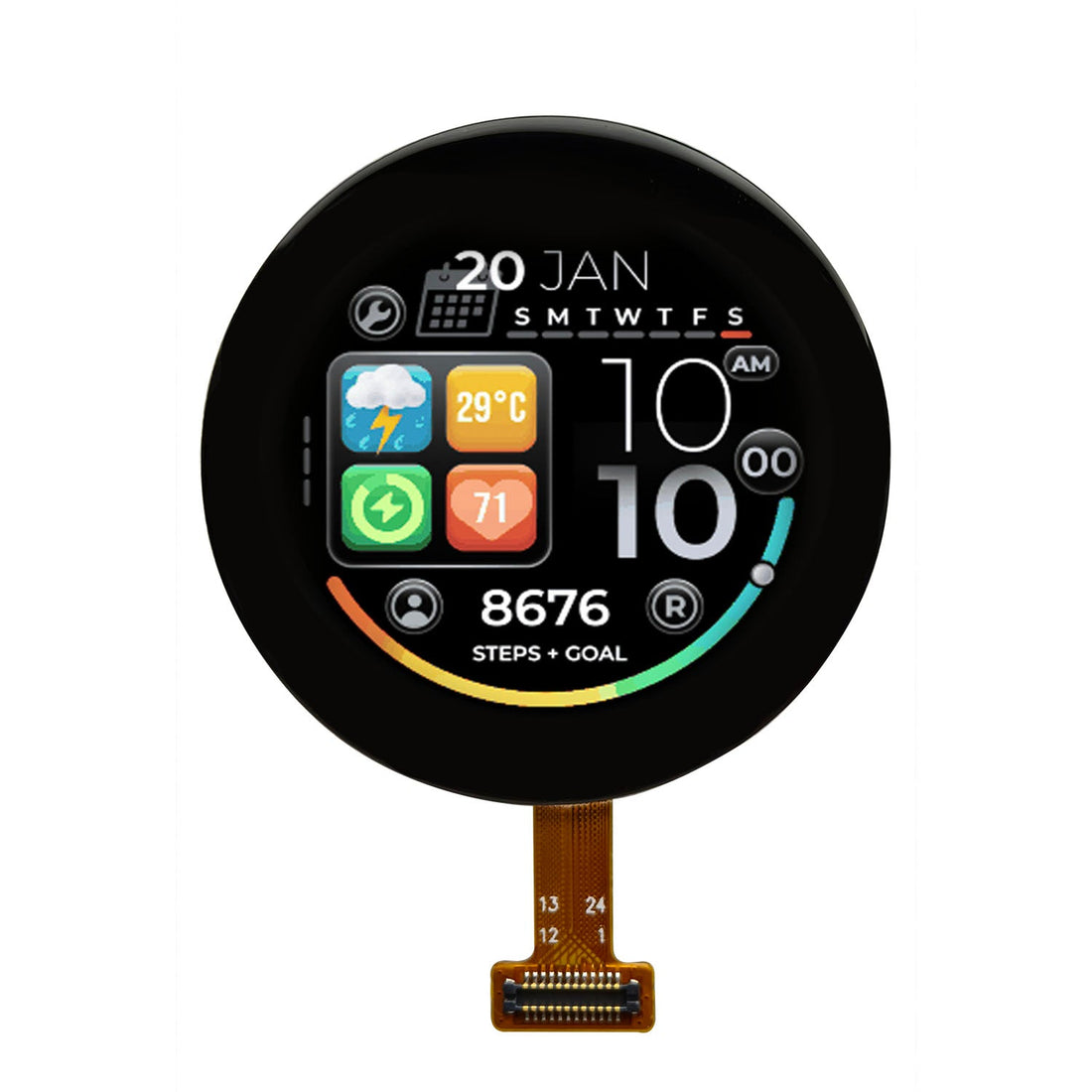

Display Module Reliability Testing Explained

A display that looks perfect on a lab bench can still fail after a few months in the field. That gap is exactly why display module reliability testing matters. For OEM buyers, hardware engineers, and product teams, the real question is not whether a module powers on - it is whether it continues to perform under the temperature swings, vibration, handling, humidity, and operating hours that define the end product.

In practice, reliability testing is not a single pass or a generic checklist. A TFT display in a handheld device, an OLED in a wearable, and an ePaper module in a battery-powered instrument will not face the same risks. The test plan has to match the display technology, the application environment, and the integration structure, including cover lens, touch panel, backlight, connector, adhesive stack, and controller design.

What display module reliability testing is meant to prove

At a commercial level, display module reliability testing reduces launch risk. It helps product teams screen out weak points before tooling, certification, and volume production make changes expensive. At an engineering level, it verifies that the module can maintain visual performance, electrical stability, and mechanical integrity over time.

That sounds straightforward, but reliability has several layers. The panel itself must remain readable and responsive. The backlight must maintain acceptable luminance. The bonding between display, touch, and lens must stay stable. Connectors and flex circuits must tolerate repeated use and environmental stress. If the application includes optical bonding or custom cover glass, those added layers become part of the reliability equation too.

This is why the most useful test data is application-specific. A standard display may pass common environmental tests and still require additional validation once it becomes part of a complete module assembly.

Why failures usually happen at the interfaces

Many field failures are not caused by the raw display cell alone. They appear at the interfaces between parts. Adhesives can weaken under humidity and heat. FPC connections can crack under repeated bending or vibration. Touch performance can drift after ESD exposure. Backlights can lose brightness faster than expected at elevated temperatures.

For integrated modules, especially display plus touch or display plus cover lens structures, the stack-up design matters as much as the panel specification. Thickness tolerance, bezel support, air gap or optical bonding choice, and enclosure pressure can all influence long-term performance. A module that is electrically sound may still fail mechanically if the host device applies stress unevenly.

That is why experienced suppliers look beyond panel data sheets. They evaluate the assembly as a system.

Core tests used in display module reliability testing

The right test matrix depends on the product category, but several methods are common across industrial, medical, consumer, and commercial programs.

High and low temperature testing

Temperature testing checks whether the module starts up, displays correctly, and maintains structural stability across specified ranges. Low temperature can slow response time, alter contrast behavior, or affect start-up. High temperature can accelerate material aging, shift optical performance, and stress polarizers, adhesives, and backlight components.

Static storage tests and powered operation tests both matter. A module may survive storage at an extreme temperature but still show instability when running for extended periods under heat.

Temperature and humidity testing

Humidity is one of the most common reliability threats in display assemblies. It can affect adhesive strength, encourage corrosion, and create optical defects such as haze or delamination. Combined temperature-humidity testing is especially useful because it exposes weaknesses faster than room-condition testing.

For products used outdoors, in kitchens, in industrial sites, or in medical environments with regular cleaning cycles, humidity resistance deserves close attention.

Thermal shock and thermal cycling

Thermal shock and thermal cycling reveal how the module reacts to repeated expansion and contraction. Different materials inside the module expand at different rates. Over time, that can strain bonds, solder joints, flex tails, and laminated layers.

These tests are valuable for equipment that ships globally, operates in unconditioned spaces, or moves between indoor and outdoor environments.

Vibration and mechanical shock

Displays used in handheld terminals, banking devices, industrial controls, and transport-related equipment need more than basic image performance. They must tolerate shipping, installation, and real operating movement. Vibration and drop-related shock testing help identify connector fatigue, loose components, cracked glass, and intermittent electrical contact.

The severity level should reflect actual use. Over-testing can drive unnecessary cost, while under-testing leaves field risk in place.

ESD testing

Electrostatic discharge can damage touch controllers, display driver circuits, and interface lines. ESD testing is especially important for user-facing products and open-access equipment where repeated human contact is expected. Passing an ESD test is not only about survival. It is also about recovery behavior - whether the module resumes normal function immediately or requires reset and recalibration.

Lifetime and burn-in testing

Burn-in and operating life tests help estimate long-term stability. They are commonly used to monitor luminance decay, color shift, dead pixel growth, image retention risk, and electrical drift. For TFT modules, backlight life is often a key concern. For OLED modules, differential aging and brightness retention may require closer review. For ePaper, update behavior and image stability over repeated cycles can be more relevant than continuous illumination life.

This is where application priorities matter. A medical device may care most about stable readability over years. A consumer device may focus more on warranty-period performance and production consistency.

Reliability standards are useful, but they are not enough by themselves

Many buyers ask whether a module complies with common environmental or mechanical standards. That is a reasonable starting point, but standard compliance alone does not guarantee field reliability in a finished product.

A display in a sealed indoor control panel has a different stress profile from a display in a sunlit portable device. Brightness targets, duty cycle, cleaning agents, touch usage, mounting pressure, and enclosure ventilation all change the result. Even cable routing inside the product can influence long-term stress on the FPC.

The better approach is to combine standard reliability testing with application review. That means defining real operating temperature, expected service life, storage conditions, user interaction frequency, and transportation risk before finalizing the test plan.

How to evaluate reliability data from a supplier

For sourcing teams, the challenge is often not the absence of data but the quality of it. A useful reliability report should show test conditions, sample size, pass criteria, failure criteria, and whether the data applies to the raw display or the complete module assembly.

It is worth asking a few direct questions. Was the test performed on a standard sample or a custom stack-up? Were touch and cover lens included? Were failures cosmetic, electrical, or functional? Was the test one-time qualification only, or is it tied to ongoing process control?

This level of detail matters because two modules can share the same diagonal size and interface but have very different reliability outcomes due to material selection and assembly process.

Reliability testing during customization

Customization creates opportunity, but it also introduces new variables. A higher-brightness backlight increases thermal load. A thicker cover lens changes impact behavior and touch sensitivity. Optical bonding improves readability and structural feel, but it places more importance on adhesive process control. A unique FPC routing can solve packaging constraints while increasing mechanical stress during assembly.

That does not mean custom modules are riskier by default. It means reliability validation has to follow the actual design. For OEM and ODM projects, this is where supplier engineering support becomes valuable. Design review, sample build verification, and pre-mass-production reliability checks reduce the chance of late-stage surprises.

At Shineworld Innovations Limited, this kind of work typically sits between standard product selection and full production release. It helps align module design, application conditions, and manufacturing controls before volume ramps.

What buyers should prioritize early

The best time to think about reliability is before the display is locked into the mechanical design. If the display is treated as a last-stage component choice, teams often lose room to improve thermal management, mounting support, sealing strategy, or connector protection.

Early alignment should cover the operating environment, expected lifetime, brightness requirement, touch usage pattern, and any compliance constraints tied to the end device. That gives both the buyer and the supplier a clearer basis for selecting the right module architecture and the right reliability testing scope.

Price still matters, of course. Lead time matters too. But when a display failure can trigger service calls, returns, or reputational damage, reliability should not be treated as a soft specification. It is part of total product cost.

A good display module does more than meet its drawing. It keeps meeting it after shipping, installation, and daily use - which is exactly what reliability testing is there to prove.
