1.04-inch 600nits 340x340 Full Colors Circular AMOLED Displays, B2B Connector FPC

1.04-inch 600nits 340x340 Full Colors Circular AMOLED Displays, B2B Connector FPC

Model No.
  • GLO104-D-M2001
Resolution
Diagonal Size
Color

Please check stock availability with the seller before buying samples

Sample Price:
$7.99 USD
$7.99 USD
Sale Sold out
Send Inquiry View full details

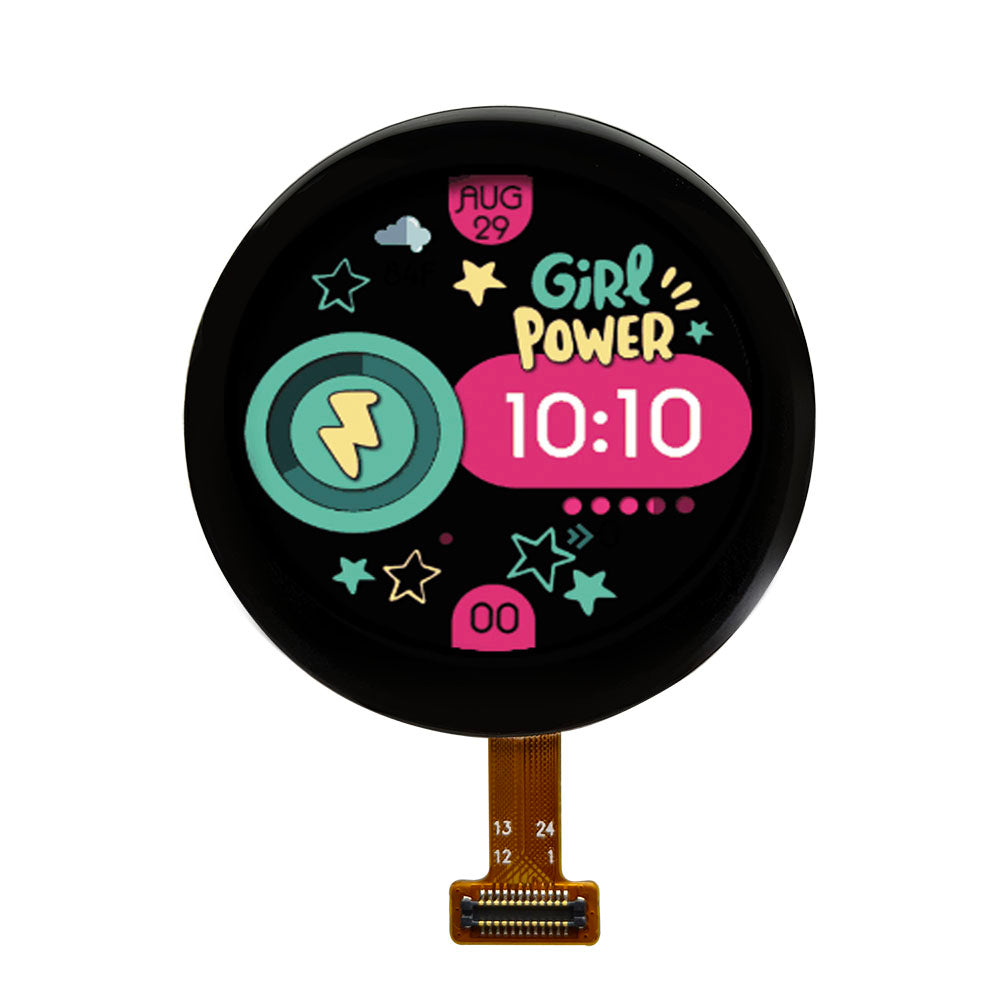

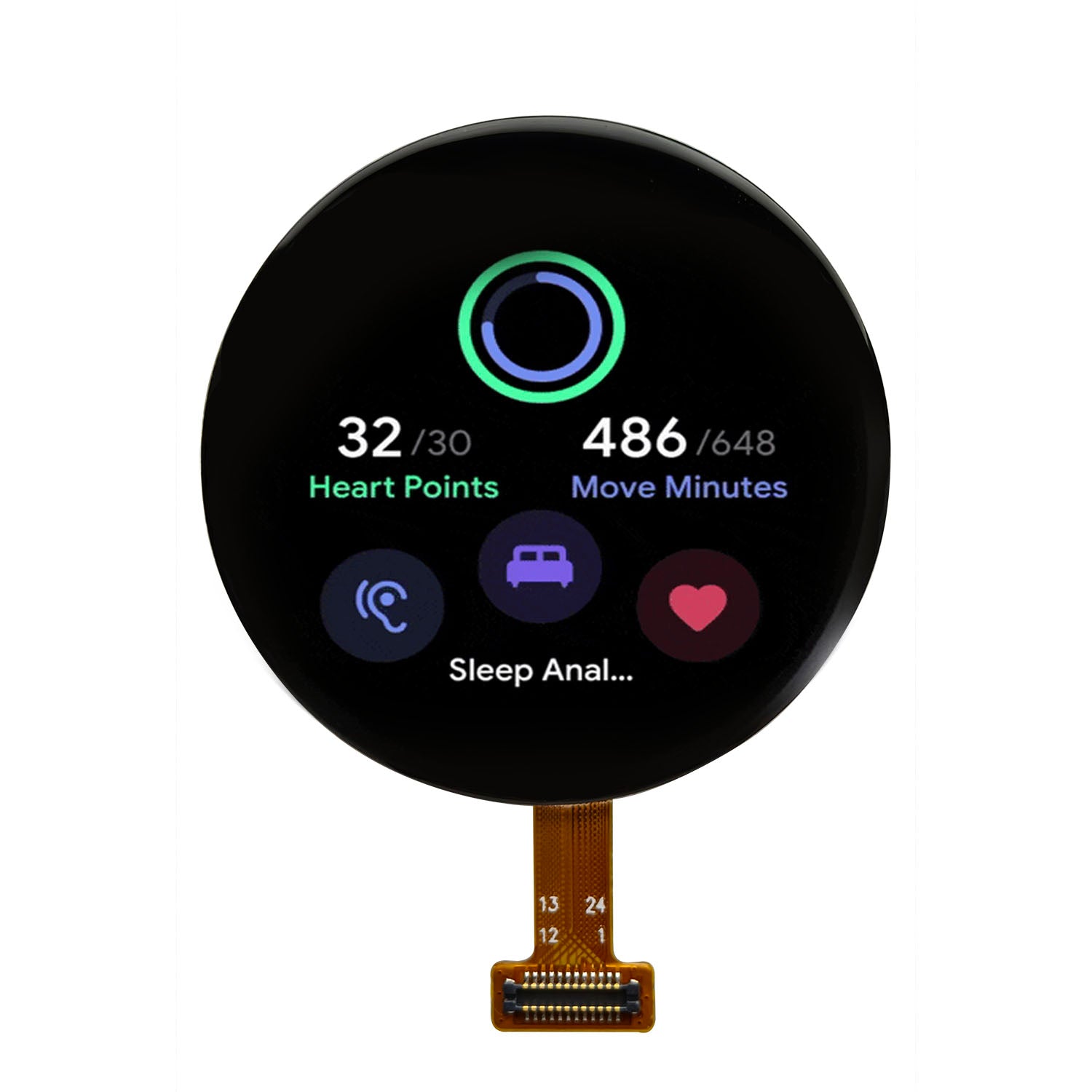

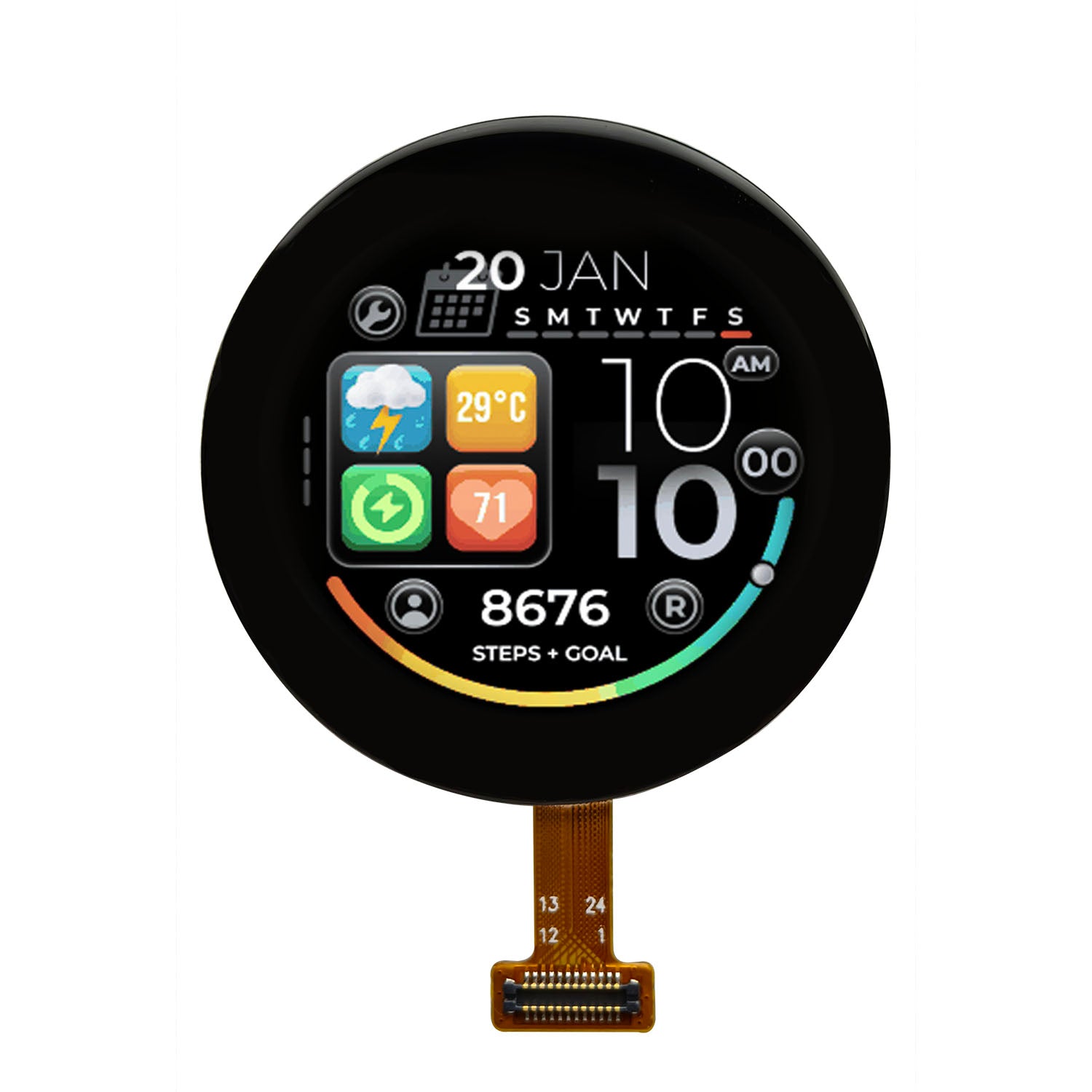

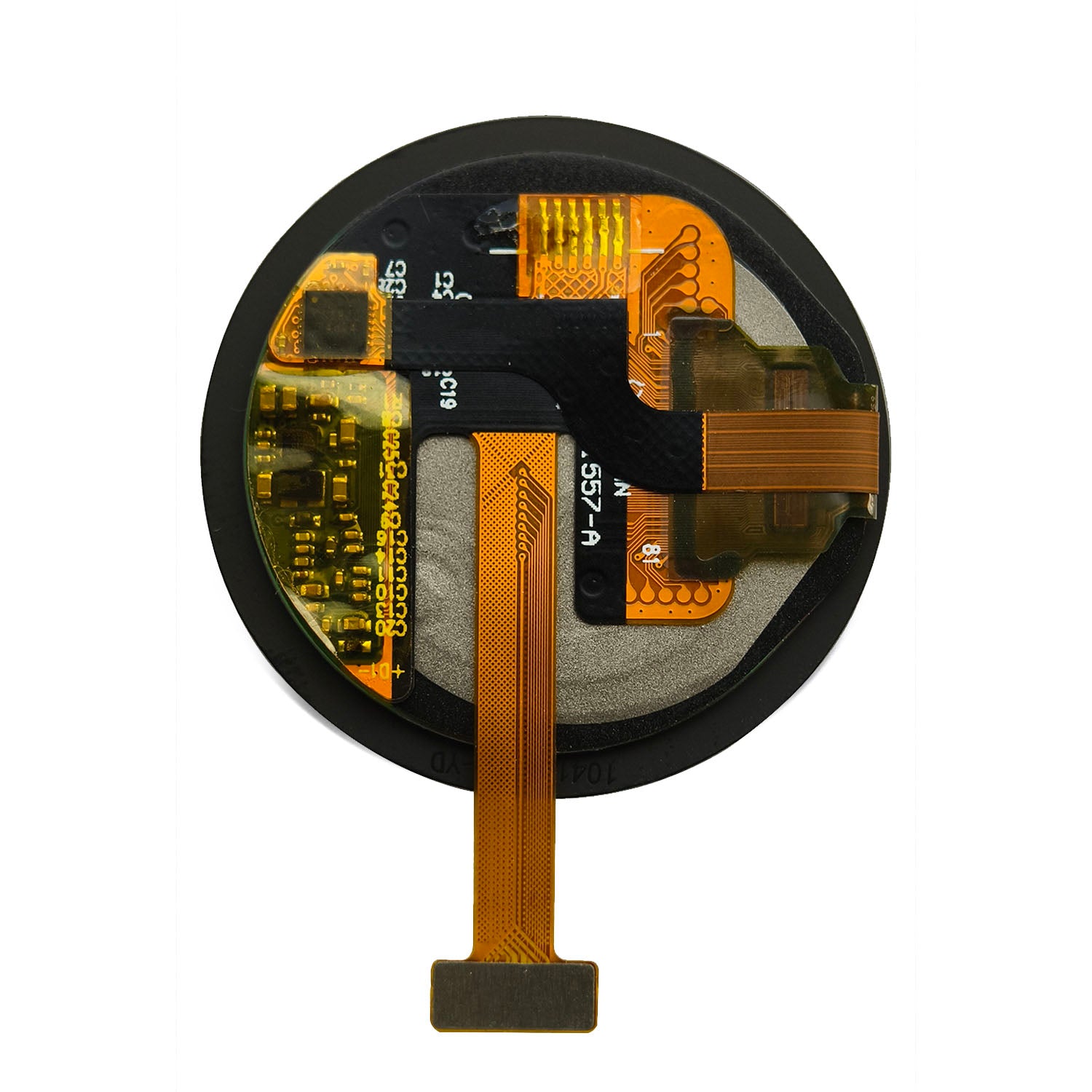

The GLO104-D-M2001 is a high-quality 1.04-inch color graphic Active Matrix OLED (AMOLED) display module manufactured by Shineworld Innovations Limited (SWI or SWICN). It offers exceptional display performance with its 340x340 RGB pixels on a black background and a typical brightness of 600cd/m2. The module incorporates the CO5300 controller IC and CST820 Tocuh IC and communicates through a QSPI interface.​​

Key Features:​

* Self-emitting OLED Technology: The GLO104-D-M2001 eliminates the need for a backlight, resulting in reduced power consumption, exceptional contrast, and an extremely wide viewing angle. It ensures reliable performance even under extreme temperature conditions.

​* FPC-Connector Type: The module's 24-pin Flexible Printed Circuit (FPC) is designed with a Board to Board (B2B) connector, allowing for effortless and direct connection to the B2B connector on your PCB. This simplifies the integration process and ensures a secure and reliable connection.​

*Touch Screen Integration: The display module features an on-cell touch screen design.

​* Cover Lens Incorporation: SWICN has incorporated cover lenses into this display and can provide customizations based on specific requirements.

​* Wide Compatibility: This module is compatible with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This compatibility makes it suitable for integration into various applications, such as embedded systems, industrial devices, wearables (smart watch), MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.​​​

Customization Options:​SWI offers customization options for the display modules, allowing customers to tailor the solution to their specific requirements​and preferences. These customization options include:​* FPC Customization: Customers can request modifications to the Flexible Printed Circuit according to their needs.​* Driver Board Customization: SWI provides the option to customize the driver boards based on customer requirements.​* Cover Lens Incorporation: SWICN has incorporated cover lenses into this display and can provide customizations based on specific requirements.​​

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 AMOLED -
2 Diagonal Size 尺寸 1.04 Inch
3 Resolution 分辨率 340(H) x 340(V) Dots
4 Active Area 有效显示区域 Φ26.35 mm
5 Outline Dimension 外围尺寸 Φ33.40 mm
6 Thickness 厚度 2.34 ±0.2 mm
7 Pixel Pitch 像素间距 0.0775(W) x 0.0775(H) mm
8 Pixel Size 像素尺寸 0.0775(W) x 0.0775(H) mm
9 Display Driver IC 显示驱动 IC C05300 -
10 Touch Driver IC 触控驱动IC CST820 -
11 Display Color 显示色彩 16.7M Color
12 Gray Scale 灰阶 8 bit
13 Brightness 亮度 600 (Typ.) cd/m2
14 Contrast Ratio 对比度 100000:1 (Min) -
15 Interface 接口 QSPI -
16 IC Package Type IC 封装类型 COF -
17 Module Connecting Type 模块连接方式 B2B Connector (OK-14RM024-04) -
18 Weight 重量 TBD±10% g
19 Duty 占空比 / -
20 Pins 引脚数 24 Pins
21 Operating Temperature 操作温度 -10~60 ℃
22 Storage Temperature 存储温度 -20~70 ℃

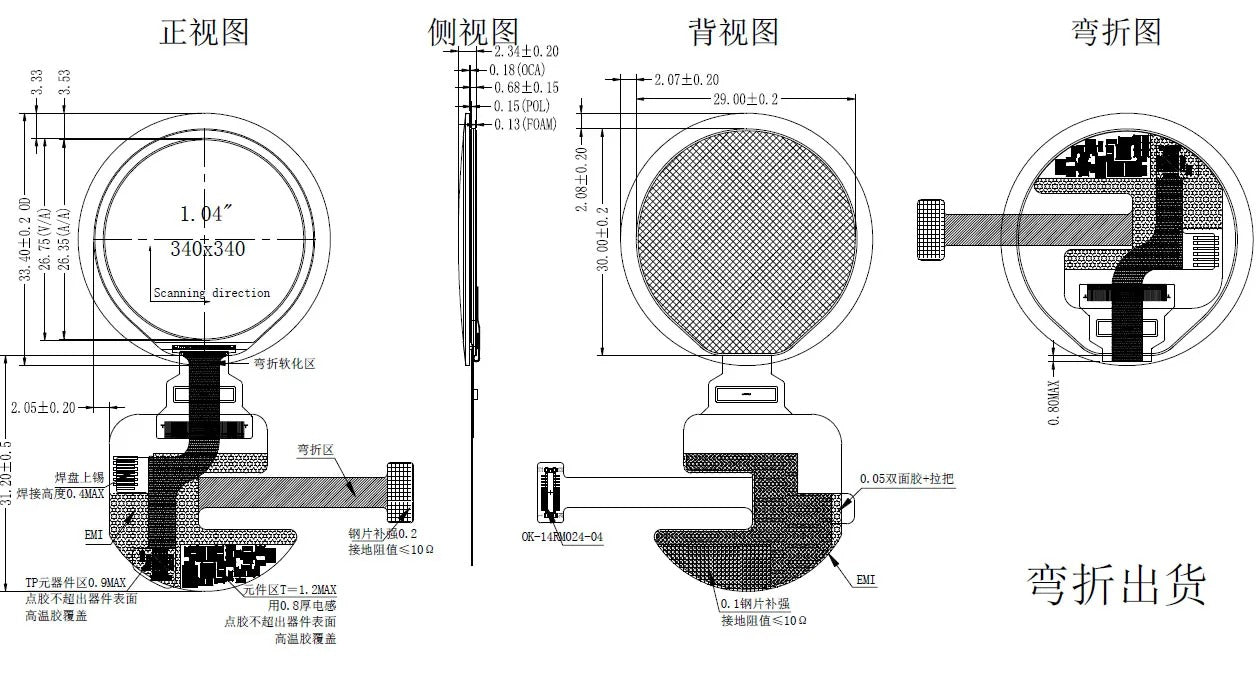

Drawings​
