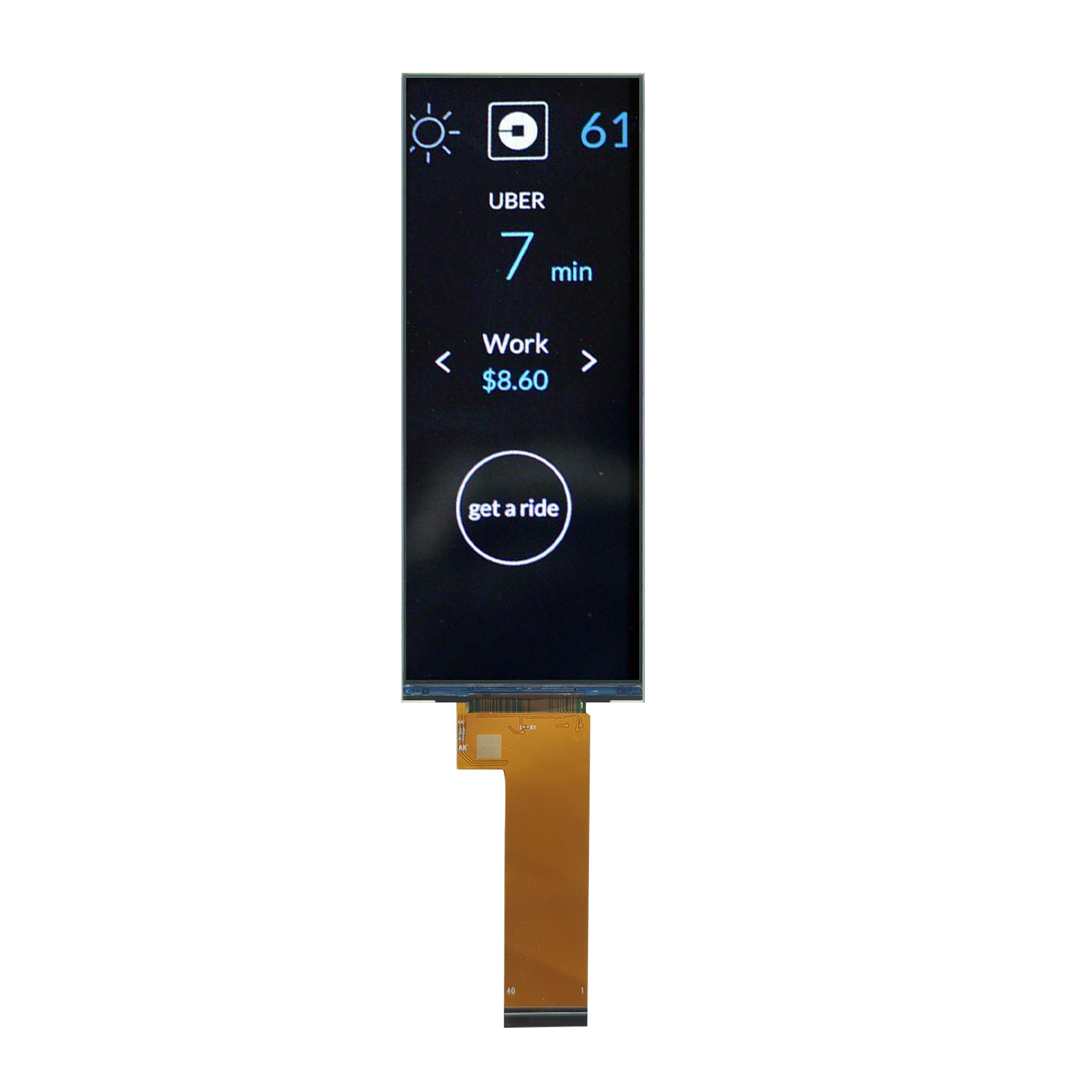

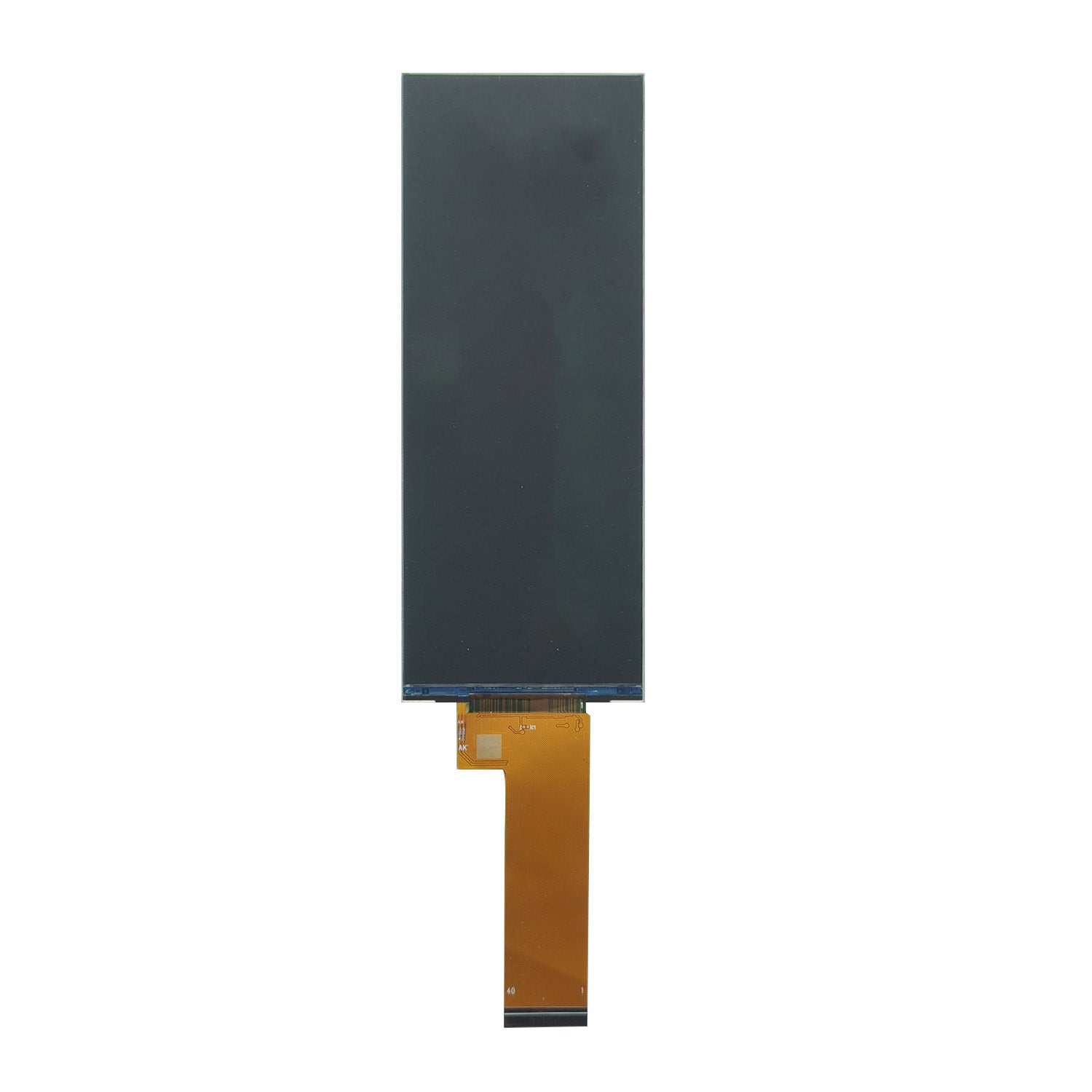

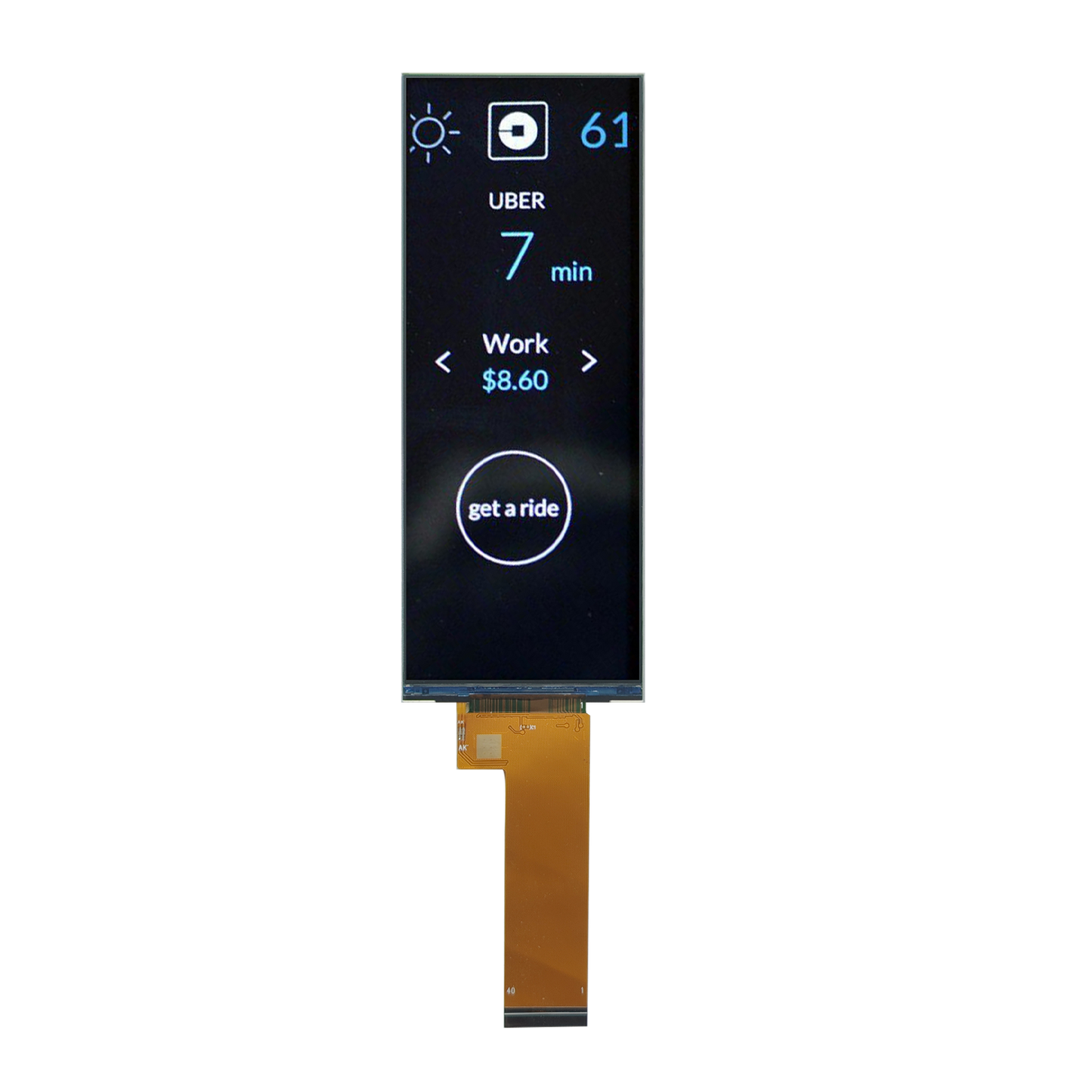

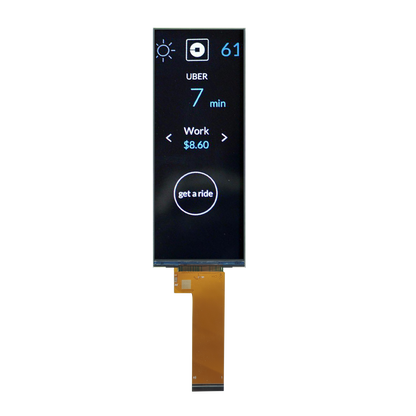

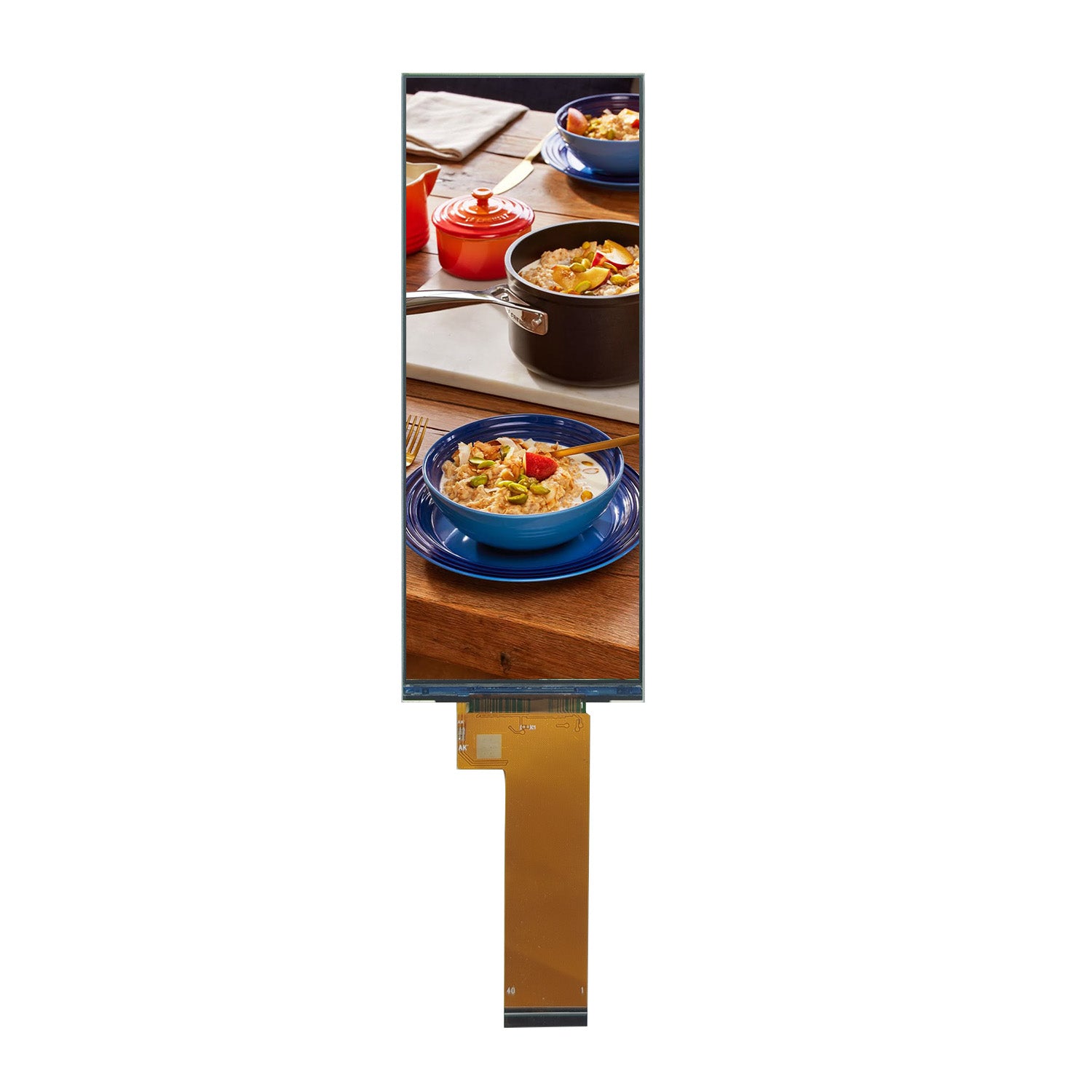

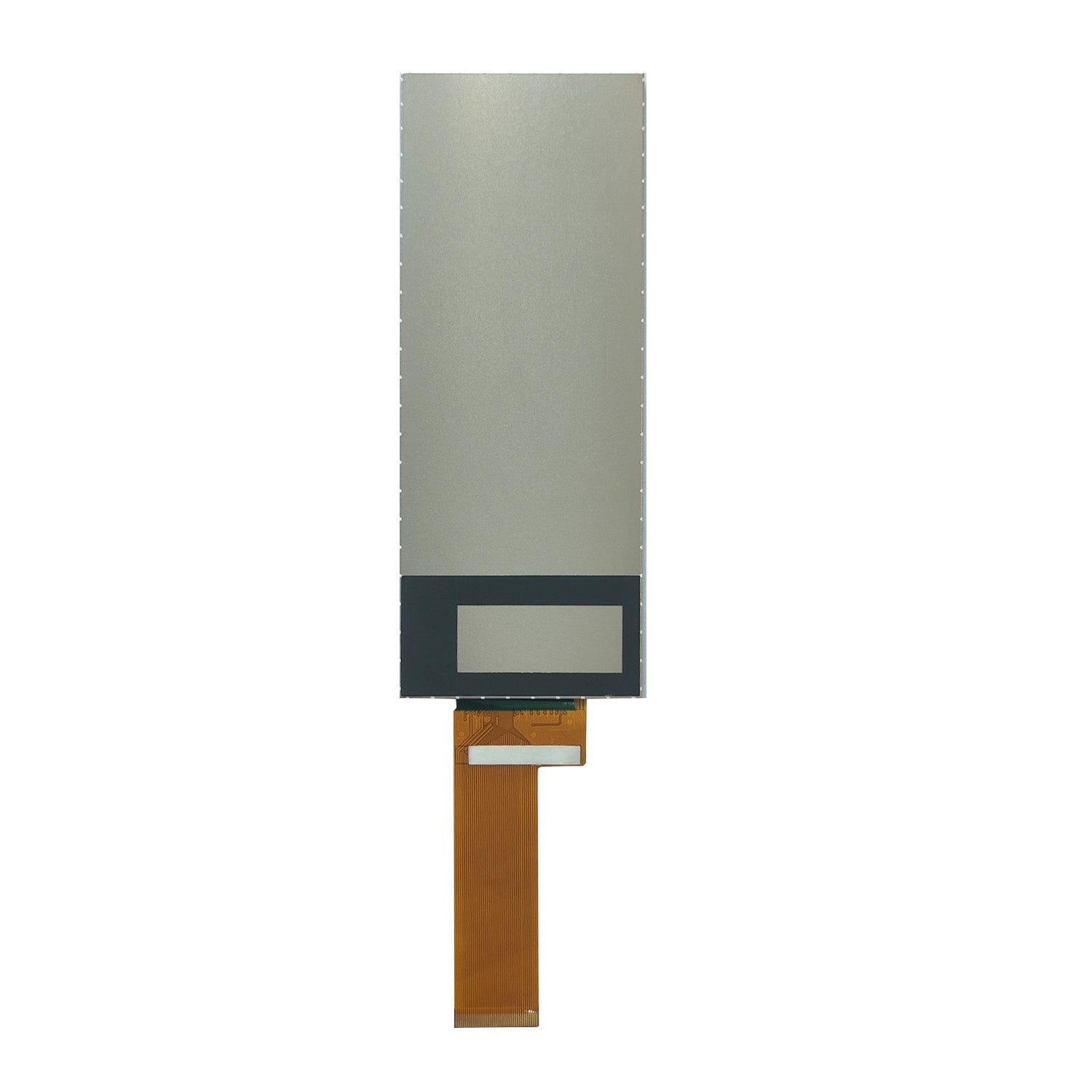

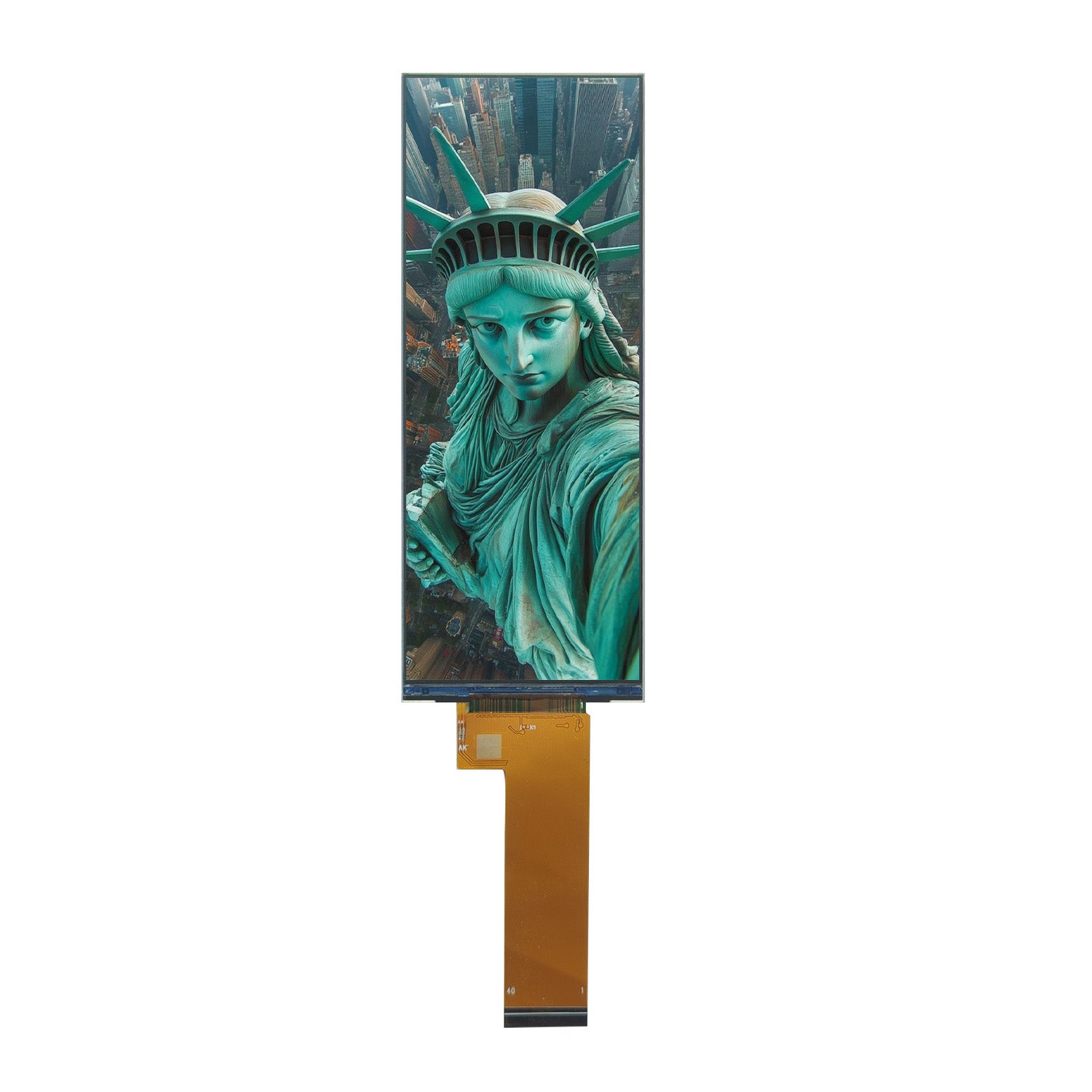

6.2-inch Bar Type TFT LCD Module 360x960 RGB Interface Display ST7701S Connector IPS LCD Screen

6.2-inch Bar Type TFT LCD Module 360x960 RGB Interface Display ST7701S Connector IPS LCD Screen

Model No.
  • S62TFT360960
Resolution
Diagonal Size
Color

Please check stock availability with the seller before buying samples

Sample Price:
$26.00 USD
$26.00 USD
Sale Sold out
Send Inquiry View full details

The S62TFT360960 is a compact module that boasts a 6.2-inch IPS TFT LCD screen. Developed by SWICN, this module delivers a visually pleasing experience with its 360(RGB) x 960 pixel resolution against a black backdrop. With a typical brightness of 420cd/m2, it ensures clear visibility even in various lighting conditions. Equipped with the ST7701S driver IC and supporting a SPI+24 Bit RGB interface, this module guarantees reliable and consistent performance.

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 TFT -
2 Diagonal Size 尺寸 6.2 Inch
3 Resolution 分辨率 360(RGB) x 960 Dots
4 Active Area 有效显示区域 55.3(H) x 147.46(V) mm
5 Outline Dimension 外围尺寸 58.20(H) x 155(V) mm
6 Thickness 厚度 2.27±0.2 mm
7 Pixel Pitch 像素间距 0.1536(H) x 0.1536(V) mm
8 Pixel Size 像素尺寸 0.1536(H) x 0.1536(V) mm
9 Display Driver IC 显示驱动 IC ST7701S -
10 Touch Driver IC 触控驱动IC No Touch -
11 Display Color 显示色彩 16.7M Color
12 Gray Scale 灰阶 8 bit
13 Brightness 亮度 420(min) cd/m2
14 Contrast Ratio 对比度 1000:1(Typ.） -
15 Interface 接口 SPI+24 Bit RGB -
16 IC Package Type IC 封装类型 COG -
17 Module Connecting Type 模块连接方式 ZIP Connector（Pitch:0.5mm） -
18 Weight 重量 TBD g
19 Viewing Direction 视角方向 All View O'Clock
20 Pins 引脚数 45 Pins
21 Operating Temperature 操作温度 -20~70 ℃
22 Storage Temperature 存储温度 -30~80 ℃

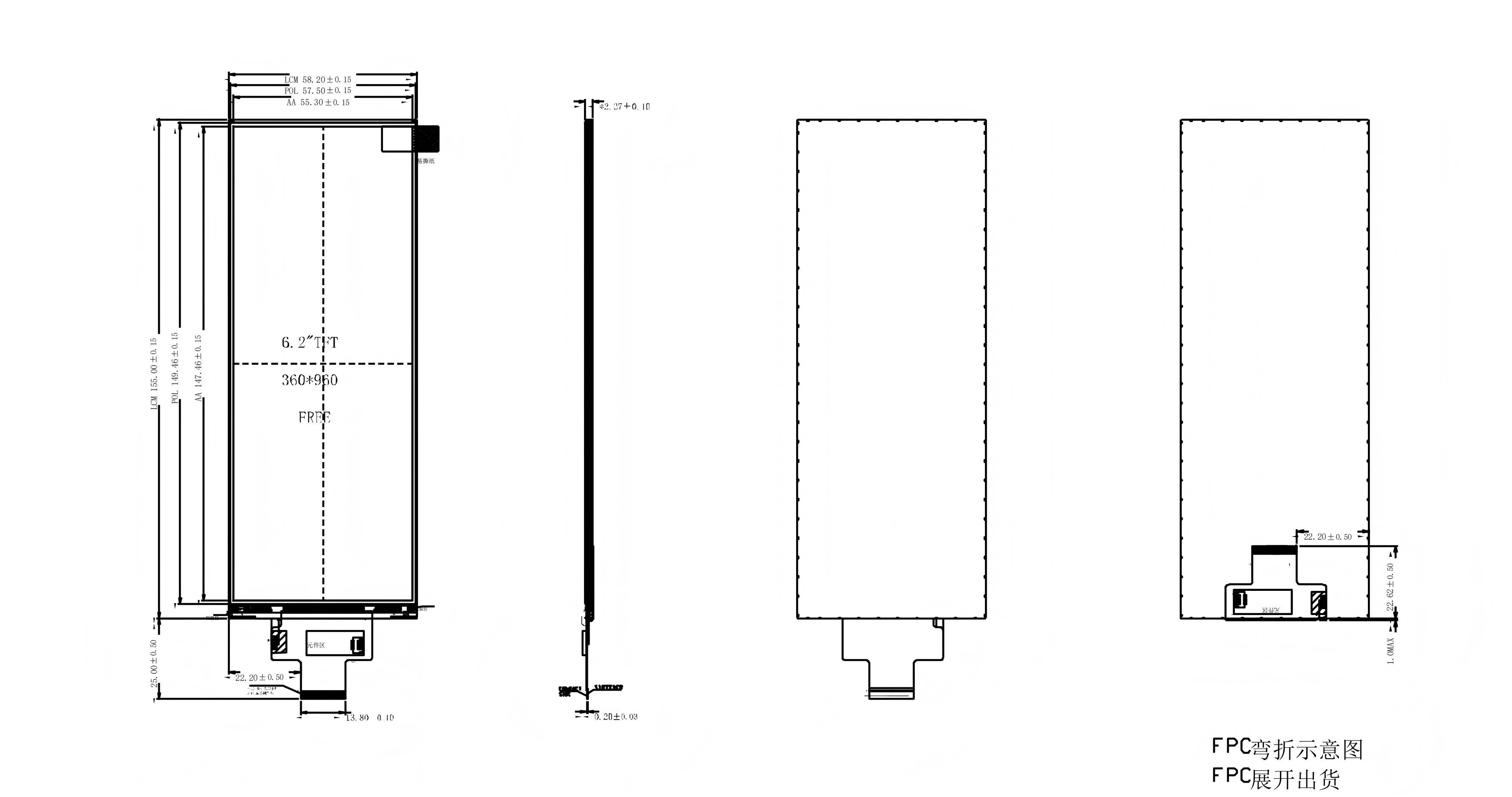

Drawings​
