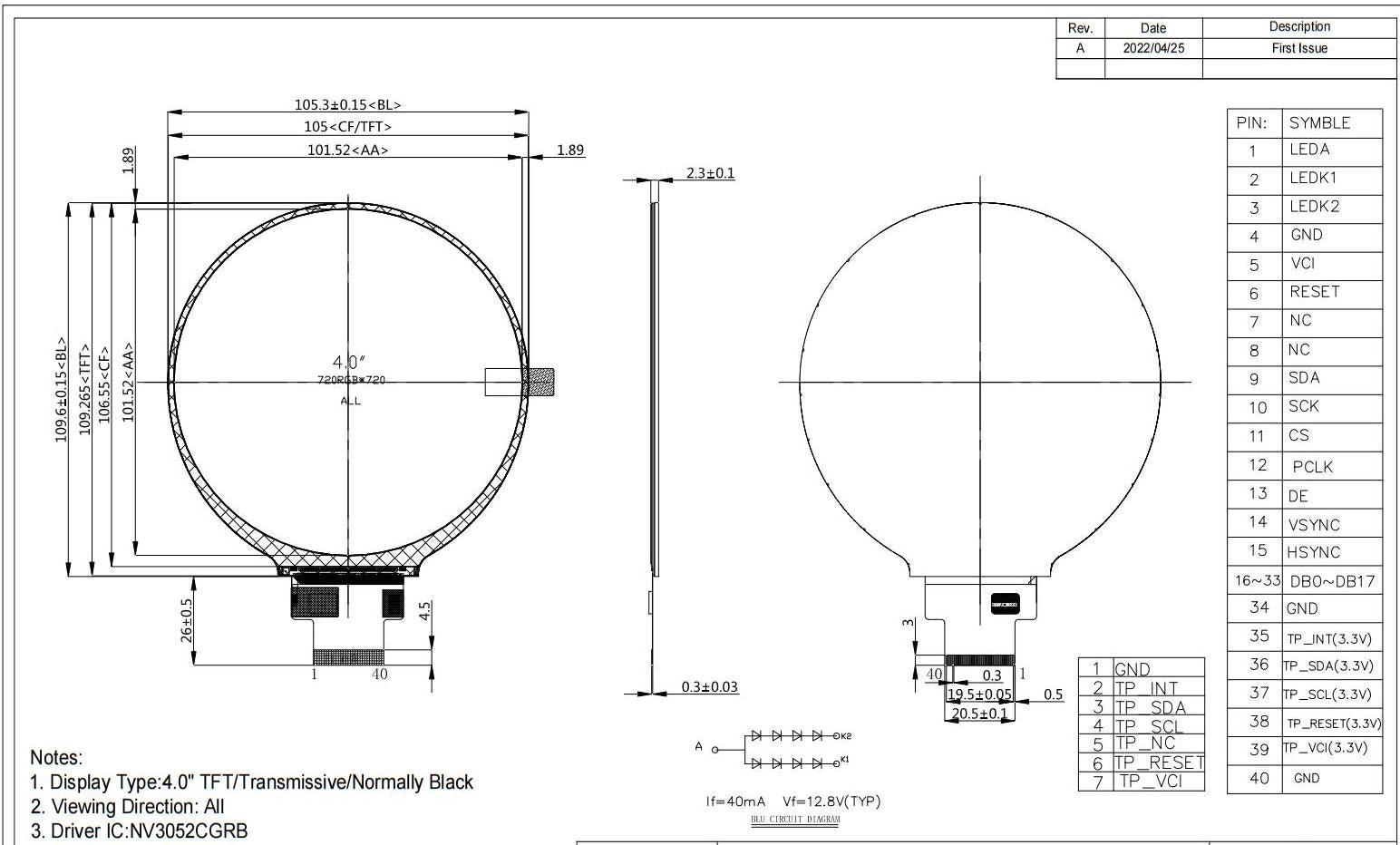

| NO. | ITEM | SPECIFICATIONS | UNIT |
| 1 | Display Mode 显示模式 | TFT | - |
| 2 | Diagonal Size 尺寸 | 4.0 | Inch |
| 3 | Resolution 分辨率 | 720(RGB)x720 | Dots |
| 4 | Active Area 有效显示区域 | 101.52(H)×101.52(V) | mm |
| 5 | Outline Dimension 外围尺寸 | 105.3(H)×109.6(V) | mm |
| 6 | Thickness 厚度 | 2.3±0.1 | mm |
| 7 | Pixel Pitch 像素间距 | 0.047(W)×0.141(H) | mm |
| 8 | Pixel Size 像素尺寸 | 0.047(W)×0.141(H) | mm |
| 9 | Display Driver IC 显示驱动 IC | NV3052CGRB | - |
| 10 | Touch Driver IC 触控驱动IC | No Touch | - |
| 11 | Display Color 显示色彩 | 262K | Color |
| 12 | Gray Scale 灰阶 | 8 | bit |
| 13 | Brightness 亮度 | 450（Typ.） | cd/m2 |
| 14 | Contrast Ratio 对比度 | 1200:1(Typ.） | - |
| 15 | Interface 接口 | 3 Line SPI+18 Bit RGB | - |
| 16 | IC Package Type IC 封装类型 | COG | - |
| 17 | Module Connecting Type 模块连接方式 | ZIF Connector（Pitch:0.5mm,40 PIN) | - |
| 18 | Weight 重量 | TBD±10% | g |
| 19 | Viewing Direction 视角方向 | All View | O'Clock |
| 20 | Pins 引脚数 | 40 | Pins |
| 21 | Operating Temperature 操作温度 | -20~70 | ℃ |
| 22 | Storage Temperature 存储温度 | -30~80 | ℃ |
