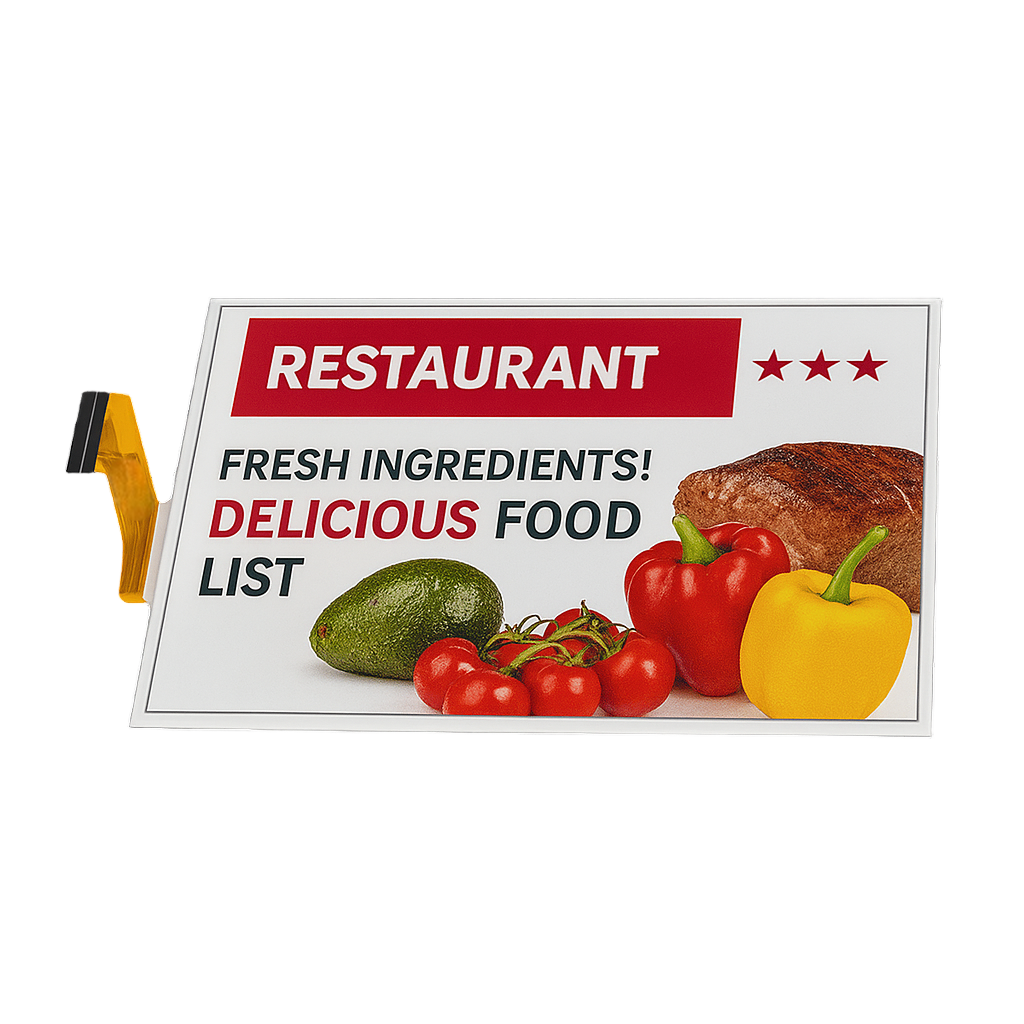

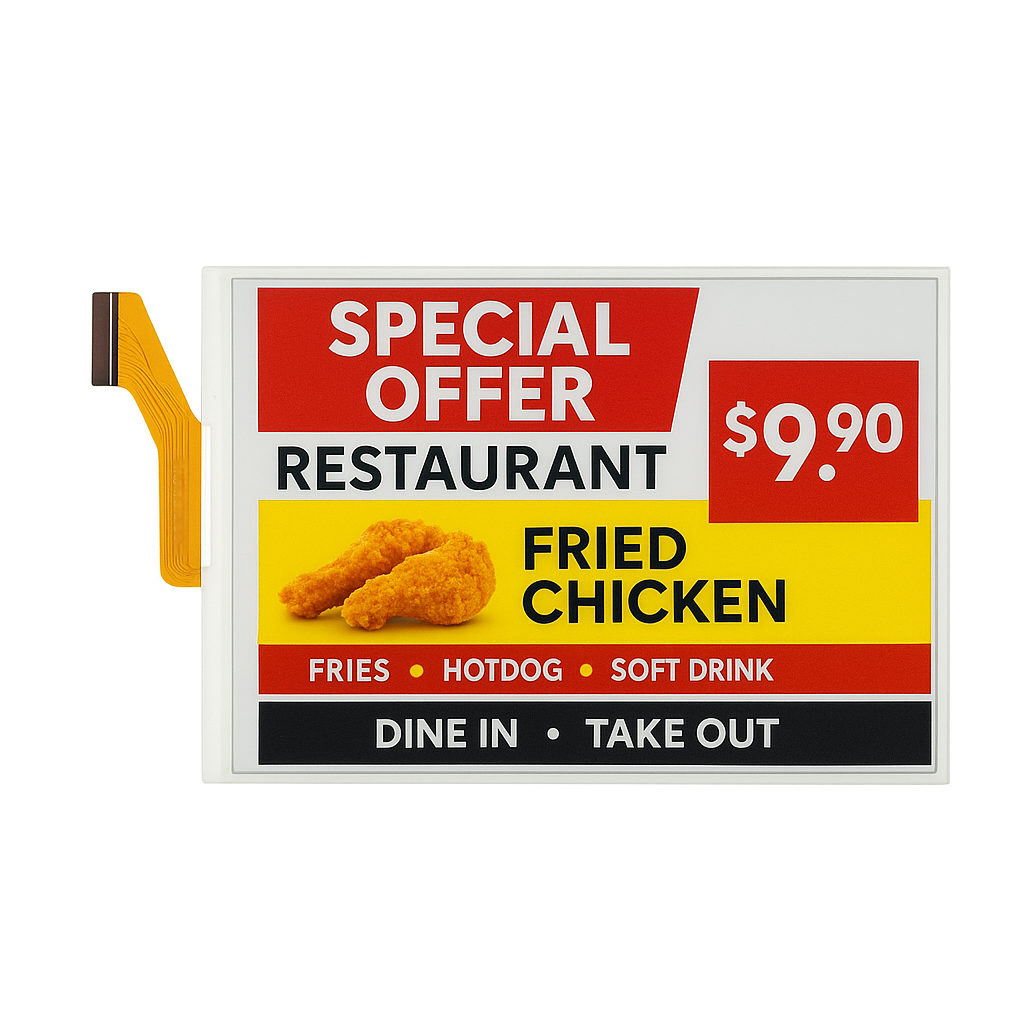

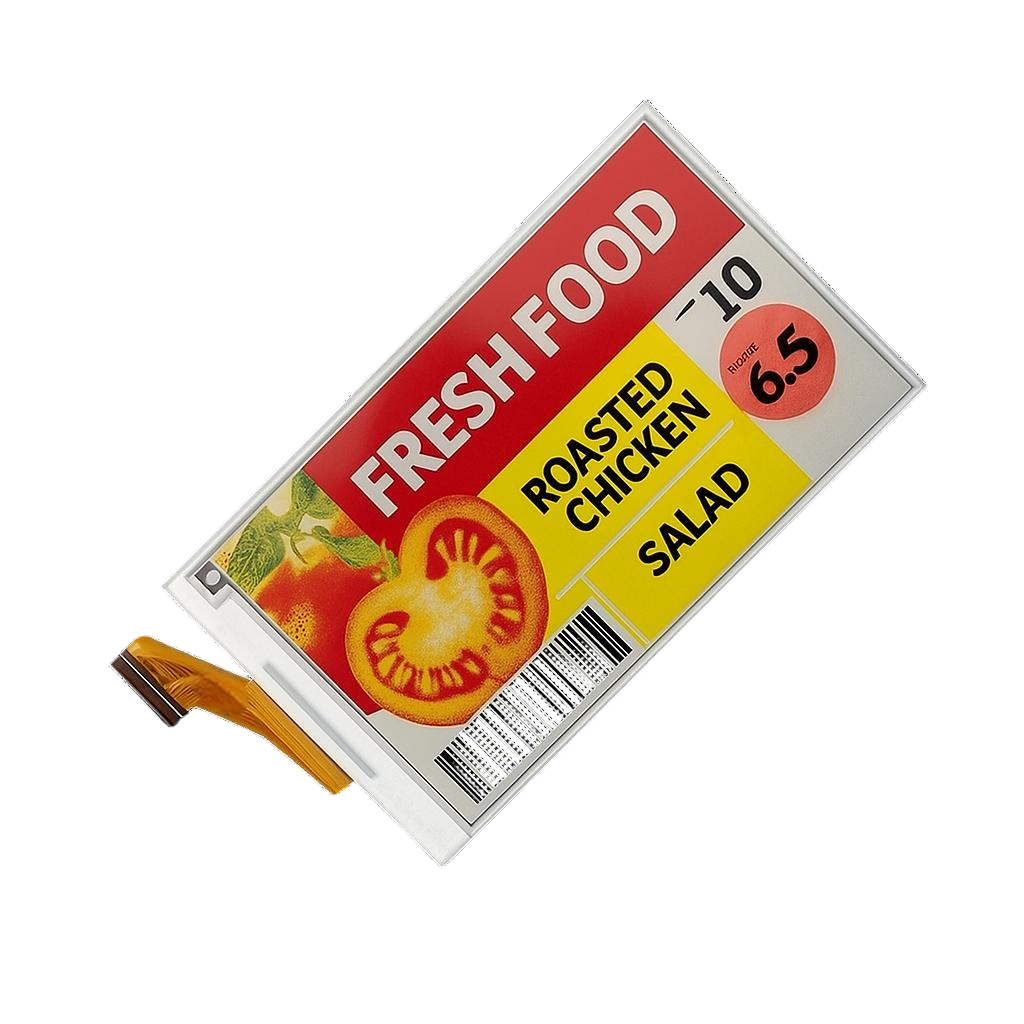

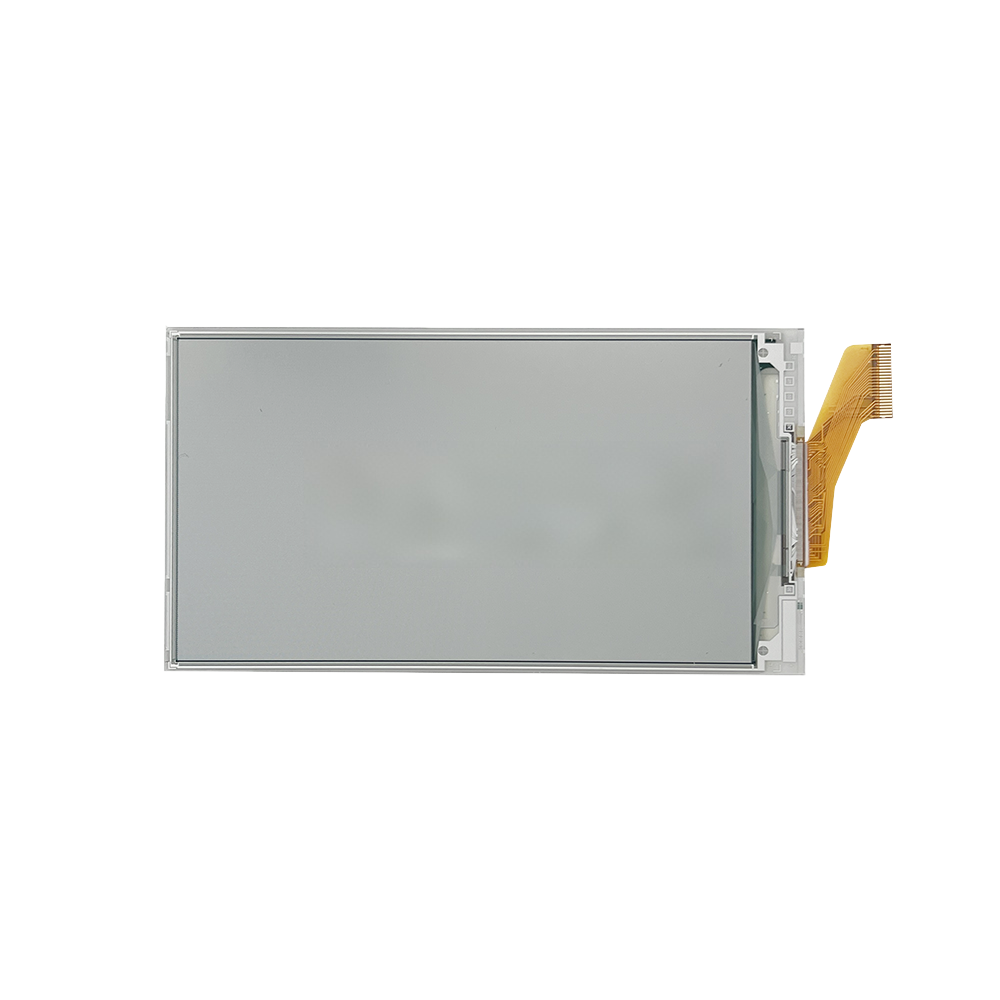

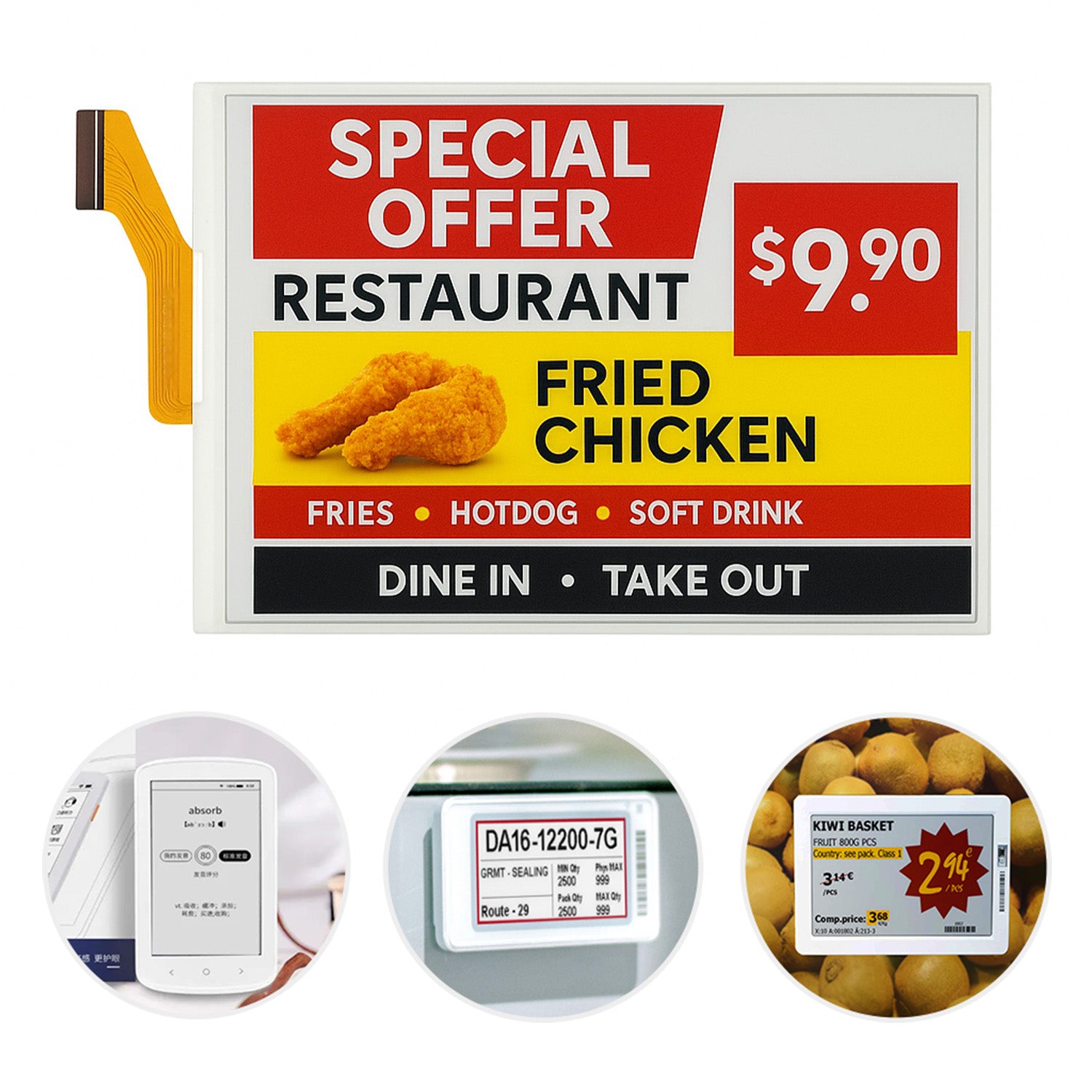

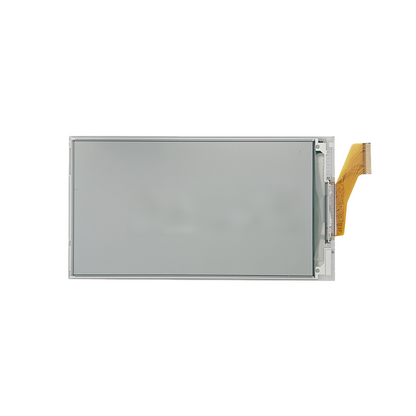

3.97-inch 4-Color E-Ink Display Module 800x480 ESP32 Controller Full Refresh E-Paper Screen EPD for IoT Devices

3.97-inch 4-Color E-Ink Display Module 800x480 ESP32 Controller Full Refresh E-Paper Screen EPD for IoT Devices

Model No.
  • SG0397RYS677F5
Resolution
Diagonal size
Color

Please check stock availability with the seller before buying samples

Sample Price:
Regular price $16.90 USD
Regular price Sale price $16.90 USD
Sale Sold out
Send Inquiry View full details

The SG0397RYS677F5 by SWICN is a specific 3.97-inch electronic paper (E-paper) or E-ink display module. It stands out with its triple colors of White/Black/Yellow and a resolution of 480(V)x800(H) pixels. The module incorporates the SSD2677 controller IC and can be easily connected to controller boards like Raspberry Pi, Arduino, Nucleo, and others through the SPI interface.

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 EPD -
2 Diagonal Size 尺寸 3.97 Inch
3 Resolution 分辨率 480(H)x800(V) Dots
4 Active Area 有效显示区域 51.84(H) x 86.40(V) mm
5 Outline Dimension 外围尺寸 56.24(H) x 96.62(V) mm

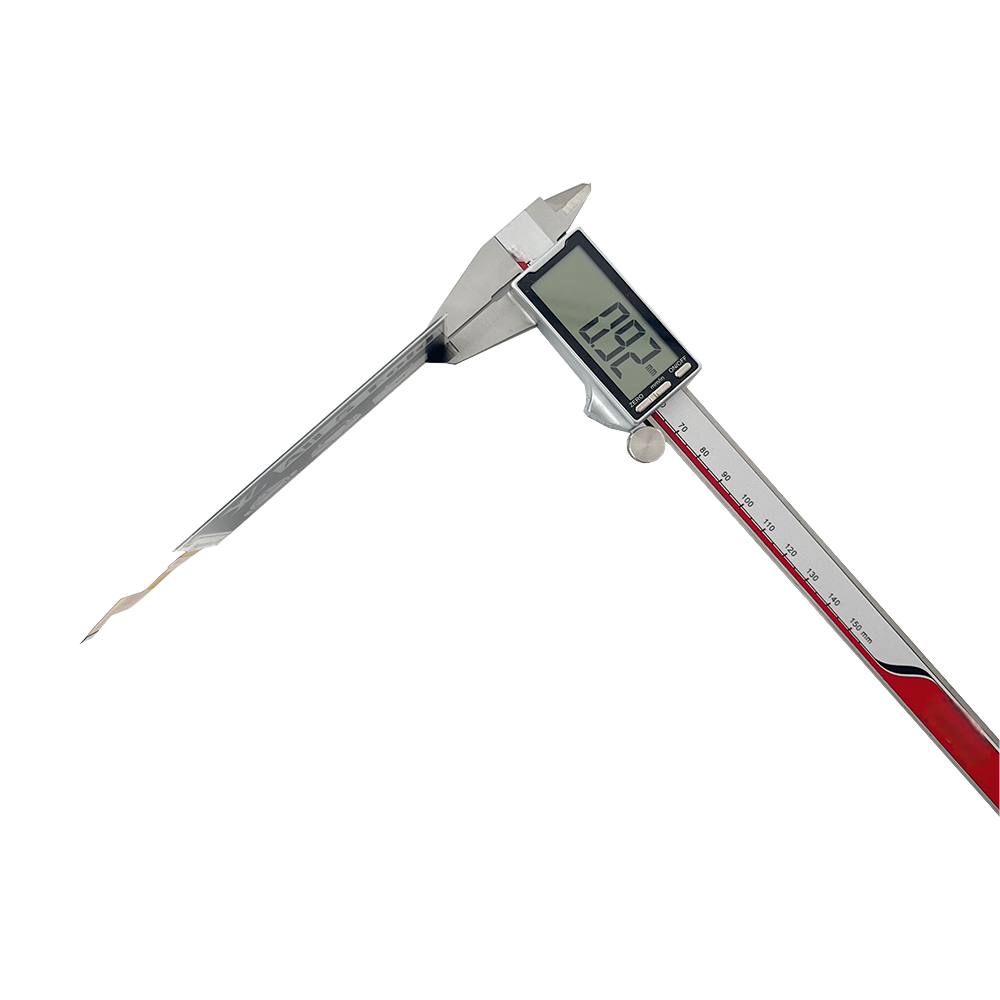

6 Thickness 厚度 1.0±0.1 mm
7 Pixel Pitch 像素间距 0.108(W) x 0.108(H) mm
8 Pixel Size 像素尺寸 0.108(W) x 0.108(H) mm
9 Display Driver IC 显示驱动 IC SSD2677 -
10 Touch Driver IC 触控驱动IC No Touch -
11 Display Color 显示色彩 Black/White/Red/Yellow Color
12 Gray Scale 灰阶 1 bit
13 Brightness 亮度 cd/m2
14 Contrast Ratio 对比度 -
15 Interface 接口 3-wire SPI/4-wire SPI -
16 IC Package Type IC 封装类型 COG -
17 Module Connecting Type 模块连接方式 Connector (Pitch:0.5mm) -
18 Weight 重量 10.05±0.5 g
19 Duty 占空比 -
20 Pins 引脚数 24 Pins
21 Operating Temperature 操作温度 0~40
22 Storage Temperature 存储温度 -25~70

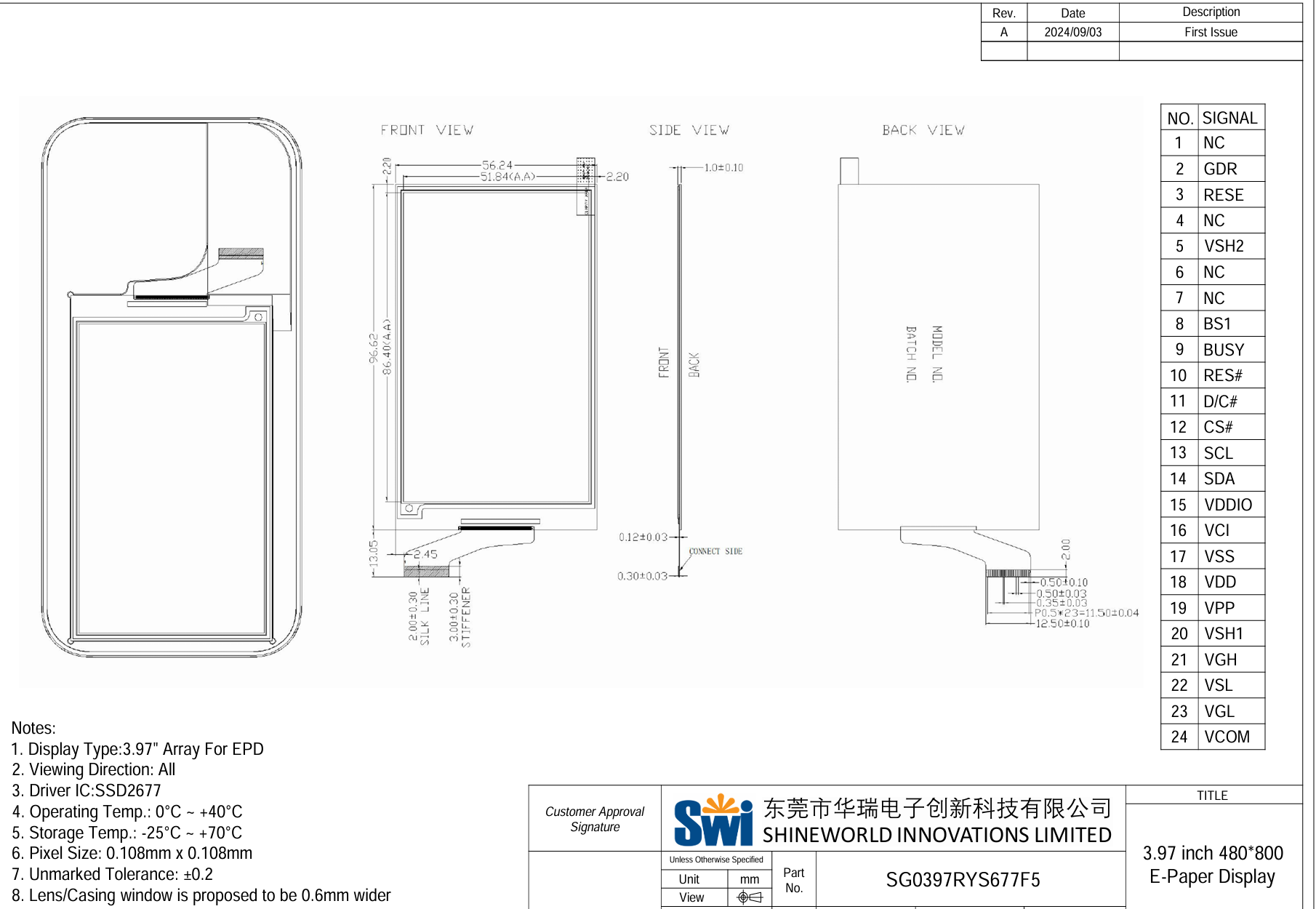

Drawings​
