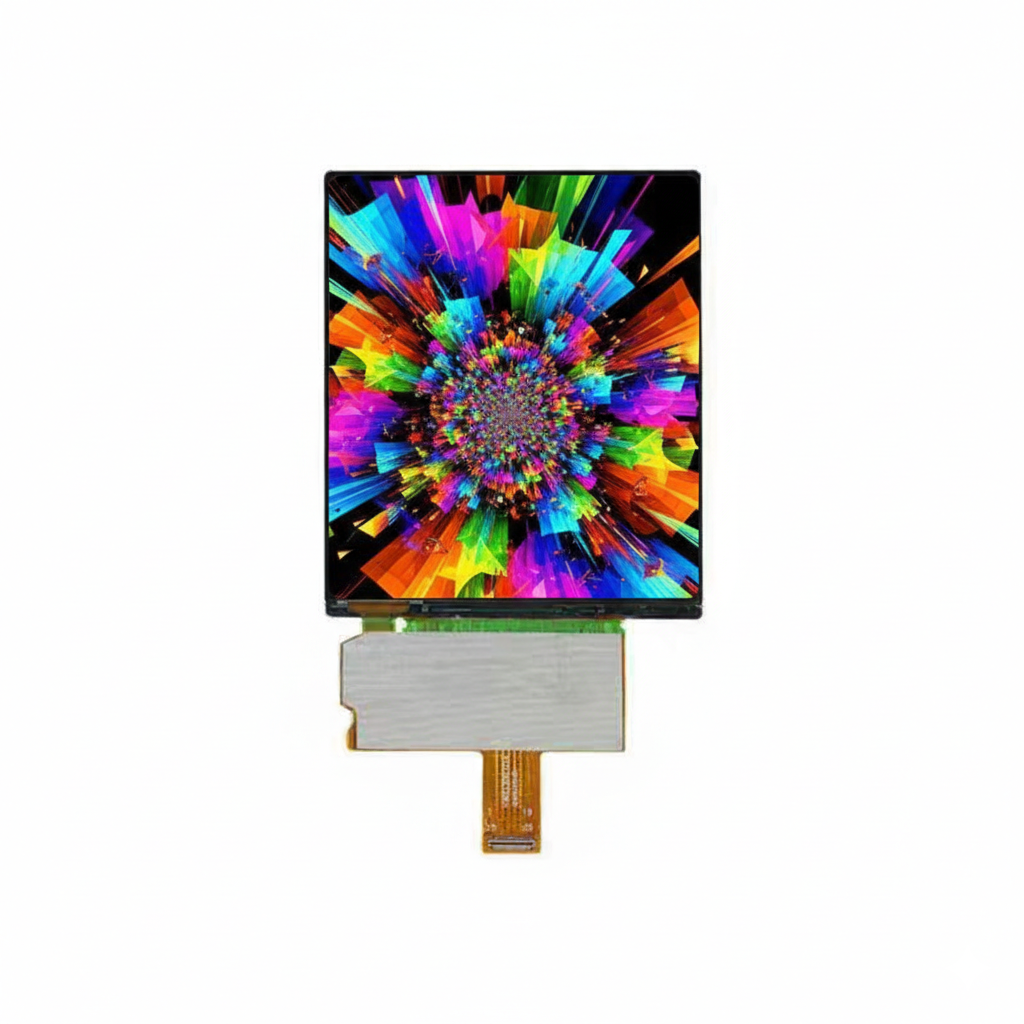

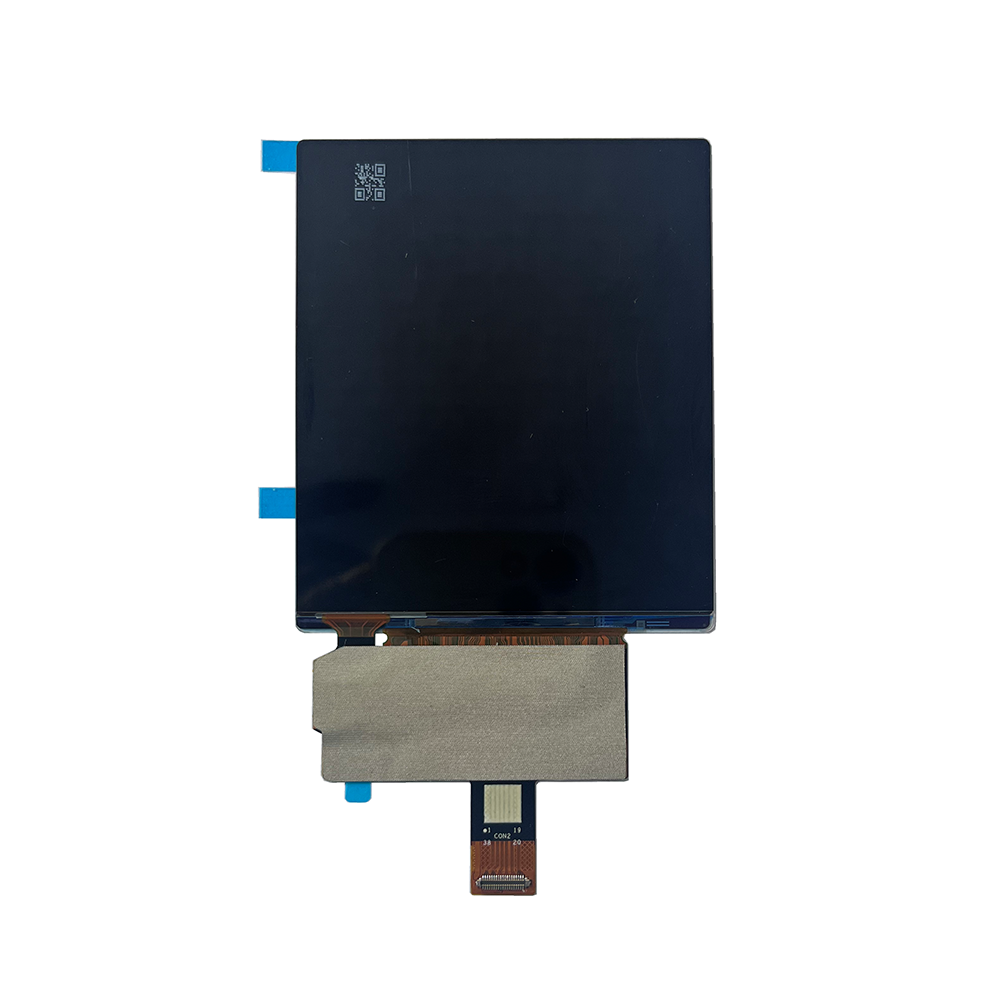

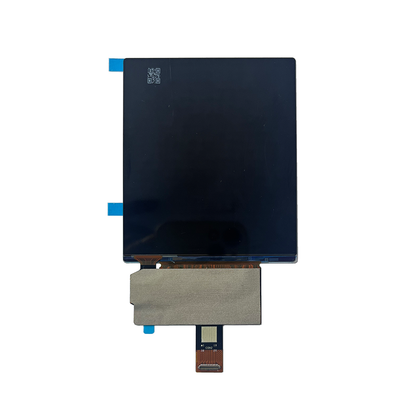

3.92-inch 1080x1240 Display with Touch Screen Square AMOLED Display

3.92-inch 1080x1240 Display with Touch Screen Square AMOLED Display

Model No.
  • GLO392-D-M2001
Resolution
Diagonal Size
Color

Please check stock availability with the seller before buying samples

Sample Price:
Regular price $66.90 USD
Regular price Sale price $66.90 USD
Sale Sold out
Send Inquiry View full details

OLED displays offer ultra-thin designs (no need back light), wide viewing angles, clear bright display, and less powerconsumption. SWI provides standard small sizes as well as customized designs, including customized FPCs, integrated touch sensors and/or cover lenses, and flexible and/or transparent options.The OLED products SWI supplies are including Transparent OLED, Flexible OLED, Monochorme OLED, Chracter OLED, Segment OLED, Area Color OLED, Full Color OLED and Custom designed OLEDs etc. The sizes range from 0.42” to 5.5”. With the advantages of the OLED, the OLED products we supply are applied in the industries of Consumer, Medical, PC Peripheral, Automotive, Communication and Industrial.0.42“-5.8” SizesCharacter | Graphic | Monochrome | Color | Bendable | TransparentDot Matrix: 48×64, 64×32, 64×48, 64×128, 72×32, 72×40, 96×16, 96×32, 96×64, 96×39, 96×96, 128×32, 128×64, 128×88, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 400×400, 540×960, 720×1280, 1080×1200, 1080x1920Display Sizes: 0.42”, 0.49”, 0.66”, 0.68”, 0.69”, 0.71”, 0.73”, 0.75”, 0.86”, 0.87”, 0.91”, 0.95”, 0.96”, 1.12”, 1.29”, 1.3”,1.46”, 1.5”, 1.54”, 1.6”, 1.19”, 1.39”, 1.41”, 1.69”, 1.77”, 1.8”, 2.23”, 2.4”, 2.95”, 3.2”, 4.3”, 5.0”, 5.5”Font Color: White, Blue, Yellow, Green, Full Color

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 AMOLED -
2 Diagonal Size 尺寸 3.92 Inch
3 Resolution 分辨率 1080(H) x 1240(V) Dots
4 Active Area 有效显示区域 65.448(H) x 75.144(V) mm
5 Outline Dimension 外围尺寸 67.25(H) x 79.87(V) mm
6 Thickness 厚度 0.8±0.15 mm
7 Pixel Pitch 像素间距 0.0606(W) x 0.0606(H) mm
8 Pixel Size 像素尺寸 0.0606(W) x 0.0606(H) mm
9 Display Driver IC 显示驱动 IC CH13726A -
10 Touch Driver IC 触控驱动IC FT3519 -
11 Display Color 显示色彩 16.7M Color
12 Gray Scale 灰阶 8 bit
13 Brightness 亮度 500(Typ.) cd/m2
14 Contrast Ratio 对比度 100000:1(Min) -
15 Interface 接口 MIPI 4 Lane -
16 IC Package Type IC 封装类型 COF -
17 Module Connecting Type 模块连接方式 B2B Connector (OK-118RM038-35) -
18 Weight 重量 TBD±10% g
19 Duty占空比 / -
20 Pins 引脚数 38 Pins
21 Operating Temperature 操作温度 -20~70
22 Storage Temperature 存储温度 -30~80

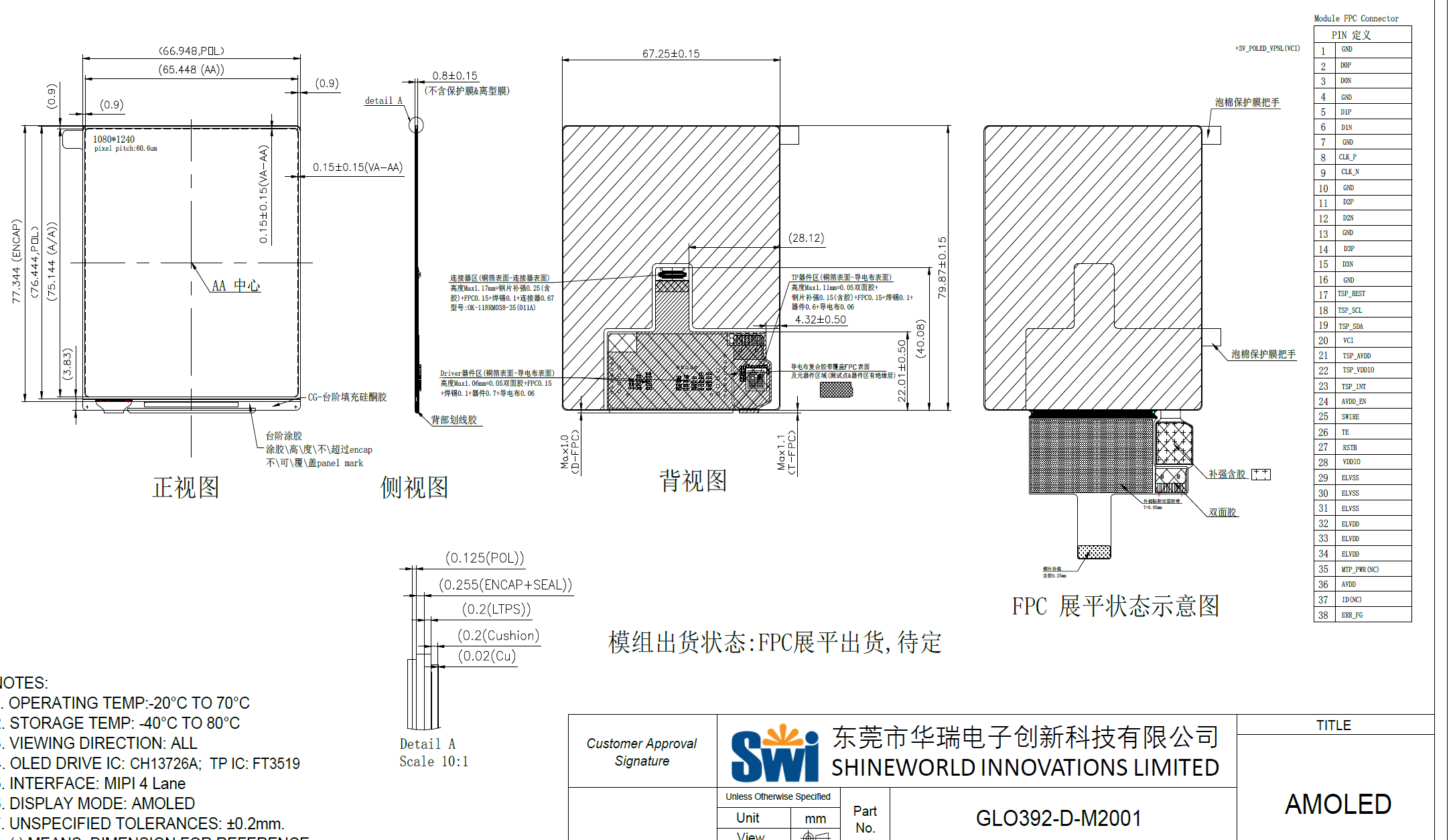

Drawings​
