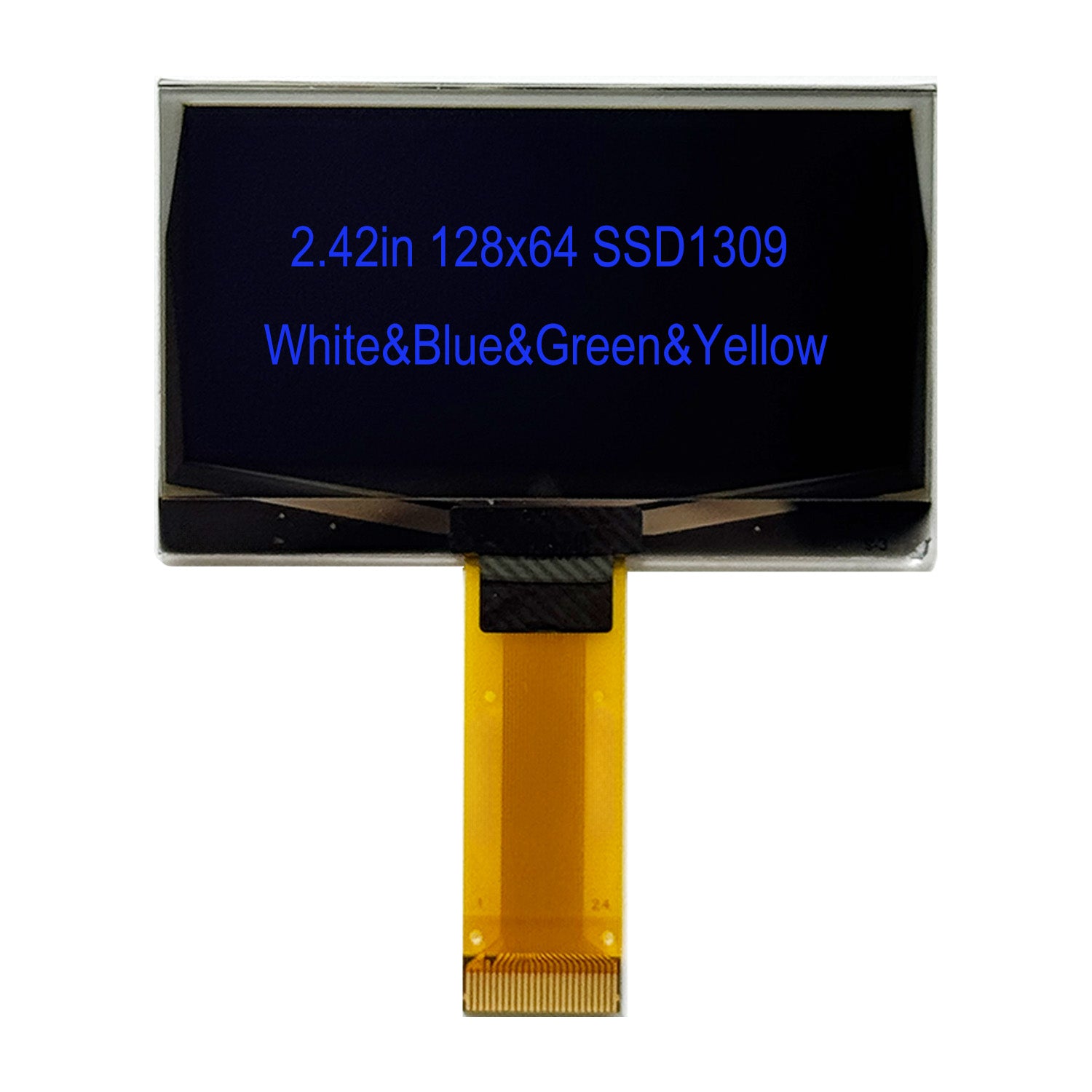

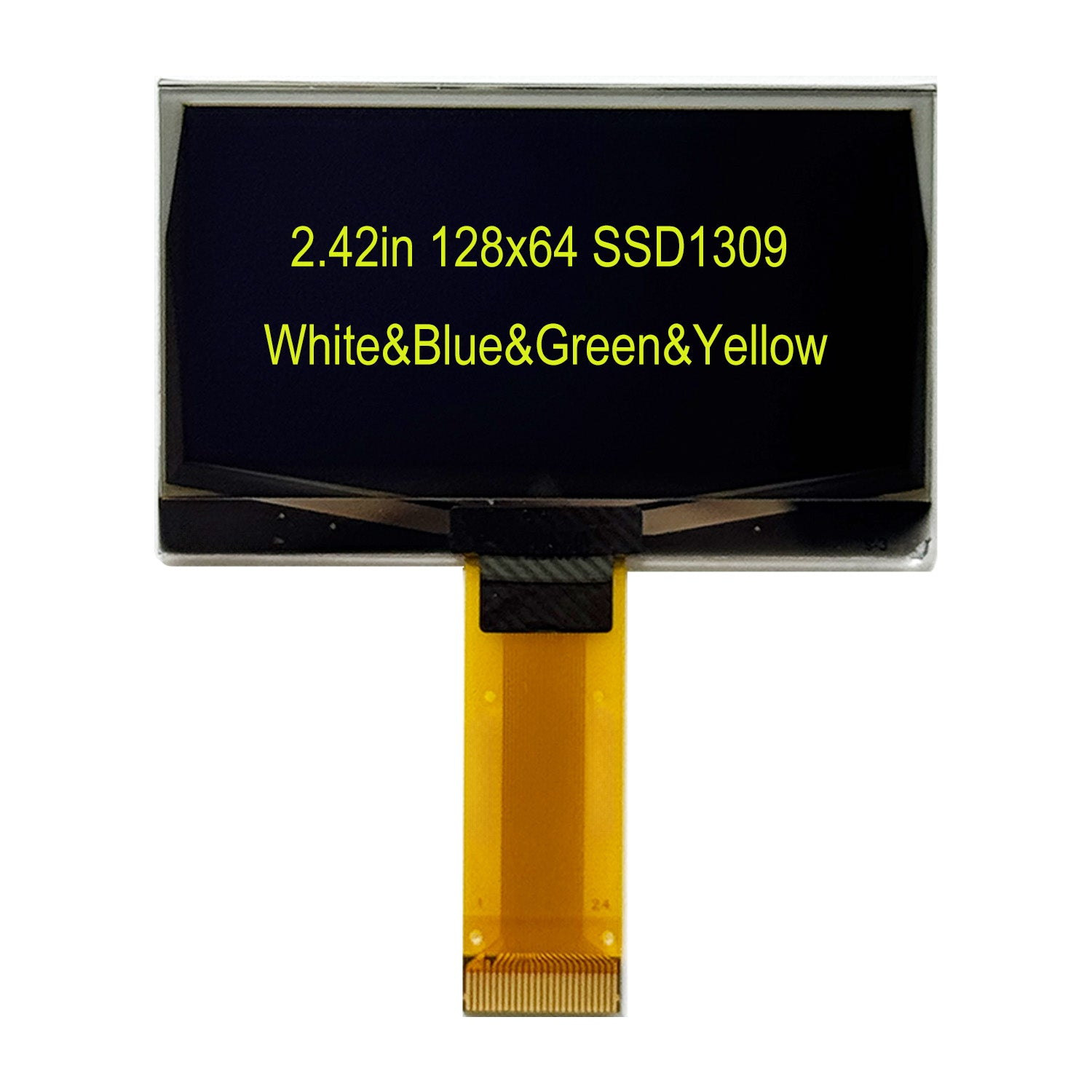

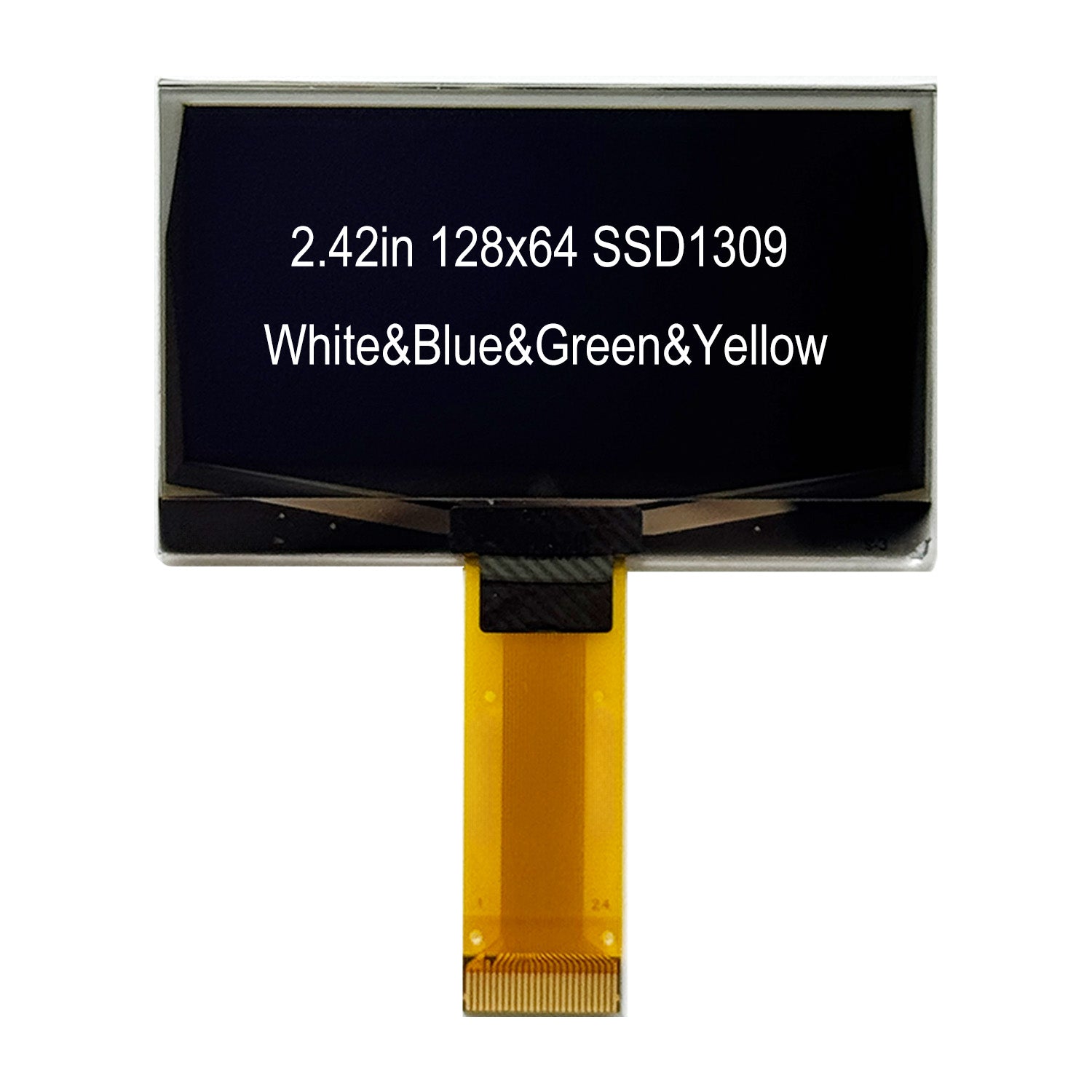

2.42-inch 128x64 OLED Display Screen SSD1309 Controller, White/Blue/Green/Yellow, SPI I2C Parallel Interface, 24 Pin Connector

2.42-inch 128x64 OLED Display Screen SSD1309 Controller, White/Blue/Green/Yellow, SPI I2C Parallel Interface, 24 Pin Connector

Model No.
  • GLO242-D-M2002
Resolution
Diagonal Size
Color

Please check stock availability with the seller before buying samples

Sample Price:
Regular price $10.40 USD
Regular price Sale price $10.40 USD
Sale Sold out
Send Inquiry View full details

The GLO242-D-M2002, manufactured by SWICN, is a versatile 2.42-inch graphic OLED display module. It offers an appealing display in white, with a resolution of 128x64 pixels. The module utilizes the efficient SSD1309 controller IC and supports Parallel, 4-wire SPI, and I2C interfaces for seamless communication.

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 PMOLED -
2 Diagonal Size 尺寸 2.42 Inch
3 Resolution 分辨率 128(H)×64(V) Dots
4 Active Area 有效显示区域 55.01(W)×27.49(H) mm
5 Outline Dimension 外围尺寸 60.5(W)×37.0(H) mm
6 Thickness 厚度 2.0±0.1 mm
7 Pixel Pitch 像素间距 0.43(W)×0.43(H) mm
8 Pixel Size 像素尺寸 0.40(W)×0.40(H) mm
9 Display Driver IC 显示驱动 IC SSD1309 -
10 Touch Driver IC 触控驱动IC No Touch -
11 Display Color 显示色彩 White&Blue&Green&Yellow Color
12 Gray Scale 灰阶 1 bit
13 Brightness 亮度 White&Blue&Yellow:80(Typ.)&Green:120(Typ.) cd/m2
14 Contrast Ratio 对比度 10000:1(Min.) -
15 Interface 接口 Parallel/4-wire SPl/I²C -
16 IC Package Type IC 封装类型 COG -
17 Module Connecting Type 模块连接方式 ZIF Connector(Pitch:0.5mm) -
18 Weight 重量 8.60±10% g
19 Duty占空比 1/64 -
20 Pins 引脚数 24 Pins
21 Operating Temperature 操作温度 -40~70
22 Storage Temperature 存储温度 -40~85

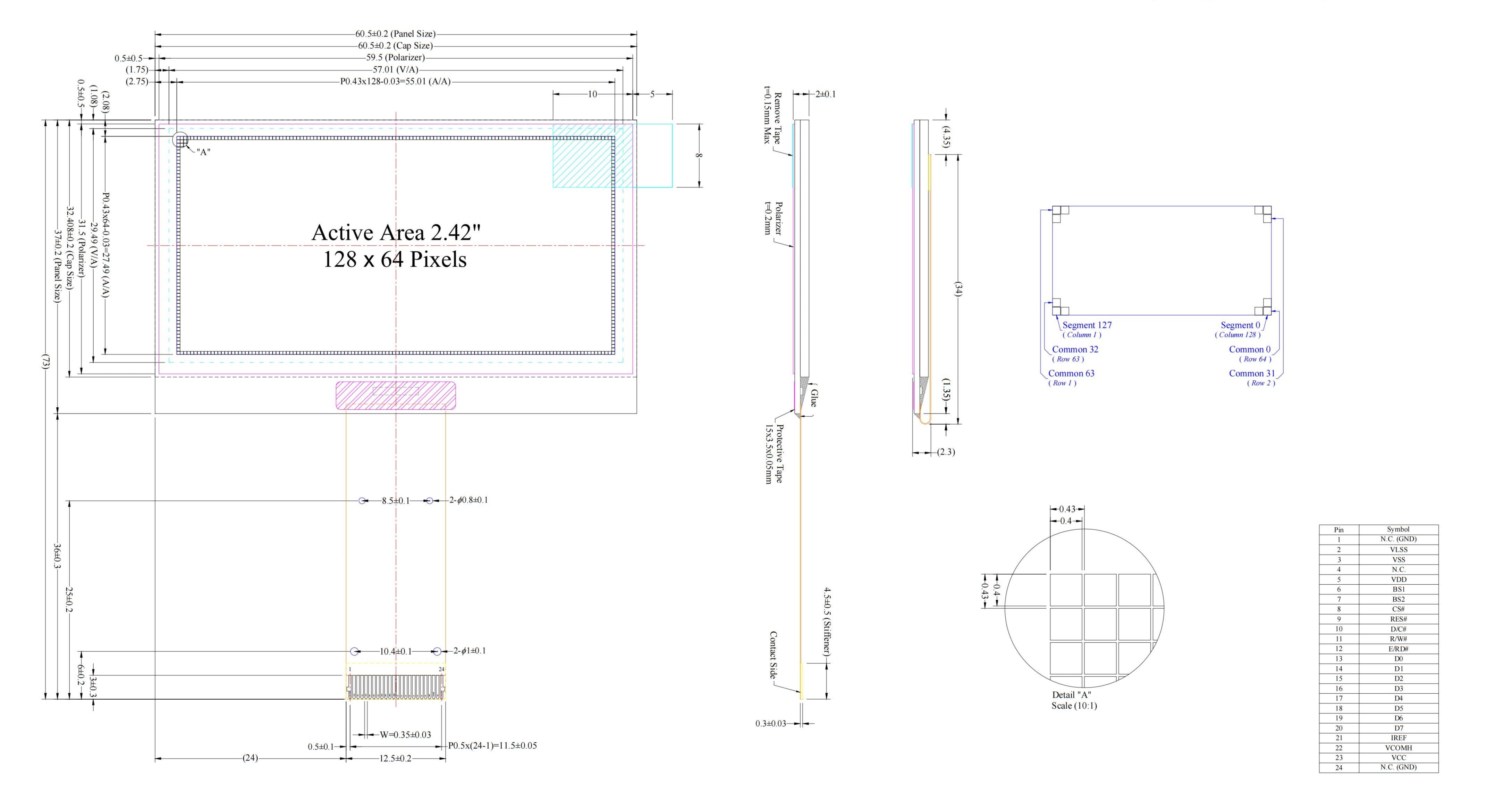

Drawings​
