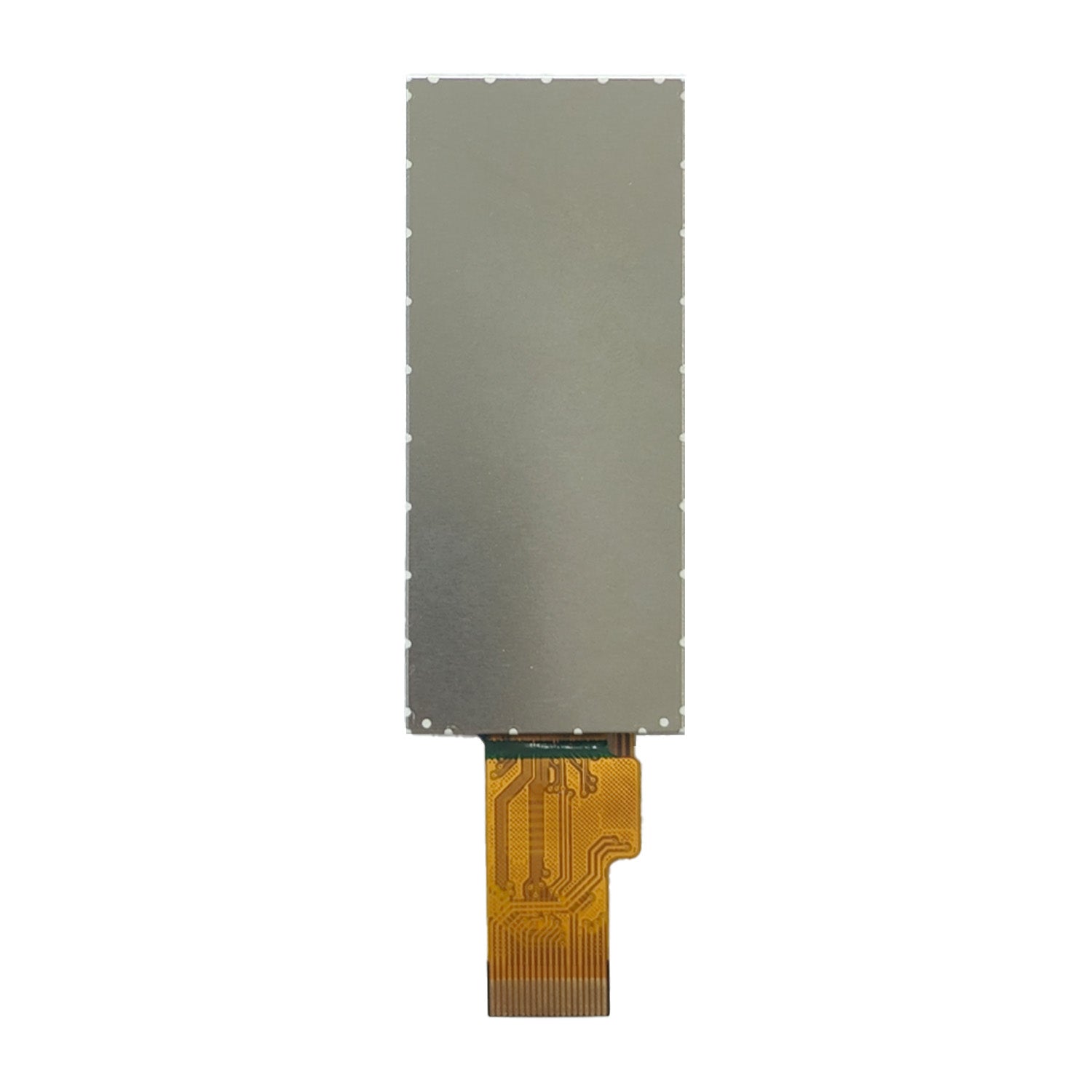

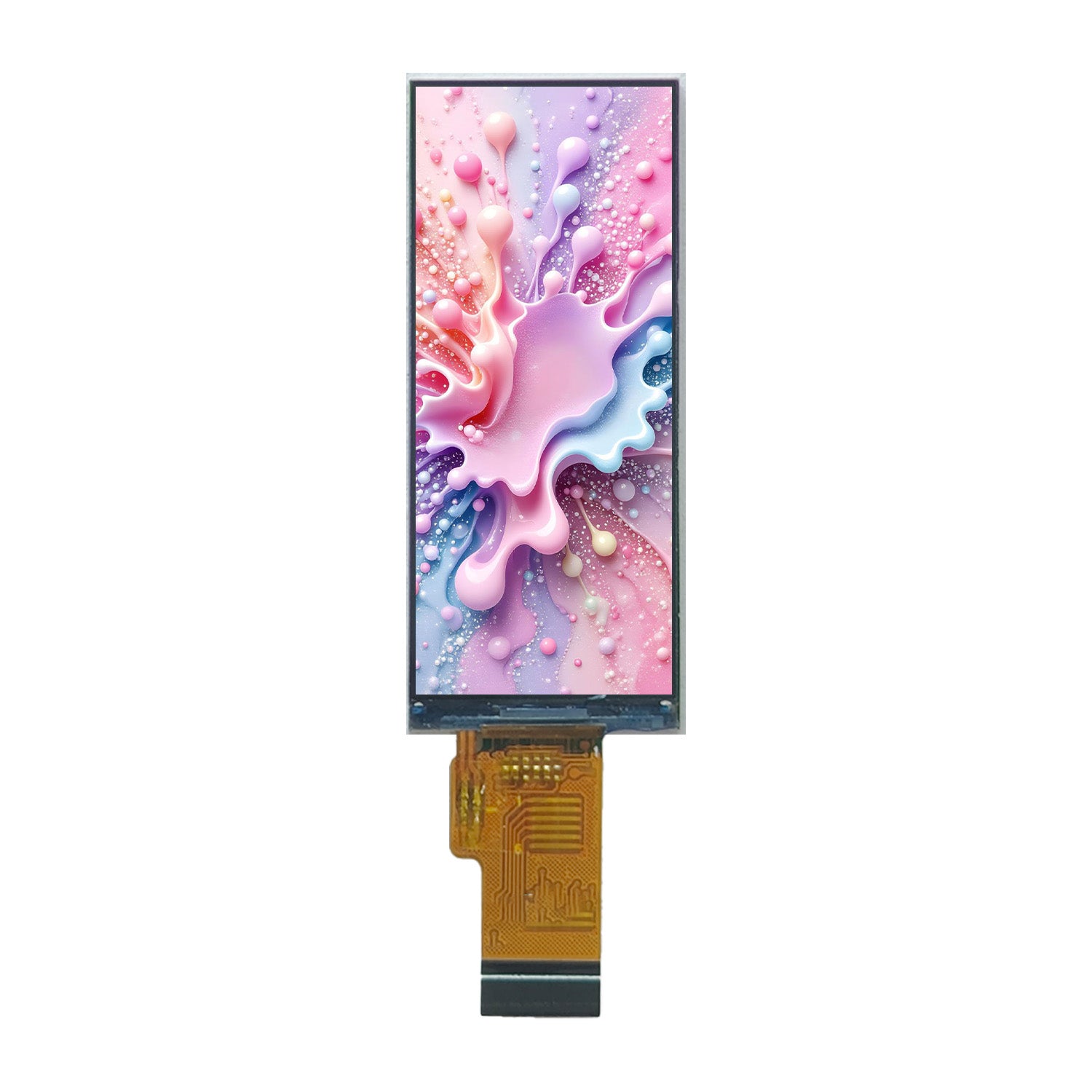

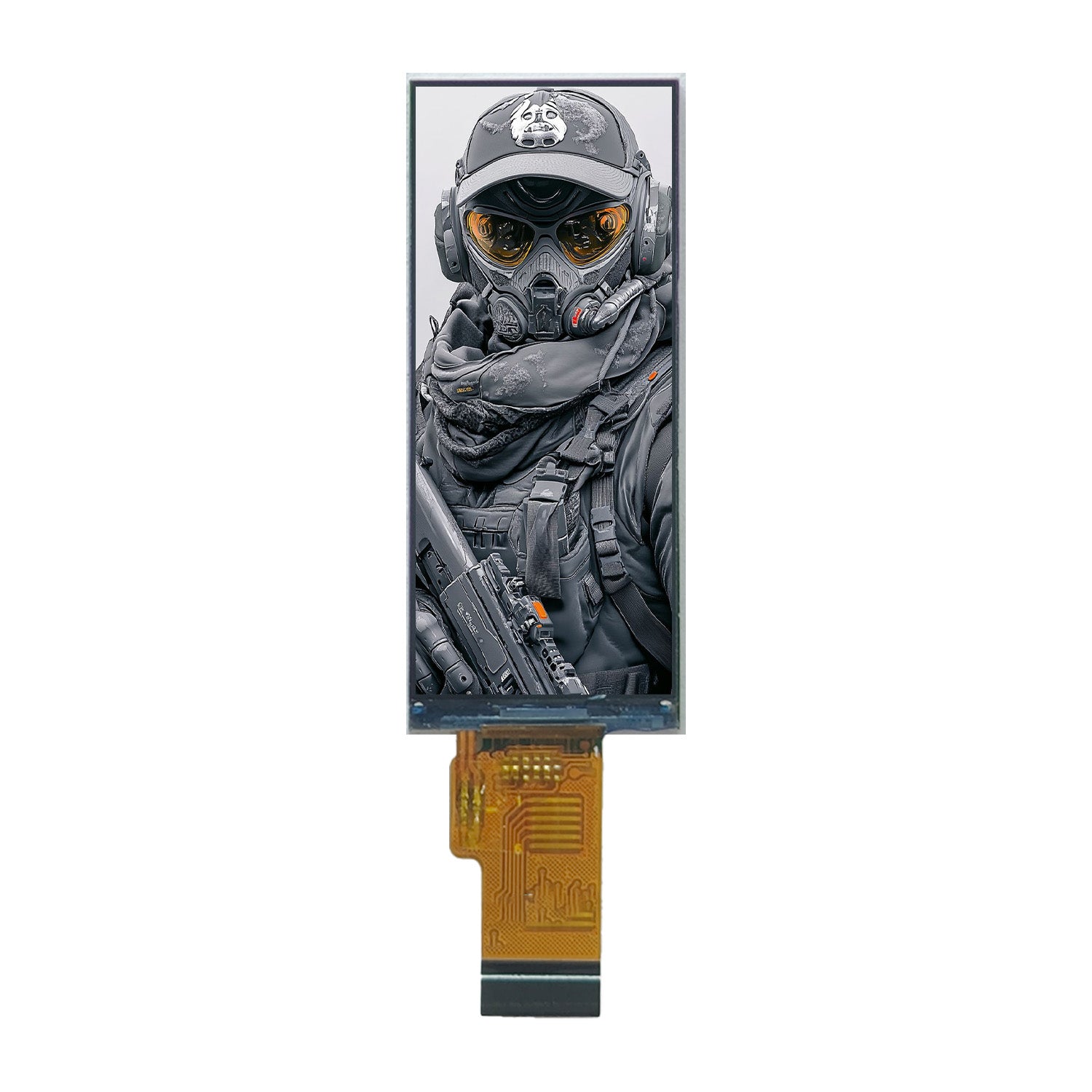

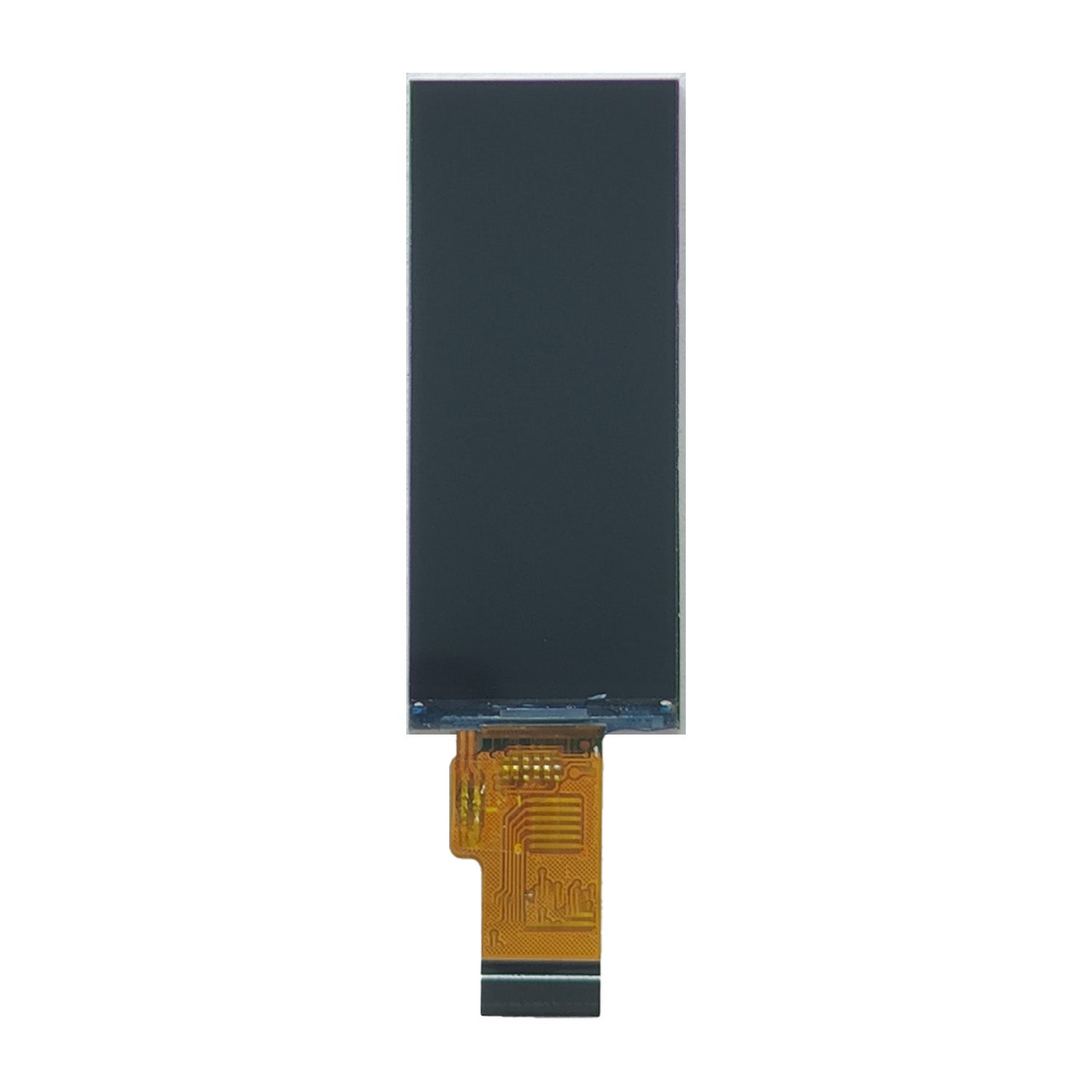

2.2-inch 200x480 ST7797 MIPI Bar Type TFT LCD Display Module Small Size LCD Screen with Optional Touch Panel

2.2-inch 200x480 ST7797 MIPI Bar Type TFT LCD Display Module Small Size LCD Screen with Optional Touch Panel

Model No.
  • S22TFT200480
Resolution
Diagonal Size
Color

Please check stock availability with the seller before buying samples

Sample Price:
$8.90 USD
$8.90 USD
Sale Sold out
Send Inquiry View full details

The S22TFT200480 is a compact module that boasts a 2.2-inch IPS TFT LCD screen. Developed by SWICN, this module delivers a visually pleasing experience with its 200(RGB) x 480 pixel resolution against a black backdrop. With a typical brightness of 300cd/m2, it ensures clear visibility even in various lighting conditions. Equipped with the ST7797 driver IC and supporting a MIPI 1 Lane, this module guarantees reliable and consistent performance.

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 TFT -
2 Diagonal Size 尺寸 2.2 Inch
3 Resolution 分辨率 200(RGB) x480 Dots
4 Active Area 有效显示区域 21.72(H) x 52.42(V) mm
5 Outline Dimension 外围尺寸 23.72(H) x 57.79(V) mm
6 Thickness 厚度 2±0.2 mm
7 Pixel Pitch 像素间距 0.1086(W) x 0. 1092(H) mm
8 Pixel Size 像素尺寸 0.1086(W) x 0. 1092(H) mm
9 Display Driver IC 显示驱动 IC ST7797 -
10 Touch Driver IC 触控驱动IC No Touch -
11 Display Color 显示色彩 16.7M Color
12 Gray Scale 灰阶 8 bit
13 Brightness 亮度 300（Typ.） cd/m2
14 Contrast Ratio 对比度 1000:1(Typ.） -
15 Interface 接口 MIPI 1 Lane -
16 IC Package Type IC 封装类型 COG -
17 Module Connecting Type 模块连接方式 ZIP Connector（Pitch:0.5mm） -
18 Weight 重量 TBD g
19 Viewing Direction 视角方向 All View O'Clock
20 Pins 引脚数 20 Pins
21 Operating Temperature 操作温度 -20~70 ℃
22 Storage Temperature 存储温度 -30~80 ℃
Drawings​
