2.0-inch EPD 63-Segment 36×36 Square E-Ink Display – Shineworld Innovations Limited

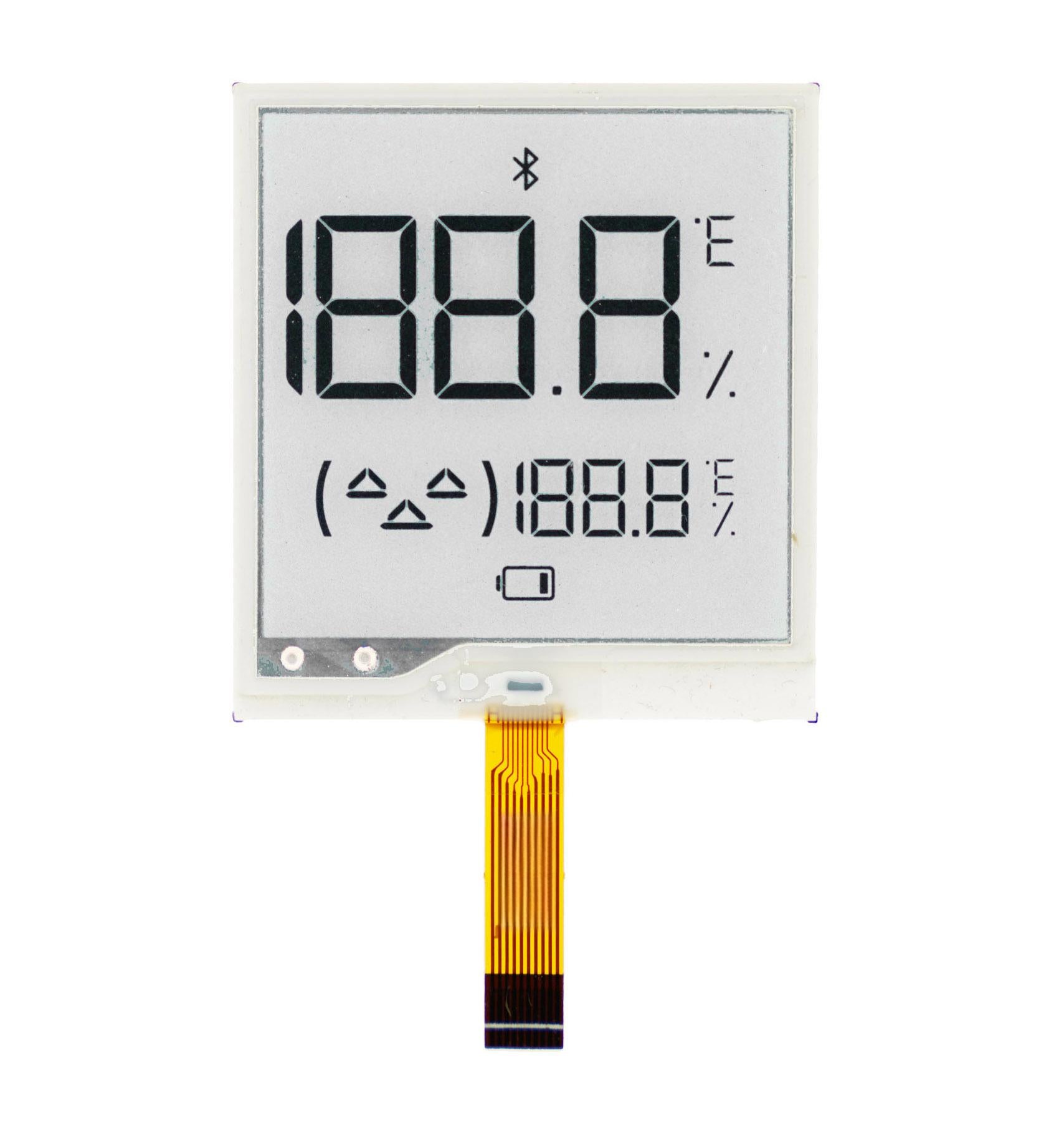

This square e-paper module features a 2.0-inch diagonal and a 63-segment layout with an additional Vcom line and background segment. The active display area measures 36 × 36 mm, while the overall module dimensions are 40.6 × 44.3 mm, with a thickness of approximately 1.14 mm (±0.1 mm).

Designed for simplicity and efficiency, this display operates in monochrome (black and white) with 1-bit grayscale depth. It uses a 3-wire SPI interface for easy communication and a chip-on-glass (COG) design, with a 10-pin ZIF connector featuring a 0.5 mm pitch. The module weighs around 4.15 g.

This display is optimized for reliable operation in typical indoor environments, with an operating temperature range of 0 °C to 50 °C and storage capacity from –20 °C to 60 °C. It requires no power to maintain the displayed image, contributing to excellent energy efficiency.

Shineworld Innovations Limited provides a one-year limited functional warranty, responsive customer support, and a commitment to long-term supply reliability. If any core component becomes unavailable, we will proactively source compatible alternatives to ensure continuity of supply.

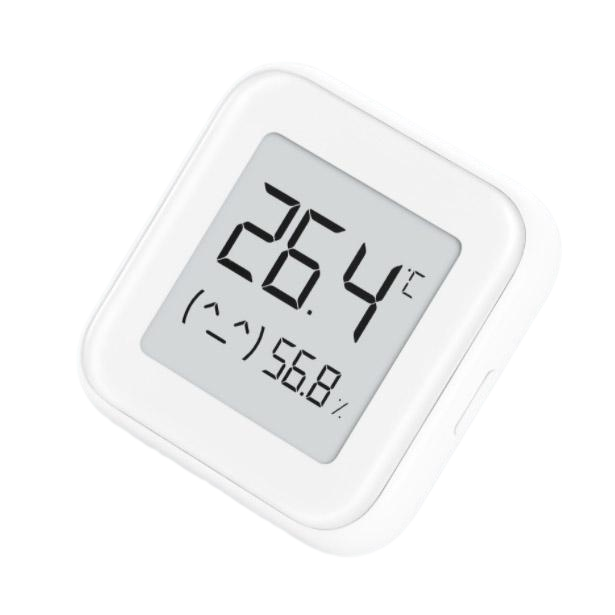

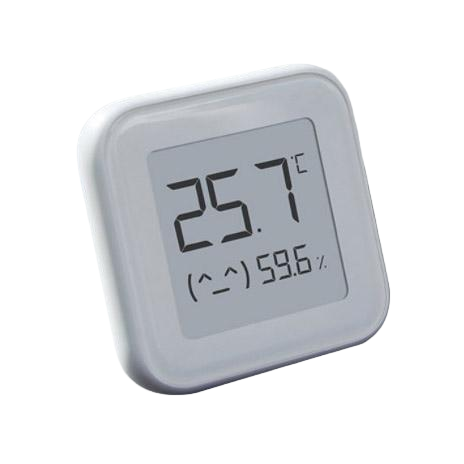

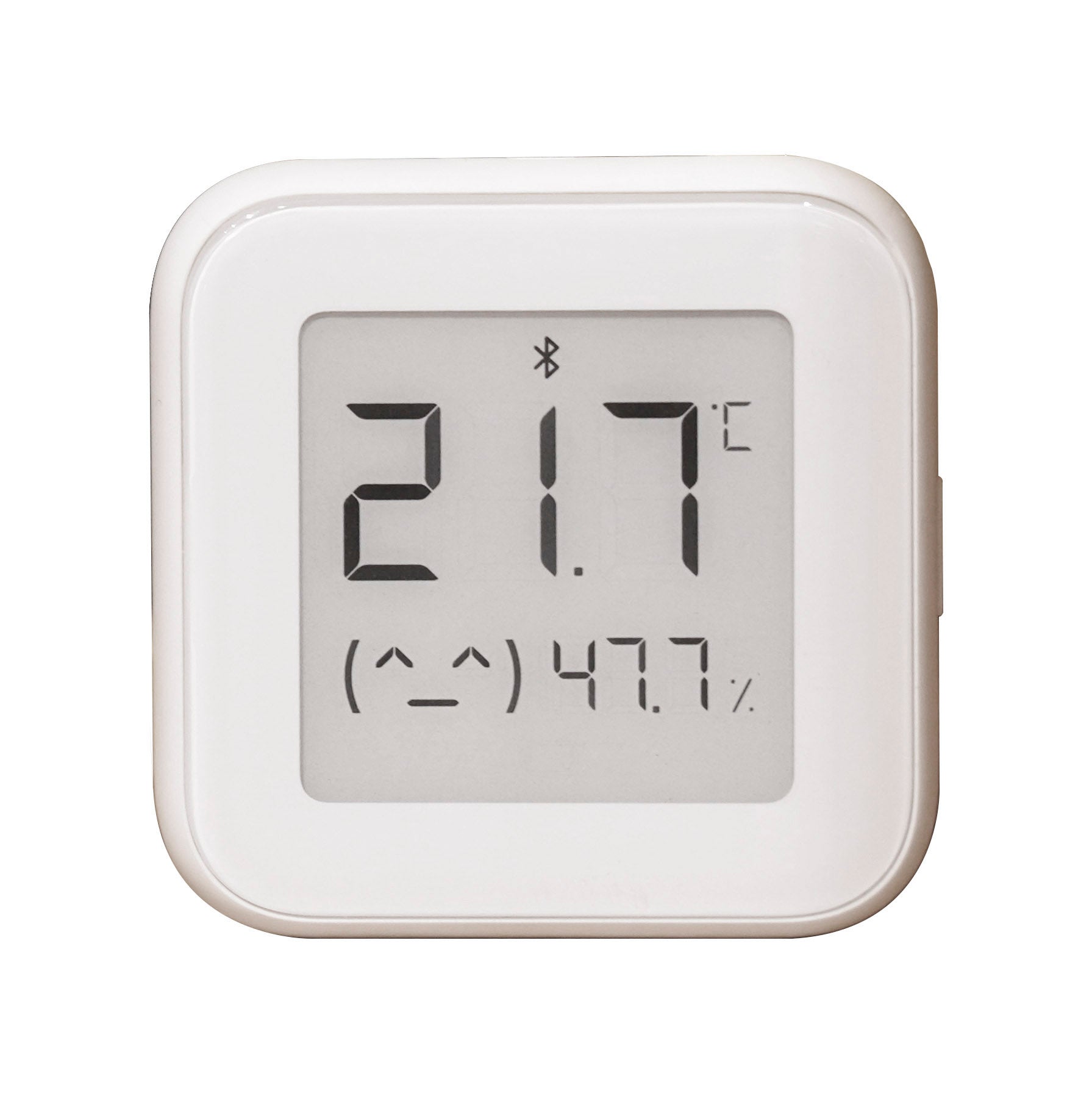

This compact, low-power e-ink display is ideal for applications such as thermohygrograph readouts, low-energy indicators, smart labels, battery-sensitive instruments, and other devices requiring clear, stable segment-based visuals.
