1.9-inch 170×320 SPI Interface Bar TFT Display LCD – Shineworld Innovations Limited

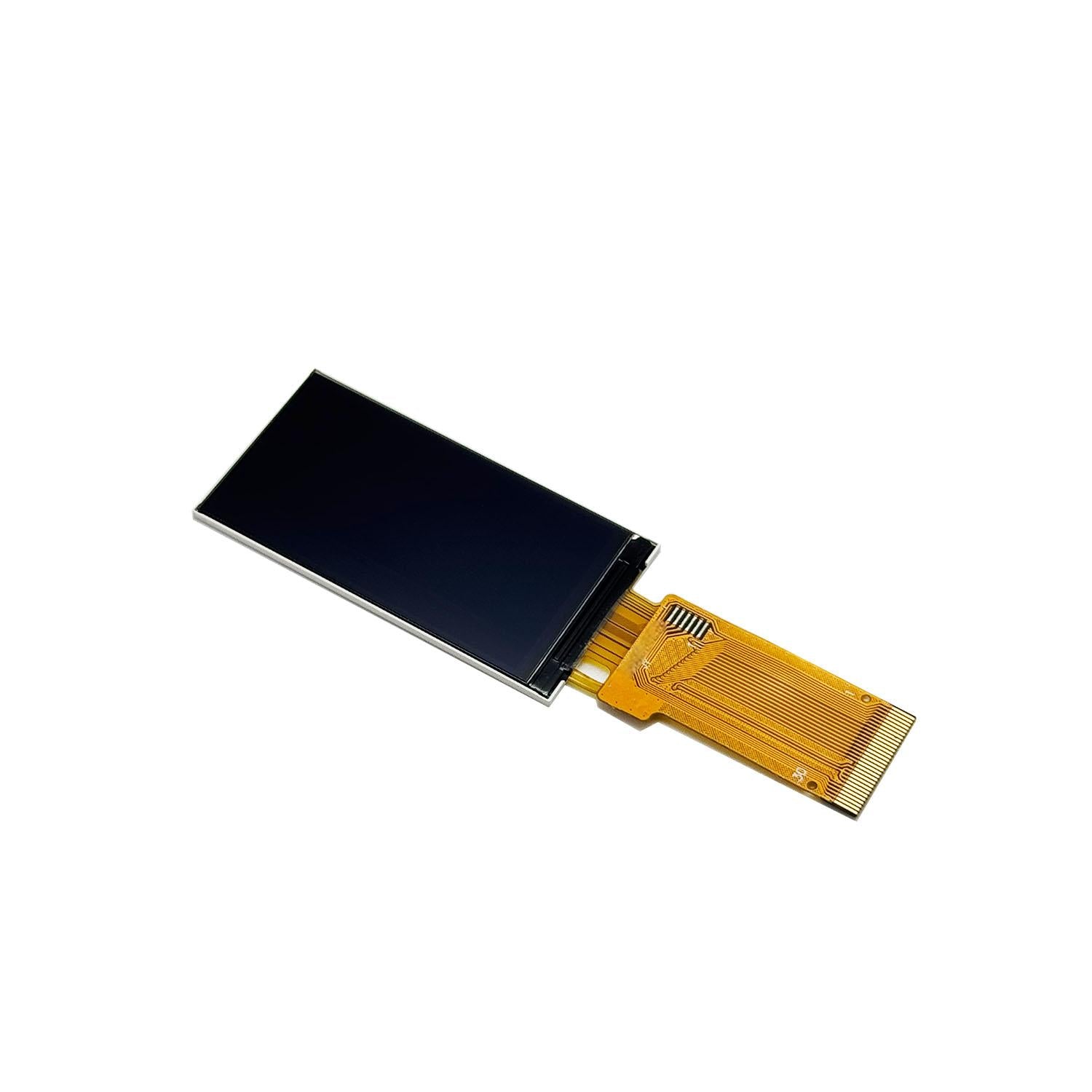

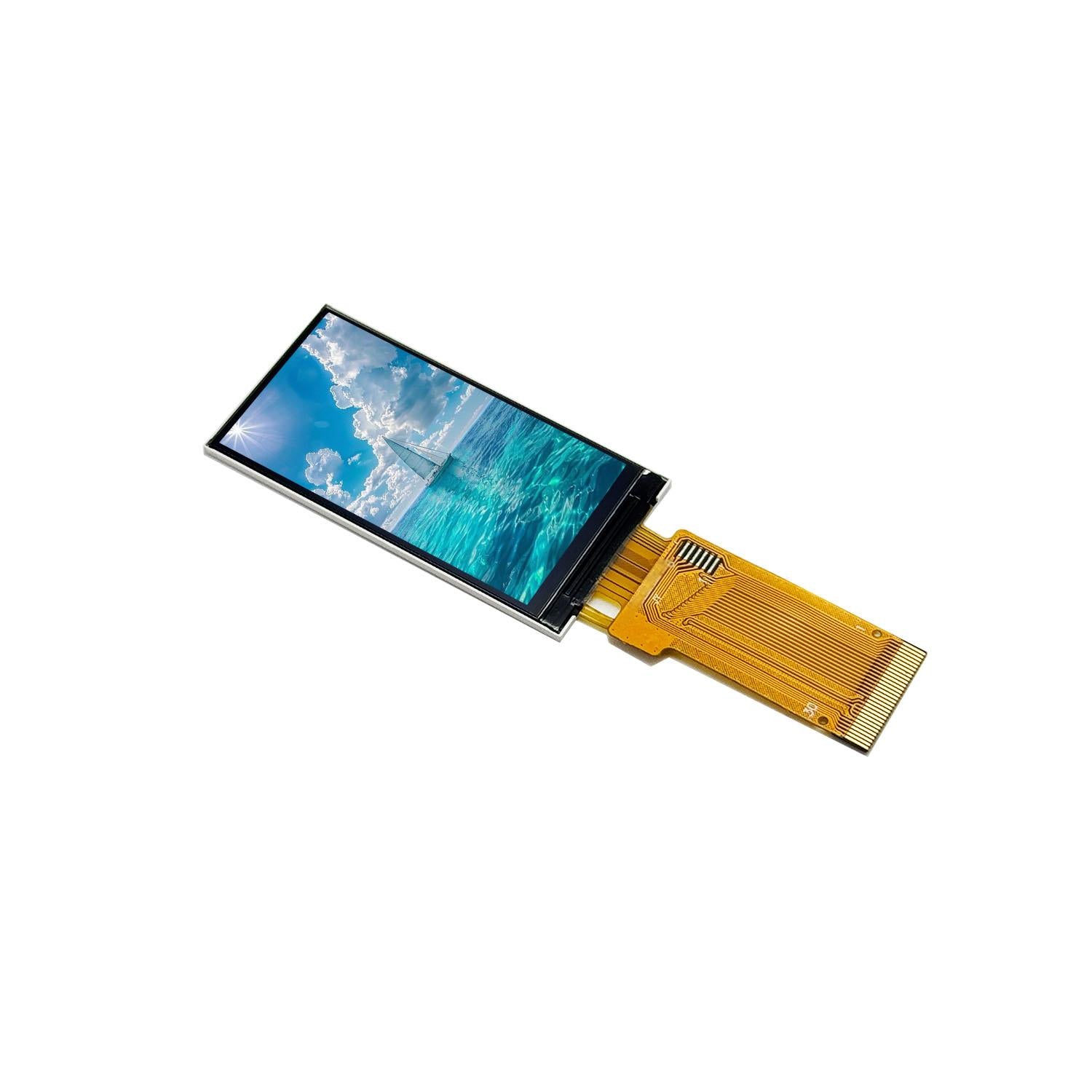

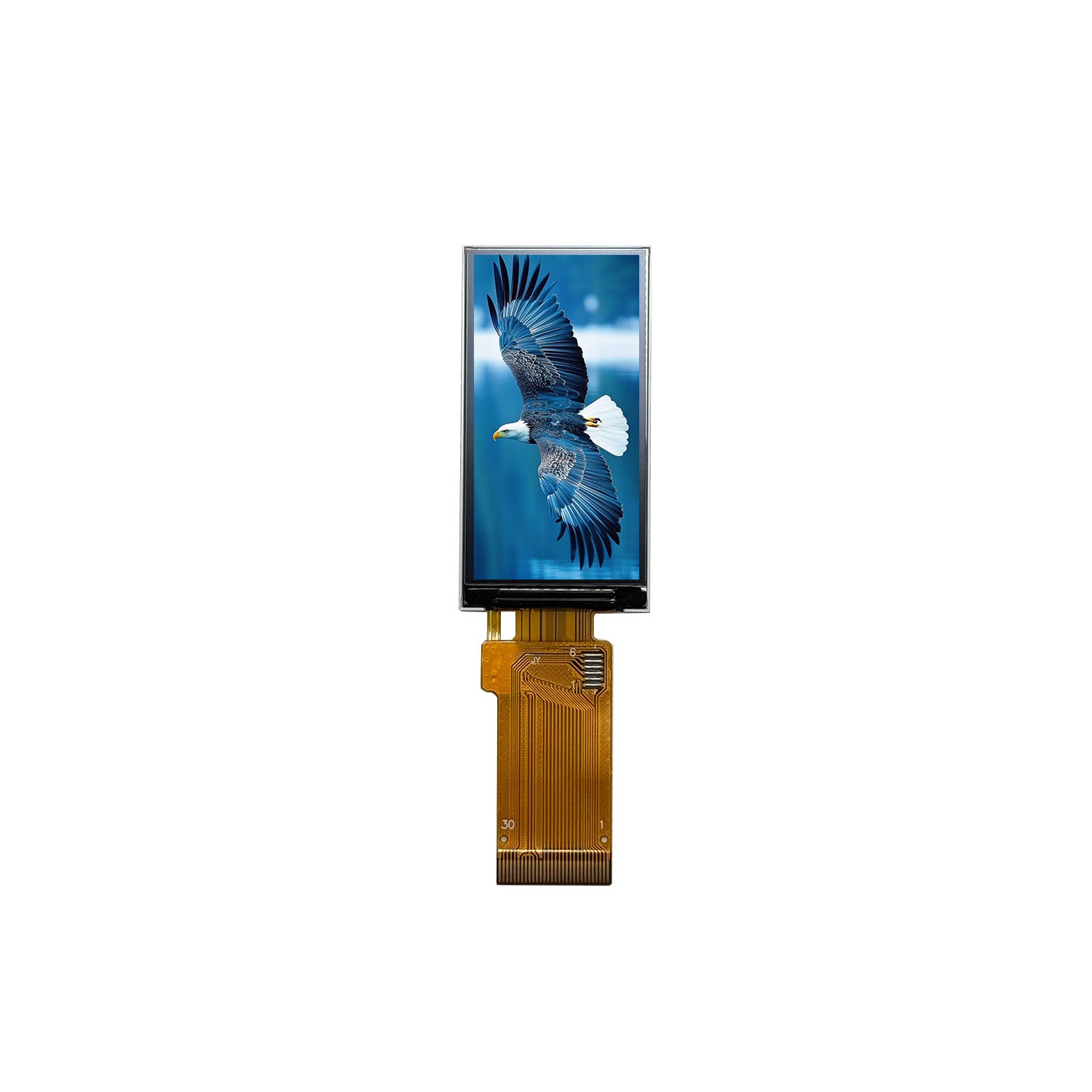

This slender bar-type IPS TFT LCD module features a 1.9-inch diagonal display area with a sharp resolution of 170 (RGB) × 320 pixels. It delivers vivid color output with up to 262K colors and an 8-bit grayscale depth, ensuring rich and detailed visuals.

With a high typical brightness of 500 cd/m² and a contrast ratio around 900:1, this display maintains outstanding clarity even in diverse lighting conditions.

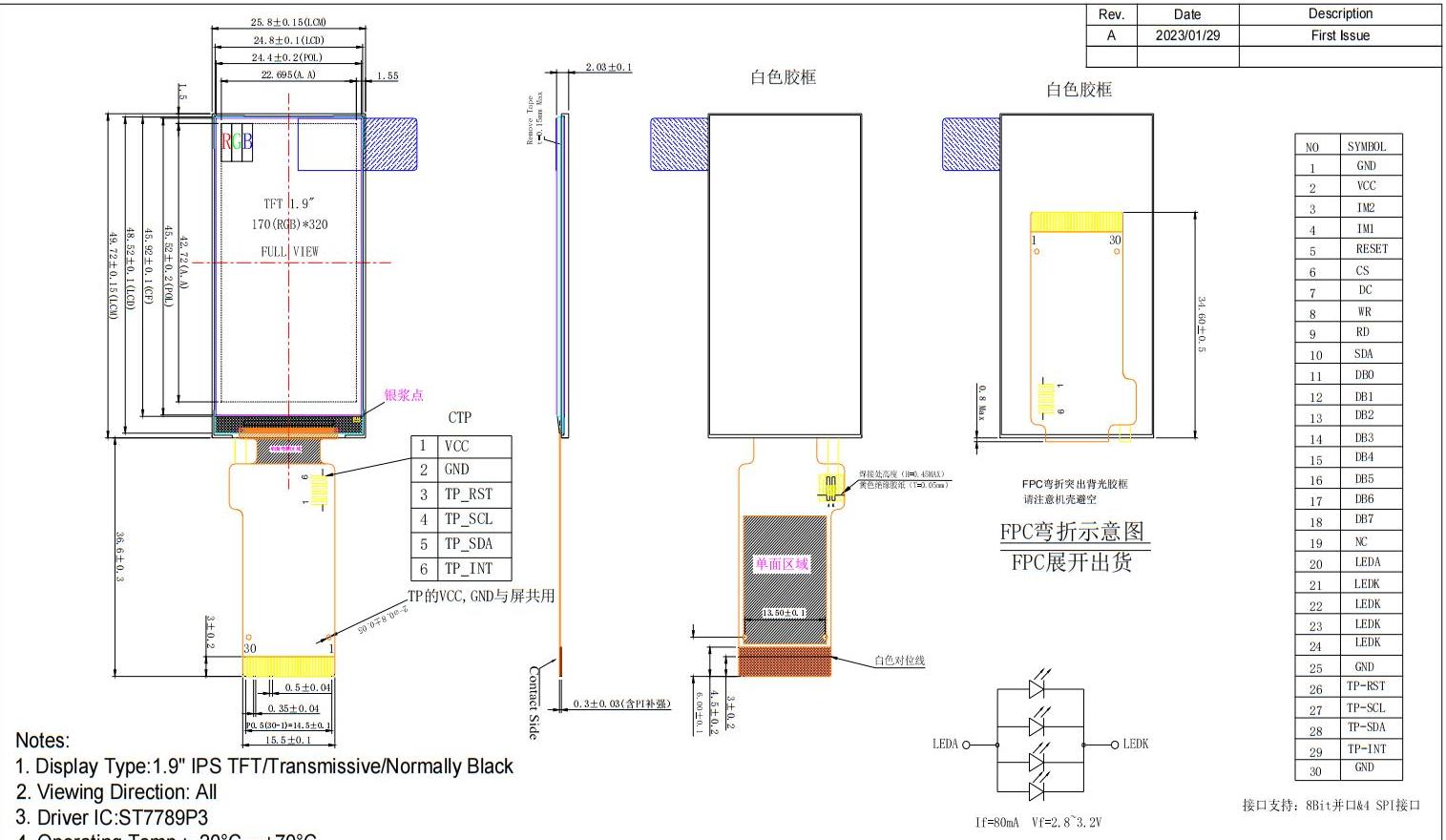

The active viewing area measures approximately 22.7 mm (W) × 42.7 mm (H), while the overall module dimensions are a compact 25.8 mm × 49.7 mm and a slim thickness of about 2.03 mm (±0.1 mm).

Driven by the ST7789P3 controller, the module supports both 8-bit 8080 MCU and 4-wire SPI interfaces—making it easily compatible with various microcontrollers including ARM, Arduino, Raspberry Pi, and 8051 platforms.

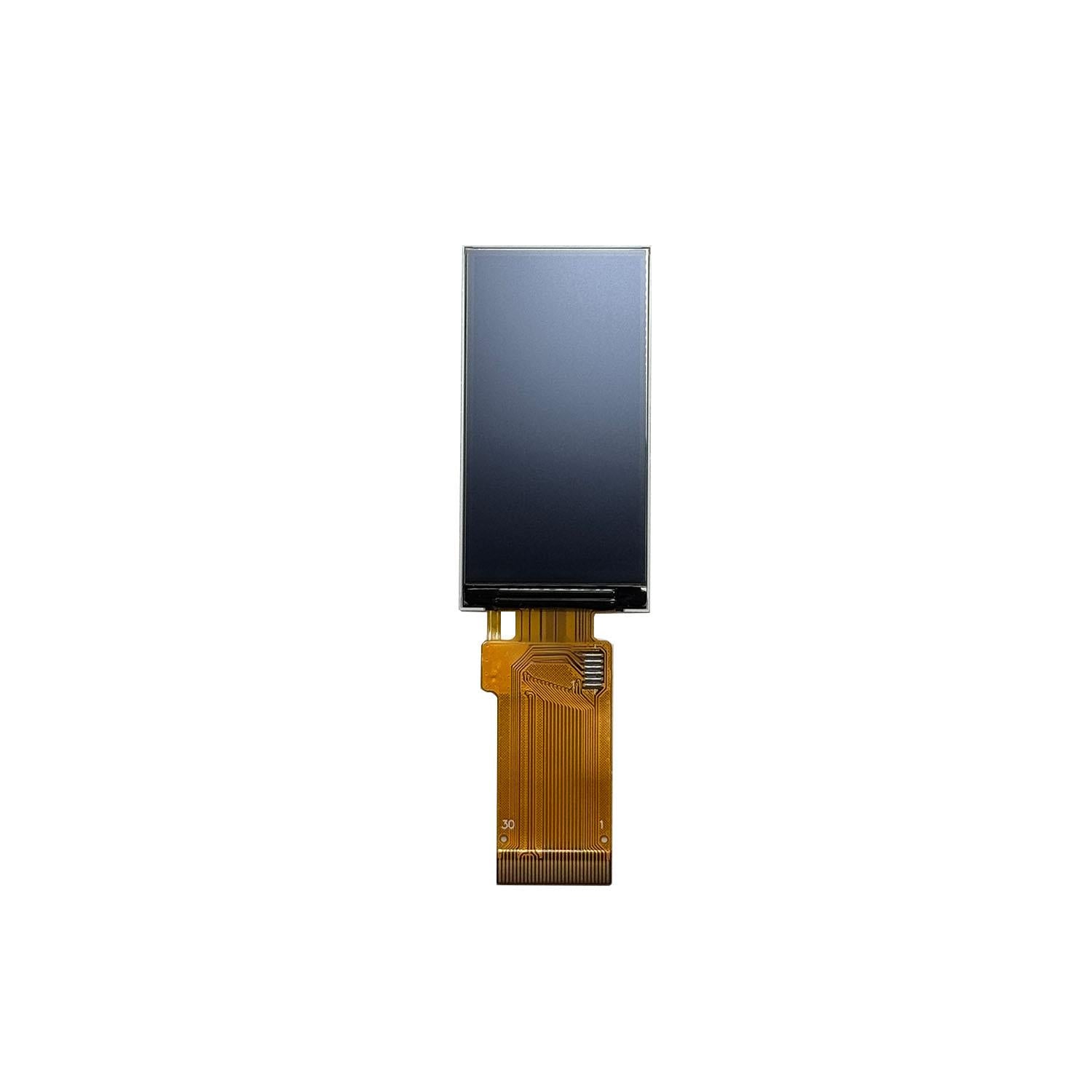

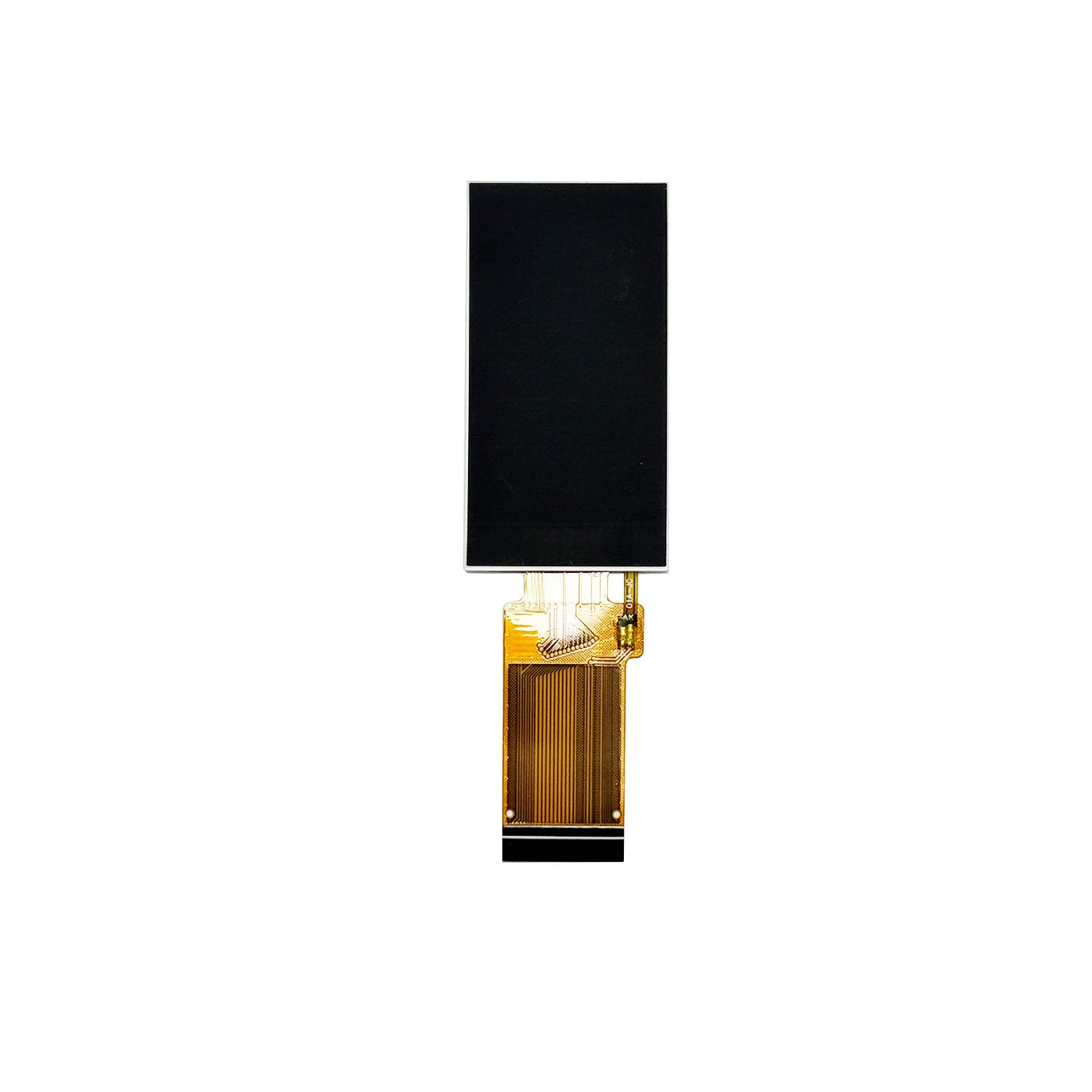

Construction includes a chip-on-glass (COG) package with a 30-pin ZIF connector (0.5 mm pitch) for seamless integration. The viewing angle is “All-View O’Clock,” offering excellent visibility from nearly any direction.

Operating temperature ranges from –20 °C to +70 °C, with storage rated between –30 °C and +80 °C, ensuring reliable performance across a wide range of environments.

Shineworld Innovations Limited provides a one-year functional warranty, responsive customer support, and a commitment to long-term supply continuity. If key components like the driver IC or glass panel become unavailable, they will source compatible alternatives to minimize disruption.

This display is ideal for applications needing a slim yet vivid visual interface—such as wearable devices, handheld instruments, medical monitors, and compact industrial systems.
