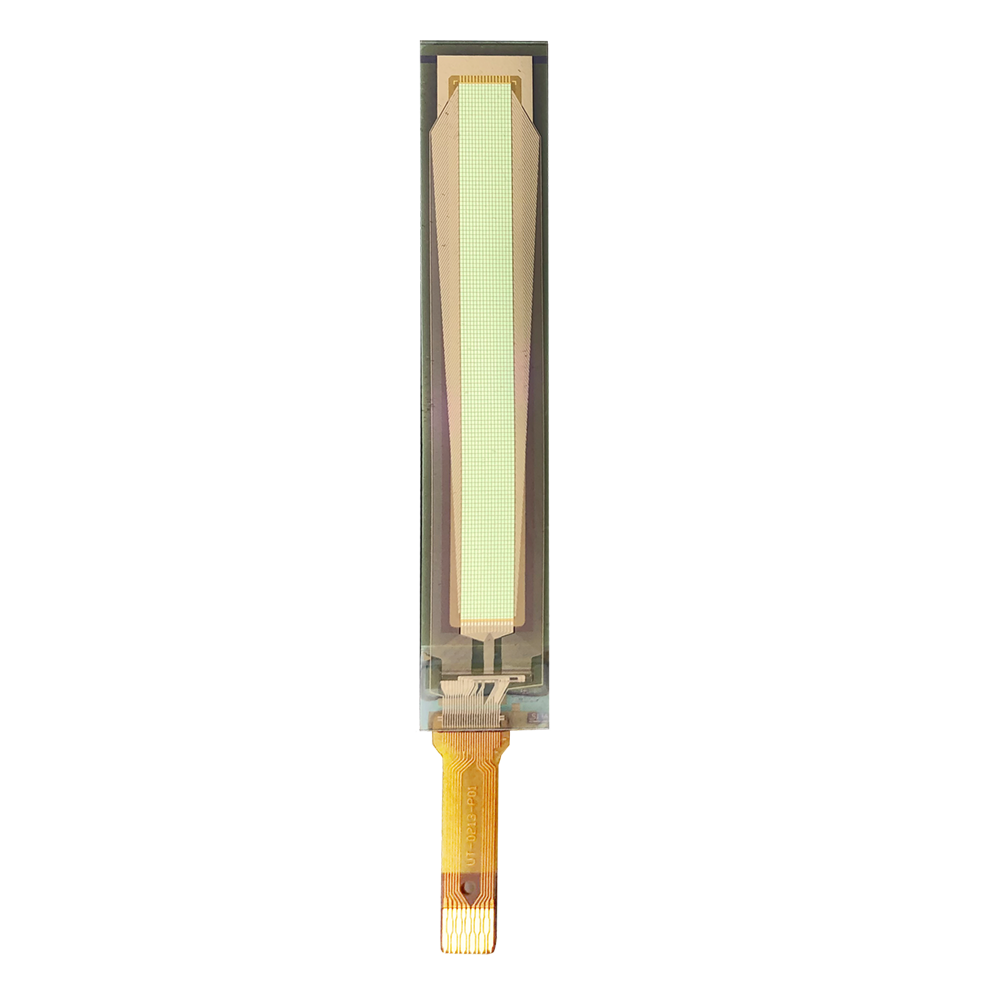

1.81-inch Flexible OLED Display, 160×32 (SSD1319) – Shineworld Innovations Limited

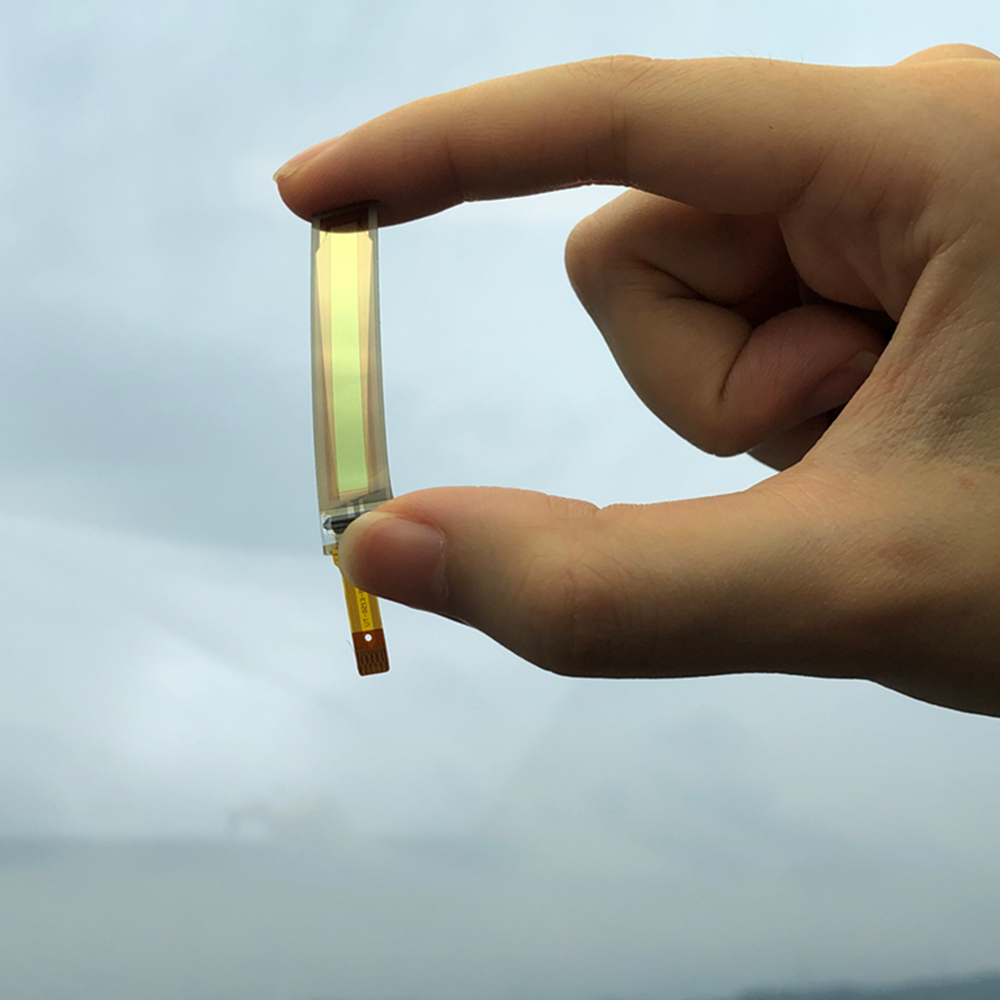

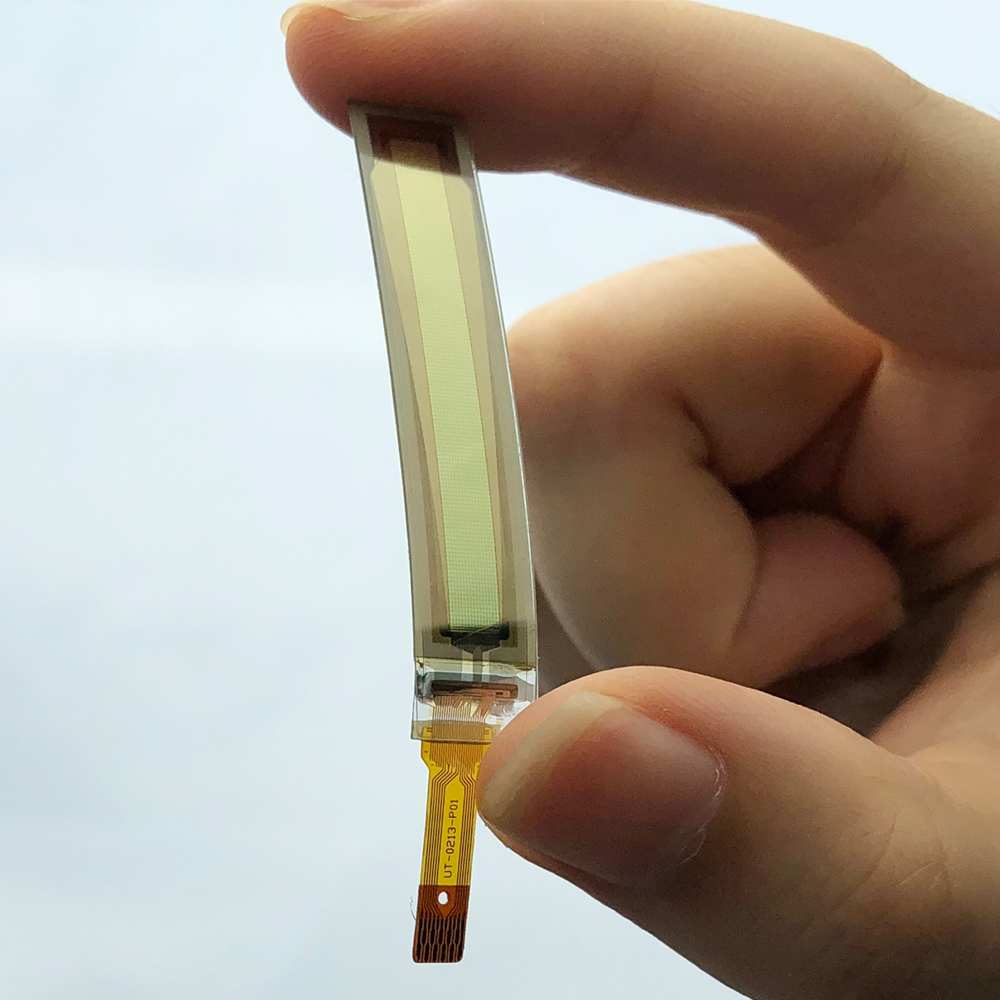

This ultra-thin flexible OLED module offers a 1.81-inch diagonal display with a crisp monochrome resolution of 160 × 32 pixels. Designed for curved or space-constrained environments, its flexible construction allows smooth bending while delivering excellent readability.

Key specifications include:

• Active display area: approximately 45.10 × 9.00 mm
• Overall dimensions: about 55.30 × 14.94 mm, with a thickness of only 0.3 mm (± 0.1 mm)
• Pixel pitch: 0.282 × 0.282 mm, with pixel size around 0.258 × 0.258 mm
• Display driver: SSD1319, integrated using a chip-on-glass (COG) package
• Interface: 3-wire SPI, no touch capability

Performance features:
- Brightness: typically 600 cd/m²
- Contrast ratio: at least 10,000:1 for clear display in various conditions
- Duty cycle: 1/32, with an O’Clock view orientation for wide visibility
- Supply via connector with 0.3 mm pitch; includes 13 pins

Environmental range:
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C

Shineworld Innovations Limited provides a one-year functional warranty, responsive support, and a commitment to long-term supply reliability. If a core component such as the controller IC or glass cell becomes unavailable, they proactively source compatible alternatives to minimize production disruptions.

This flexible OLED display is ideal for wearable devices, curved interfaces, health trackers, portable gadgets, smart labels, and any application requiring a lightweight, durable display with exceptional contrast and form-factor flexibility.
