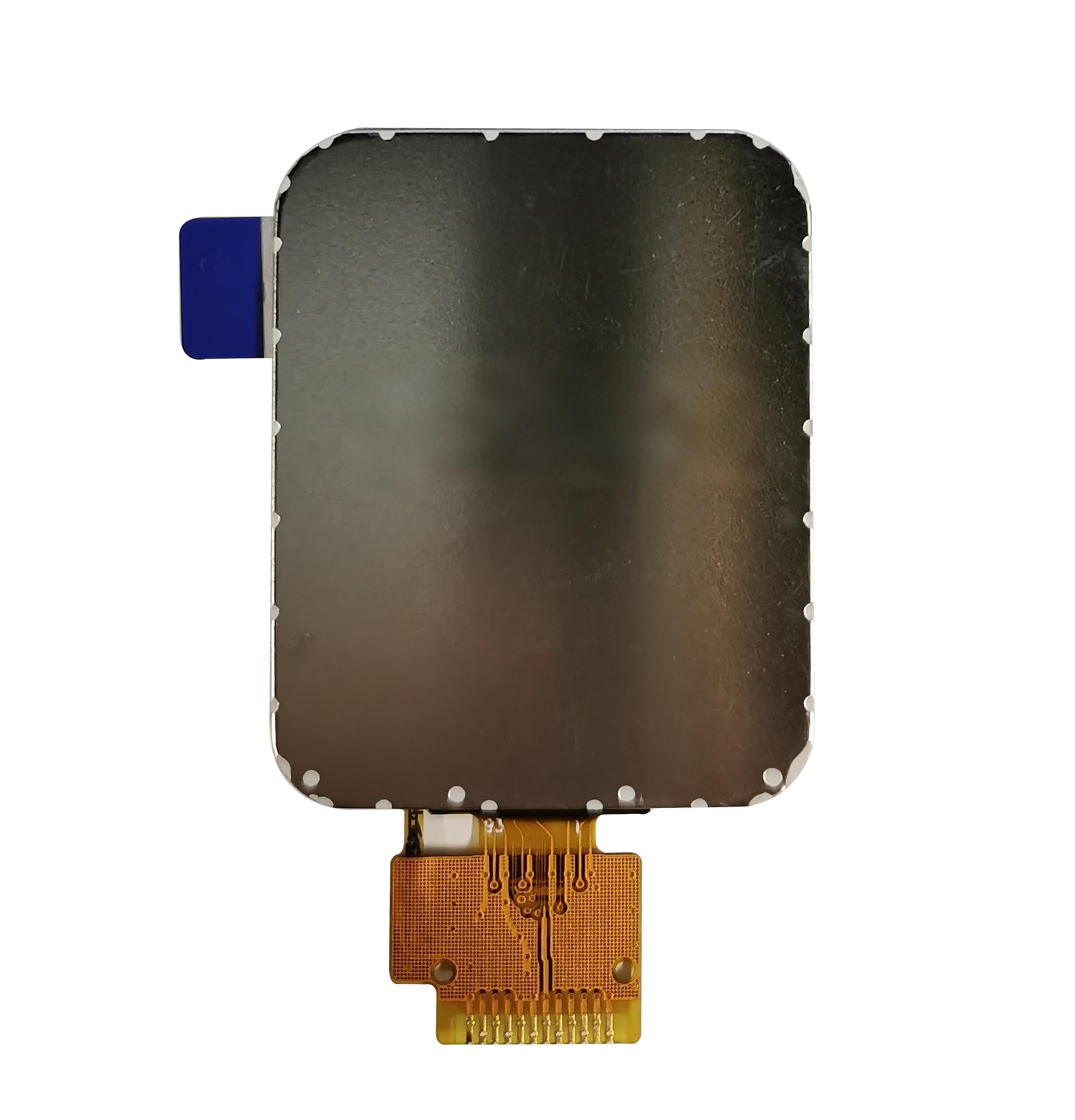

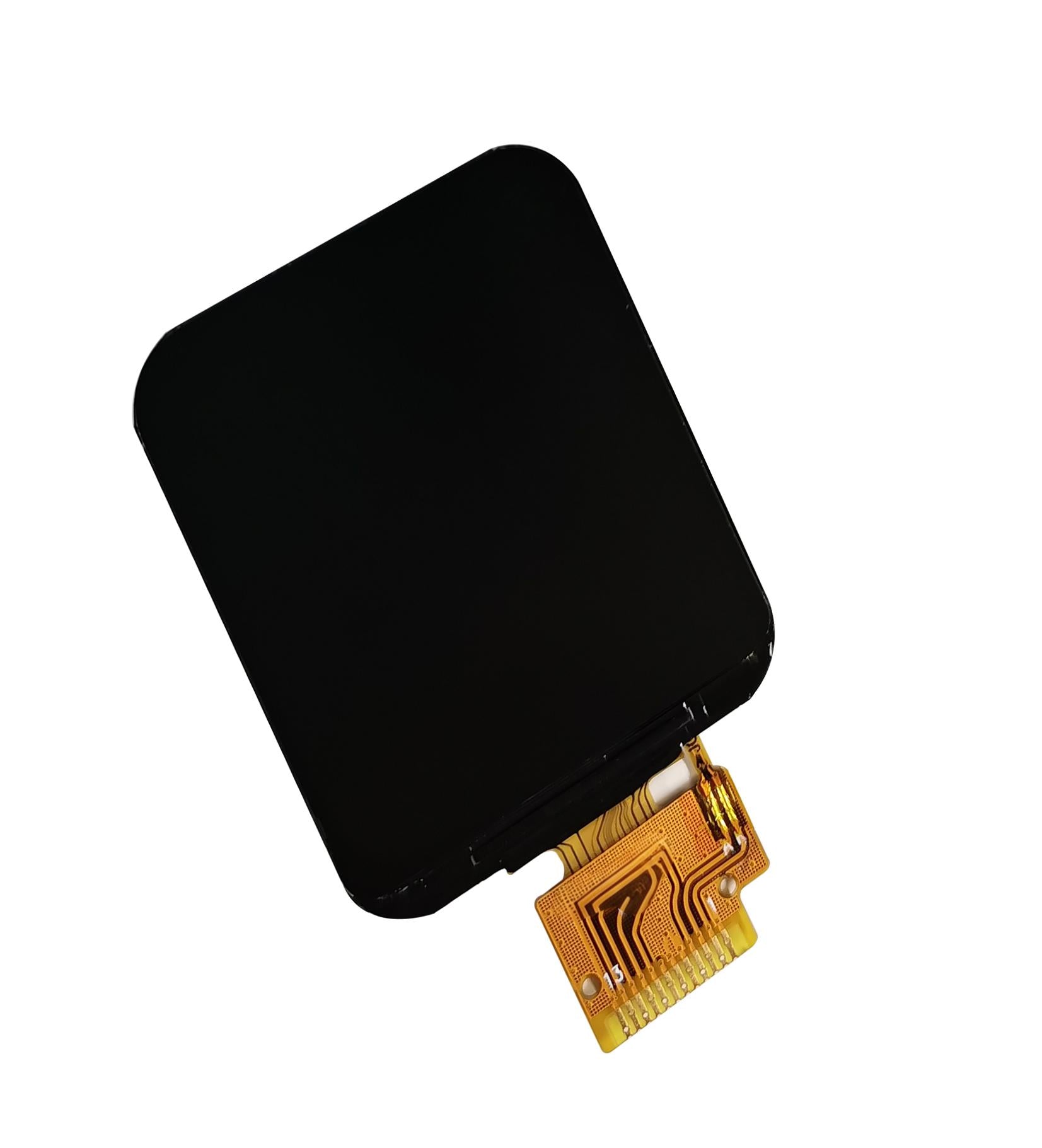

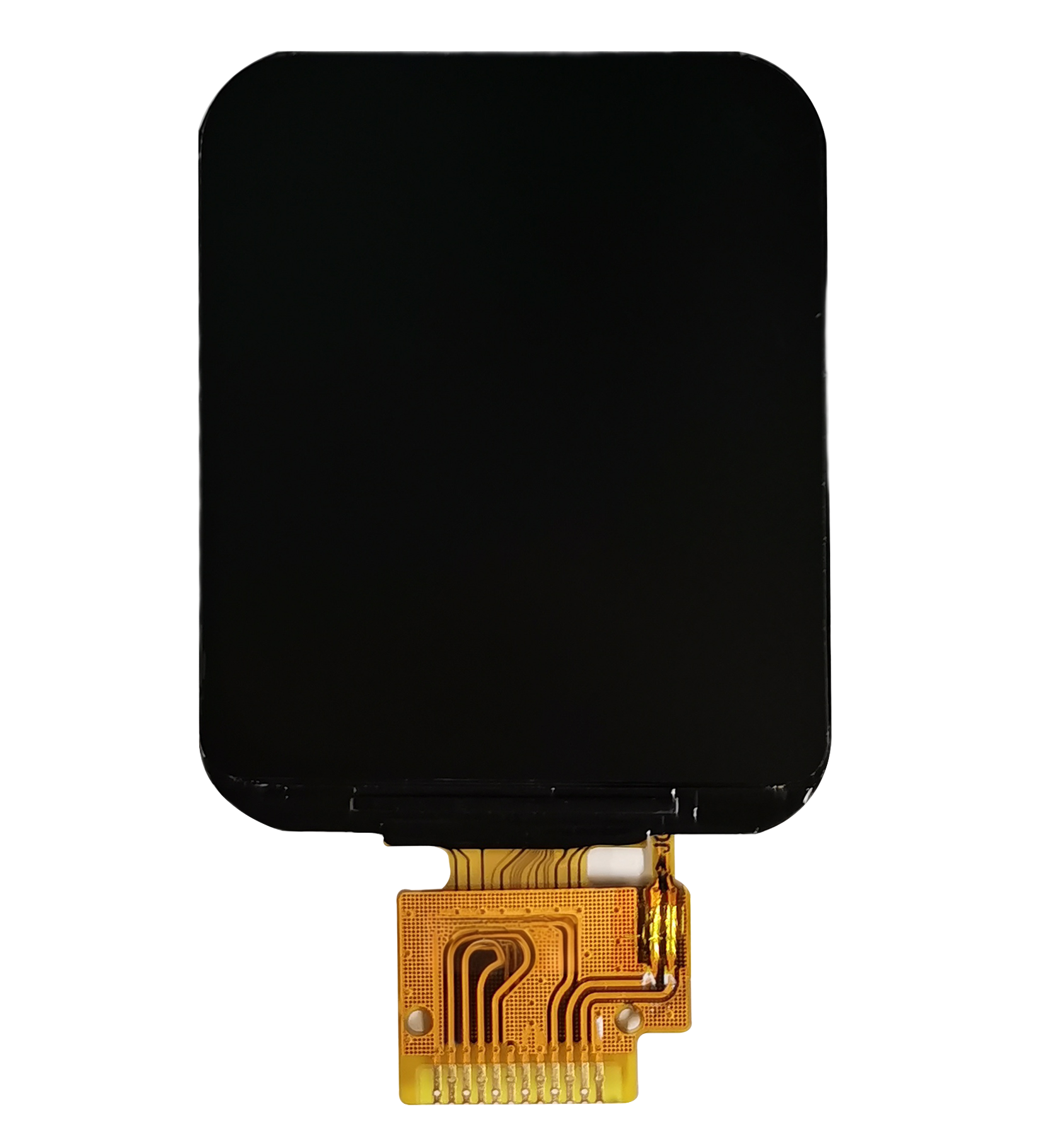

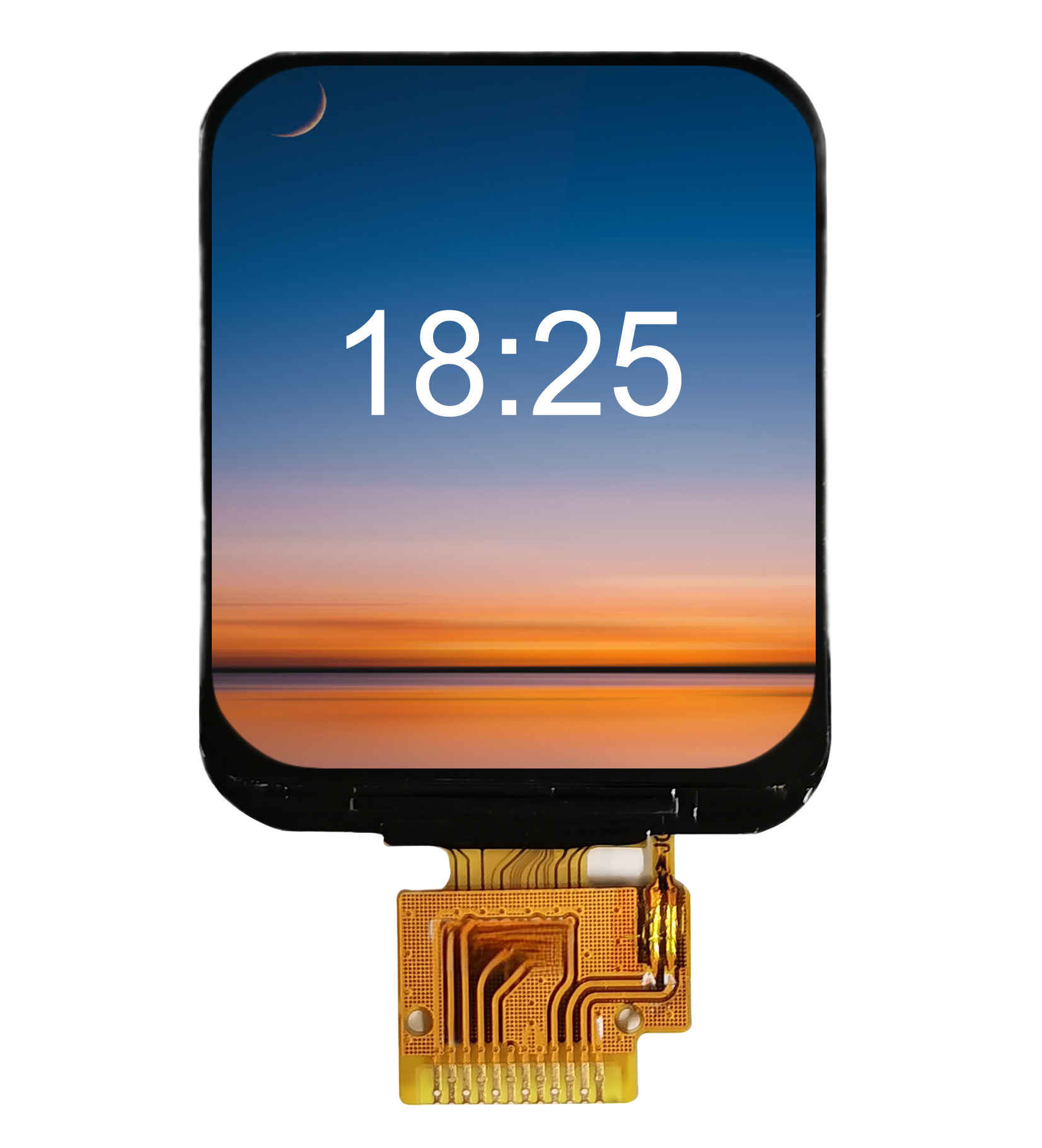

The LH169T-IG01 is a rectangular module with a 1.69-inch IPS TFT LCD display with arc corners. Manufactured by SWICN, this module showcases a 240x280 RGB pixel resolution on a black backdrop, offering an attractive visual encounter. With a typical brightness of 480cd/m2, it ensures clear visibility even in various lighting conditions. Equipped with the ST7789V2 driver IC and supporting a 4-wire SPI interface, this module guarantees reliable and consistent performance.
The LH169T-IG01 is compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility makes it suitable for a wide array of applications, such as embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
To simplify the integration process, the module features a 12-pin Flexible Printed Circuit (FPC) designed for direct soldering onto your PCB, eliminating the need for a separate connector. This ensures a secure and flat connection, streamlining the overall integration.
