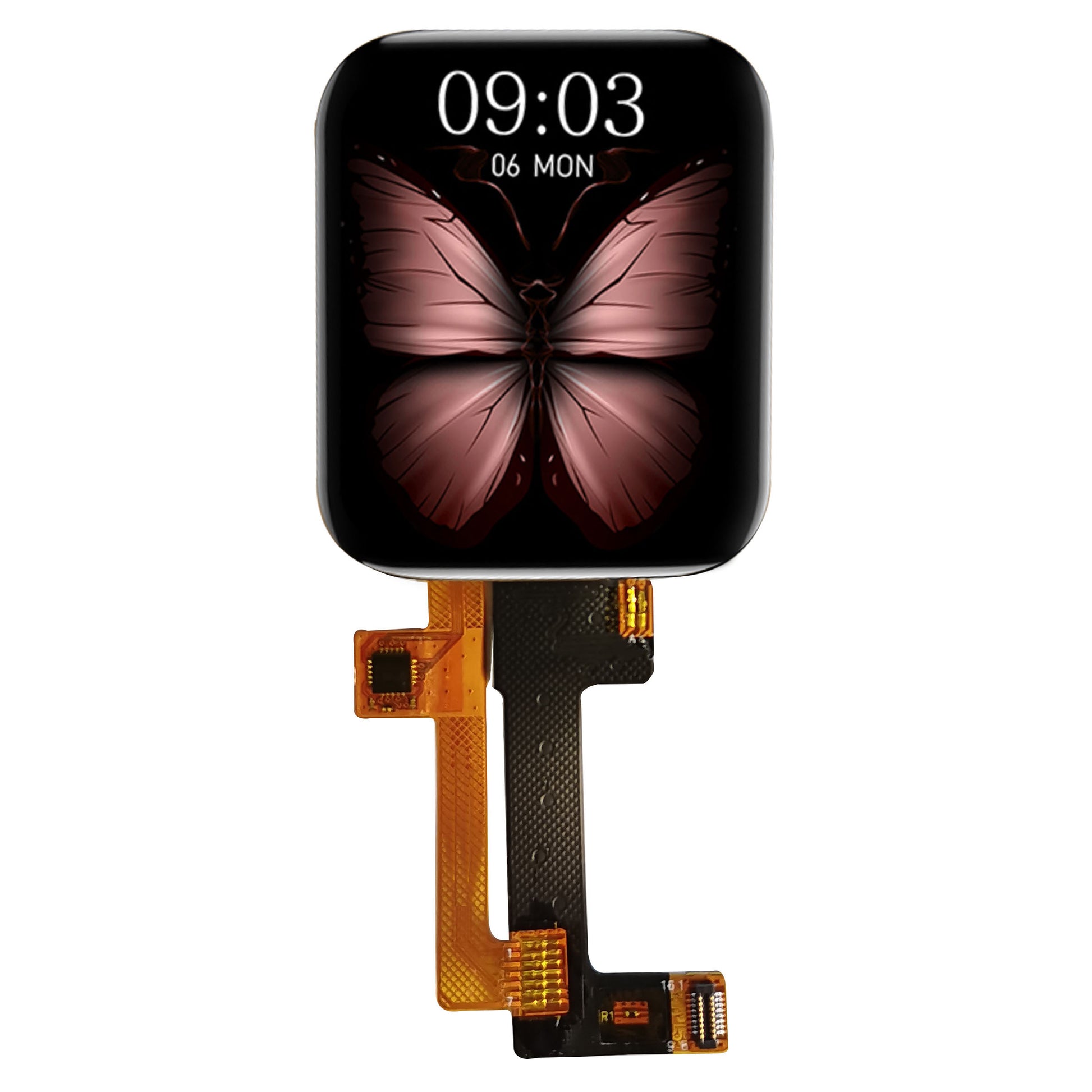

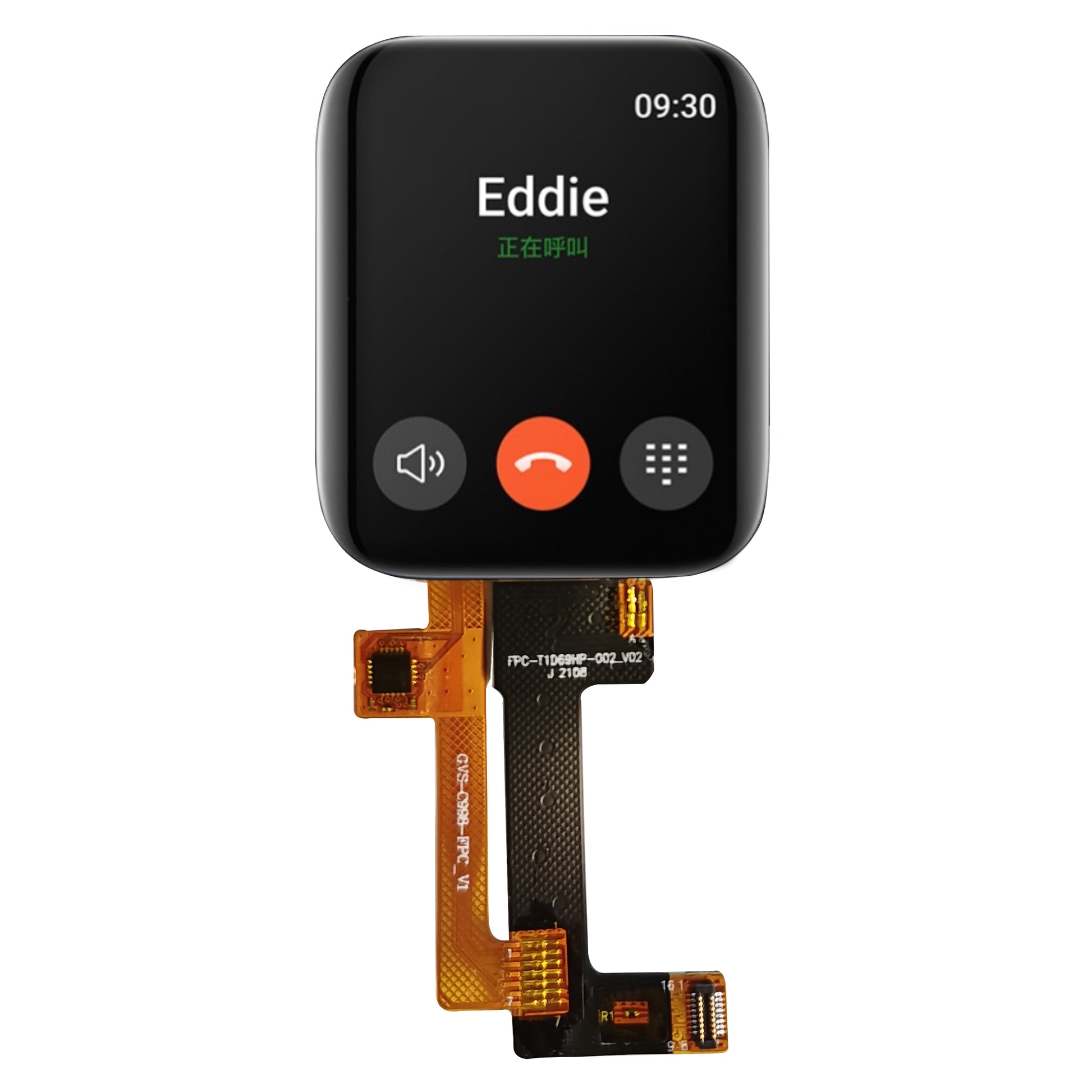

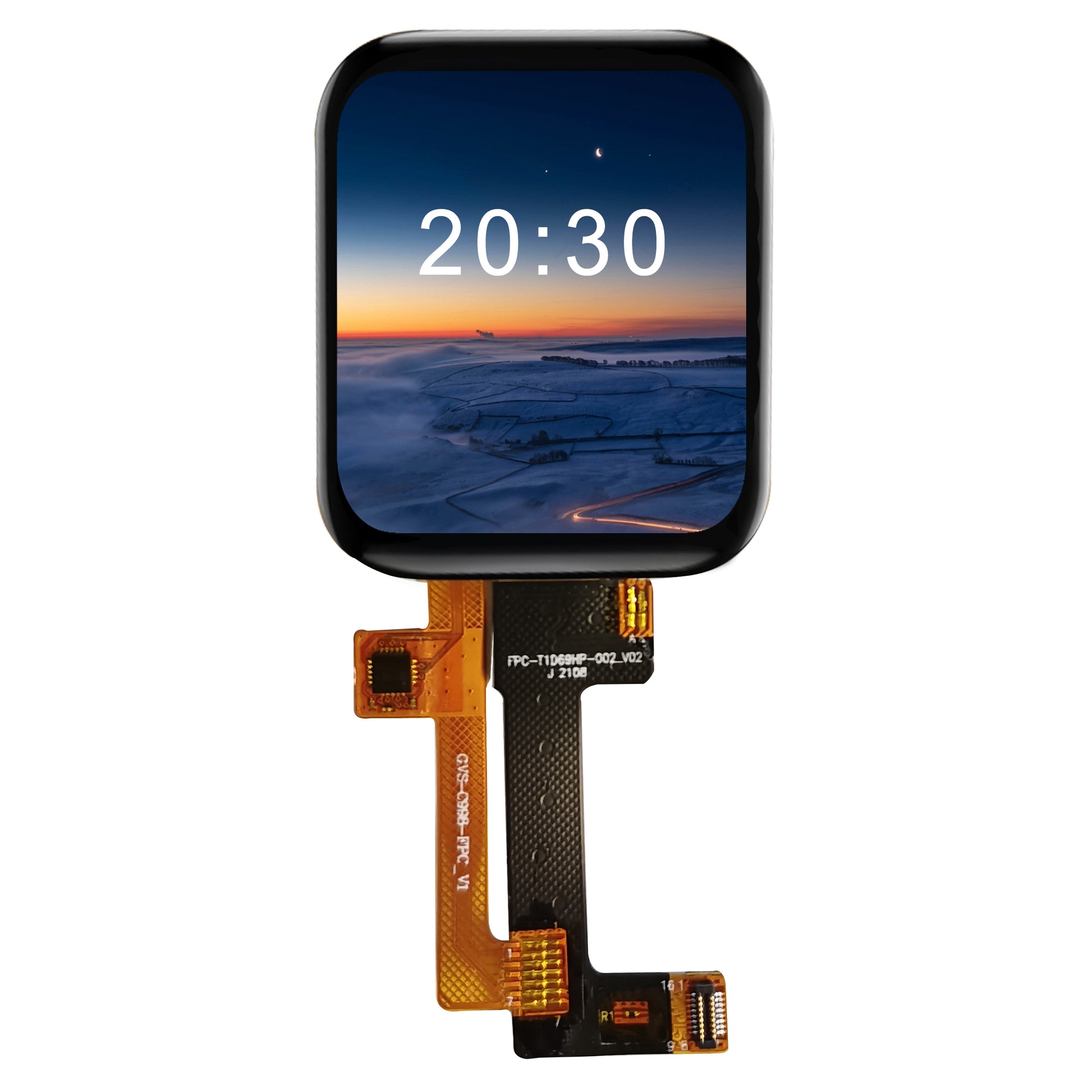

The GVS-C1152 by SWICN is a rectangle with arc corners 1.69-inch round IPS TFT LCD module with a capacitive touchscreen. It includes
a TFT panel, TFT driver IC (ST7789V2), flexible printed circuit (FPC), backlight, capacitive touch panel (CTP), and CTP driver IC (CST816T),
providing a comprehensive and compact solution.
With a resolution of 240x280 RGB pixels on a black background and a typical brightness of 500cd/m2, this module delivers sharp and
vibrant visuals. The capacitive touchscreen adds a responsive touch function, enabling seamless user interaction, making it ideal for
applications that require a user-friendly interface.
The GVS-C1152 is designed for versatility, featuring a 4-wire SPI interface for the TFT and an I2C interface for the touch panel. This
design ensures compatibility with various MCUs, such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, and a wide range of
applications, including embedded systems, industrial devices, wearables, P3 players, security systems, medical equipment, consumer
electronics, and handheld devices.

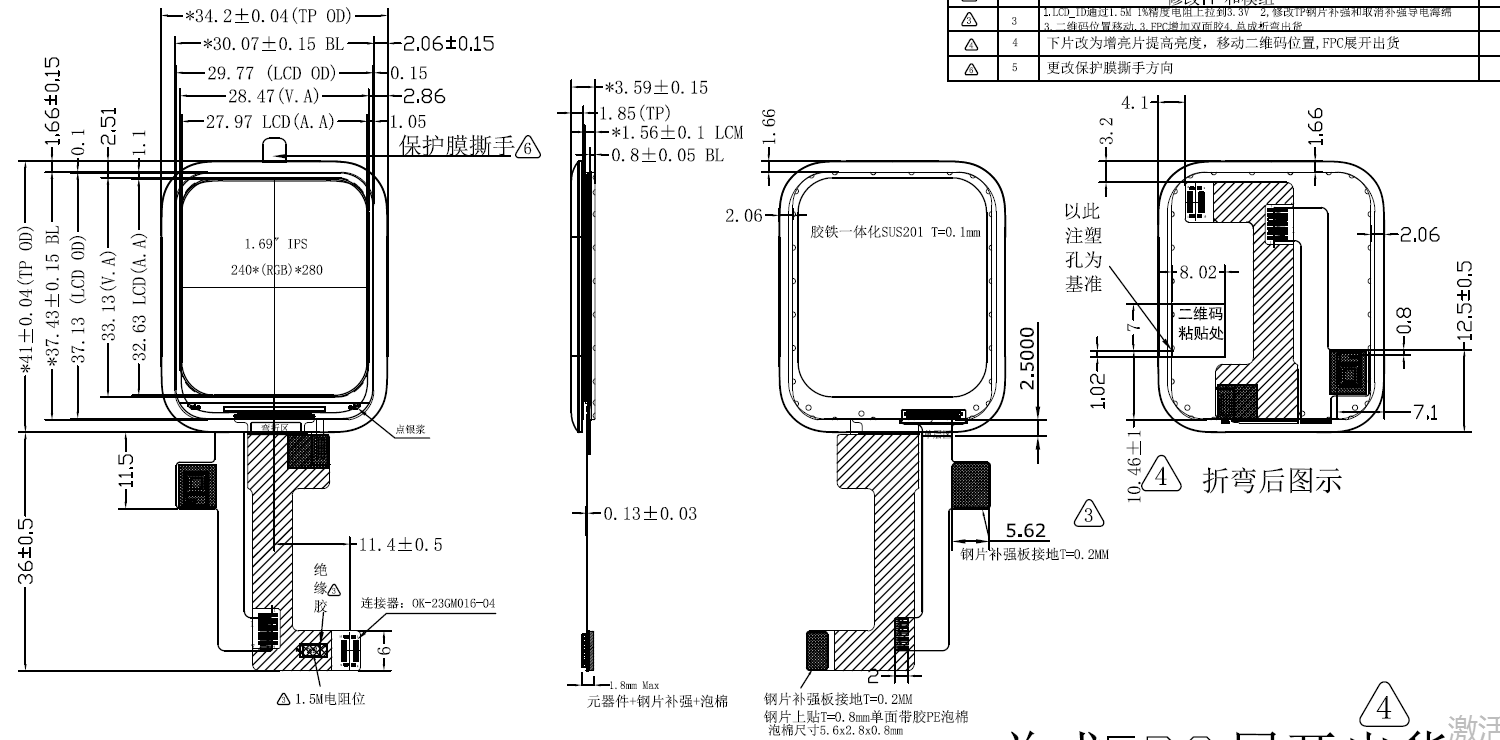

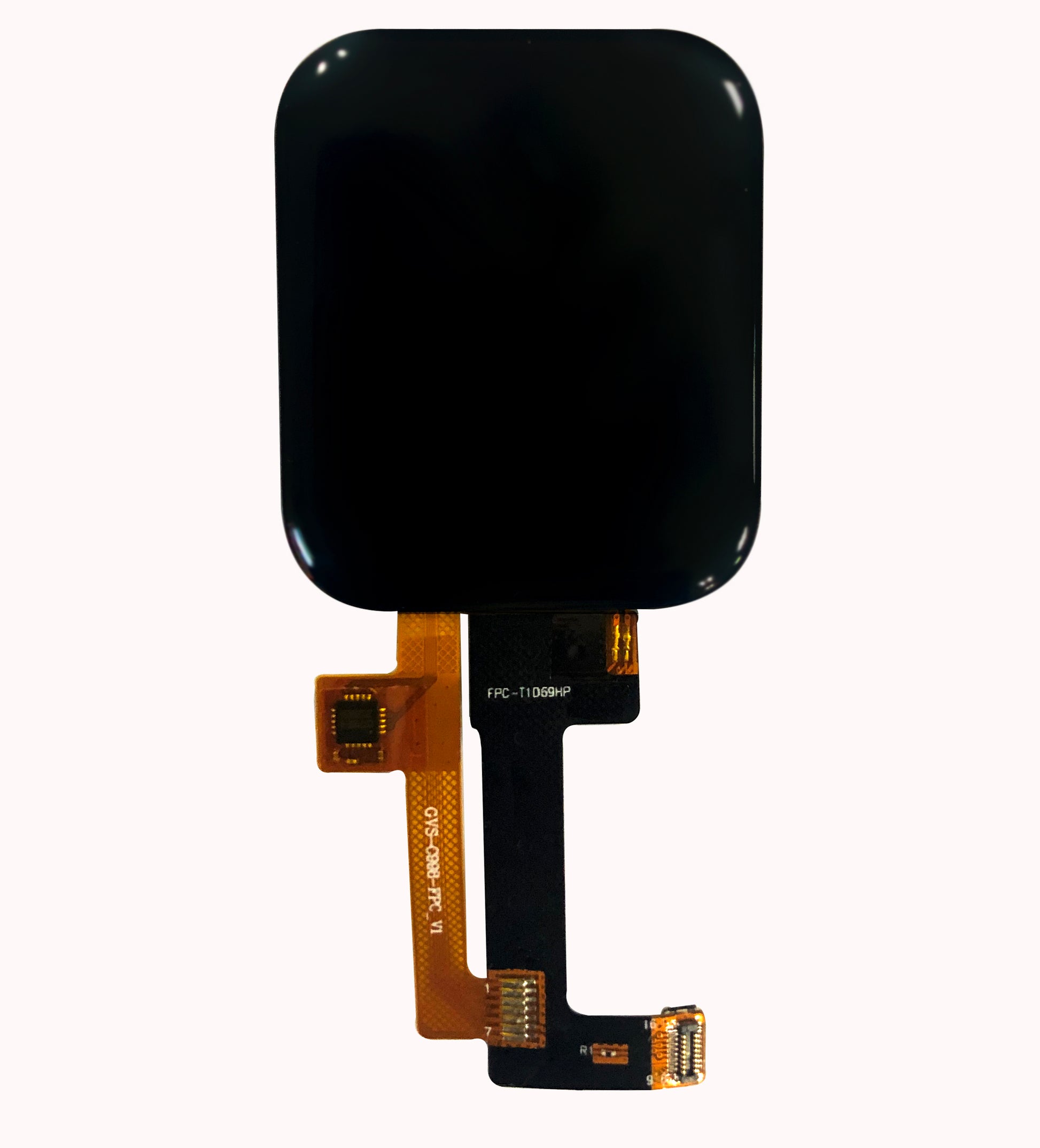

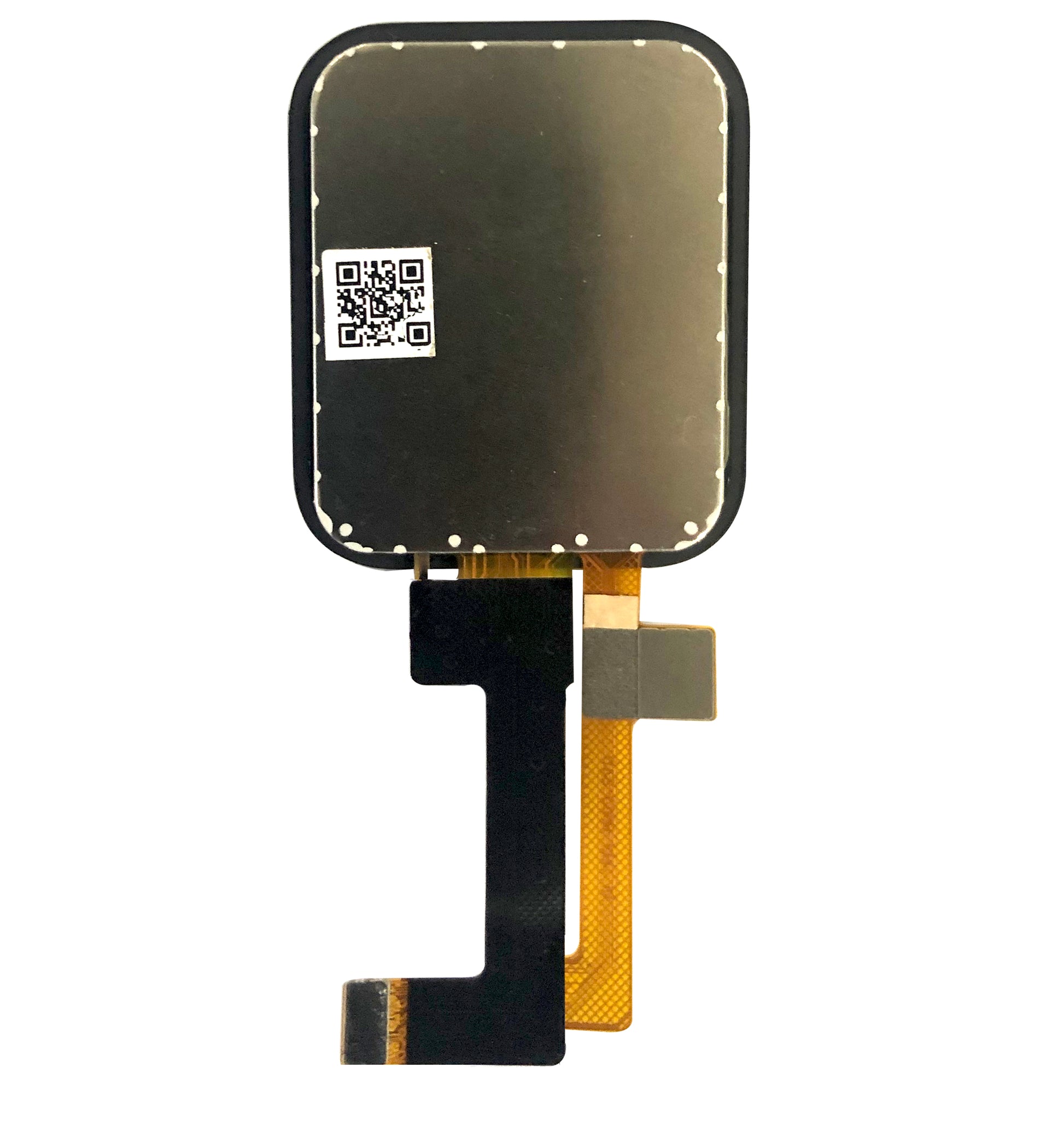

The module's FPC is designed with two Board to Board (B2B) connectors, enabling easy and direct connection to the B2B connector on
your PCB. This simplifies integration and ensures a secure and reliable connection.
To further meet specific customer requirements, Shineworld Innovations Limited provides customization options for the display solution.
This includes the ability to customize the FPC and offer integrated cover lenses, touch screens, or driver boards. Such flexibility ensures
that customers receive an optimized display solution tailored precisely to their individual needs and preferences.
* FPC Customization: Customers can request modifications to the Flexible Printed Circuit according to their needs.
* Driver Board Customization: SWI provides the option to customize the driver boards based on customer requirements.
* Cover Lens Incorporation: SWICN has incorporated cover lenses into this display and can provide customizations based on specific
requirements.
