| NO. | ITEM | SPECIFICATIONS | UNIT |

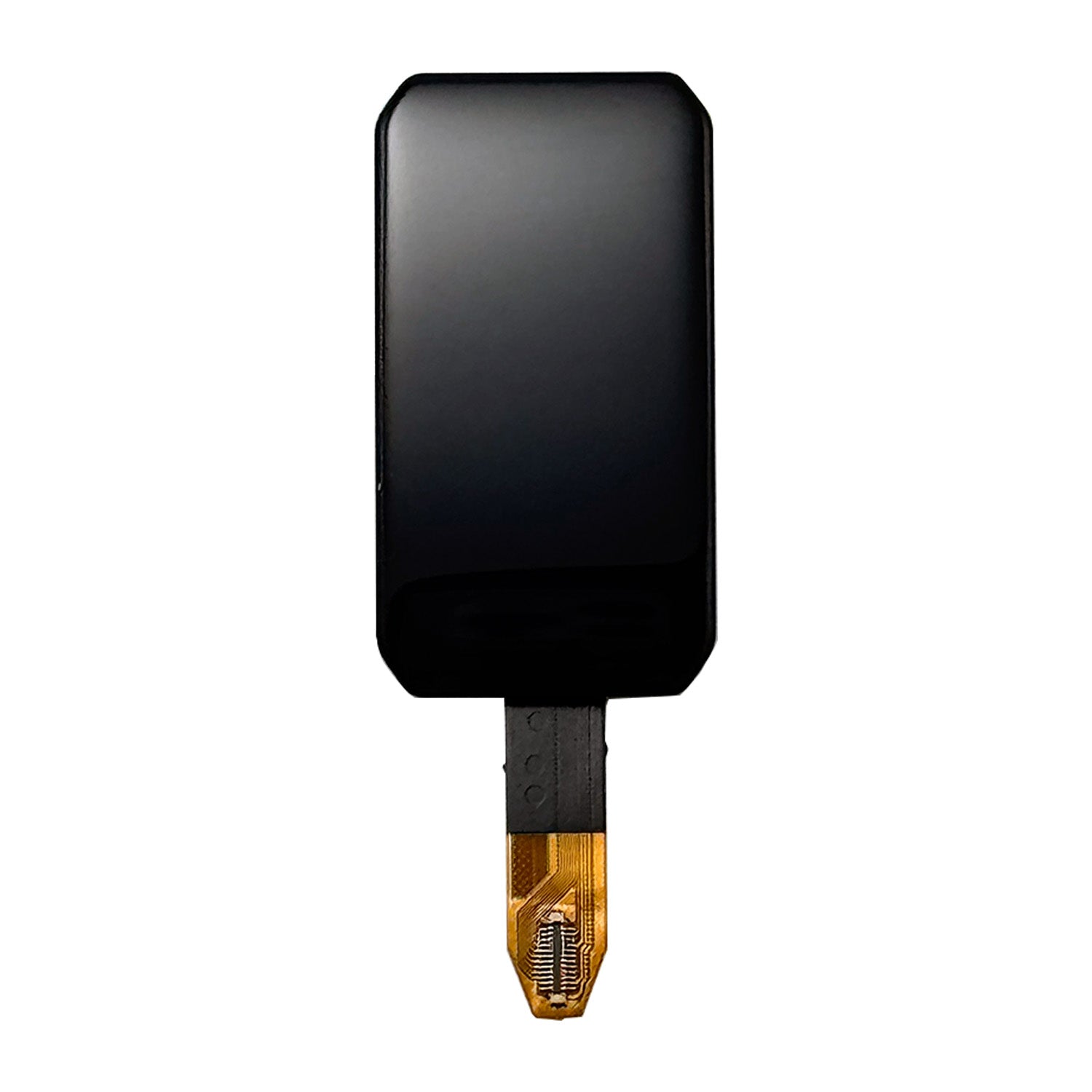

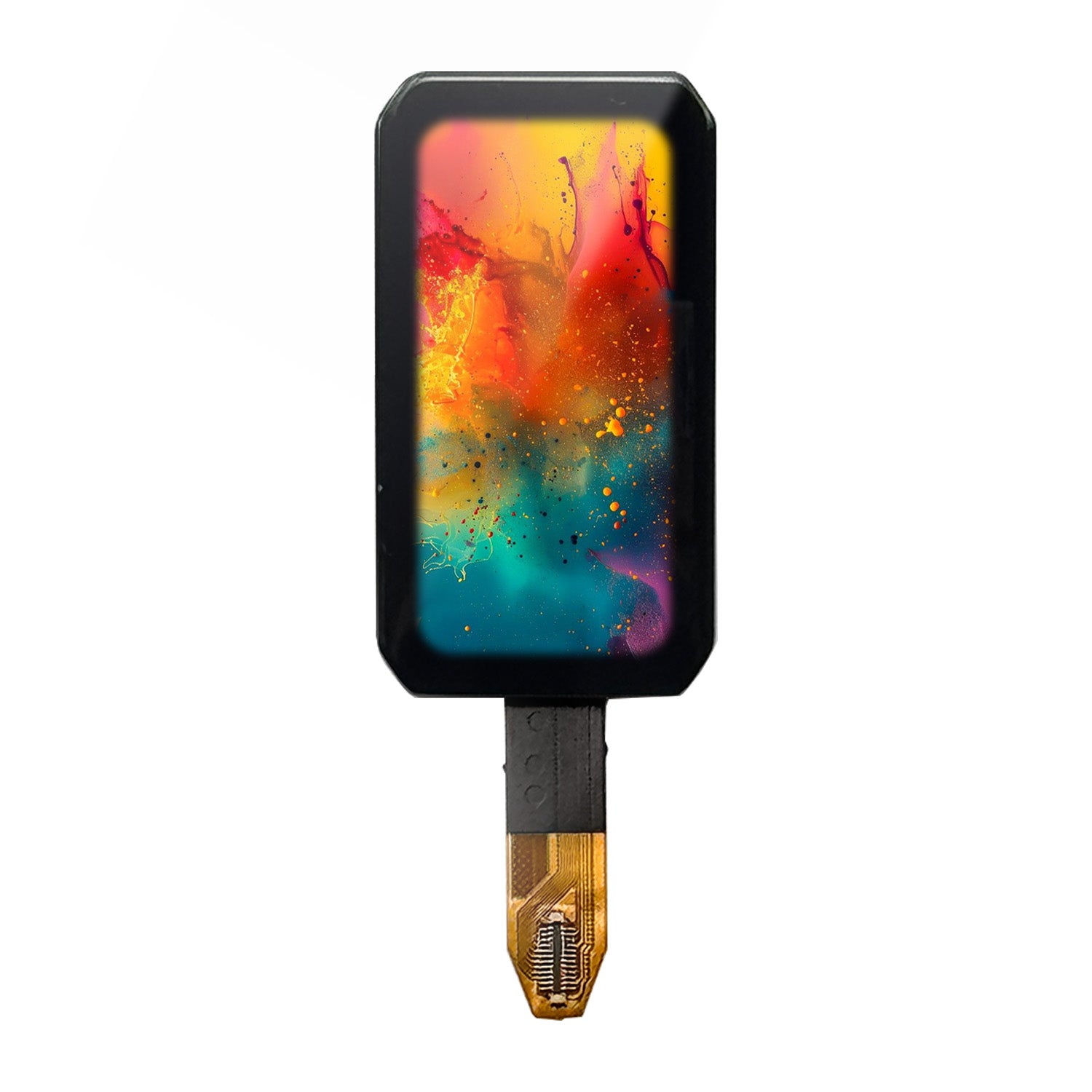

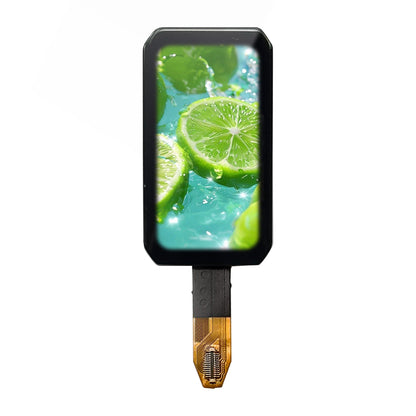

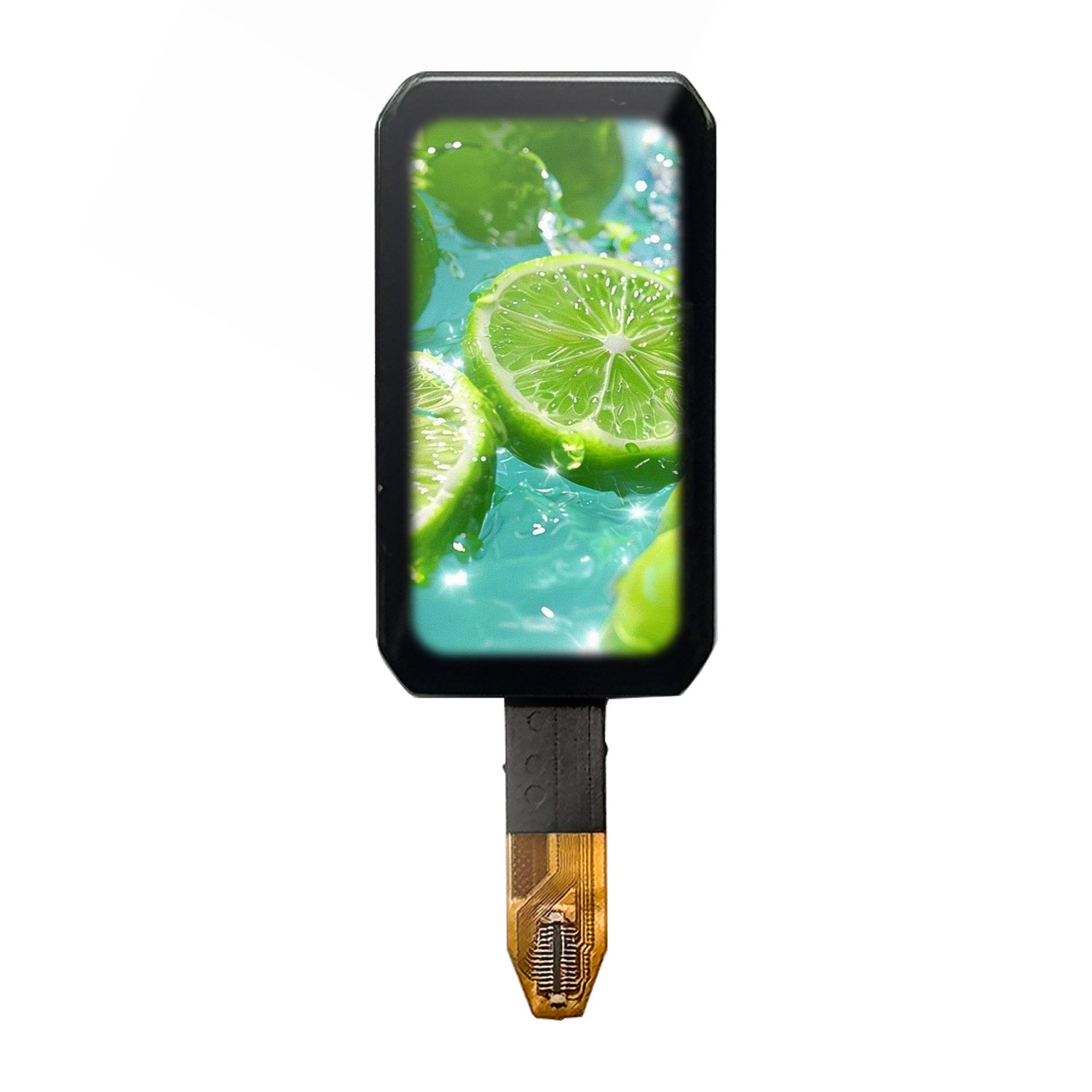

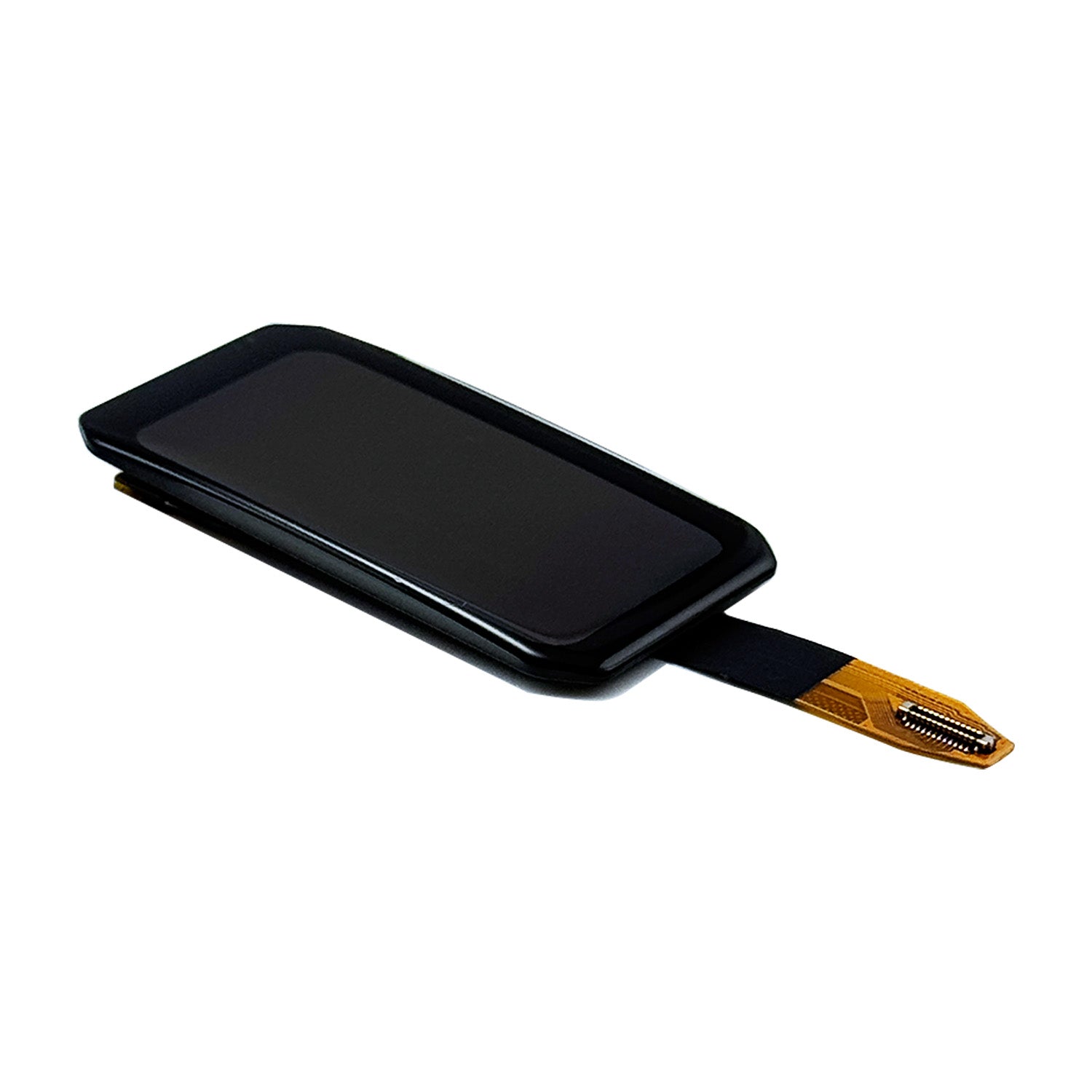

| 1 | Display Mode 显示模式 | AMOLED | - |
| 2 | Diagonal Size 尺寸 | 1.47 | Inch |
| 3 | Resolution 分辨率 | 194(H) x 368(V) | Dots |
| 4 | Active Area 有效显示区域 | 17.46(W) x 33.12(H) | mm |

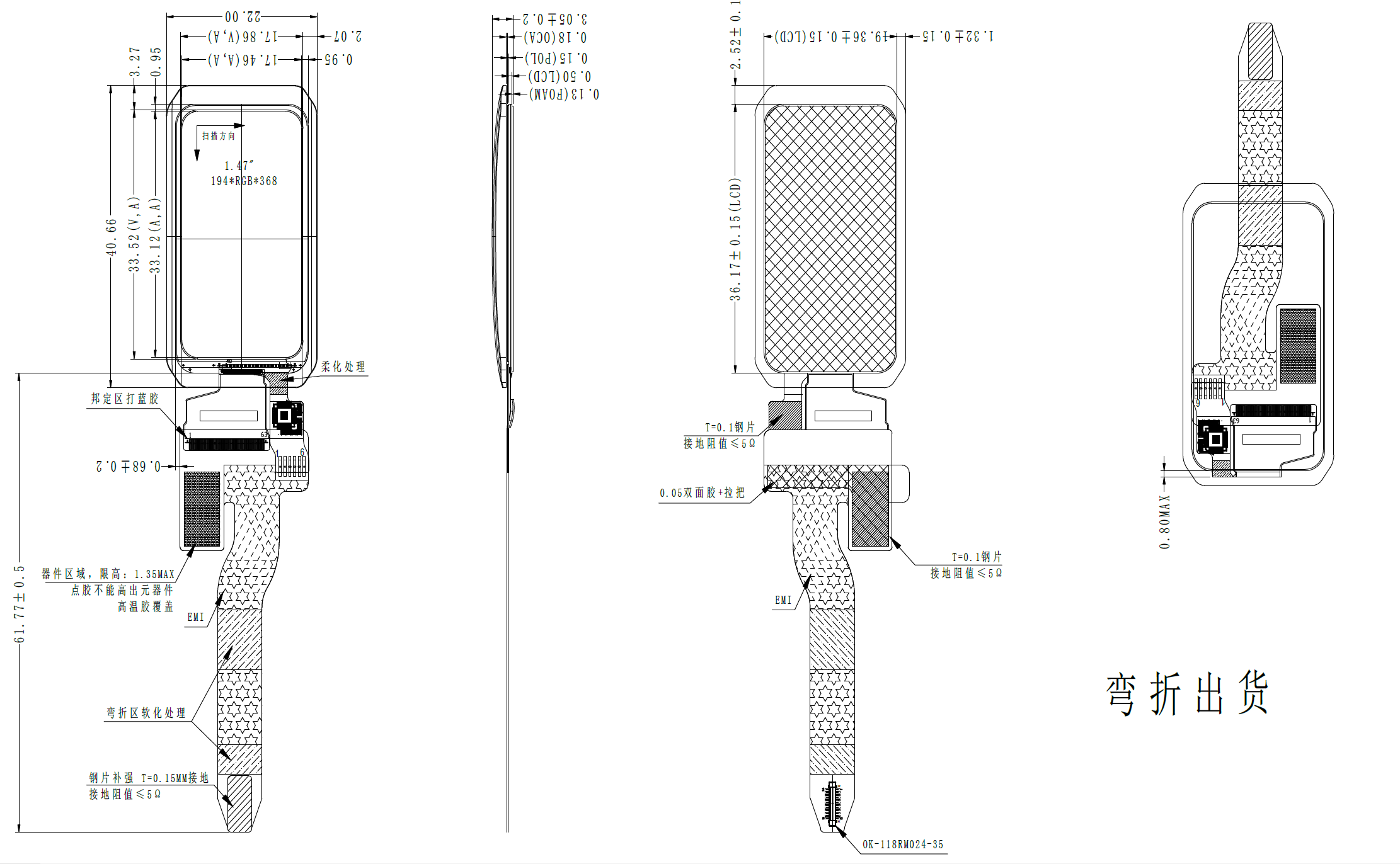

| 5 | Outline Dimension 外围尺寸 | 22(W) x 40.66(H) | mm |
| 6 | Thickness 厚度 | 3.05 ±0.2 | mm |
| 7 | Pixel Pitch 像素间距 | 0.09(W) x 0.09(H) | mm |
| 8 | Pixel Size 像素尺寸 | 0.09(W) x 0.09(H) | mm |
| 9 | Display Driver IC 显示驱动 IC | SH8501 | - |
| 10 | Touch Driver IC 触控驱动IC | CST820 | - |
| 11 | Display Color 显示色彩 | 16.7M | Color |
| 12 | Gray Scale 灰阶 | 8 | bit |
| 13 | Brightness 亮度 | 600(min） | cd/m2 |
| 14 | Contrast Ratio 对比度 | - | - |
| 15 | Interface 接口 | QSPI | - |
| 16 | IC Package Type IC 封装类型 | COF | - |

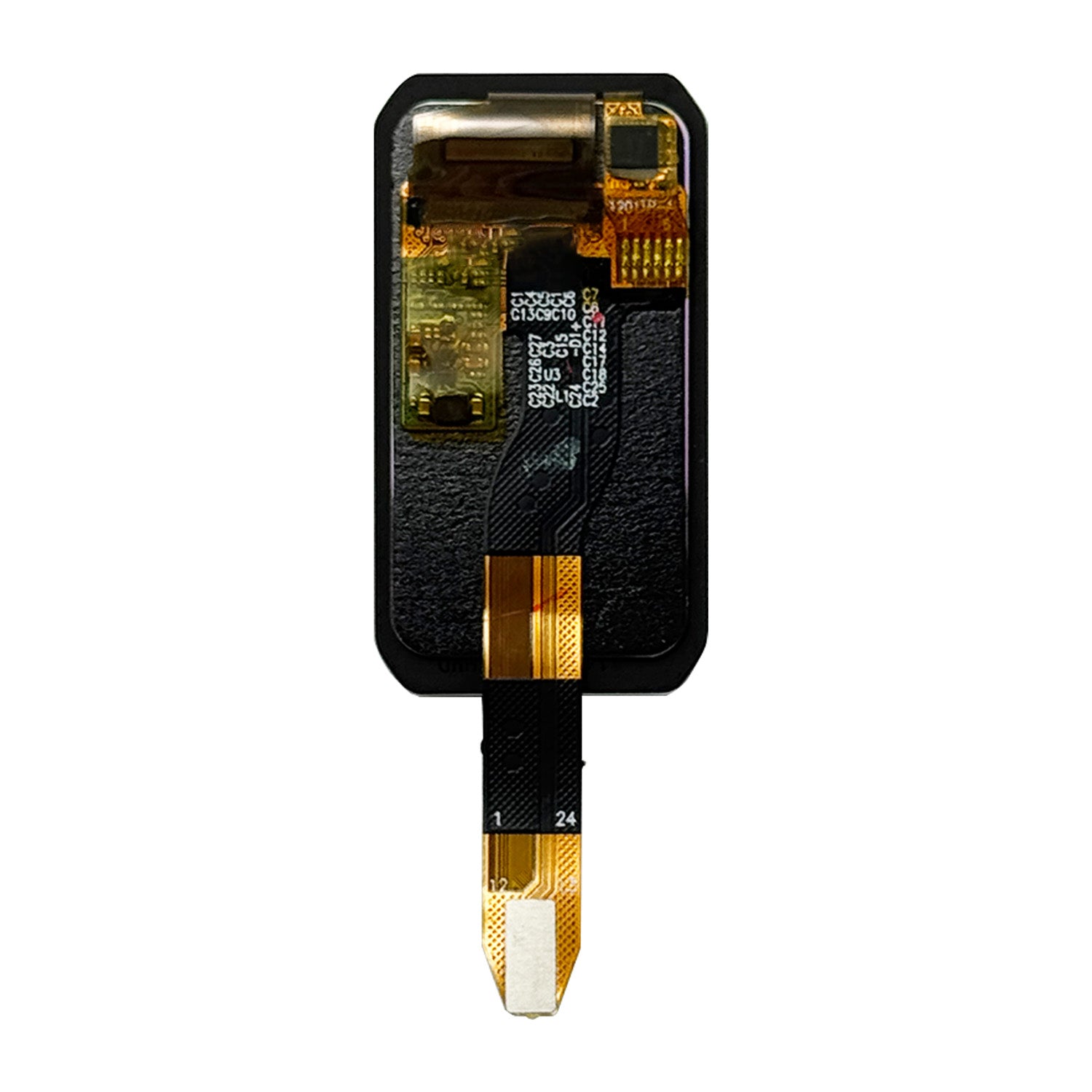

| 17 | Module Connecting Type 模块连接方式 | B2B Connector(OK-118RM024-35) | - |
| 18 | Weight 重量 | TBD±10% | g |
| 19 | Duty占空比 | / | - |
| 20 | Pins 引脚数 | 26 | Pins |
| 21 | Operating Temperature 操作温度 | -10~60 | ℃ |
| 22 | Storage Temperature 存储温度 | -20~70 | ℃ |
