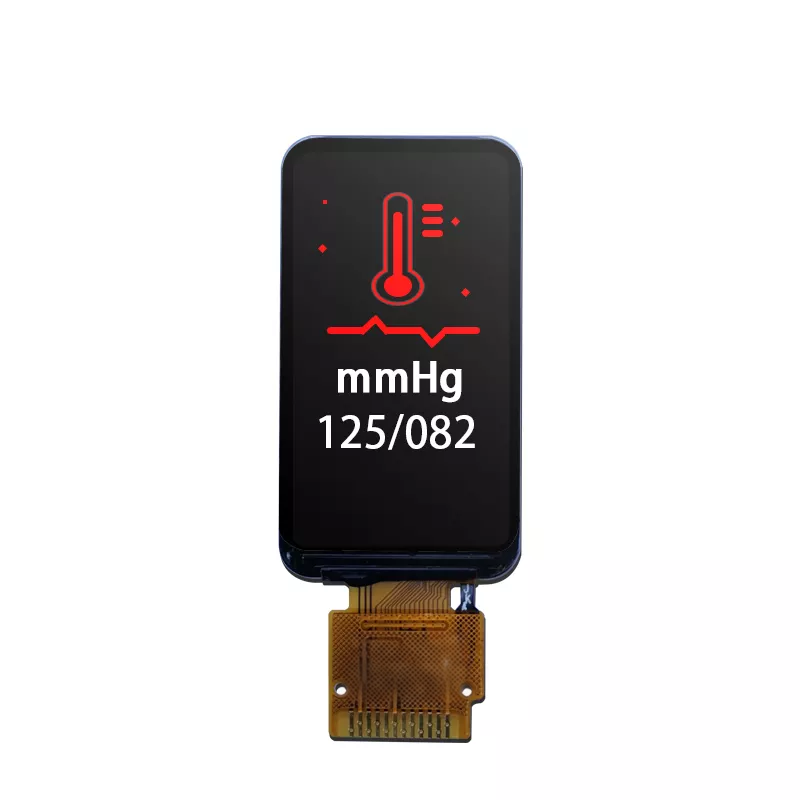

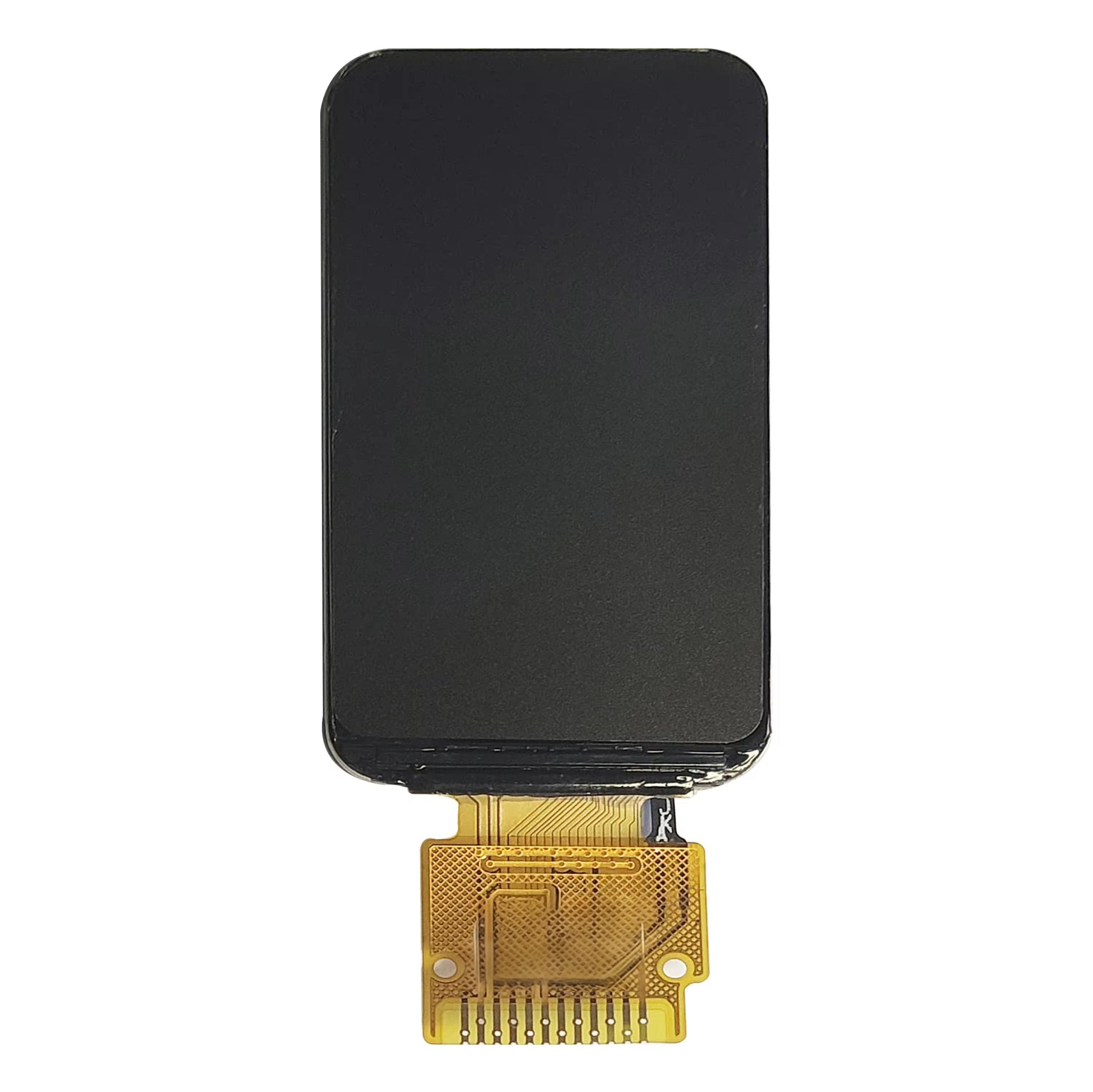

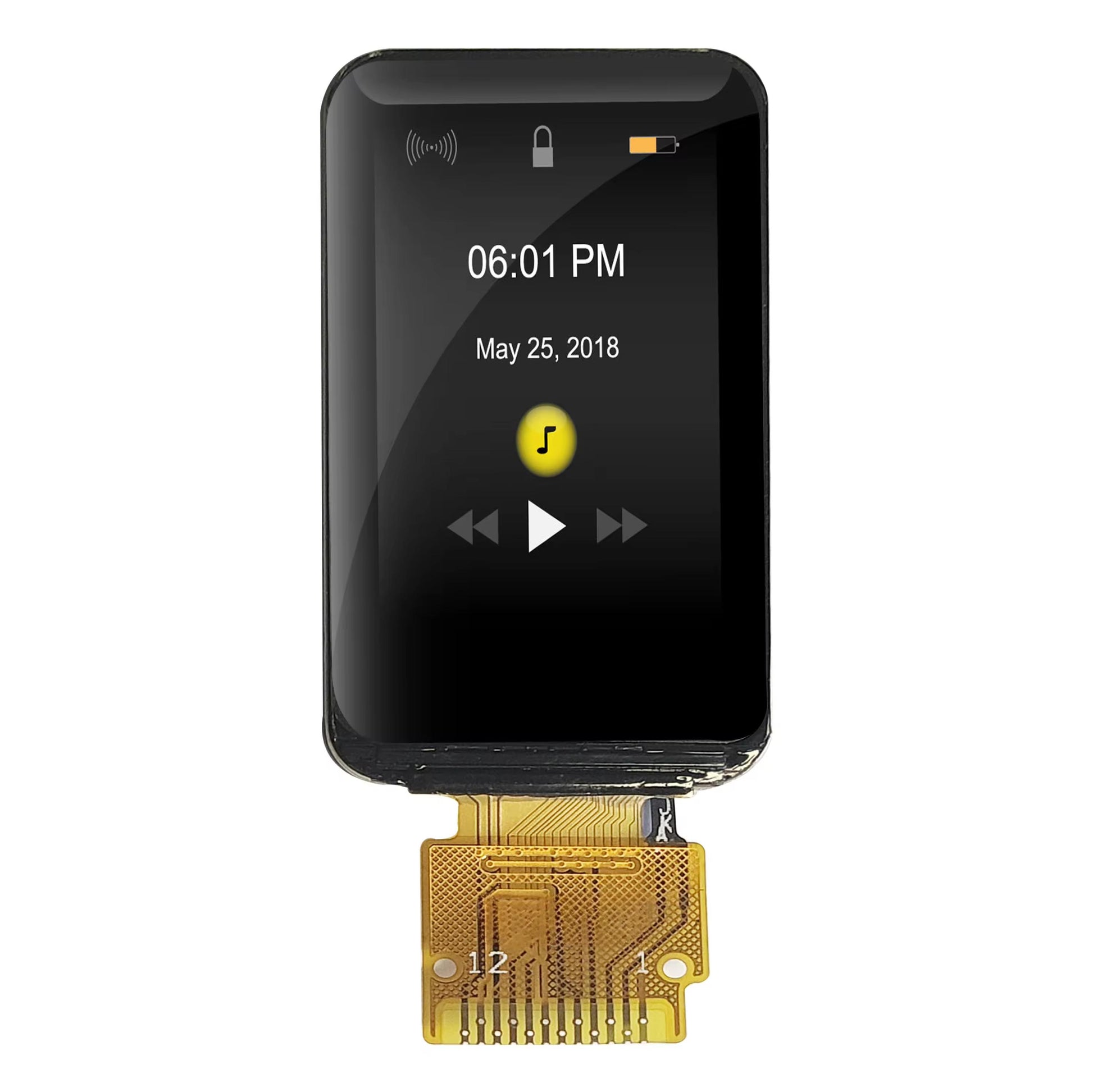

The LBS147TC-IG01 is a compact module featuring a 1.47-inch IPS TFT LCD screen. Developed by SWICN, this module showcases a 172x320 RGB pixel resolution on a black backdrop, providing an appealing visual experience. With a typical brightness of 600cd/m2, it ensures clear visibility in various lighting conditions. Equipped with the ST7789V3 driver IC and supporting a 4-wire SPI interface, this module guarantees dependable performance.
The LBS147TC-IG01module is compatible with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This extensive compatibility makes it suitable for diverse applications such as embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.

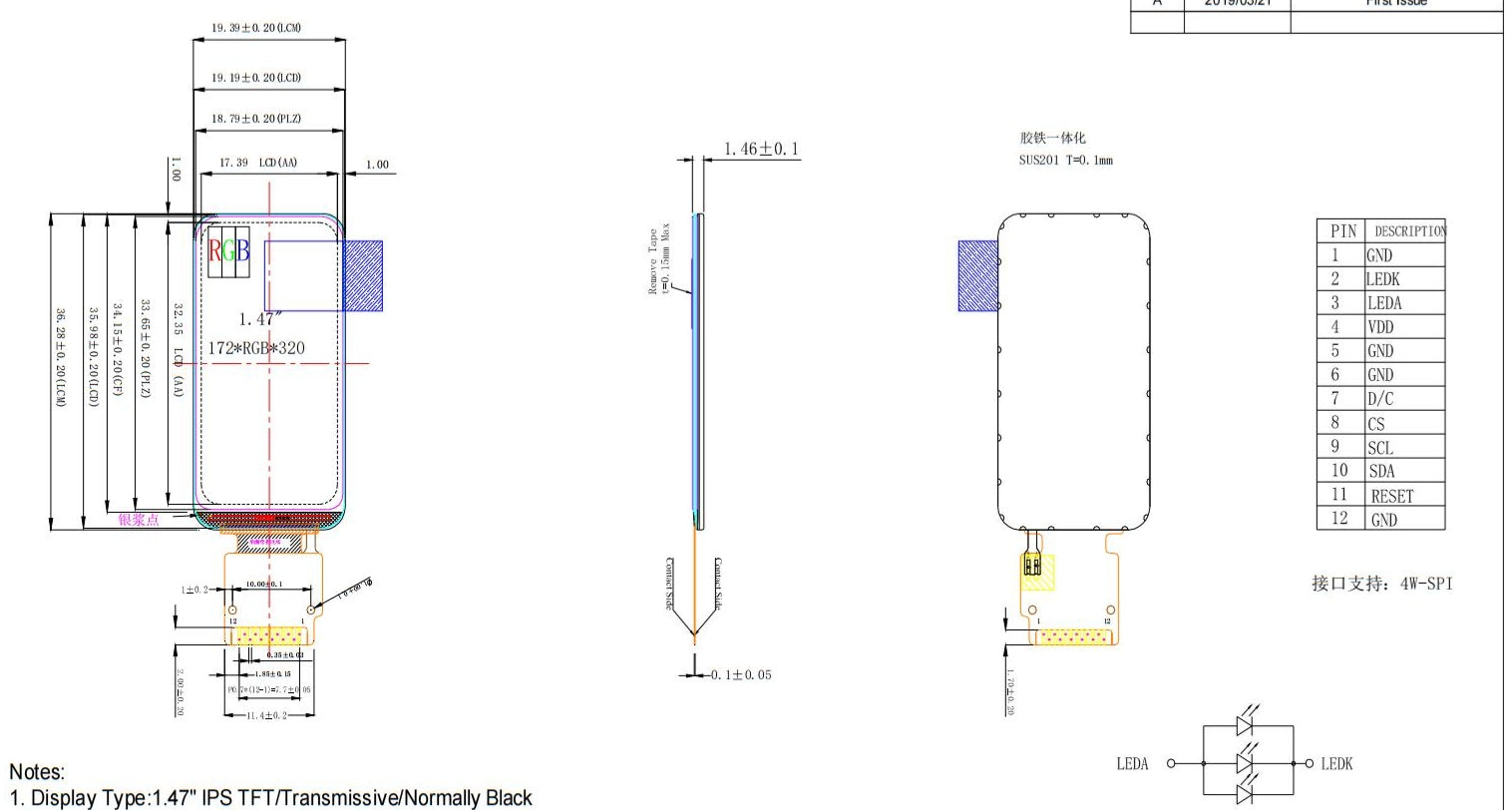

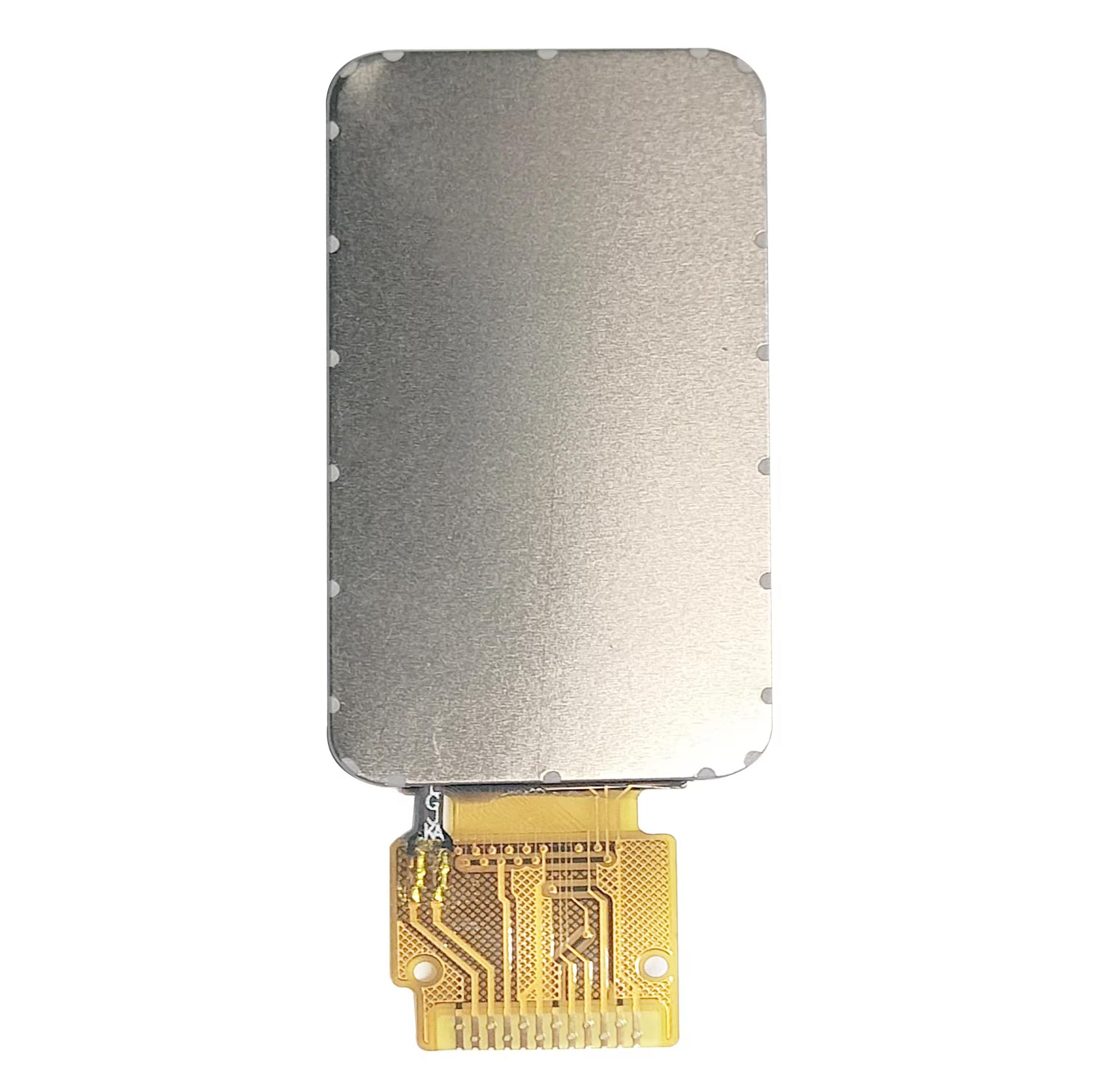

To simplify the integration process, the module features a 12-pin Flexible Printed Circuit (FPC) designed for direct soldering onto your PCB, eliminating the need for a separate connector. This ensures a secure and flat connection, streamlining the overall integration.
