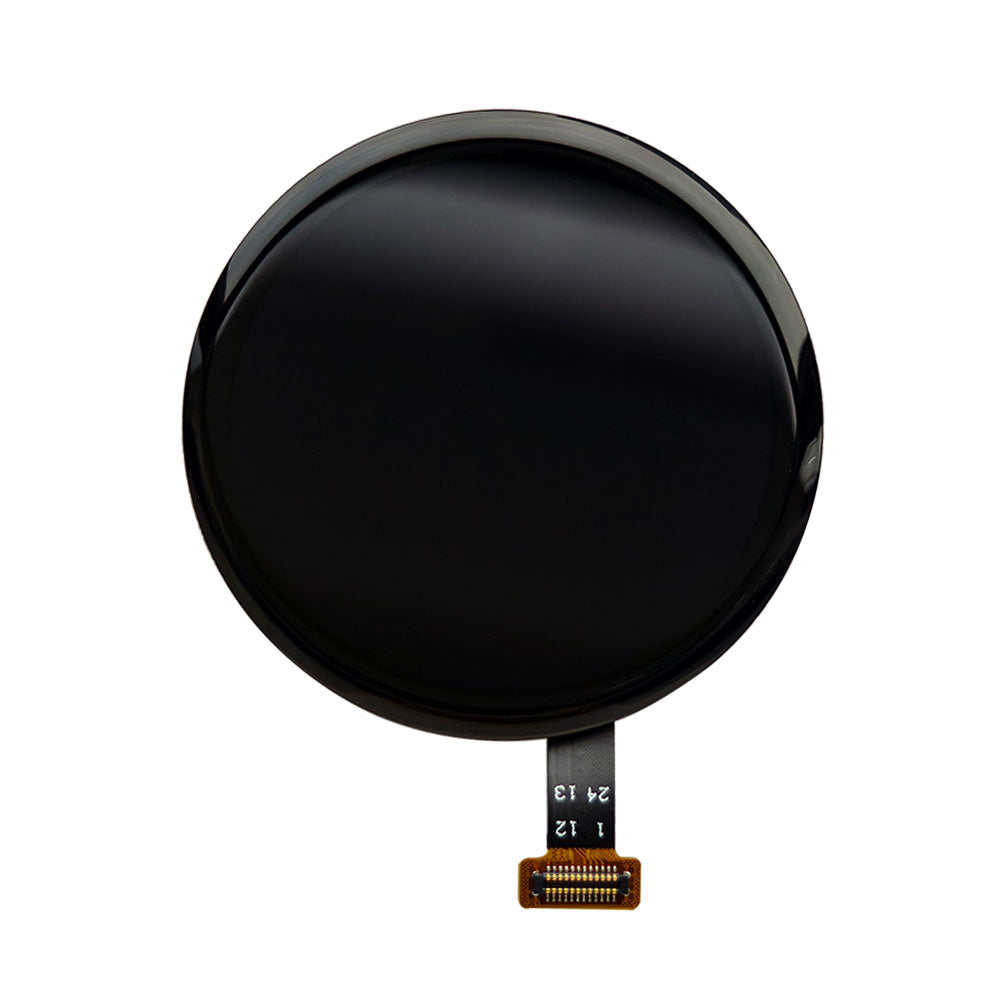

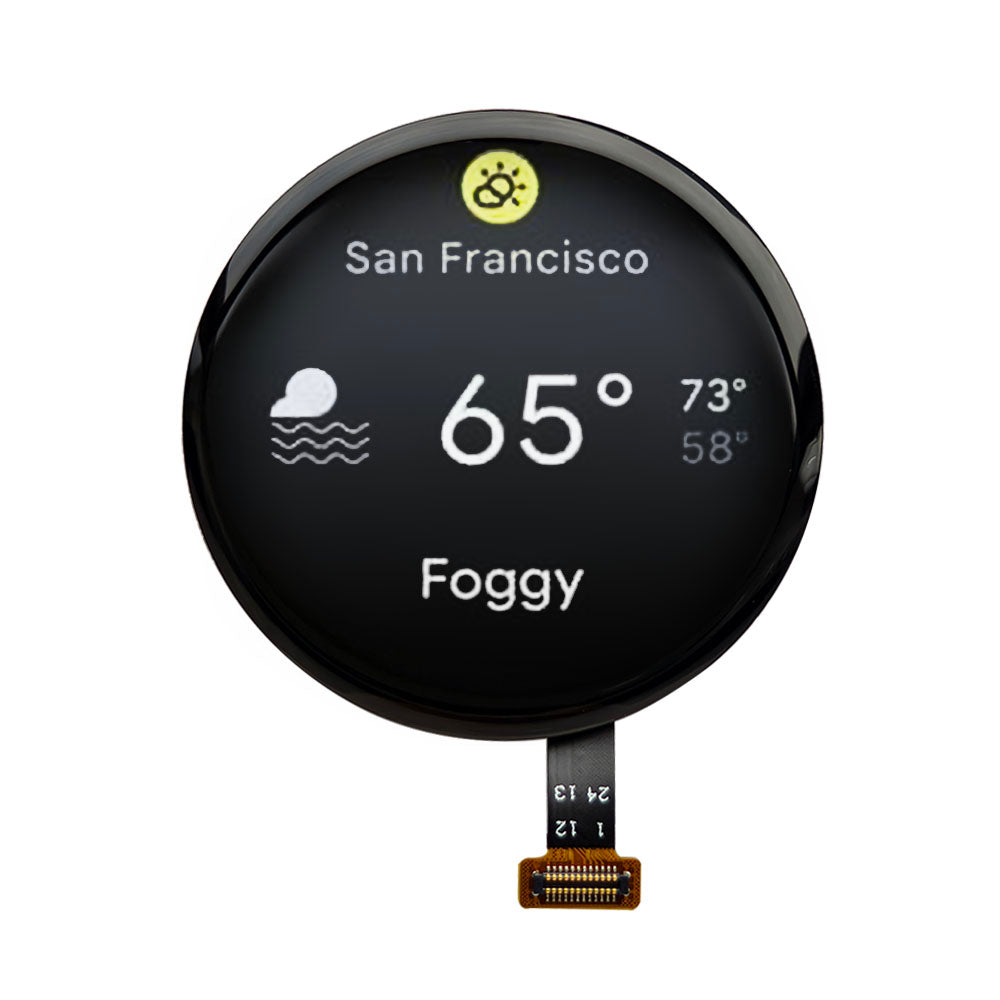

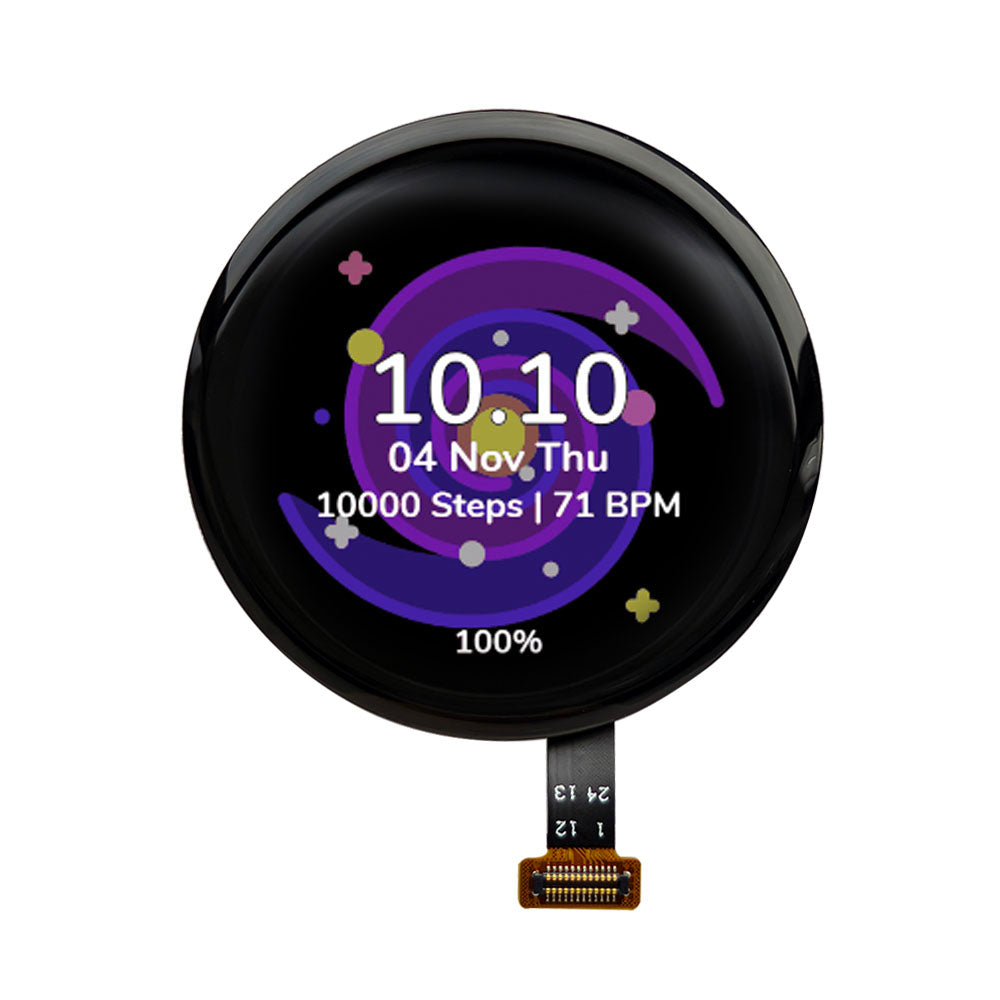

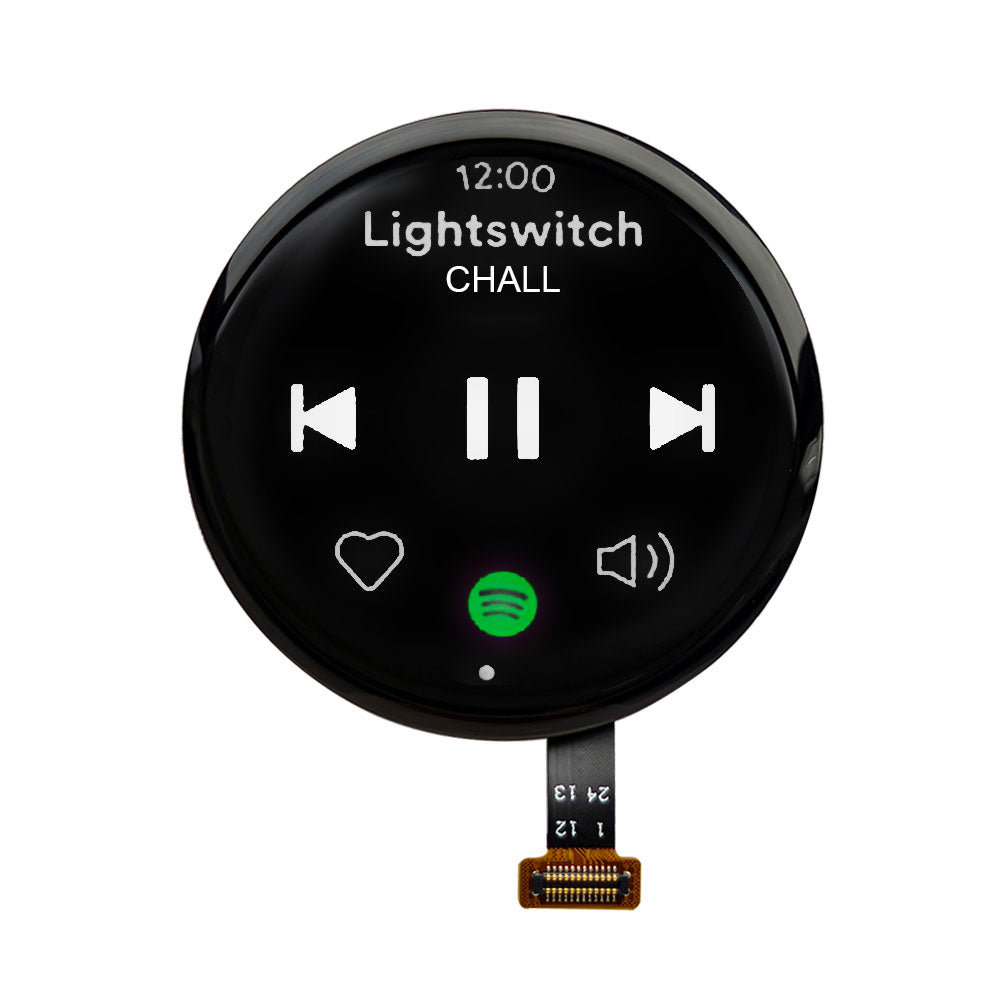

1.43-inch 466x466 Full Color AMOLED Round OLED Display with Touch Screen

1.43-inch 466x466 Full Color AMOLED Round OLED Display with Touch Screen

Model No.
  • GLO143-D-M2003
Resolution
Diagonal Size
Color

Please check stock availability with the seller before buying samples

Sample Price:
$7.50 USD
$7.50 USD
Sale Sold out
Send Inquiry View full details

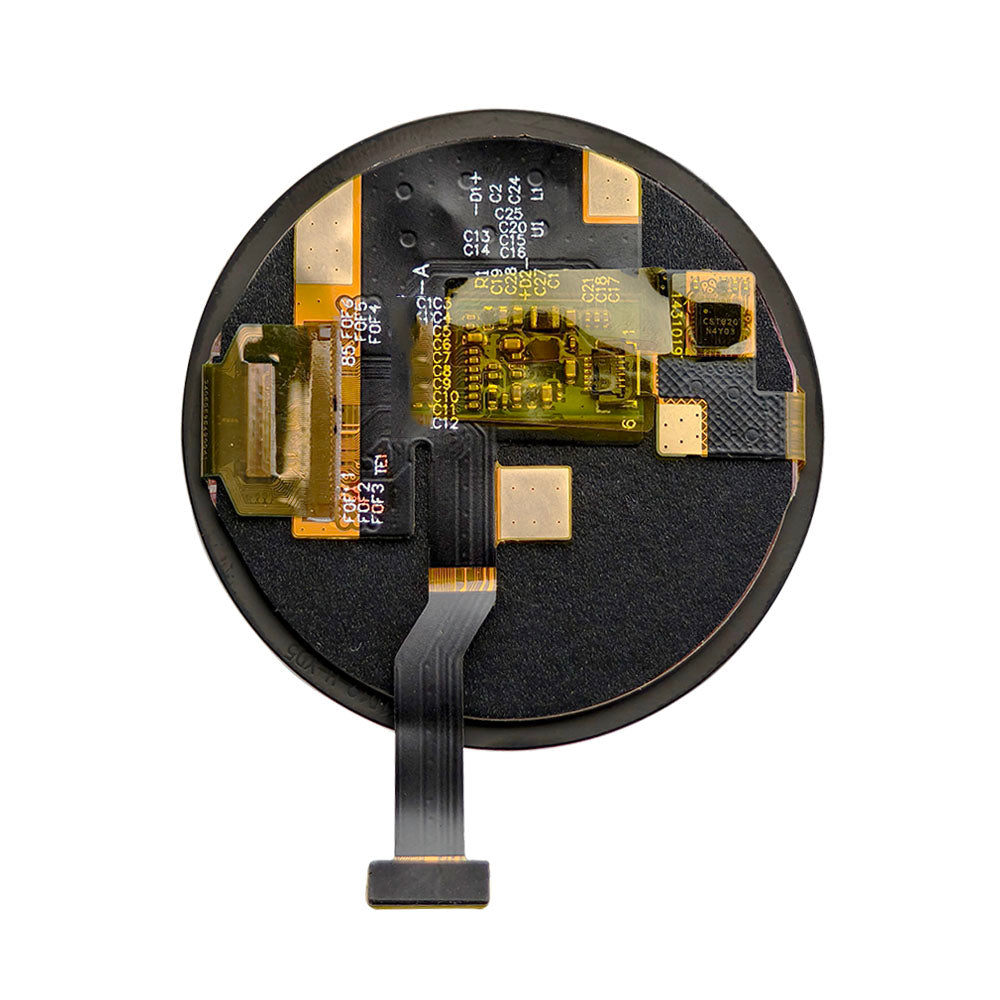

The GLO143-D-M2003 from Shineworld Innovations (SWI) is a high-performance 1.43-inch color AMOLED display with 466×466 RGB resolution, QSPI&MIPI interface, and 500cd/m² typical brightness.Key FeaturesSelf-emissive OLED: Ultra-high contrast, wide viewing angle, low powerBTB Connector: Easy and secure integrationBroad MCU Compatibility: Works with Arduino, Raspberry Pi, ARM, and moreCustomization Options: FPC, Cover lens, Touch, Driver board Versatile Applications: Ideal for wearables, medical devices, security systems, etc.

This is one example from over 1,000 customized cases we have completed. We offer a wide range of product customization services based on customer requirements.

Our integrated display modules combine components such as cover lenses, touch panels, displays, and driver boards into a single, compact unit-optimized for your application in terms of size, performance, urability, and aesthetics.

We provide customization for:

  • Housing Materials (Plastic or Metal)
  • Cover Lens Options (Glass, PMMA, PC, PET, ABS)
  • Touch Technologies (ITO Glass, ITO Film, Metal Mesh)
  • Display Types (TFT, OLED, EPD)
  • Bonding Techniques (OCA, LOCA, Functional Adhesive Tape)
  • Driver Board & FPC Design
  • Functional Films (Privacy, Anti-glare, Anti-reflection)

From concept to production, our goal is to deliver display solutions that meet your unique design, technical, and environmental needs - whether you’re building consumer electronics, medical equipment, industrial controls, or smart appliances.

To discuss your custom display requirements, please get in touch with our sales representative.

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 AMOLED -
2 Diagonal Size 尺寸 1.43 Inch
3 Resolution 分辨率 466(H)×466(V) Dots
4 Active Area 有效显示区域 Φ36.35 mm
5 Outline Dimension 外围尺寸 Φ43.05 mm
6 Thickness 厚度 2.26±0.2 mm
7 Pixel Pitch 像素间距 0.078(W)×0.078(H) mm
8 Pixel Size 像素尺寸 0.078(W)×0.078(H) mm
9 Display Driver IC 显示驱动 IC C05300 -
10 Touch Driver IC 触控驱动IC CST820 -
11 Display Color 显示色彩 16.7M Color
12 Gray Scale 灰阶 8 bit
13 Brightness 亮度 500（Typ.） cd/m2
14 Contrast Ratio 对比度 10000:1(Typ.） -
15 Interface 接口 QSPI -
16 IC Package Type IC 封装类型 COF -
17 Module Connecting Type 模块连接方式 B2BConnector(OK-23GM024-04) -
18 Weight 重量 TBD±10% g
19 Duty占空比 / -
20 Pins 引脚数 24 Pins
21 Operating Temperature 操作温度 -10~60 ℃
22 Storage Temperature 存储温度 -20~70 ℃
