1.32-inch Round TFT LCD Display for Smart Watch – Shineworld Innovations Limited

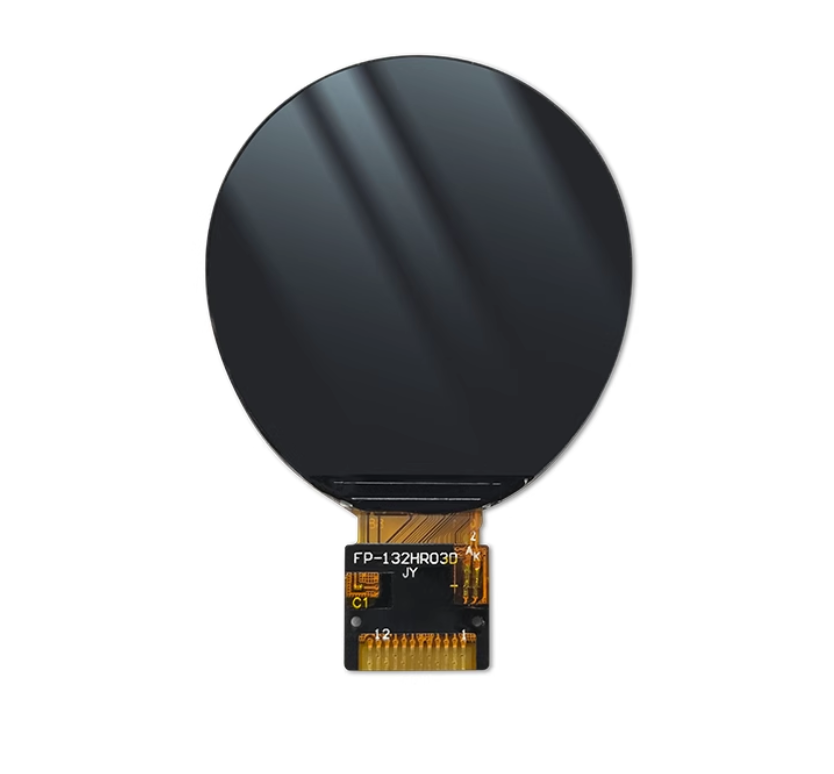

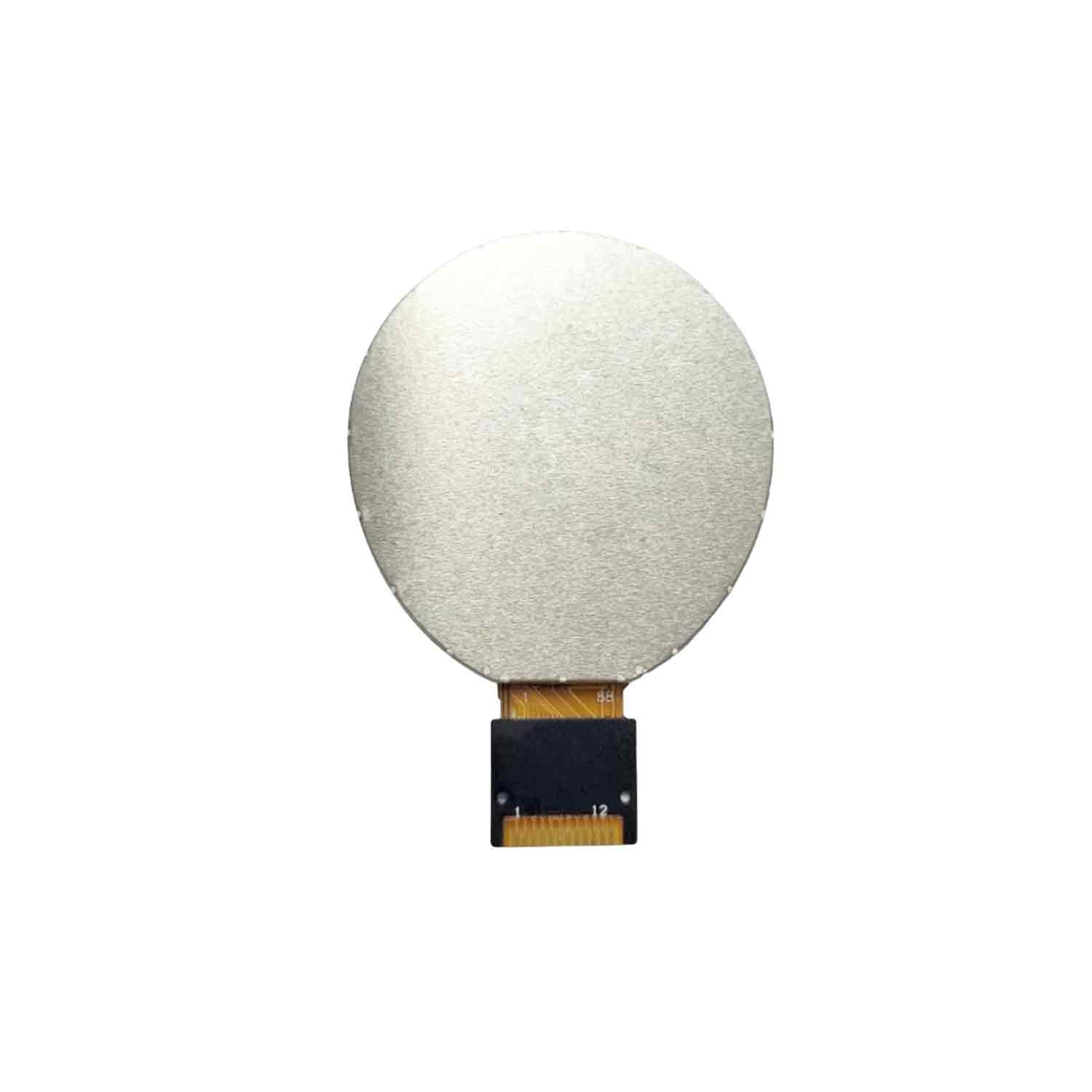

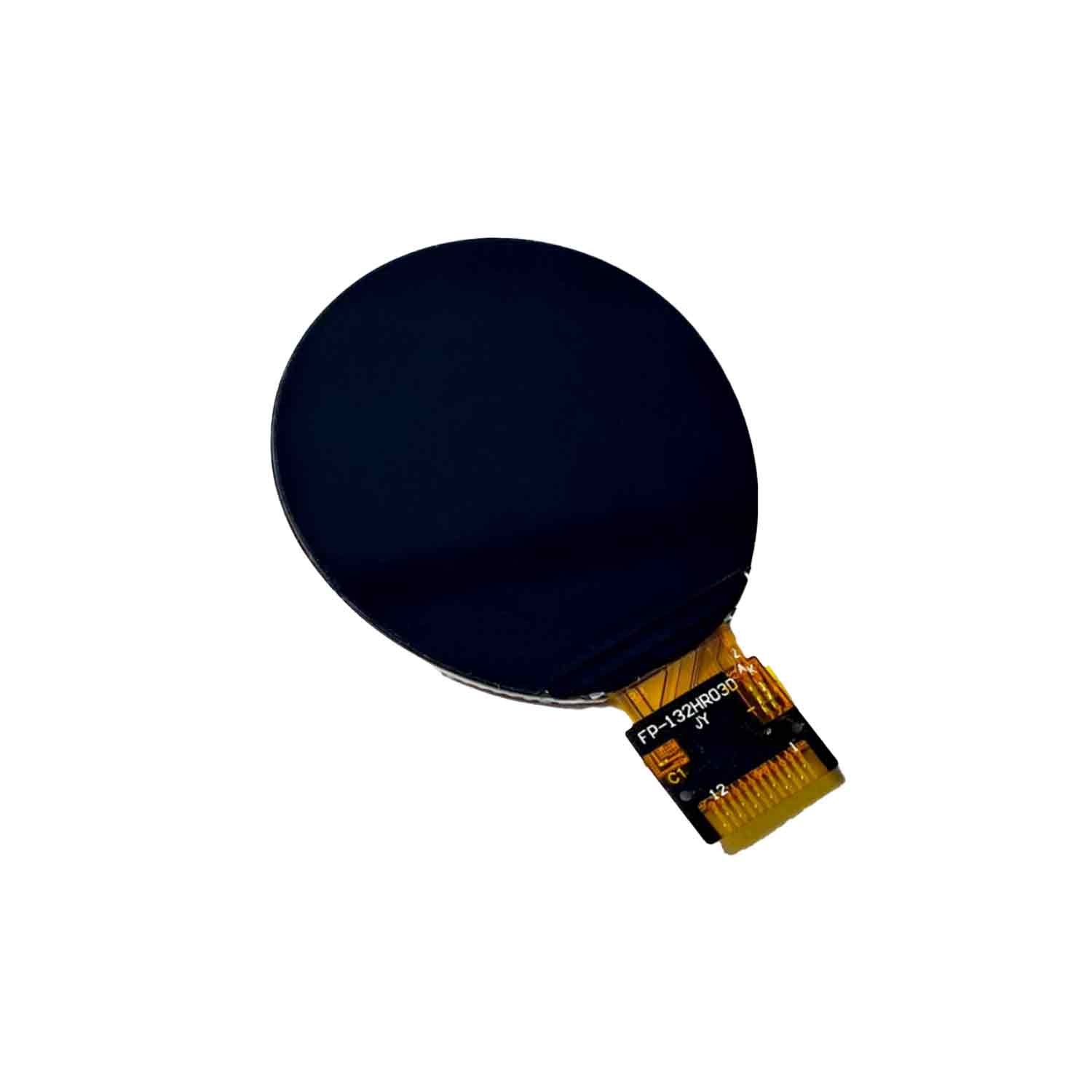

This circular TFT LCD module offers a 1.32-inch diagonal display with a high-resolution 360 (RGB) × 360 pixel array, delivering rich visuals in 262K colors. The active display area spans approximately 33.48 mm in diameter, and the overall module dimensions are compact at around 35.98 × 38.54 mm, with a thin profile of 1.56 mm (± 0.1 mm).

Driven by a GC9C01 display driver IC, this module features MIPI interface and a chip-on-glass (COG) package. It supports all-view O’Clock orientation for excellent visibility from any angle and achieves a typical brightness of 480 cd/m² with a contrast ratio around 1500:1.

Each pixel measures approximately 0.093 × 0.093 mm. With 12 pins and soldering-style module connection, the unit weighs about 3.4 g (± 10%).

Engineered for durability, it reliably operates between –20 °C and +70 °C and can be stored from –30 °C to +80 °C. Shineworld Innovations Limited backs this display with a one-year functional warranty, responsive support, and ensures long-term supply continuity—proactively sourcing compatible alternatives if key components such as the controller IC or glass cell are discontinued.

This display is ideally suited for circular wearable devices such as smartwatches, as well as embedded systems and compact instruments that demand vibrant, high-resolution performance in a lightweight design.
