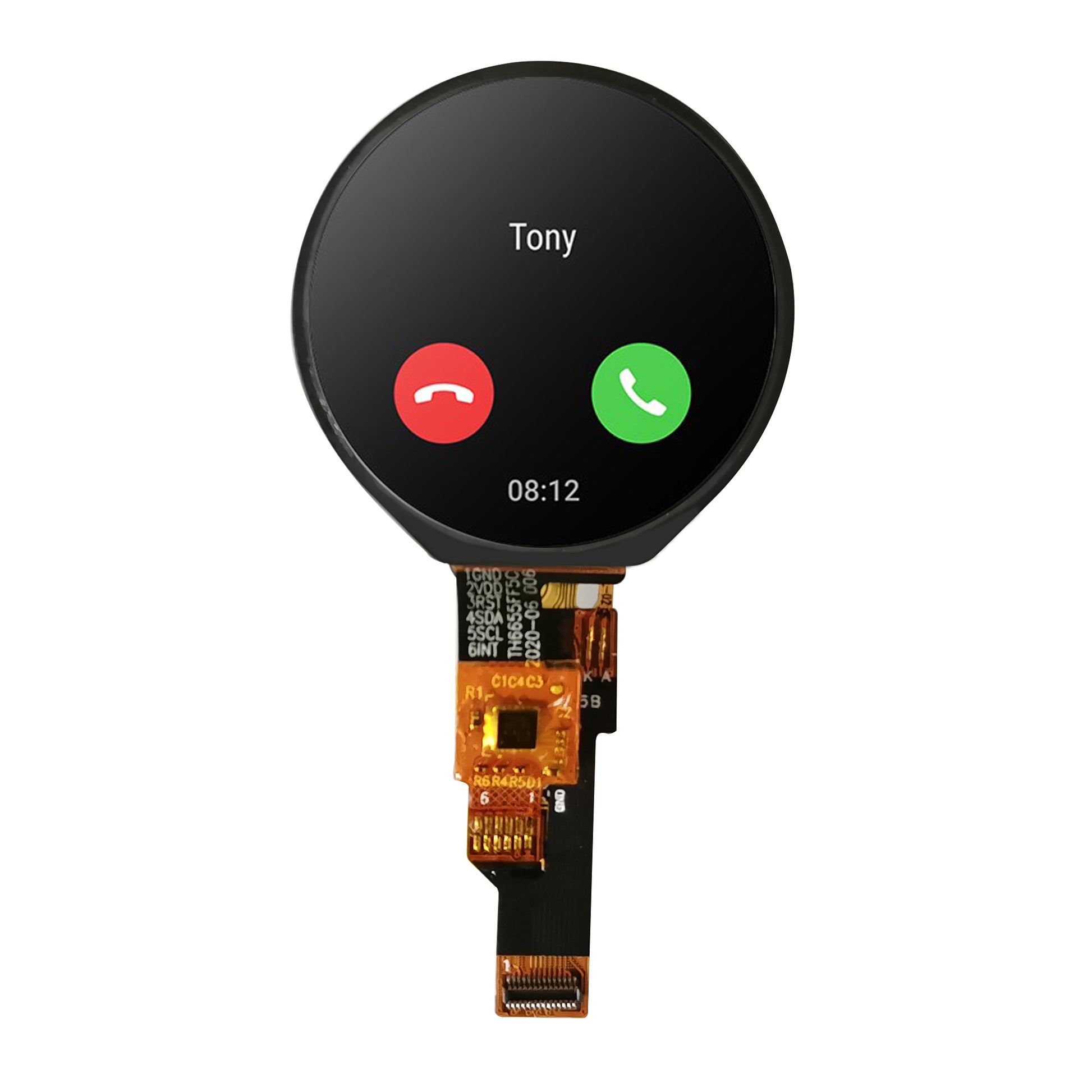

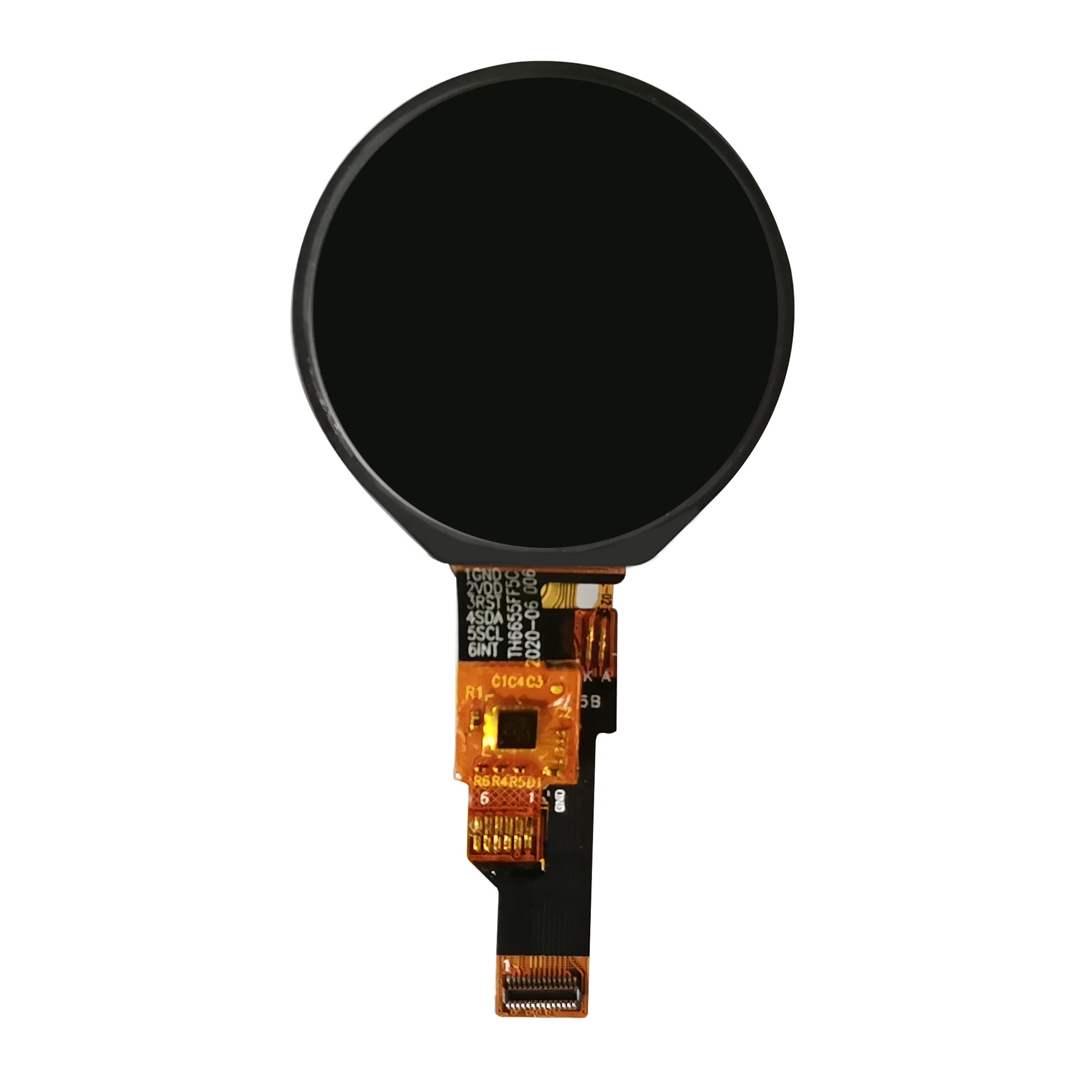

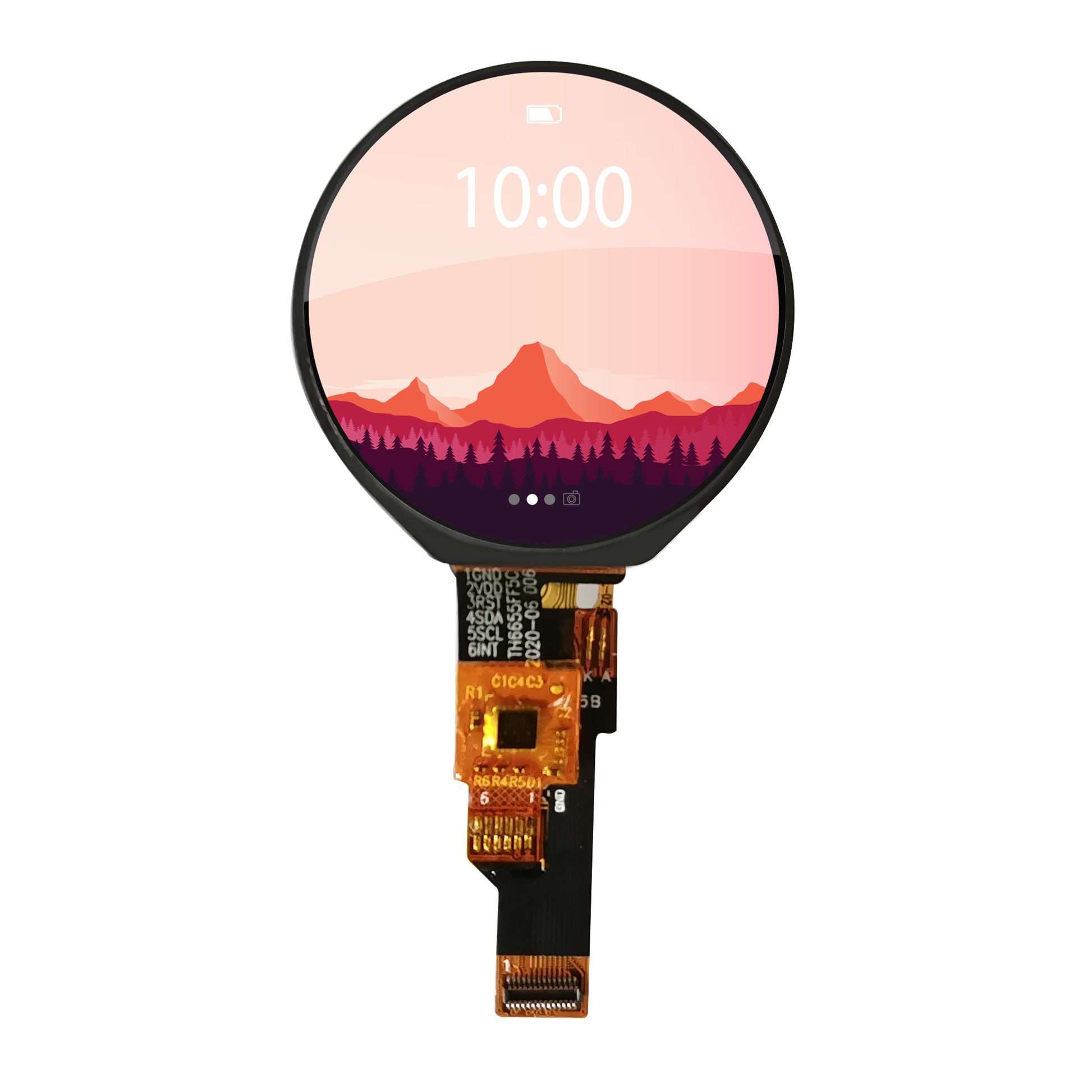

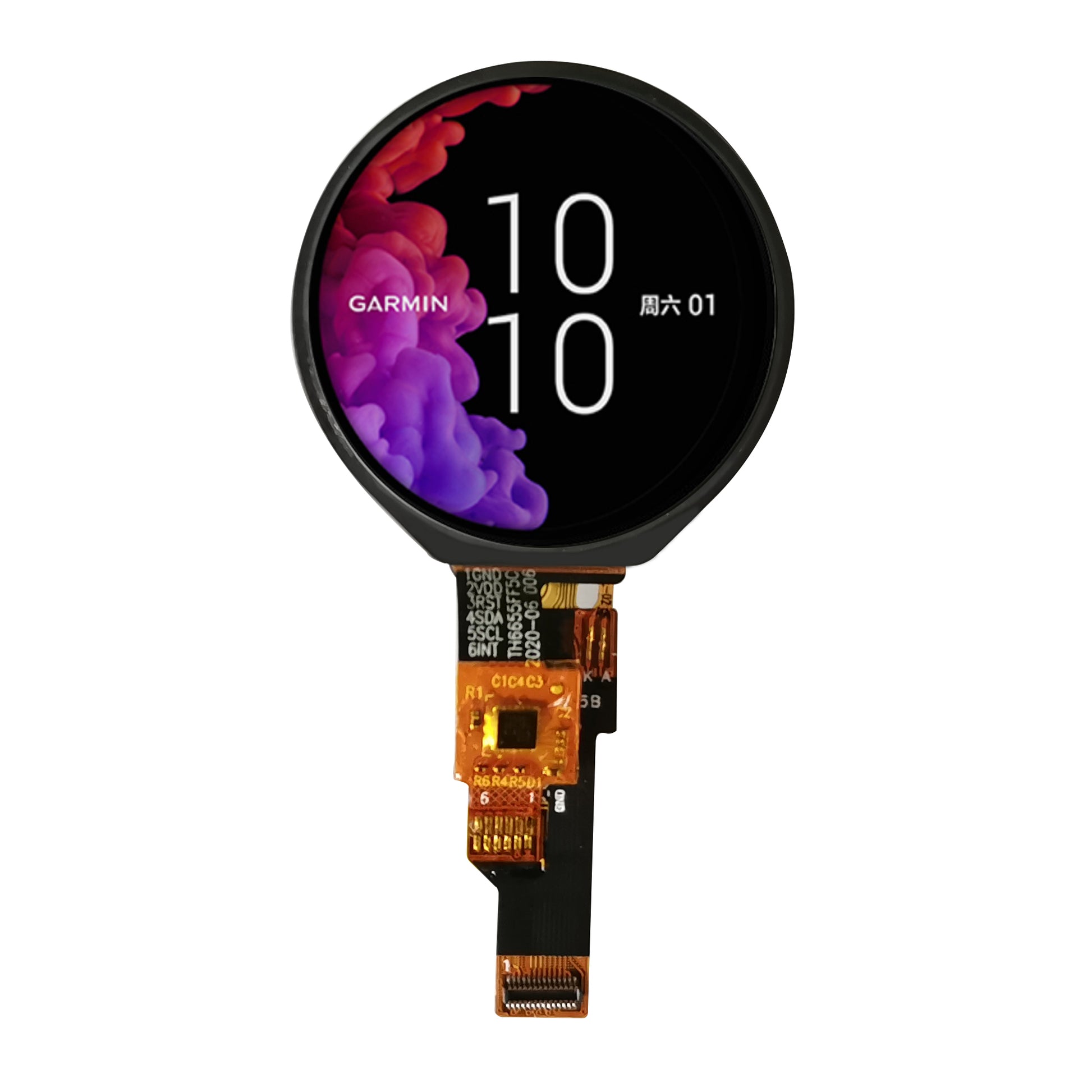

The SWICN LH128R-IC15-C1113 is a 1.28-inch circular IPS TFT LCD module with a capacitive touchscreen. It is made up of various
components including a TFT panel, TFT driver IC (GC9A01), flexible printed circuit (FPC), backlight, capacitive touchscreen (CTP), and CTP
driver IC (CST826).
This module has a resolution of 240x240 RGB pixels on a black background and a typical brightness of 400cd/m2. It supports touch
functionality, enabling easy user interaction and making it suitable for applications with a user-friendly interface.
With a 4-wire SPI interface for the TFT and an I2C interface for the touchscreen panel (TP), the SWI LH128R-IC15-C1113 is highly
versatile and compatible with various MCUs including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. It can be used in diverse
applications such as embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer
electronics, and handheld devices.

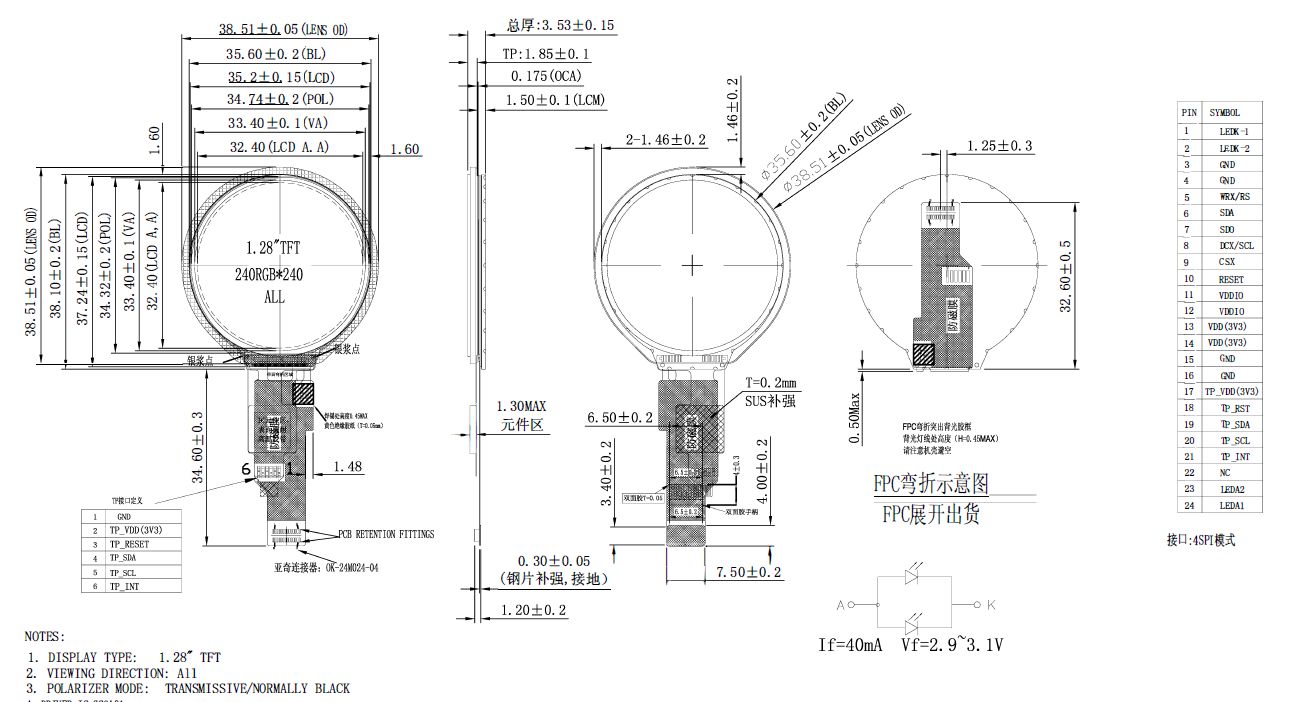

The module's FPC is designed with a Board to Board (B2B) connector, facilitating easy and direct connection to the B2B connector on
your PCB. This simplifies integration and ensures a secure and reliable connection.
To further meet specific customer requirements, Shineworld Innovations Limited provides customization options for the display solution.
This includes the ability to customize the FPC and offer integrated cover lenses, touch screens, or driver boards. Such flexibility ensures
that customers receive an optimized display solution tailored precisely to their individual needs and preferences.
* FPC Customization: Customers can request modifications to the Flexible Printed Circuit according to their needs.
* Driver Board Customization: SWI provides the option to customize the driver boards based on customer requirements.
* Cover Lens Incorporation: SWICN has incorporated cover lenses into this display and can provide customizations based on specific
requirements.
