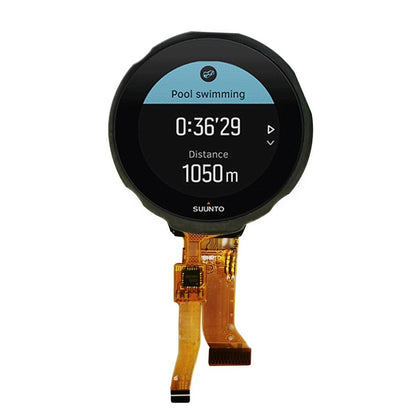

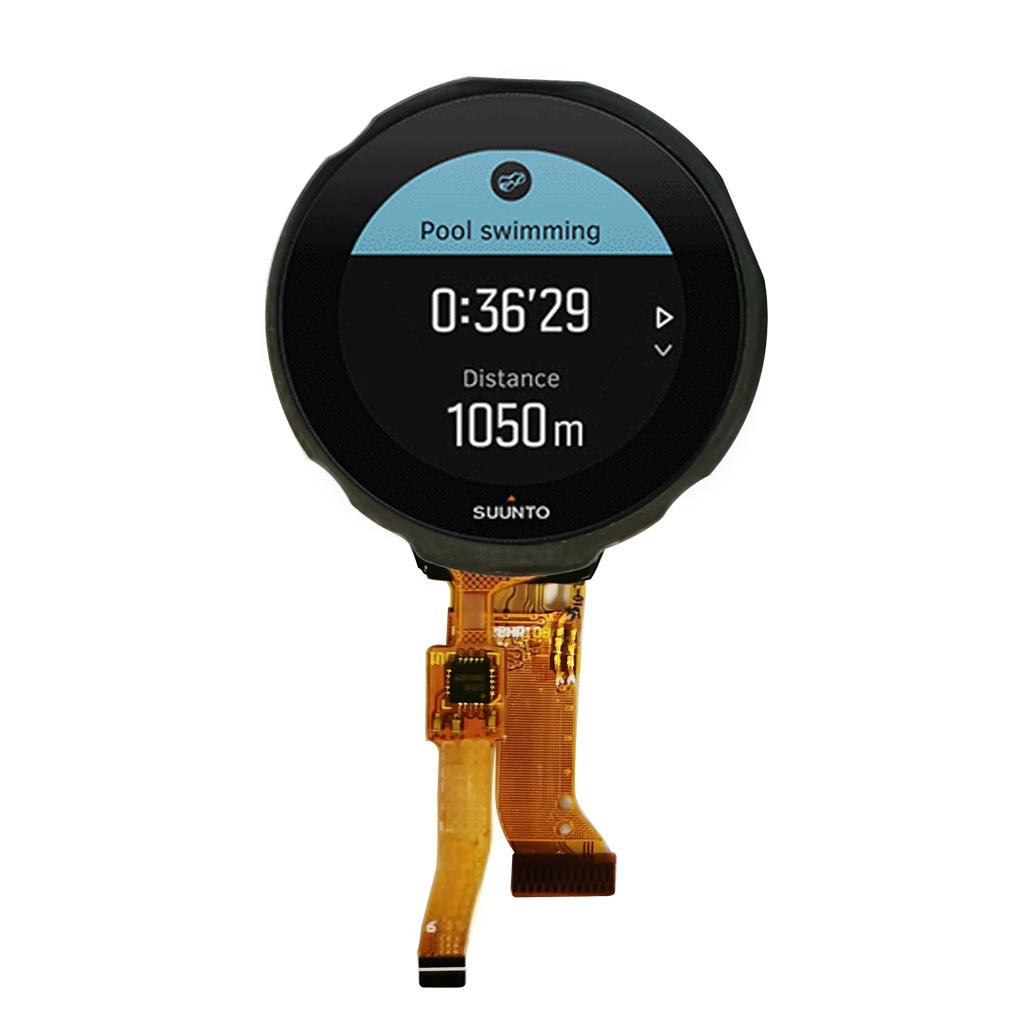

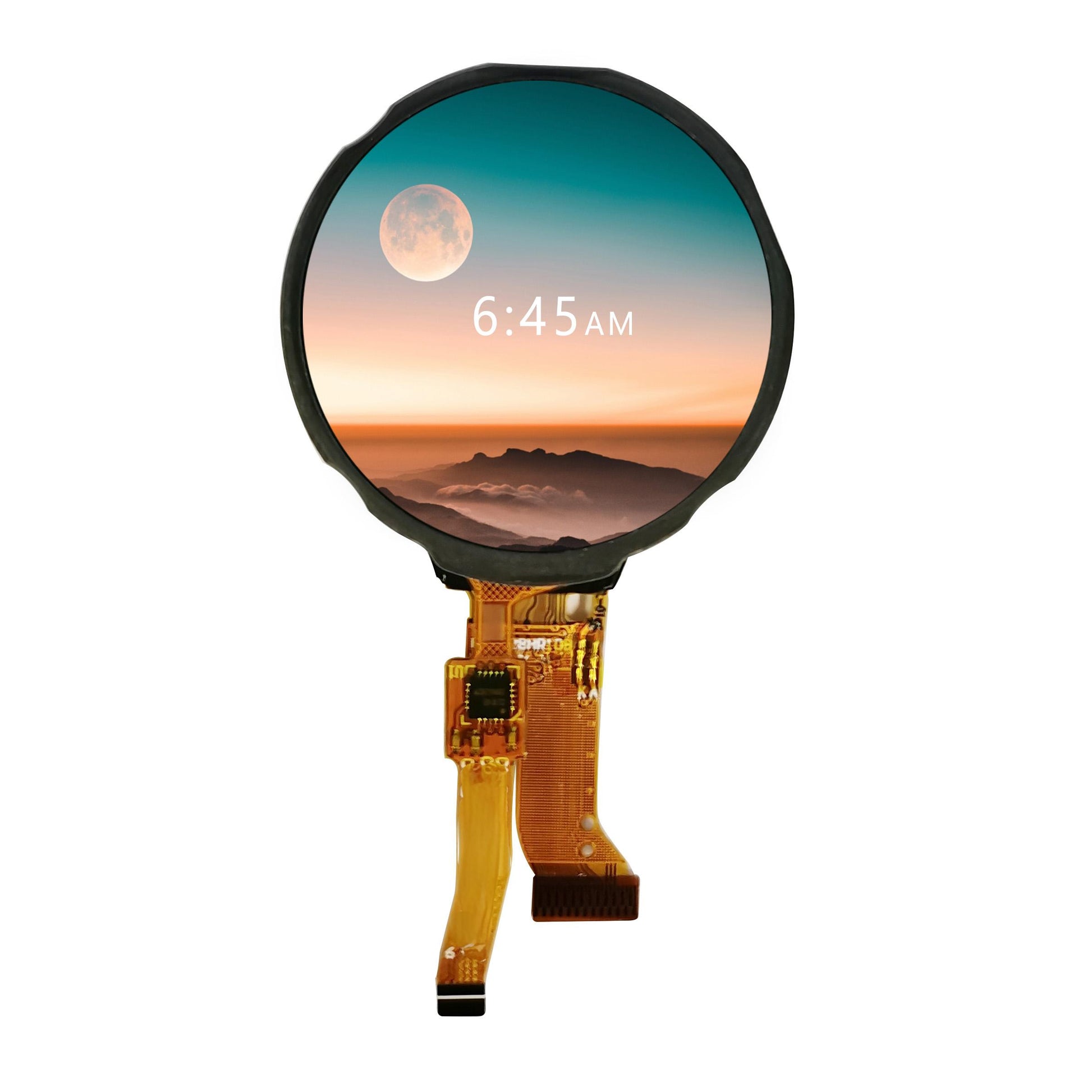

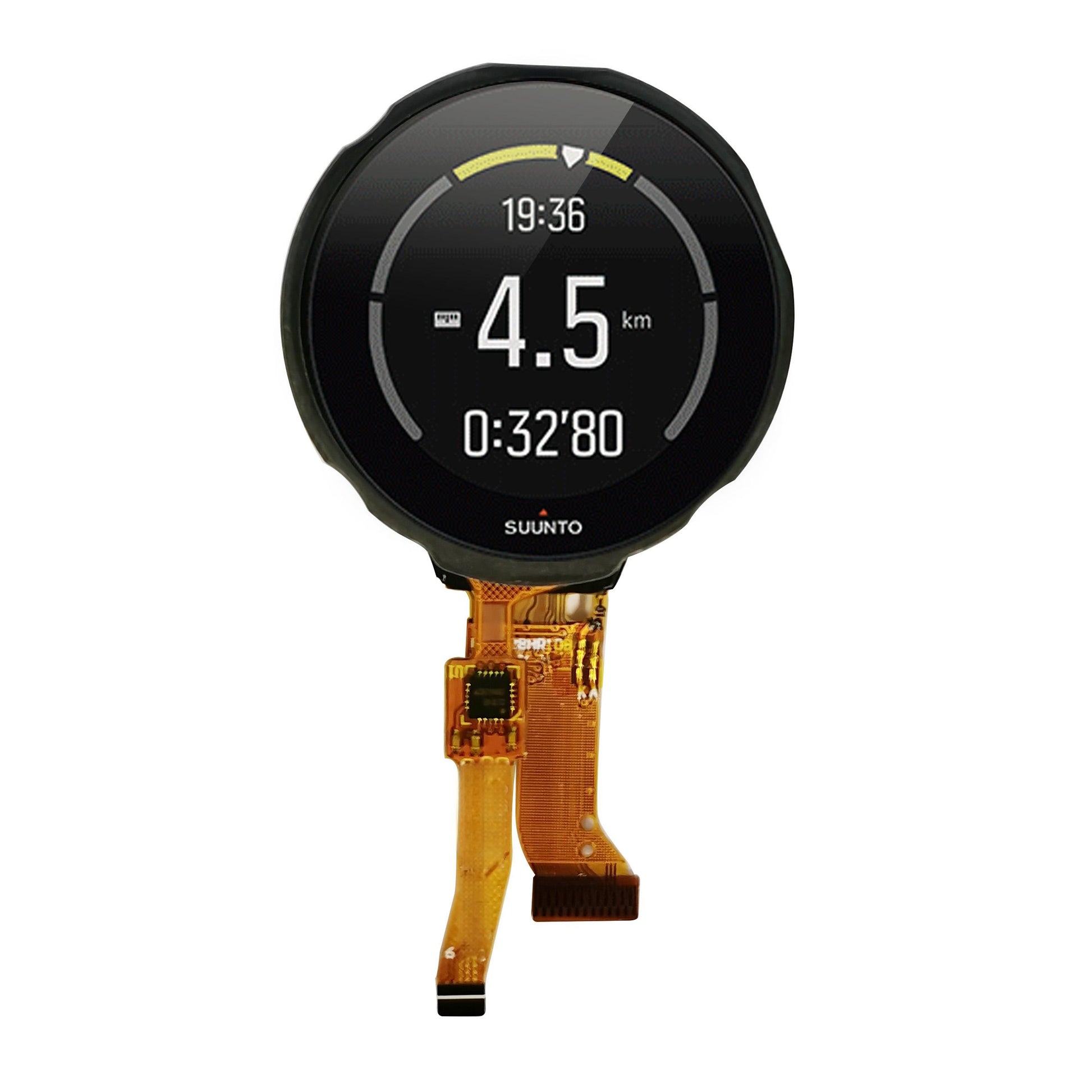

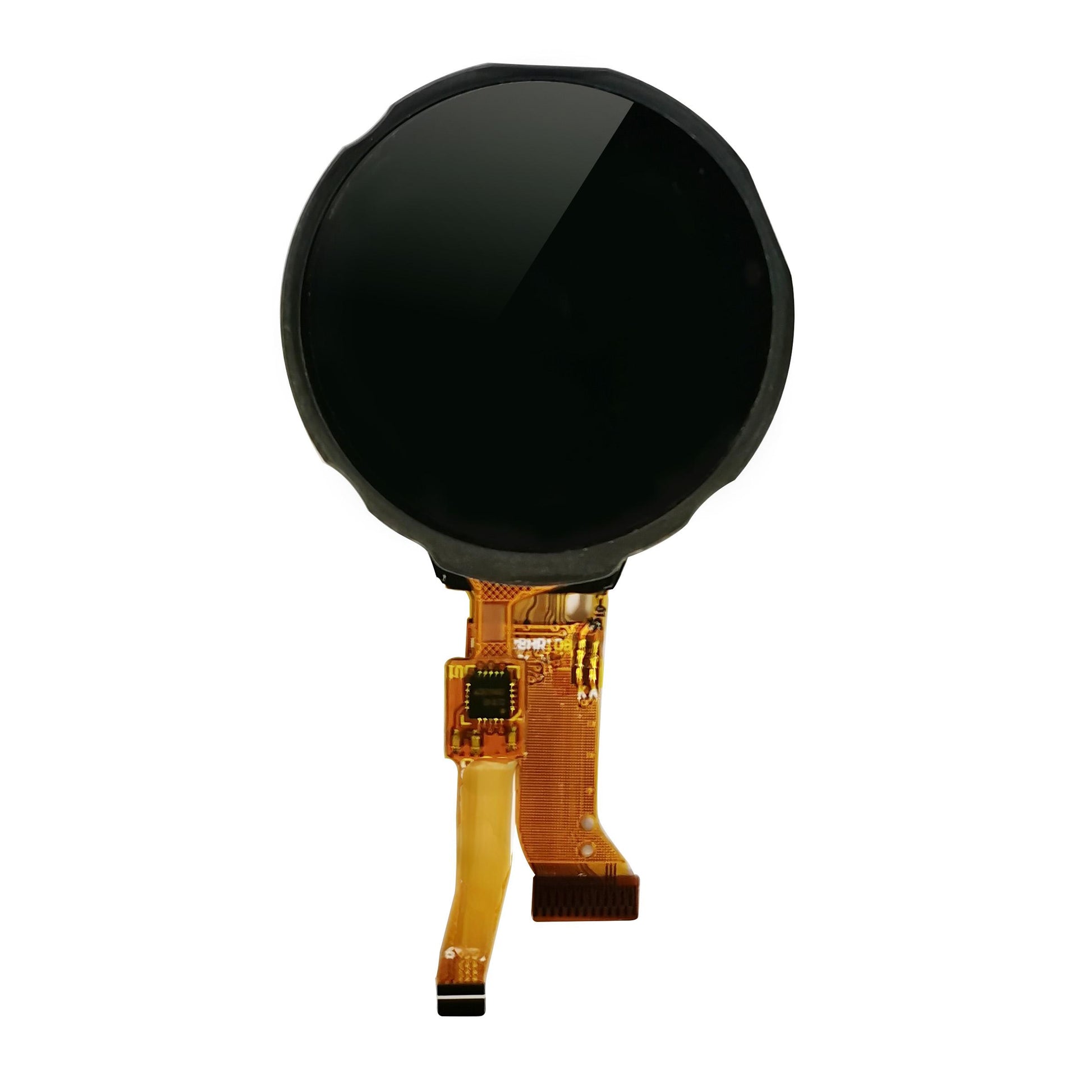

1.28-inch 240×240 TFT Round Display with Touch Screen for Circular Smartwatch – Shineworld Innovations Limited

This 1.28-inch circular IPS TFT LCD module offers a high-resolution 240 RGB × 240 display with vivid 262K colors. It delivers excellent brightness of around 360 cd/m², ensuring clear visibility under various lighting conditions.

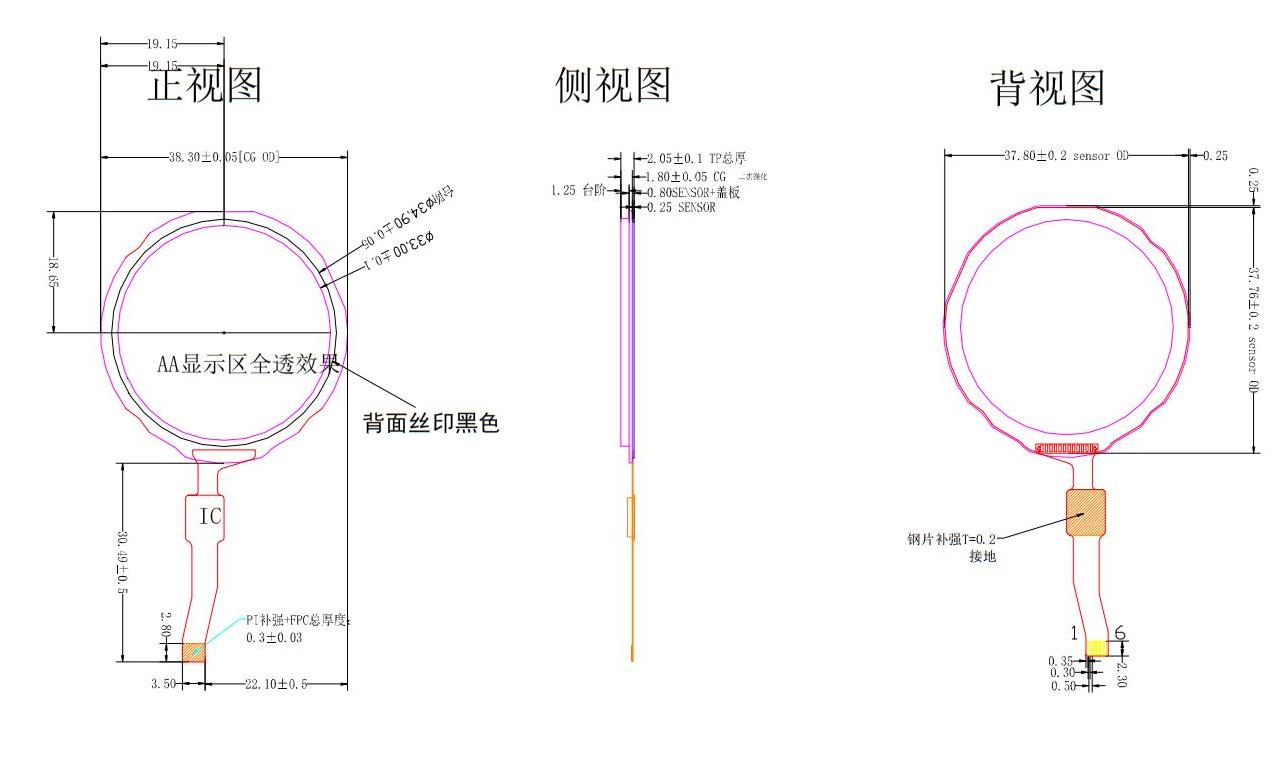

The active display area is approximately 32.4 mm in diameter, while the module’s overall dimensions are about 38.5 × 39.2 × 3.5 mm, making it slim and compact.

Equipped with a GC9A01 display driver, it features a G+F capacitive touch panel controlled by a CST816S chip. The display uses a 4-line SPI interface, while the touch panel communicates via I²C, providing efficient control with minimal I/O usage.

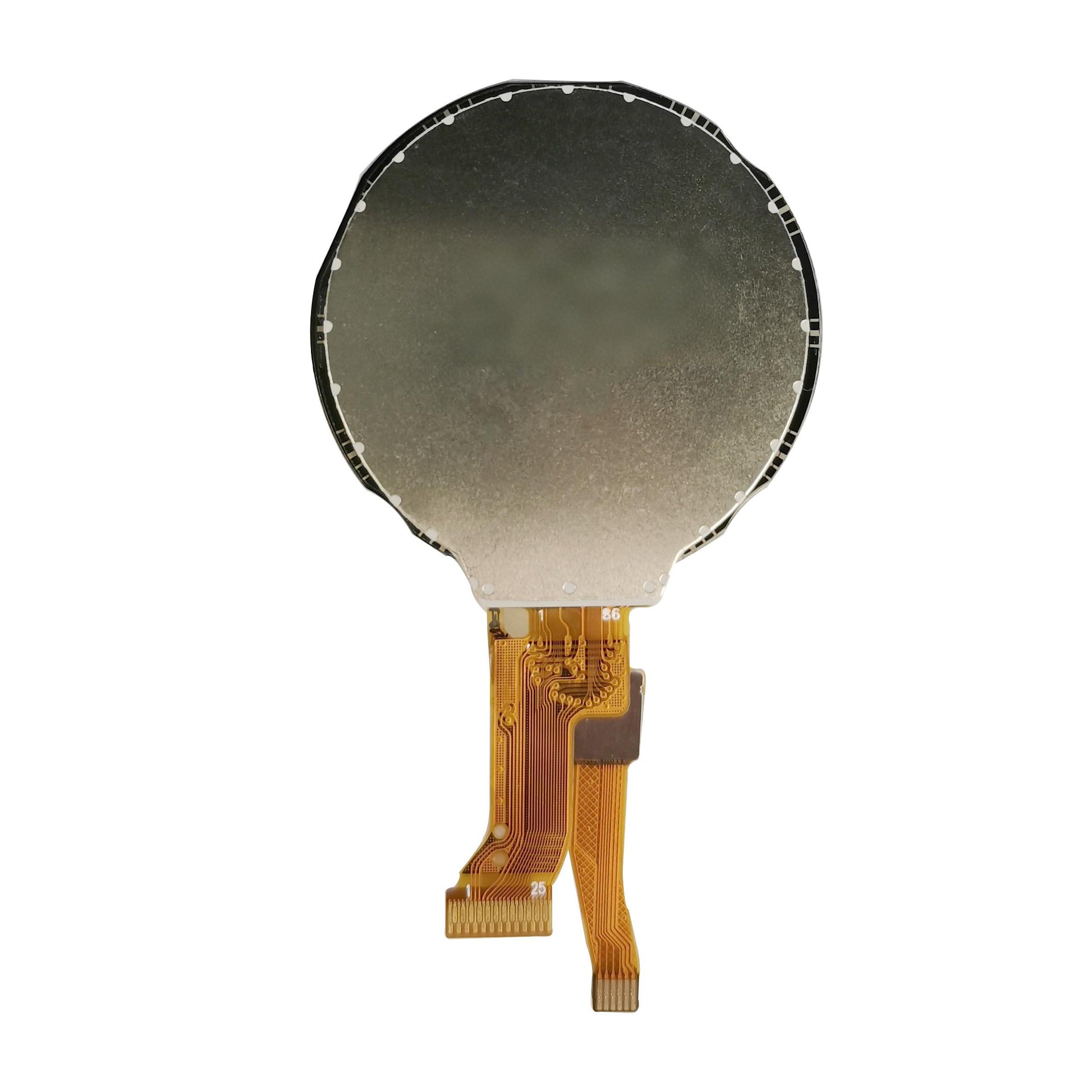

Pixel pitch is 0.135 × 0.135 mm, delivering sharp image quality, and the All-O’Clock viewing angle ensures excellent visibility from any direction. The backlight system includes two parallel white LEDs for consistent illumination.

Shineworld Innovations Limited also offers customization services, such as tailored FPC design, integrated cover lenses, and custom drive boards. We provide a one-year functional warranty, responsive support, and long-term supply stability, sourcing compatible alternatives if key components are discontinued.

Ideal for circular wearable devices like smartwatches, this module is also suited for embedded systems, compact instruments, and applications requiring vibrant visuals with responsive touch interaction.
