1.28-inch 240 RGB × 240 TFT LCD Touch Screen Round Display – Shineworld Innovations Limited

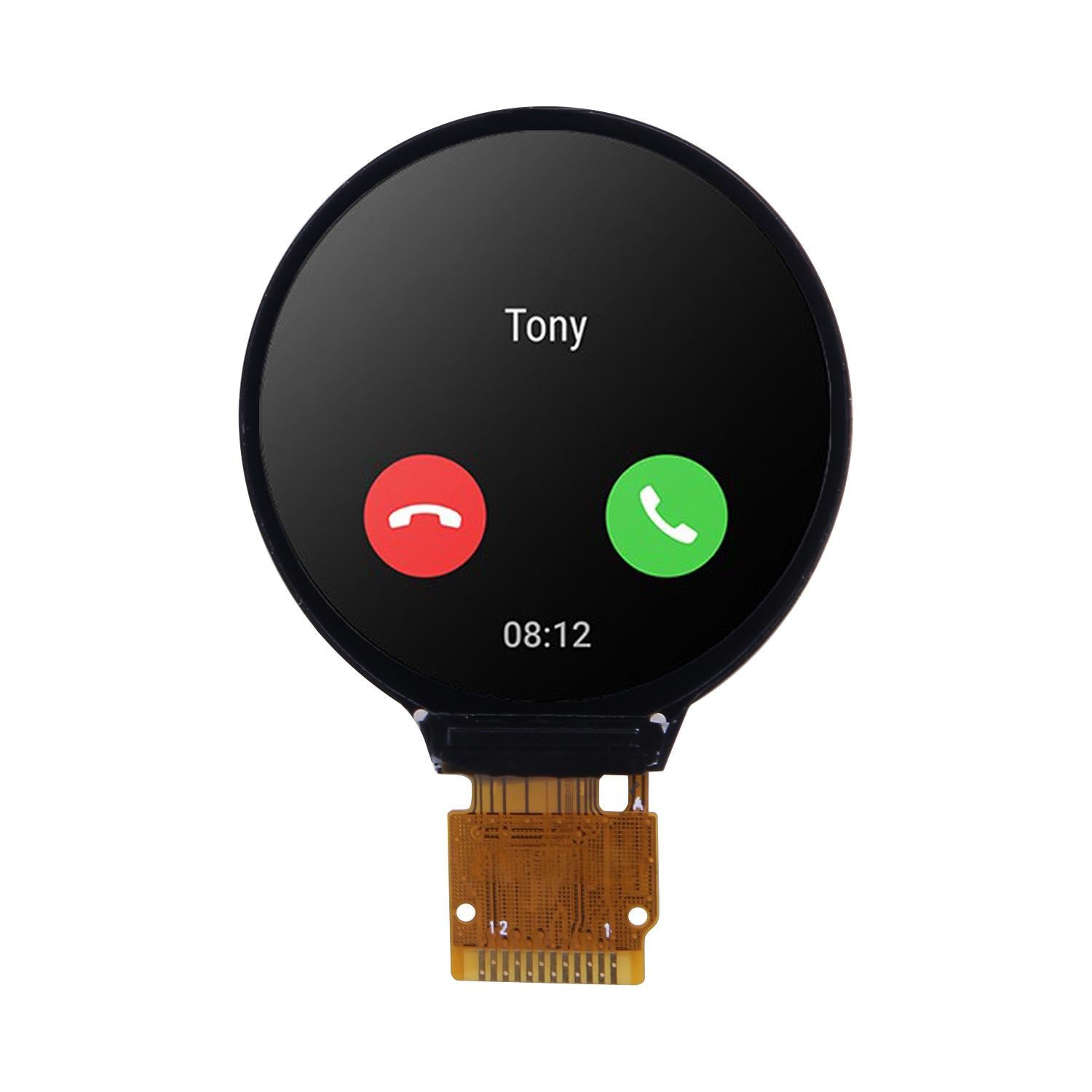

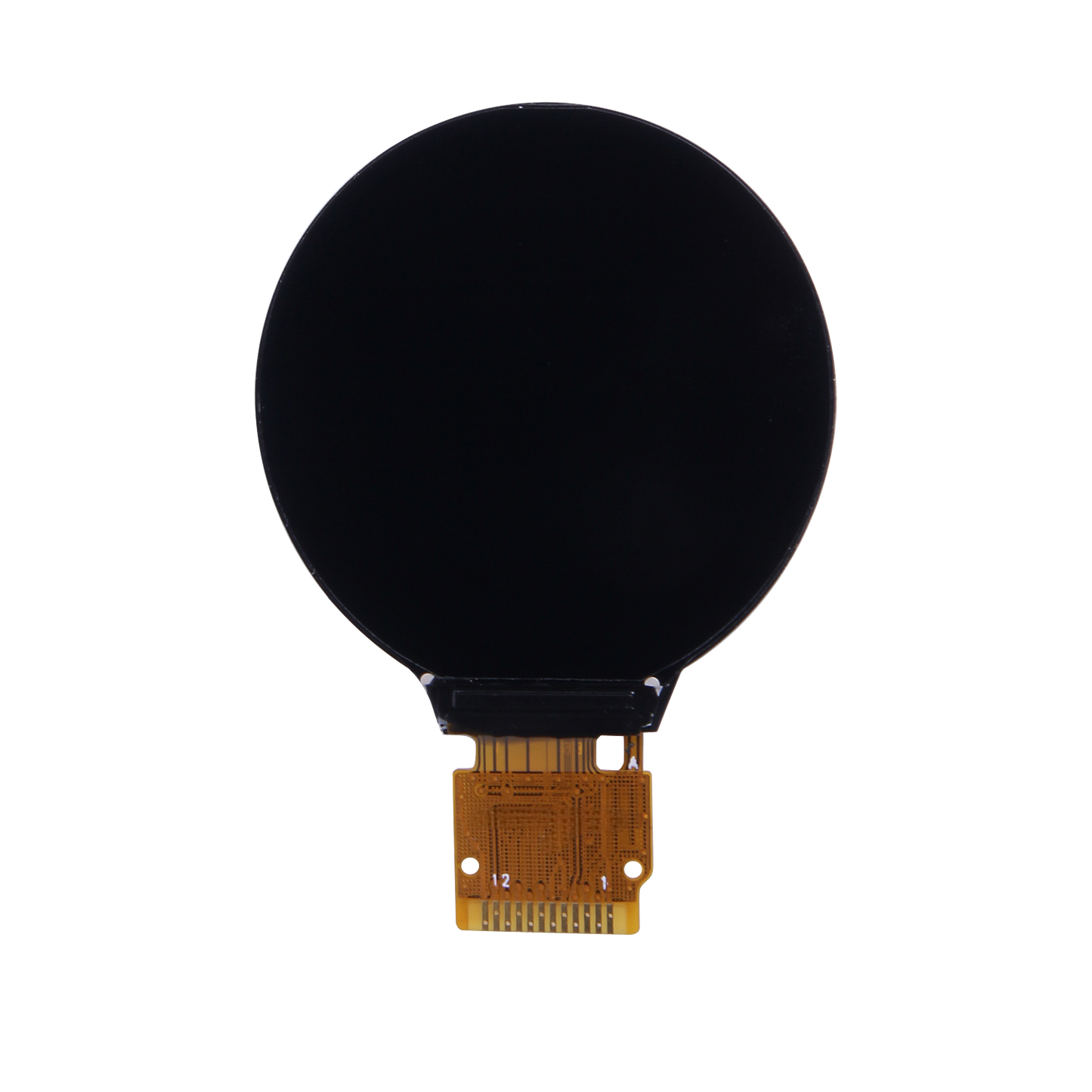

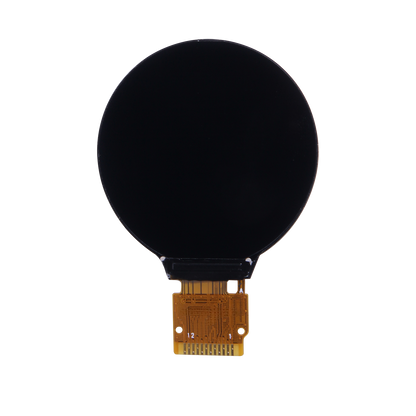

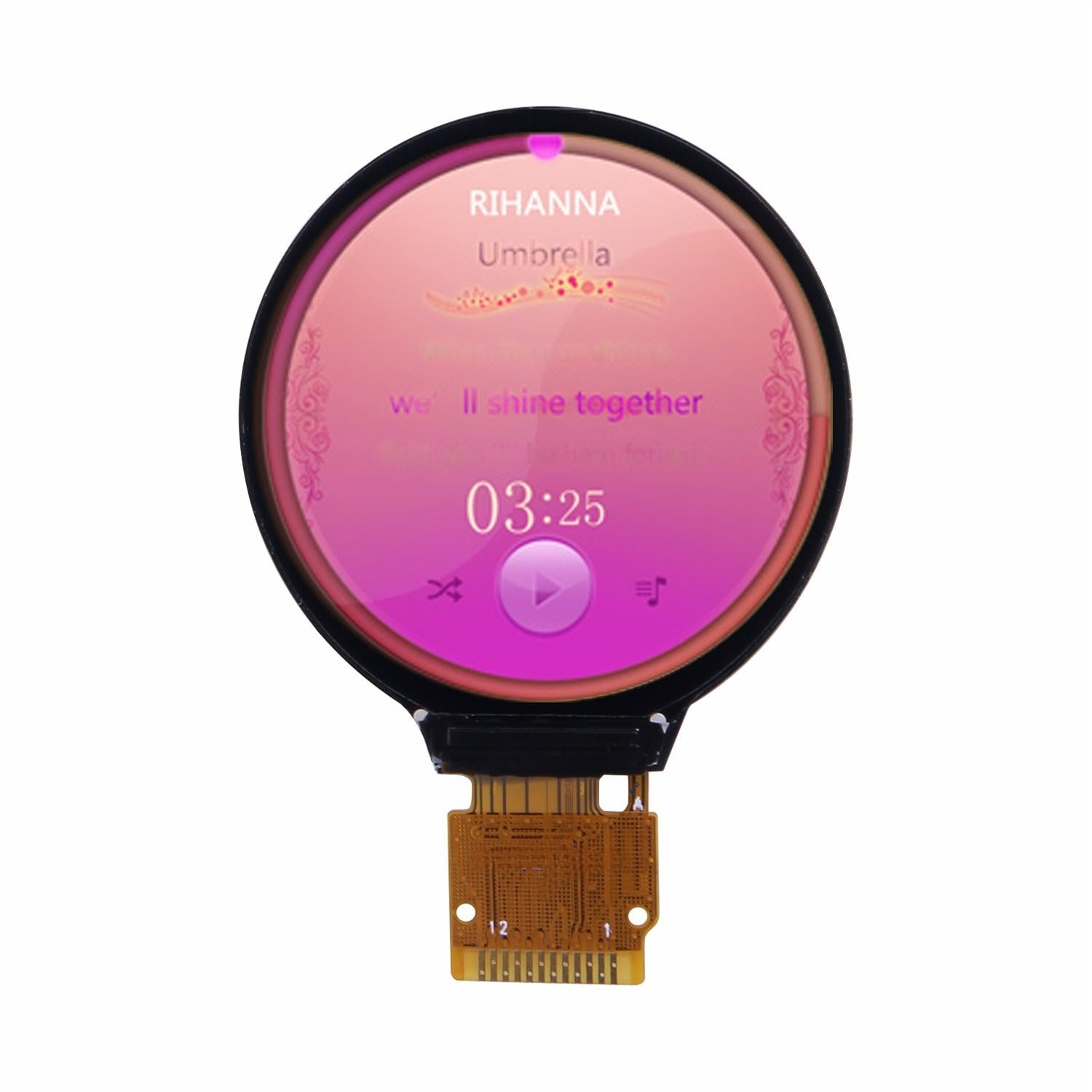

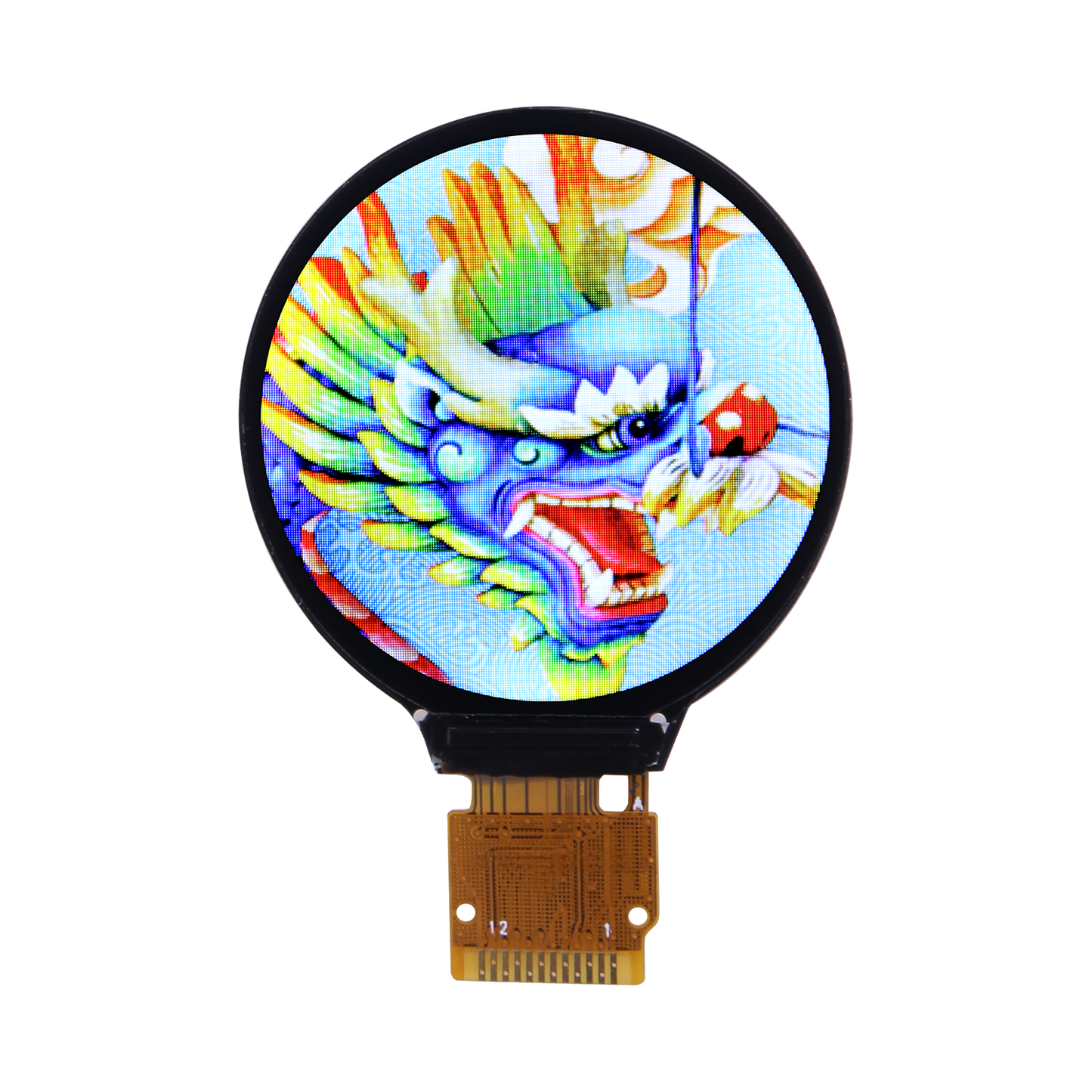

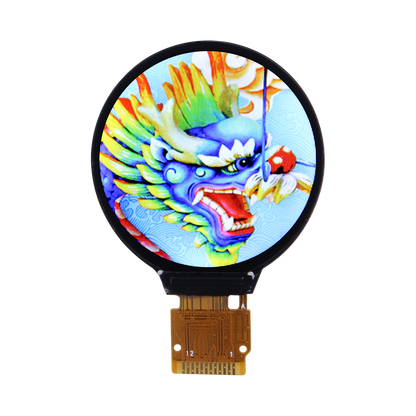

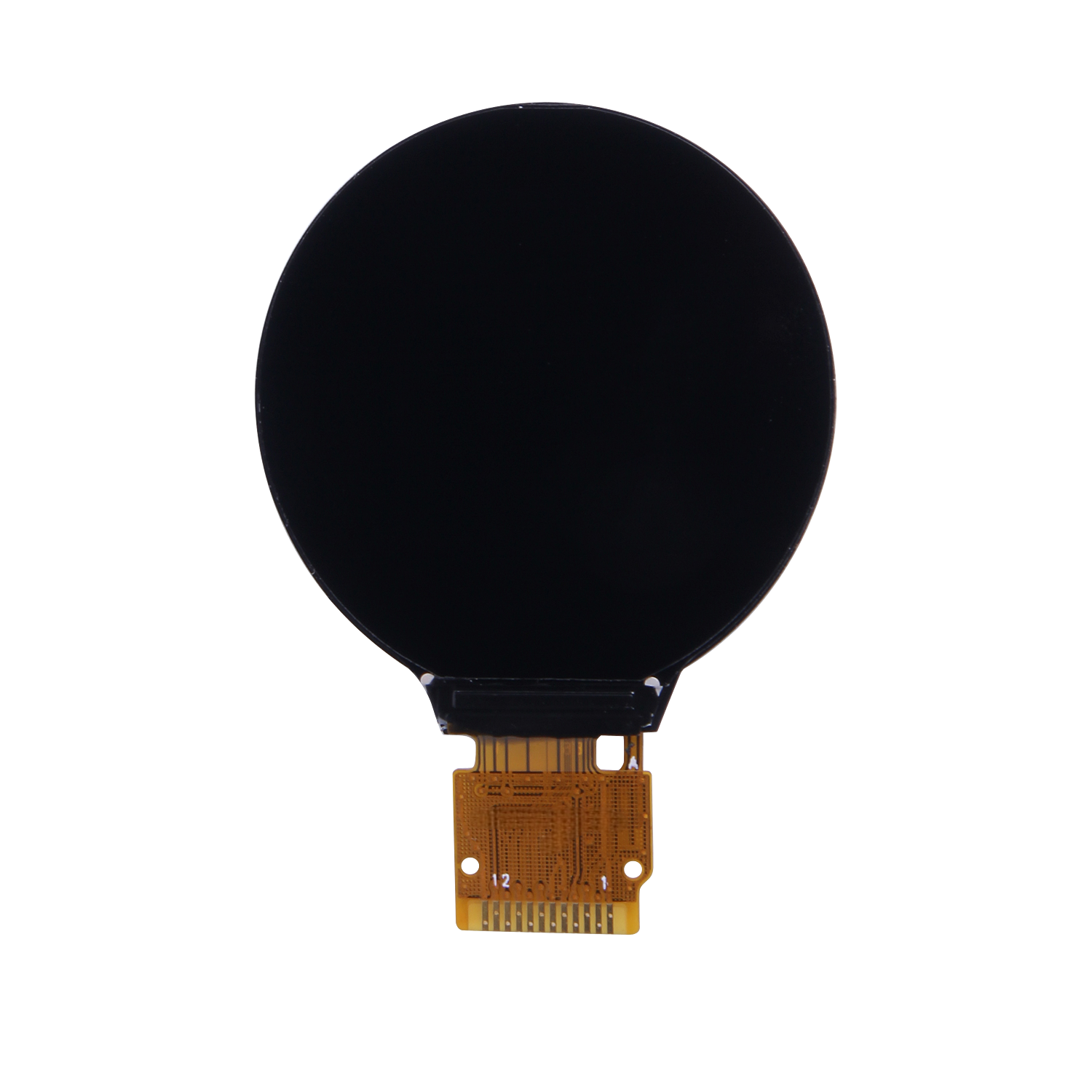

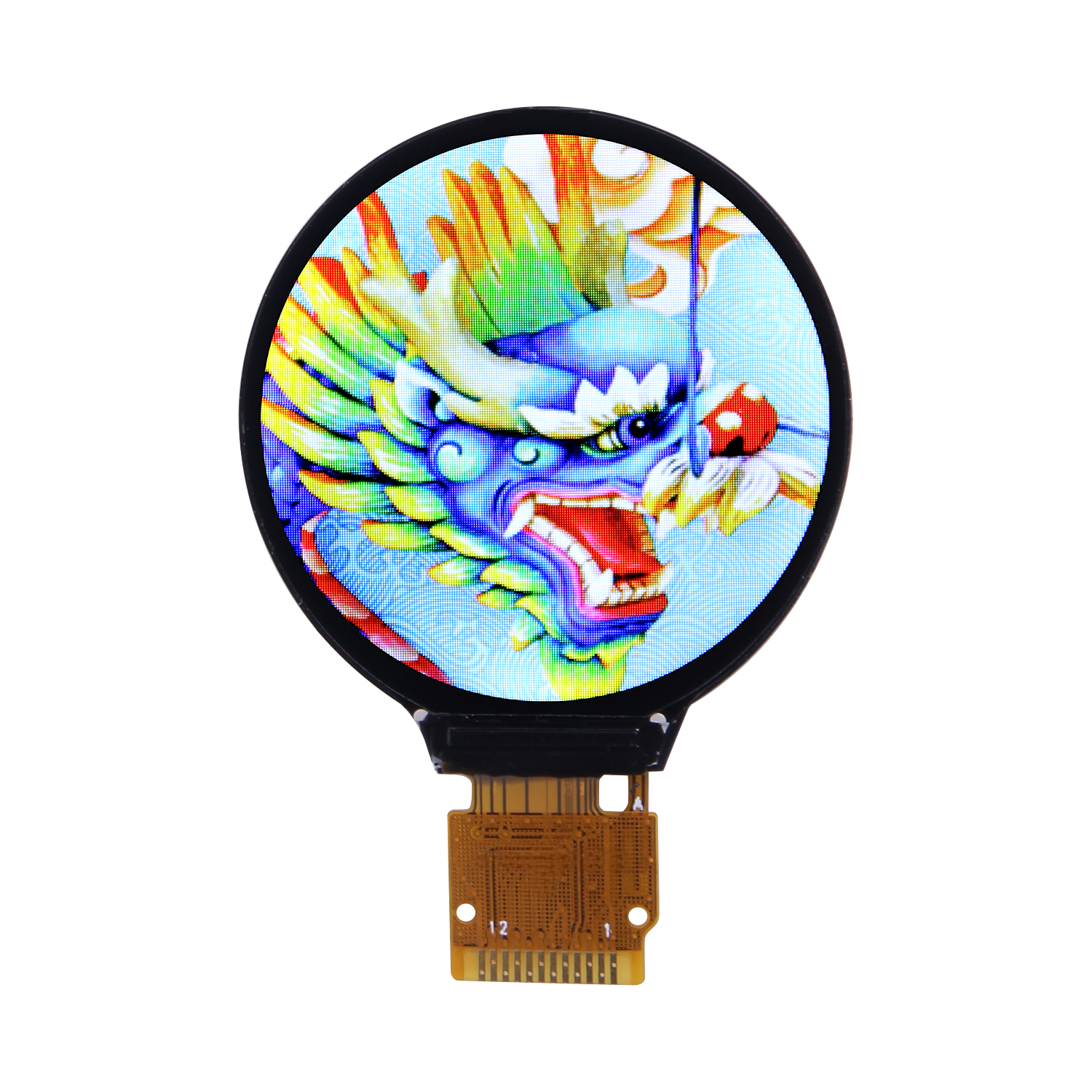

This compact circular display features a 1.28-inch IPS TFT panel with a crisp 240 × 240 RGB pixel resolution and a black background. It achieves a typical brightness of 400 cd/m² for excellent visibility under varied lighting conditions.

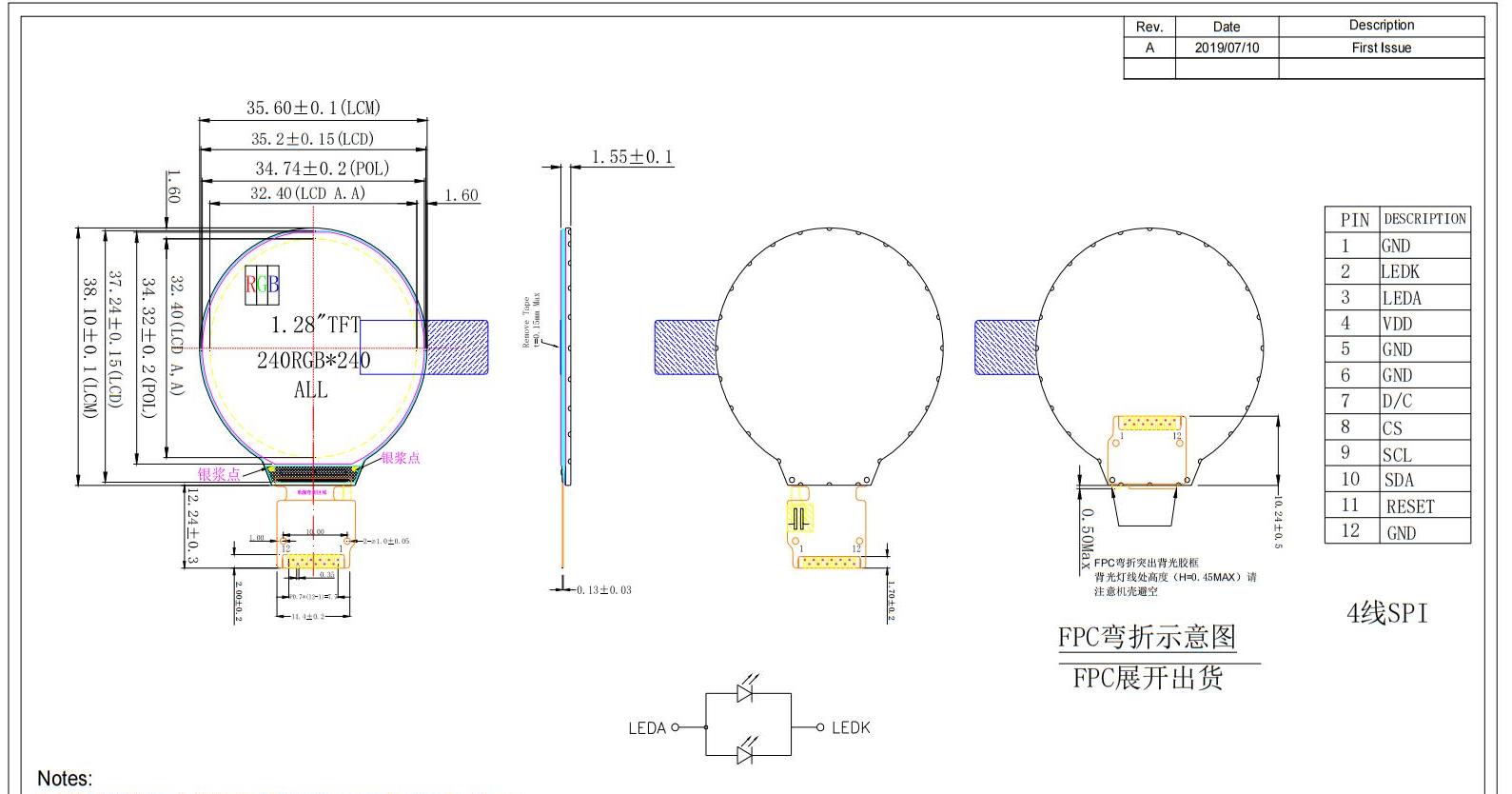

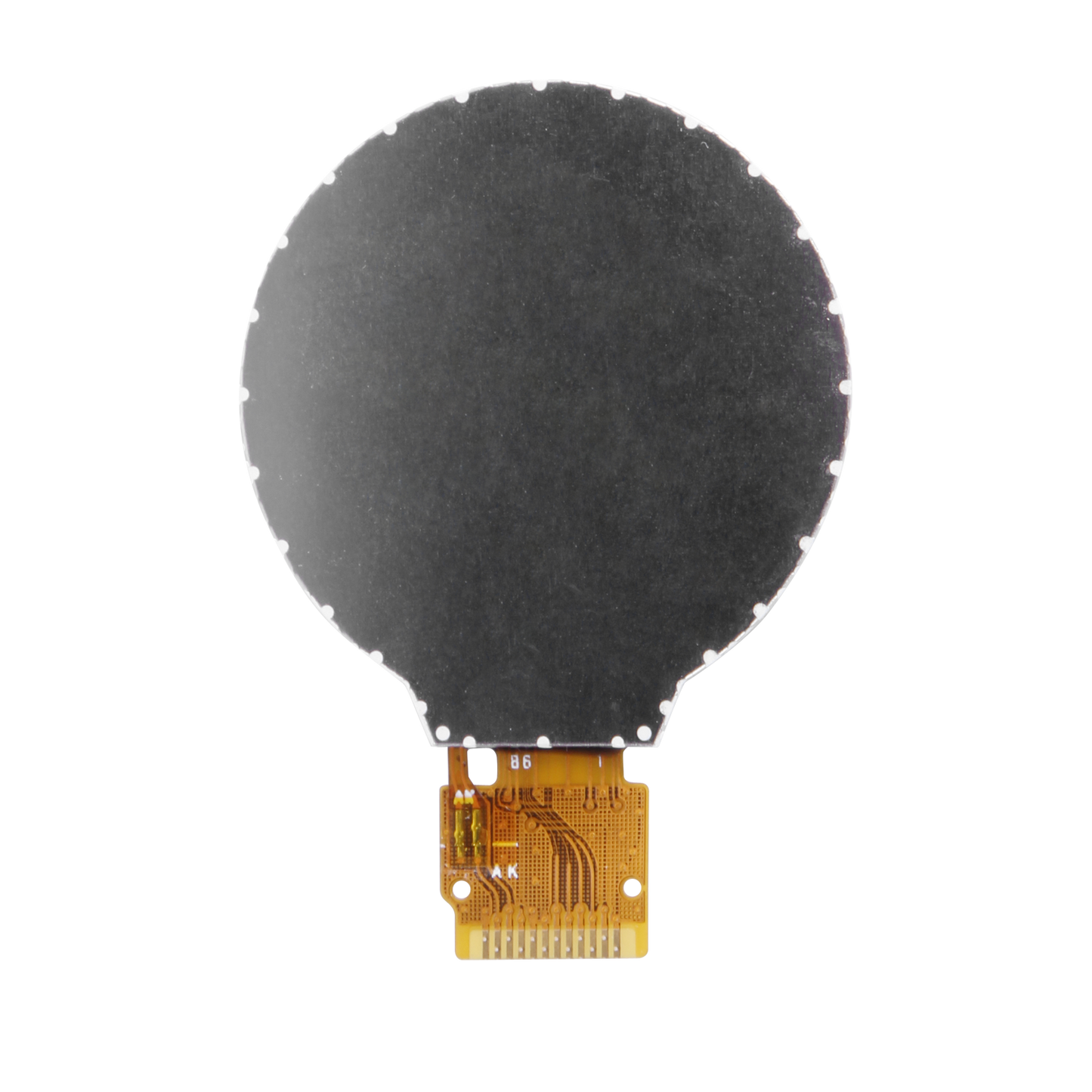

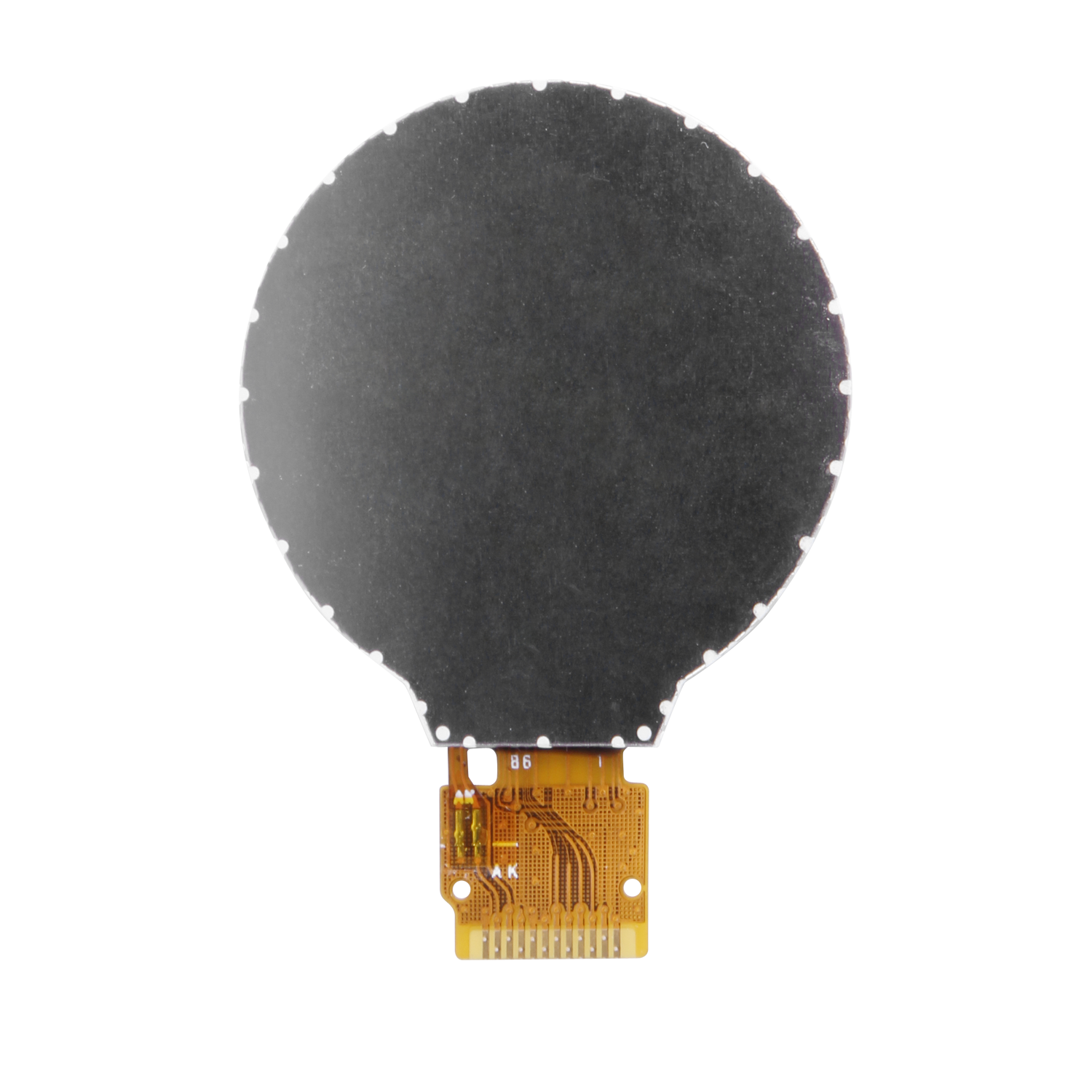

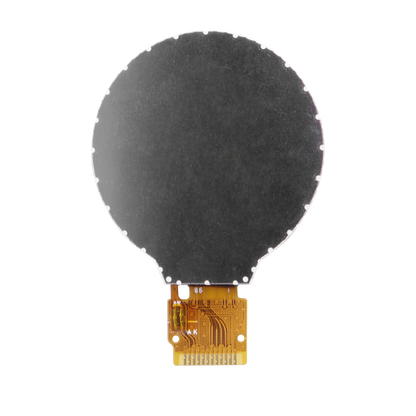

Key components include a GC9A01 display driver IC, a capacitive touch panel driven by CST826, an integrated backlight, and a flexible printed circuit (FPC) with a board-to-board (B2B) connector that ensures secure, streamlined integration.

The display supports a versatile 4-wire SPI interface for the TFT and an I²C interface for the touch panel, making it compatible with a wide range of microcontrollers such as 8051, PIC, AVR, Arduino, ARM, and Raspberry Pi.

Shineworld Innovations Limited also offers customization options such as tailored FPC, integrated cover lenses, touch panels, and custom driver boards. They promise long-term supply continuity and, if critical components become obsolete, will proactively source compatible replacements to minimize production risks.

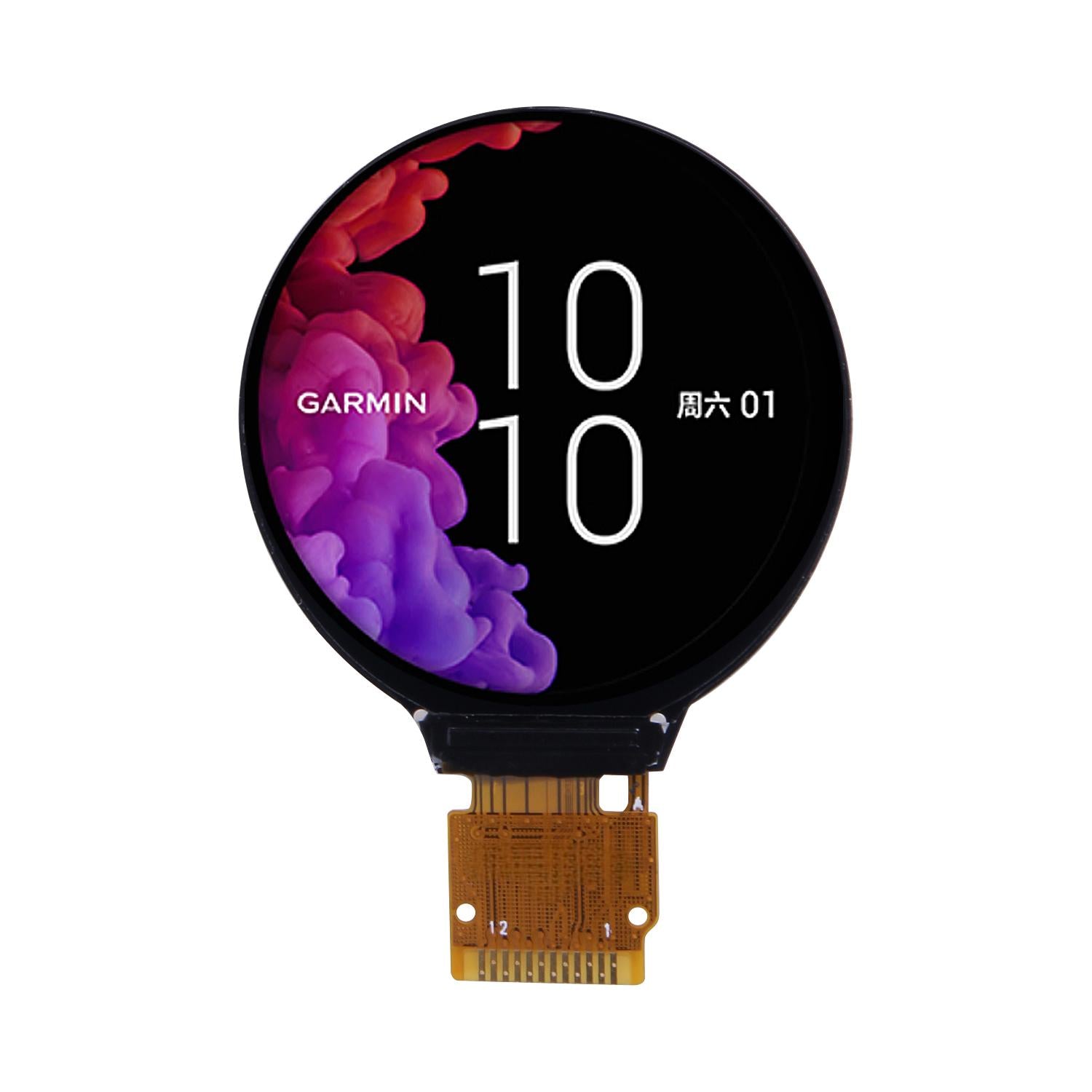

This module is ideal for applications requiring a sleek, round interactive display—think smartwatches, embedded devices, portable electronics, wearable gadgets, and industrial indicators.
