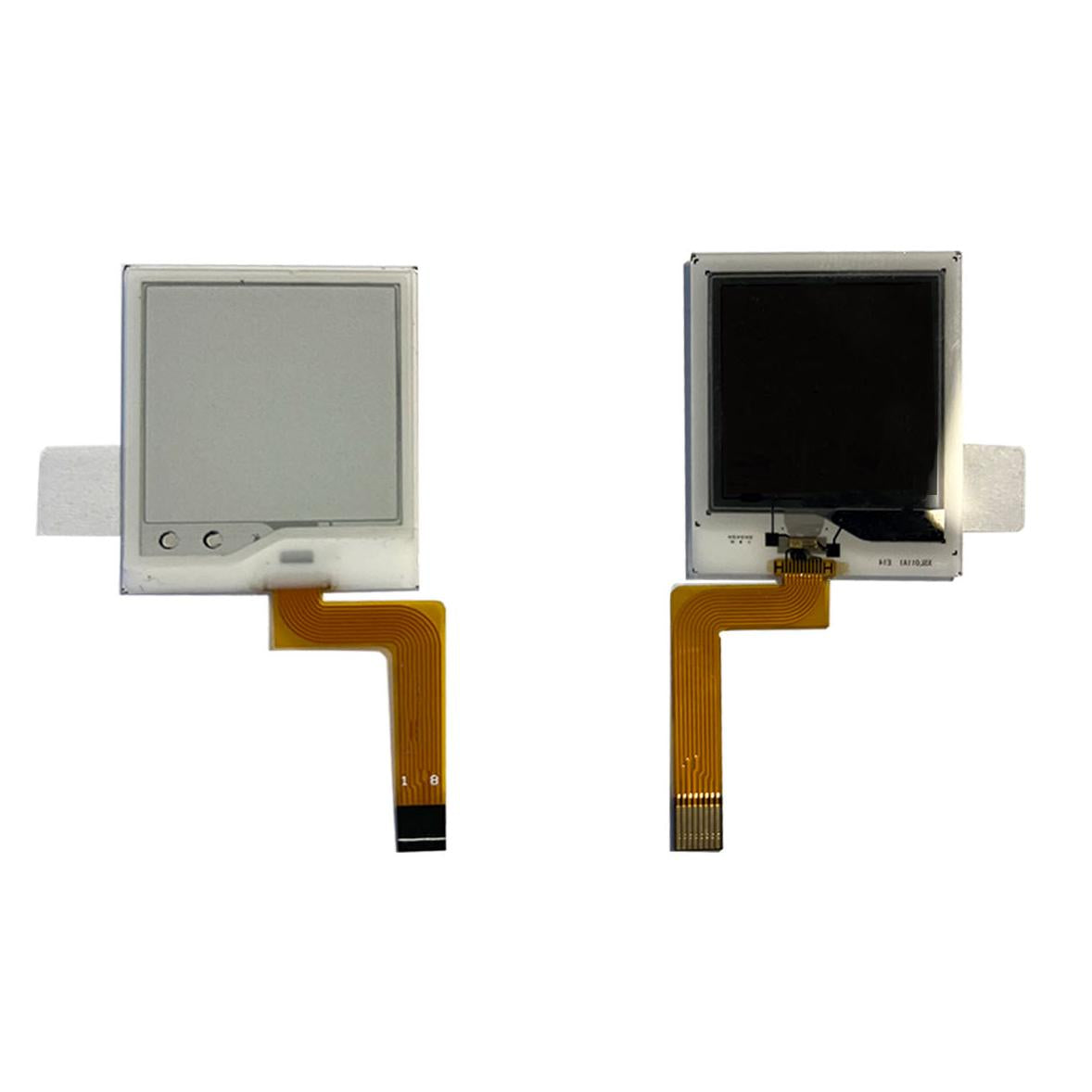

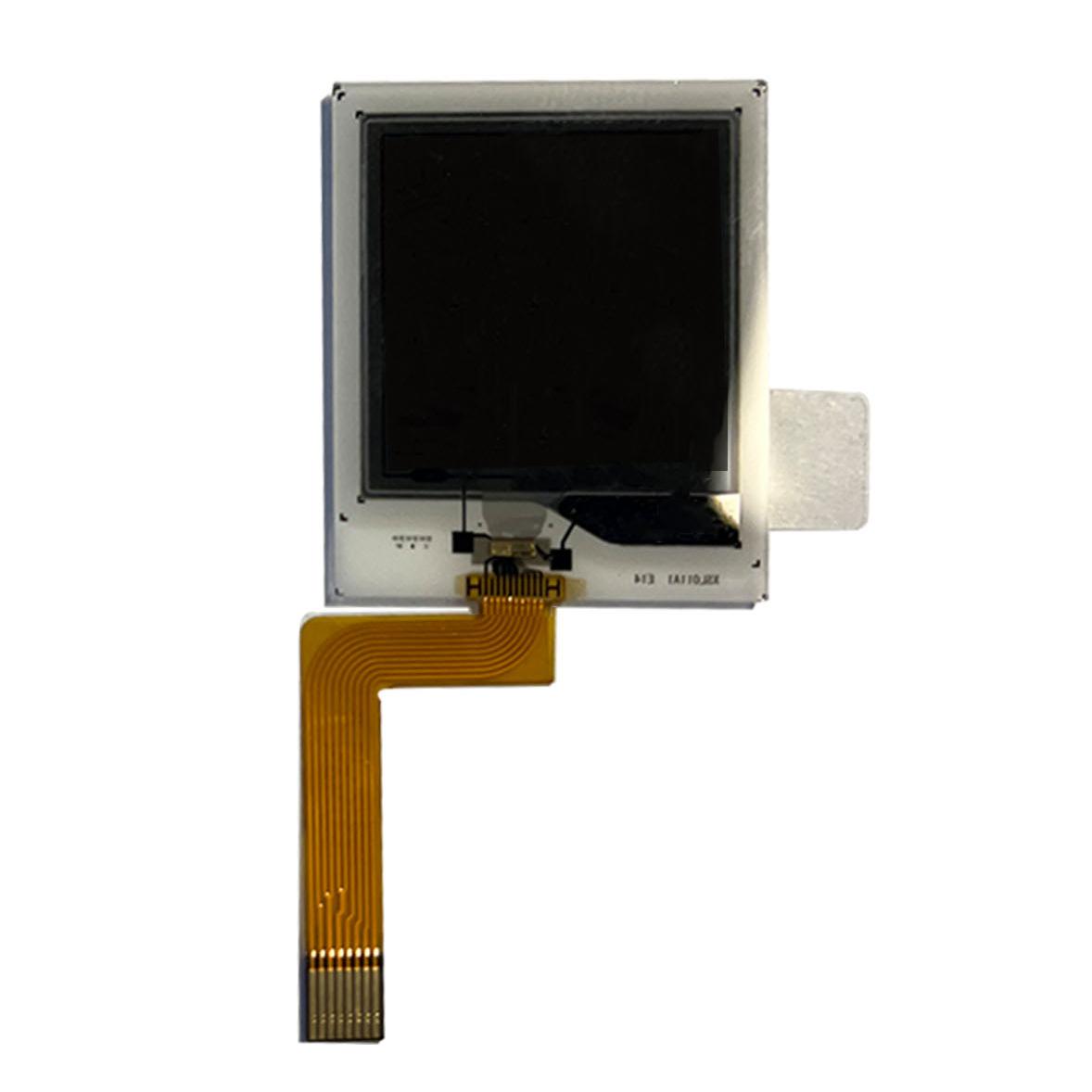

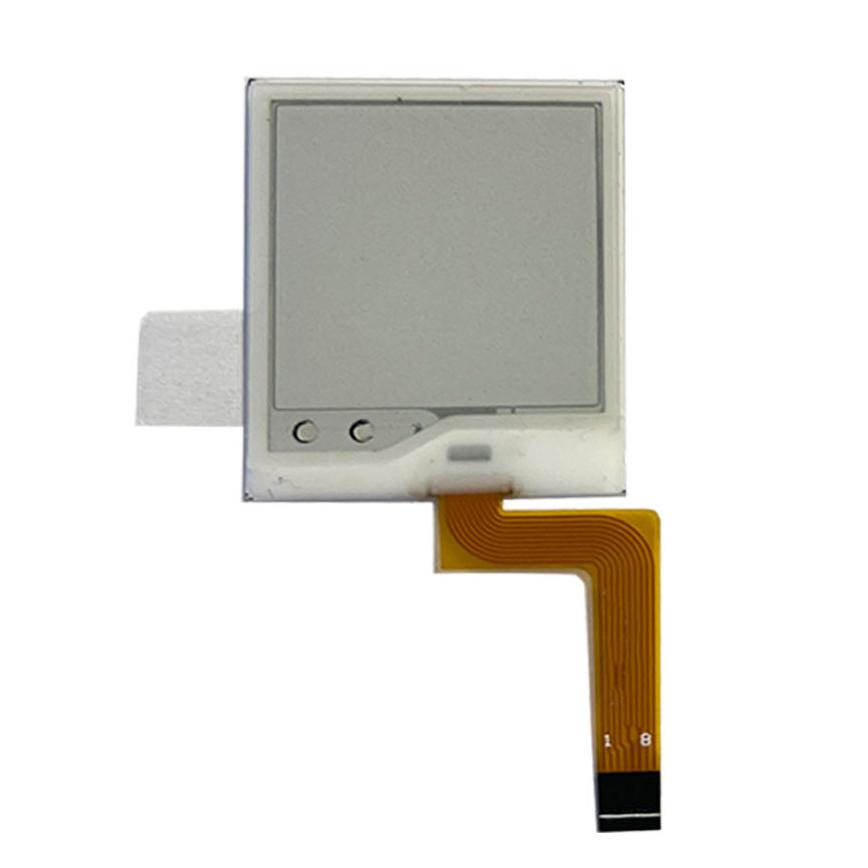

This e-paper module features a segment-style display with 40 segments plus one Vcom line and one background segment. The active display area measures 20 × 20 mm, within an overall module footprint of 24 × 28 mm and a slim thickness of 1.14 ± 0.1 mm.

Driven by the IST7133 display controller and packaged in a chip-on-glass (COG) format, the module supports black-and-white image rendering with a 1-bit grayscale depth. It interfaces via I²C and connects through an 8-pin ZIF connector (0.5 mm pitch), facilitating easy integration into compact electronic assemblies. The module weighs approximately 1.7 ± 0.3 g.

Operating reliably within a temperature range of 0 to 50 °C (with storage capability from –20 to 60 °C), this segment e-paper display is well-suited for low-power, readable interfaces in environments where energy efficiency and visibility are essential.

Shineworld Innovations Limited provides a one-year limited functional warranty, responsive support, and ensures long-term supply continuity. In cases of component obsolescence—such as driver IC or glass cell discontinuation—we commit to sourcing compatible alternatives to minimize disruptions.
