0.96-inch TFT LCD Display Glass Cover Lens PMMA Cover Optional, Laminated Display

0.96-inch TFT LCD Display Glass Cover Lens PMMA Cover Optional, Laminated Display

Model No.
  • HYDL-T0096-044
Resolution
Diagonal Size
Color

Please check stock availability with the seller before buying samples

Sample Price:
$0.01 USD
$0.01 USD
Sale Sold out
Send Inquiry View full details

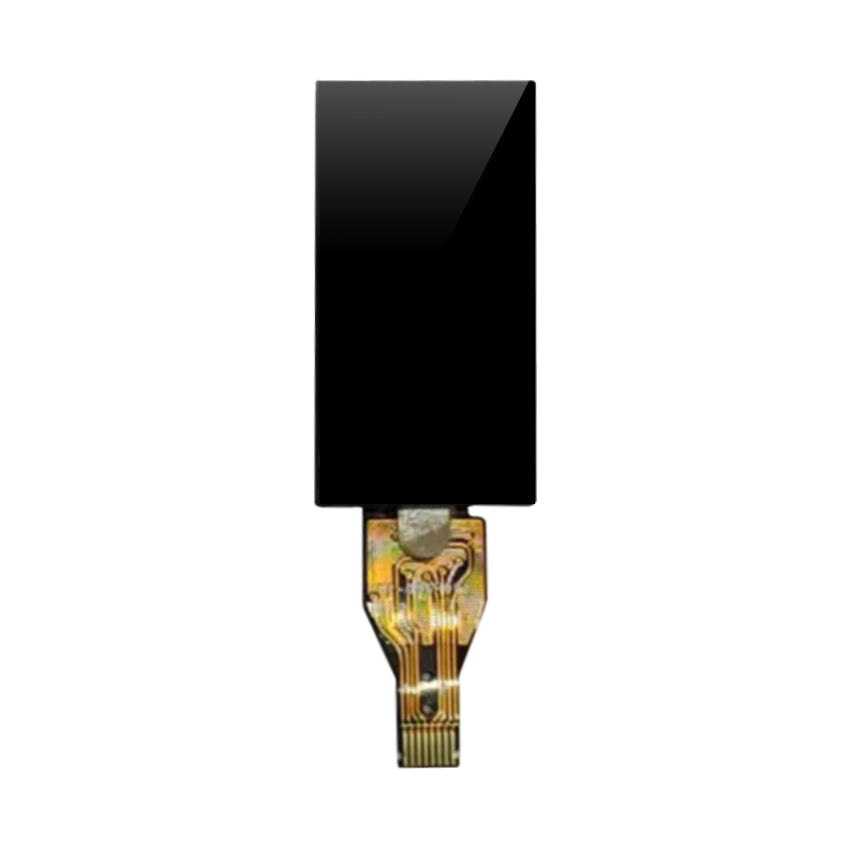

The SWICN HYDL-T0096-044 is a compact and vibrant 0.96-inch IPS TFT LCD module with PMMA cover lens bonded. Created by SWICN, this module presents an 80x160 RGB pixel resolution on a black background, delivering an attractive visual experience. With a typical brightness of 700cd/m2, it ensures clear visibility even in diverse lighting conditions. Powered by the ST7735S driver IC and supporting the 4-wire SPI interface, this module guarantees reliable performance.
What sets the HYDL-T0096-044 apart is its compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for a broad range of applications, such as embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.

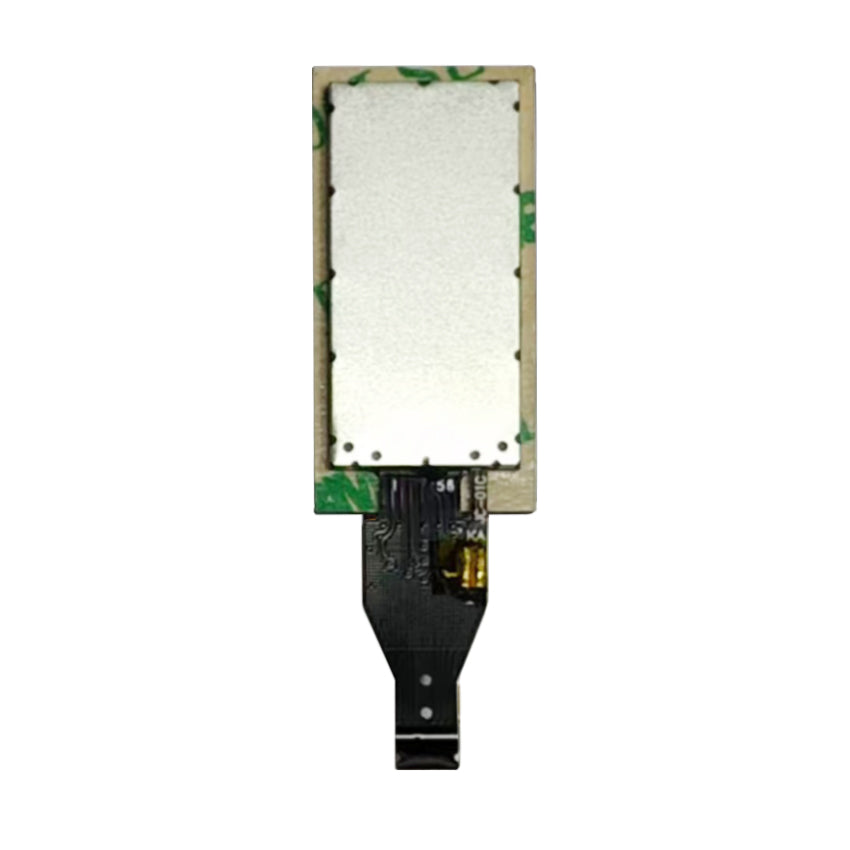

The module's Flexible Printed Circuit (FPC) is designed with a Zero Insertion Force (ZIF) connector type, allowing for effortless and direct connection to your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Shineworld Innovations Limited, the manufacturer of the HYDL-T0096-044, offers customization options to meet specific requirements.

This is one example from over 1,000 customized cases we have completed. We offer a wide range of product customization services based on customer requirements.

Our integrated display modules combine components such as cover lenses, touch panels, displays, and driver boards into a single, compact unit-optimized for your application in terms of size, performance, urability, and aesthetics.

We provide customization for:

  • Housing Materials (Plastic or Metal)
  • Cover Lens Options (Glass, PMMA, PC, PET, ABS)
  • Touch Technologies (ITO Glass, ITO Film, Metal Mesh)
  • Display Types (TFT, OLED, EPD)
  • Bonding Techniques (OCA, LOCA, Functional Adhesive Tape)
  • Driver Board & FPC Design
  • Functional Films (Privacy, Anti-glare, Anti-reflection)

From concept to production, our goal is to deliver display solutions that meet your unique design, technical, and environmental needs - whether you’re building consumer electronics, medical equipment, industrial controls, or smart appliances.

To discuss your custom display requirements, please get in touch with our sales representative.

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 TFT -
2 Diagonal Size 尺寸 0.96 Inch
3 Resolution 分辨率 80(RGB)×160 Dots
4 Active Area 有效显示区域 10.8(W)x21.7(H) mm
5 Outline Dimension 外围尺寸 16(W)×32.6(H) mm
6 Thickness 厚度 1.5±0.2 mm
7 Pixel Pitch 像素间距 0.135(W) x 0.1356(H) mm
8 Pixel Size 像素尺寸 0.135(W) x 0.1356(H) mm
9 Display Driver IC 显示驱动 IC ST7735S -
10 Touch Driver IC 触控驱动IC No Touch -
11 Display Color 显示色彩 262K Color
12 Gray Scale 灰阶 262 bit
13 Brightness 亮度 400(min) cd/m2
14 Contrast Ratio 对比度 800:1(Typ.） -
15 Interface 接口 4-wire SPI -
16 IC Package Type IC 封装类型 COG -
17 Module Connecting Type 模块连接方式 ZIF Connector（Pitch:0.5mm） -
18 Weight 重量 TBD g
19 Viewing Direction 视角方向 All View O'Clock
20 Pins 引脚数 8 Pins
21 Operating Temperature 操作温度 -20~70 ℃
22 Storage Temperature 存储温度 -30~80 ℃

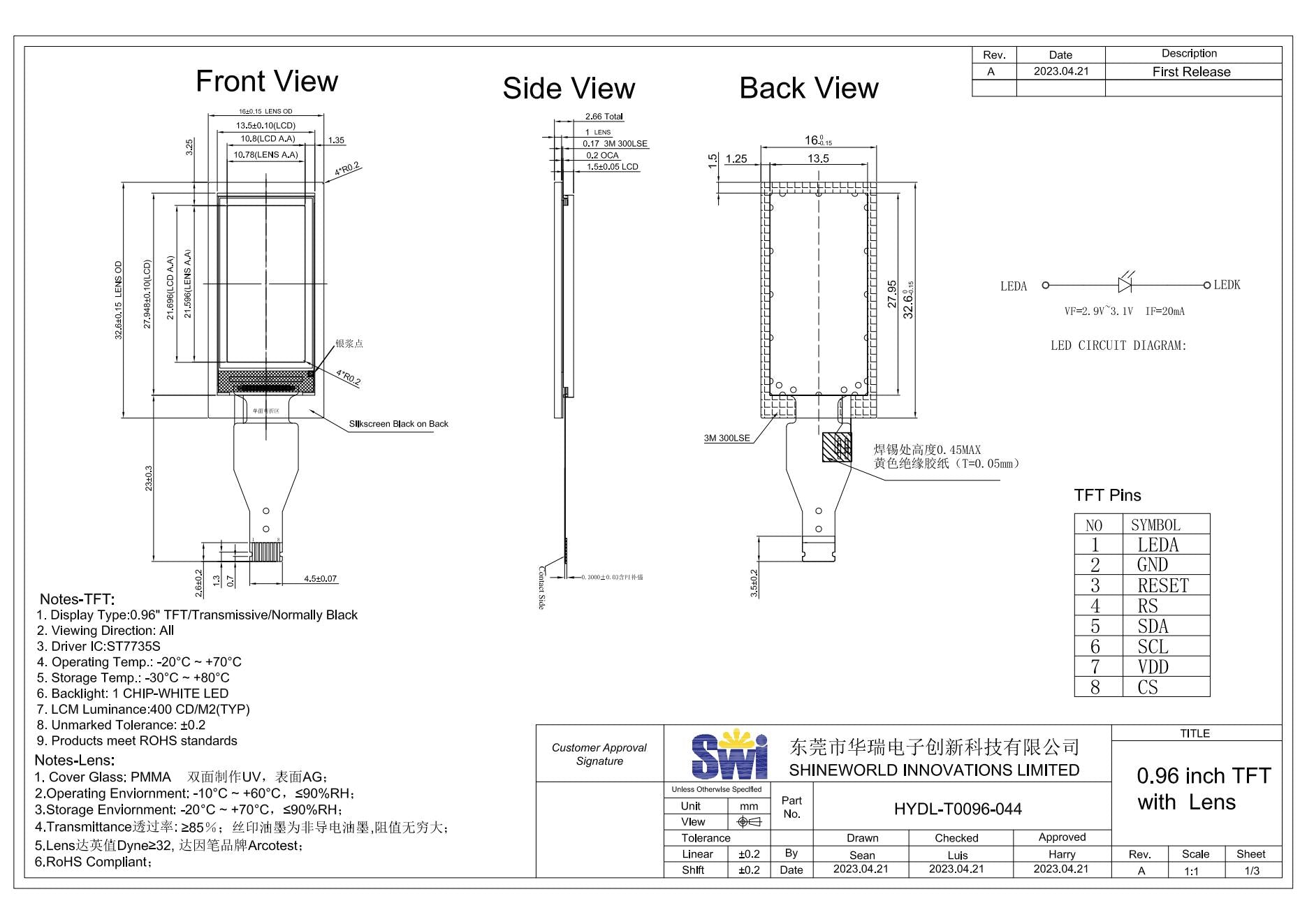

Drawings​
