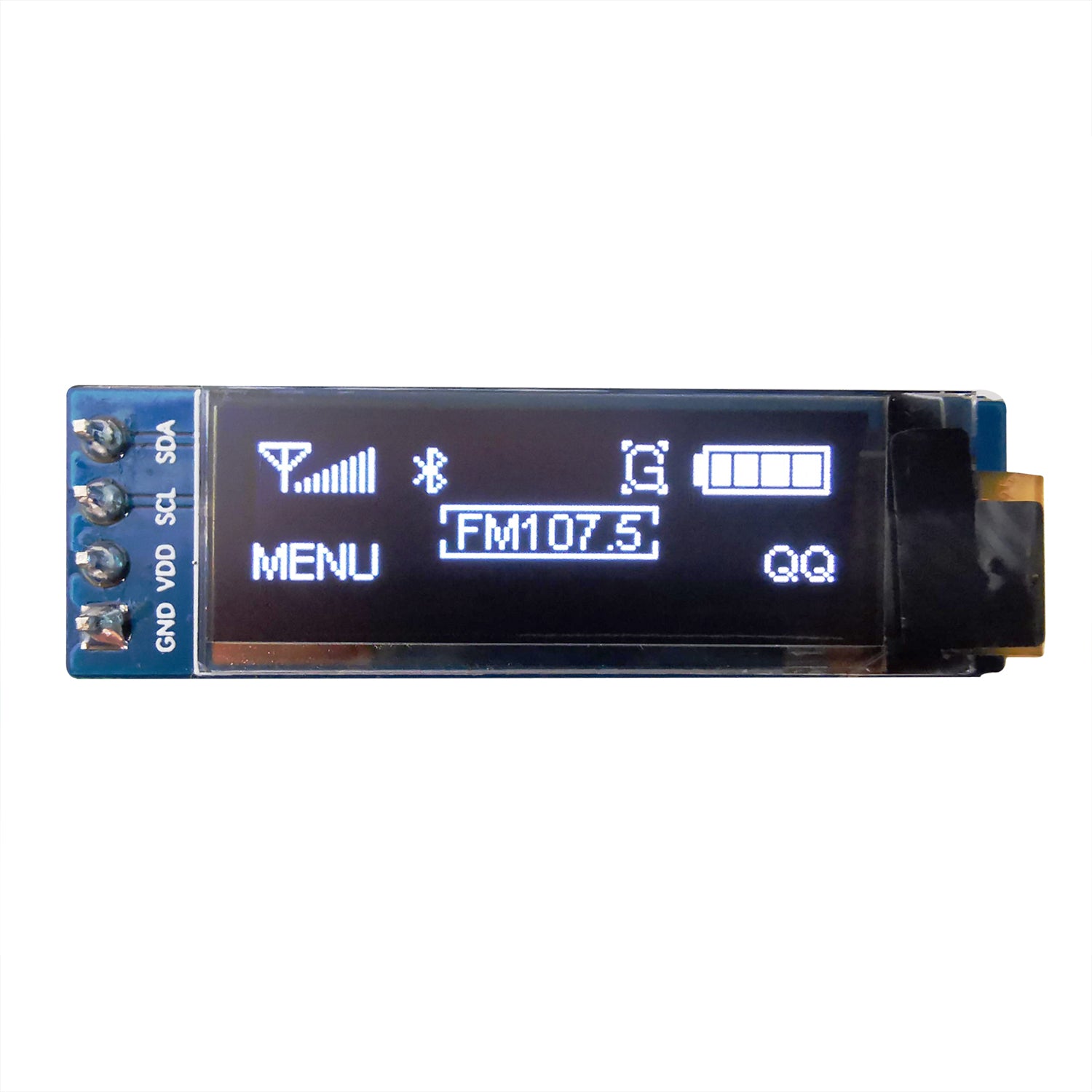

| NO. | ITEM | SPECIFICATIONS | UNIT |
| 1 | Display Mode 显示模式 | PMOLED | - |
| 2 | Diagonal Size 尺寸 | 0.91 | Inch |
| 3 | Resolution 分辨率 | 128(H)×32(V) | Dots |

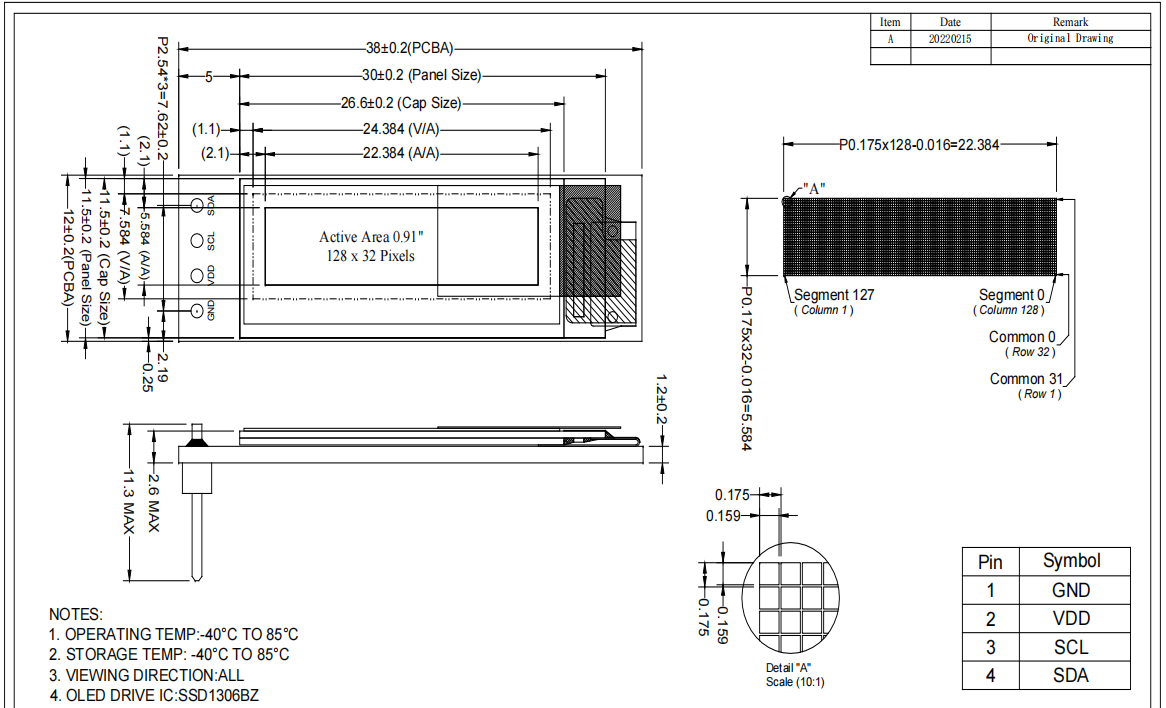

| 4 | Active Area 有效显示区域 | 22.38(W)x5.58(H) | mm |
| 5 | PCB Size PCB 尺寸 | 38.00(W)x12.00(H) | mm |
| 6 | Thickness 厚度 | 2.6Max | mm |
| 7 | Pixel Pitch 像素间距 | 0.175(W) x 0.175(H) | mm |
| 8 | Pixel Size 像素尺寸 | 0.159 (W) x 0.159 (H) | mm |
| 9 | Display Driver IC 显示驱动 IC | SSD1306BZ | - |
| 10 | Touch Driver IC 触控驱动IC | No Touch | - |
| 11 | Display Color 显示色彩 | White or Blue | Color |
| 12 | Gray Scale 灰阶 | 1 | bit |
| 13 | Brightness 亮度 | 150 (Typ.) | cd/m2 |
| 14 | Contrast Ratio 对比度 | 2000:1(Min.) | - |
| 15 | Interface 接口 | I2C | - |
| 16 | IC Package Type IC 封装类型 | COG | - |
| 17 | Module Connecting Type 模块连接方式 | Insert Pins | - |
| 18 | Weight 重量 | TBD±10% | g |
| 19 | Duty占空比 | 1/32 | - |
| 20 | Pins 引脚数 | 4 | Pins |
| 21 | Operating Temperature 操作温度 | -40~85 | ℃ |
| 22 | Storage Temperature 存储温度 | -40~85 | ℃ |
