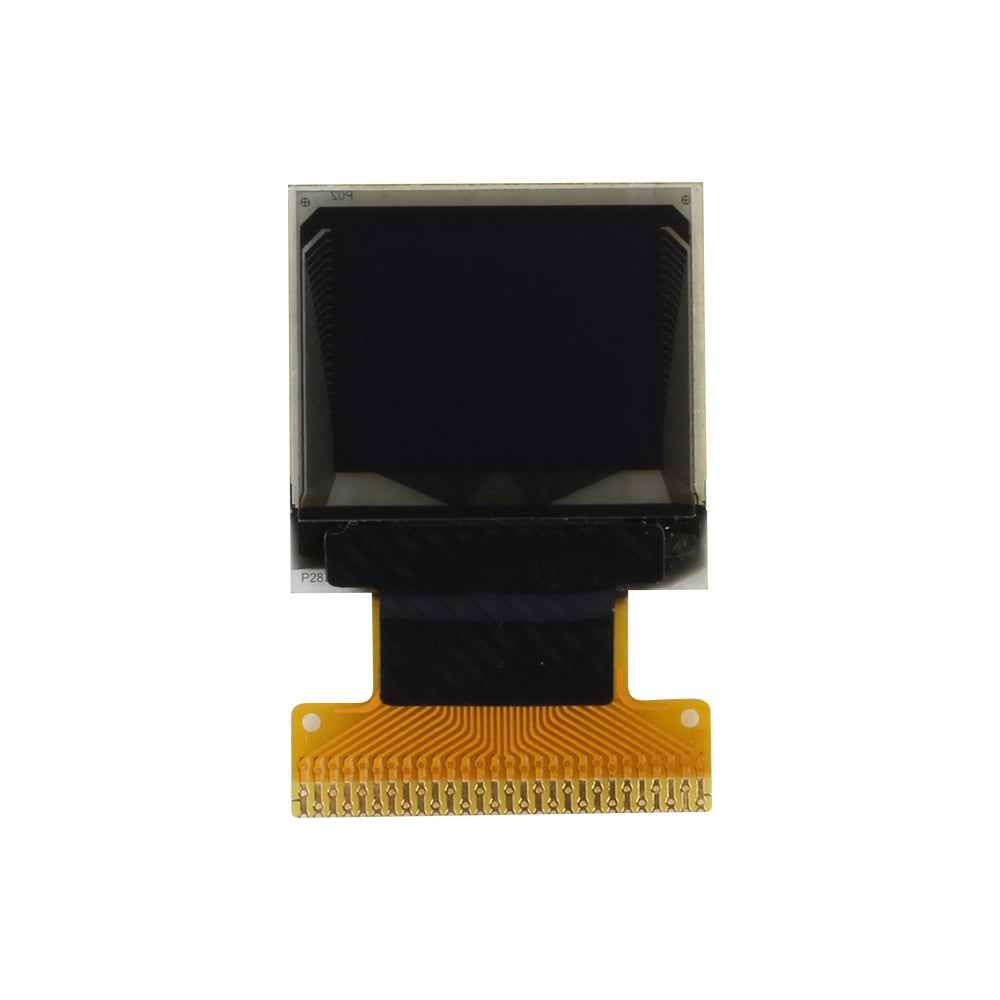

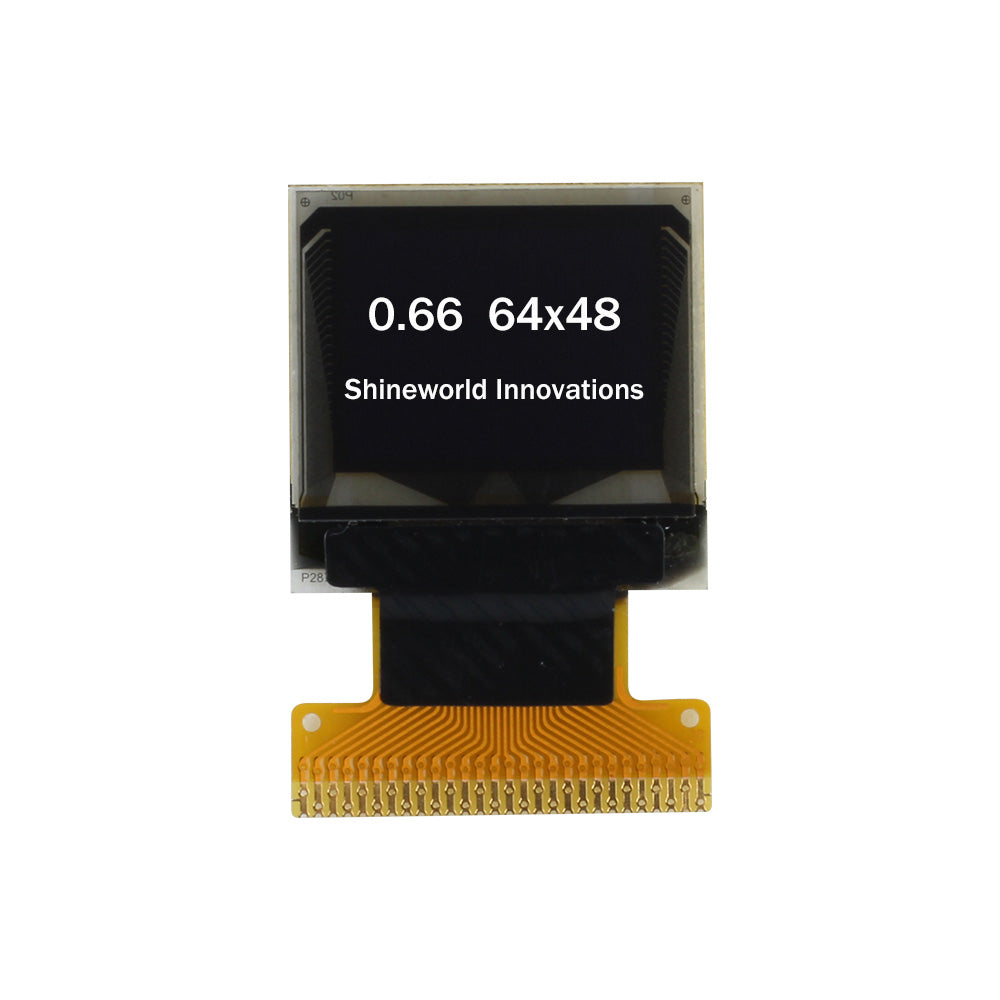

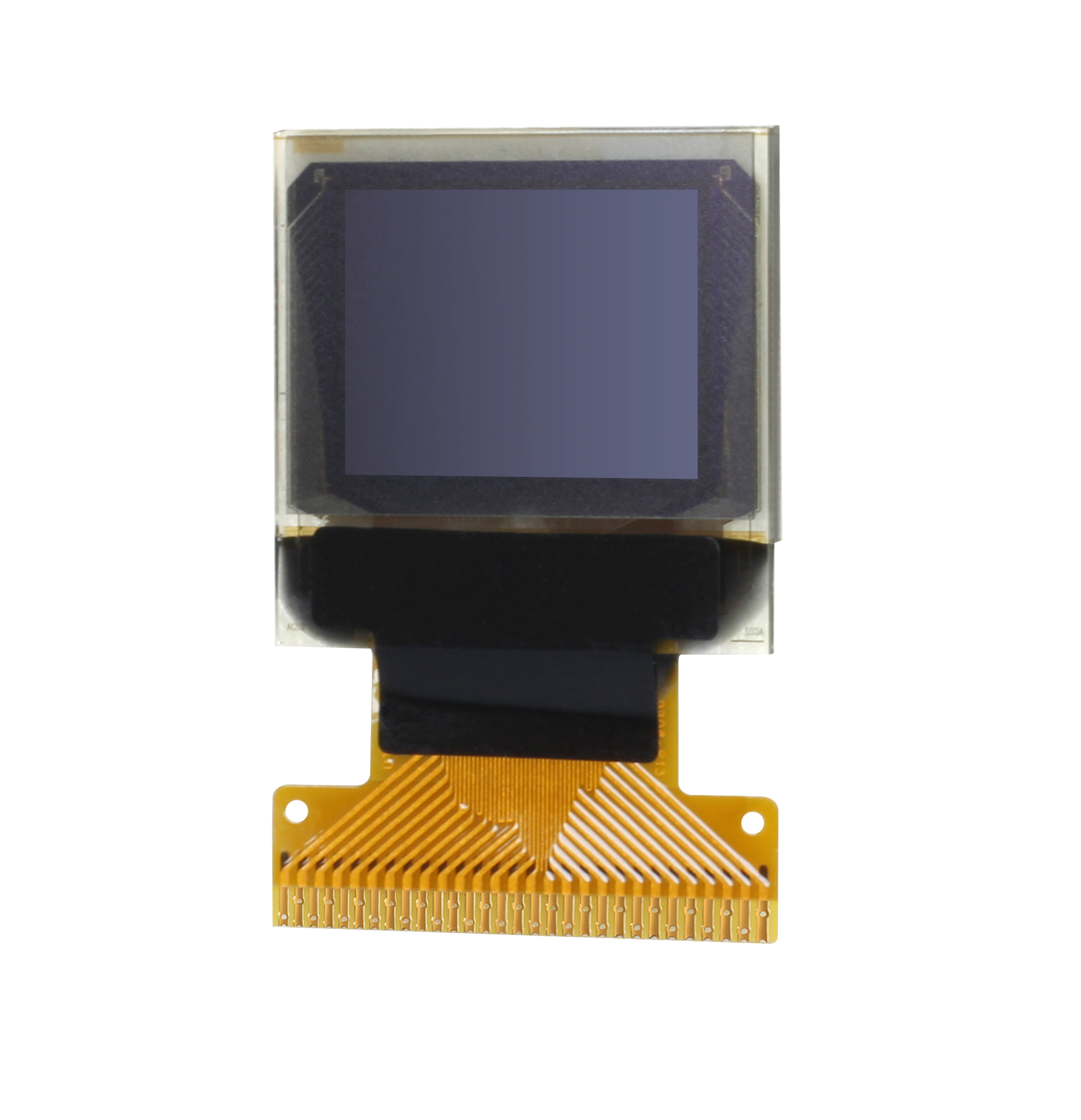

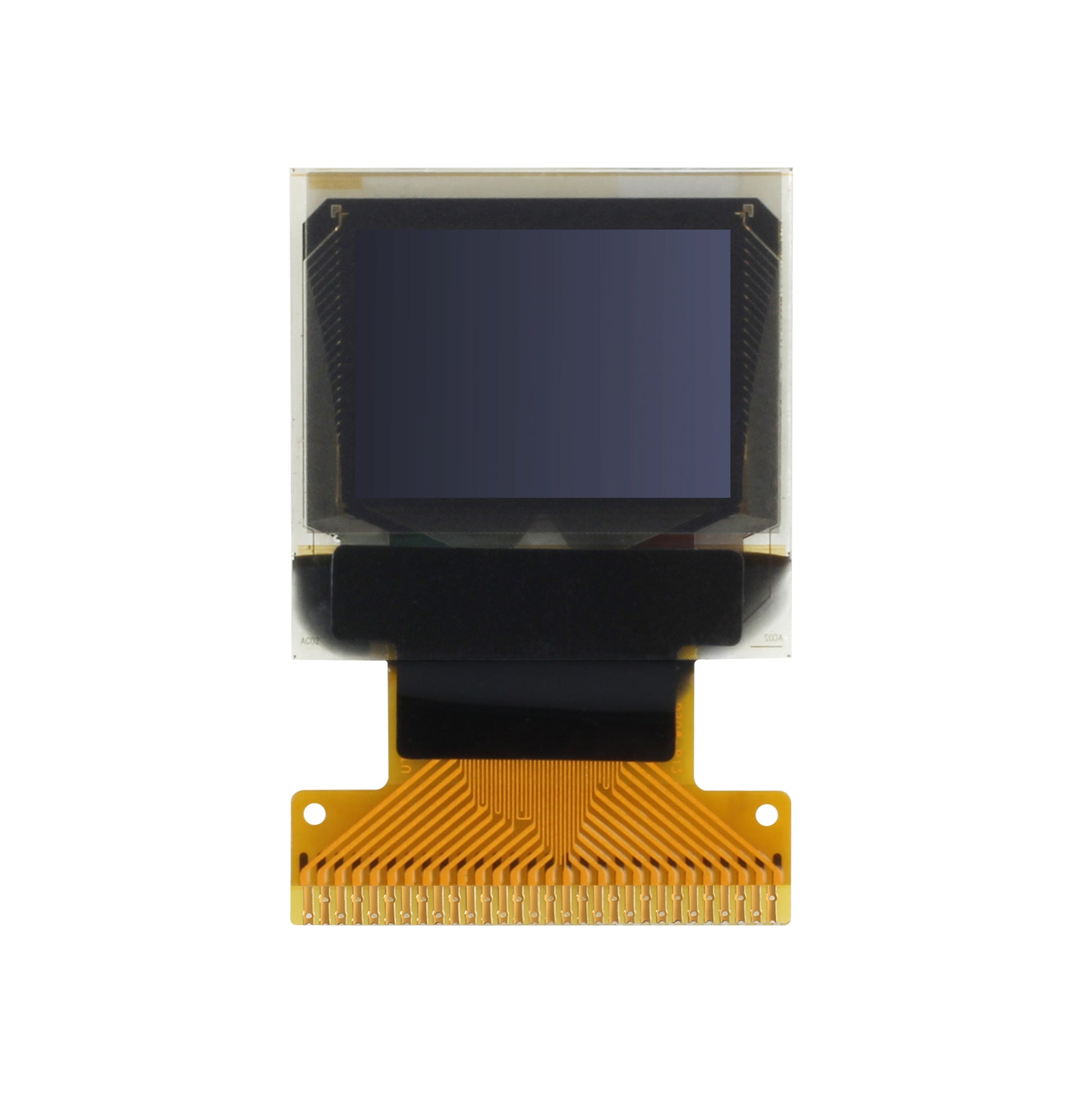

The GLO066-D-M2005 is a graphic OLED display module with a diagonal size of 0.66 inches. It features a resolution of 64x48 individual pixels, which can be optionally white or blue in color. The module utilizes the SSD1306 controller IC, which supports communication via both 8080 4-bit/8-bit parallel and I2C/4-wire serial interfaces.
Since the OLED display generates its own light, there is no need for a backlight. This unique feature results in lower power
consumption and contributes to the display's high contrast, extremely wide viewing angle, and exceptional operating temperature range.
The FPC (Flexible Printed Circuit) of the GLO066-D-M2005 is designed for soldering directly onto a PCB, eliminating the
requirement for a separate connector. Simply solder the FPC onto your PCB to establish a secure connection.
This display module can be easily controlled by various microcontroller units (MCUs) such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. Its versatility allows it to be integrated into a wide range of applications, including embedded systems, industrial devices, security systems, consumer electronics, medical equipment, and handheld devices.
For further customization, SWI offers the option to customize the FPC and provide integrated cover lens, touch screen, or driver board solutions according to specific customer requirements. This ensures a tailored and optimized display solution for individual needs.
