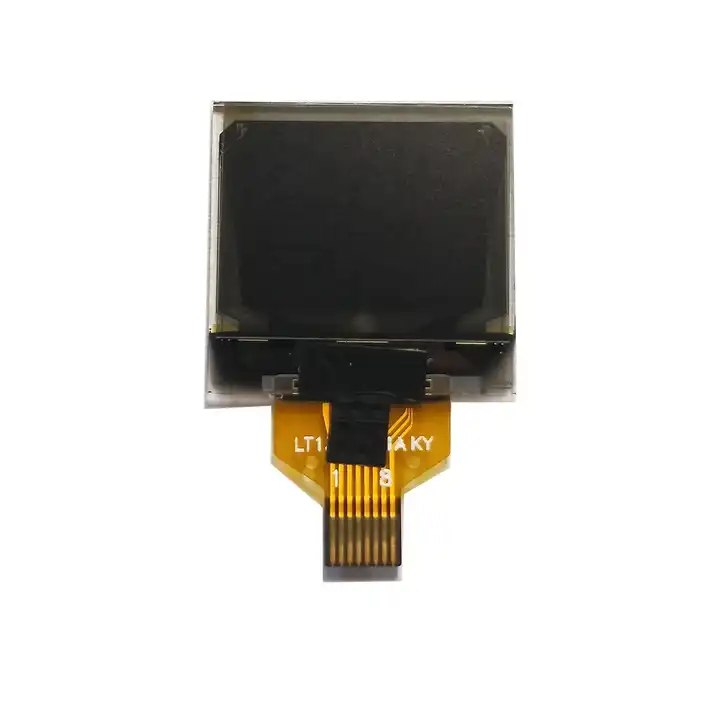

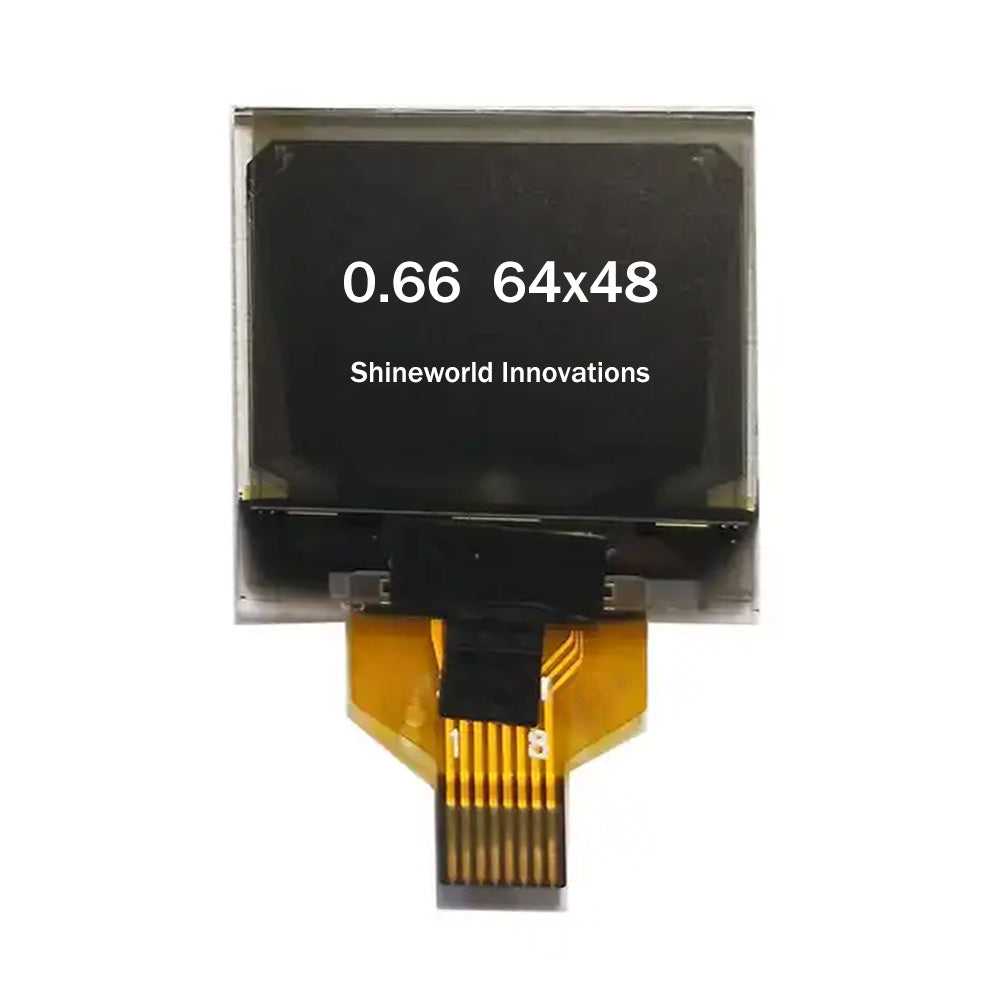

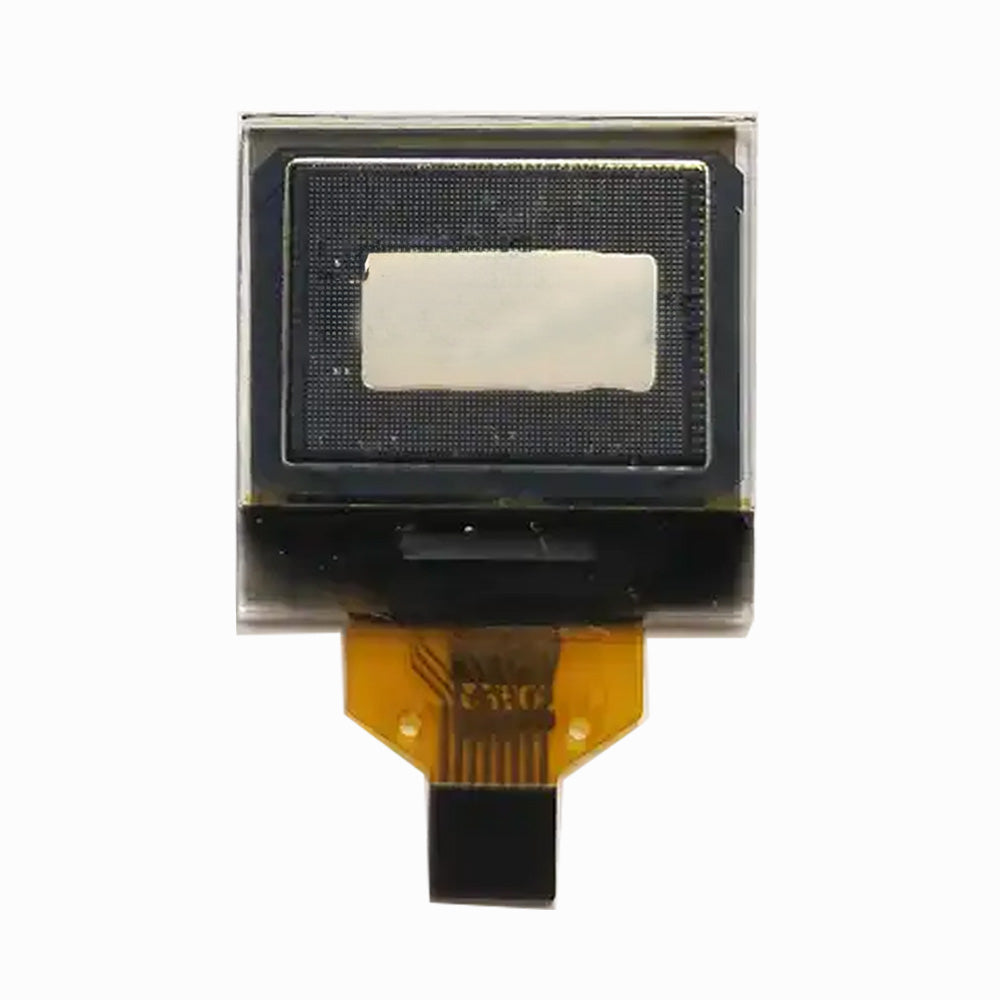

0.66-inch 64×48 SSD1306 OLED I²C Micro OLED Display

This compact passive-matrix OLED module features a 0.66-inch diagonal with a sharp 64 (H) × 48 (V) pixel resolution. The active area measures 13.42 × 10.06 mm within an overall footprint of 18.46 × 18.10 mm, and it maintains an ultra-thin profile of just 1.23 mm.

The display employs an SSD1306 driver IC and communicates via I²C, offering straightforward integration. The module has an 8-pin ZIP connector (0.5 mm pitch) for easy mounting.

With each pixel sized at 0.19 × 0.19 mm and a pixel pitch of 0.21 × 0.21 mm, the display delivers crisp monochrome visuals in white. Typical brightness is 100 cd/m², and contrast ratio is around 2000:1.

Built for reliability, it operates over a broad temperature range from –40 °C to +70 °C and can be stored between –40 °C and +85 °C. The display consumes low power thanks to its self-emissive OLED nature (no backlight required), making it ideal for compact, power-sensitive devices.

Weighing approximately 1 g (±10 %), this module brings together excellent visual performance and minimal form factor characteristics, suited for wearables, IoT products, portable gadgets, medical/health devices, and embedded systems.

Shineworld Innovations Limited provides a one-year limited functional warranty, prompt support, and long-term supply continuity—even sourcing compatible alternatives if components like the driver IC become unavailable.
