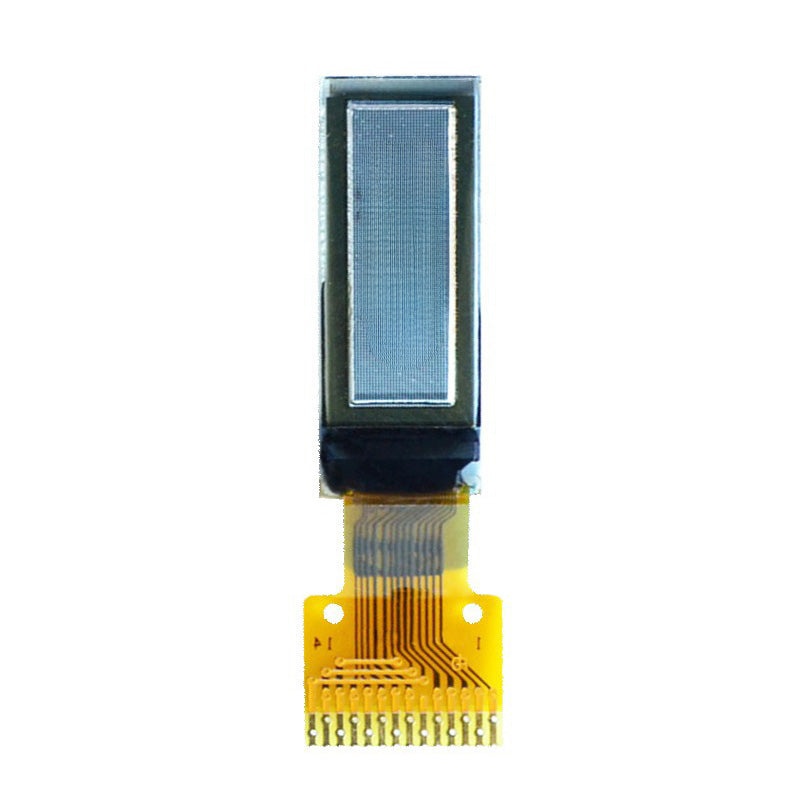

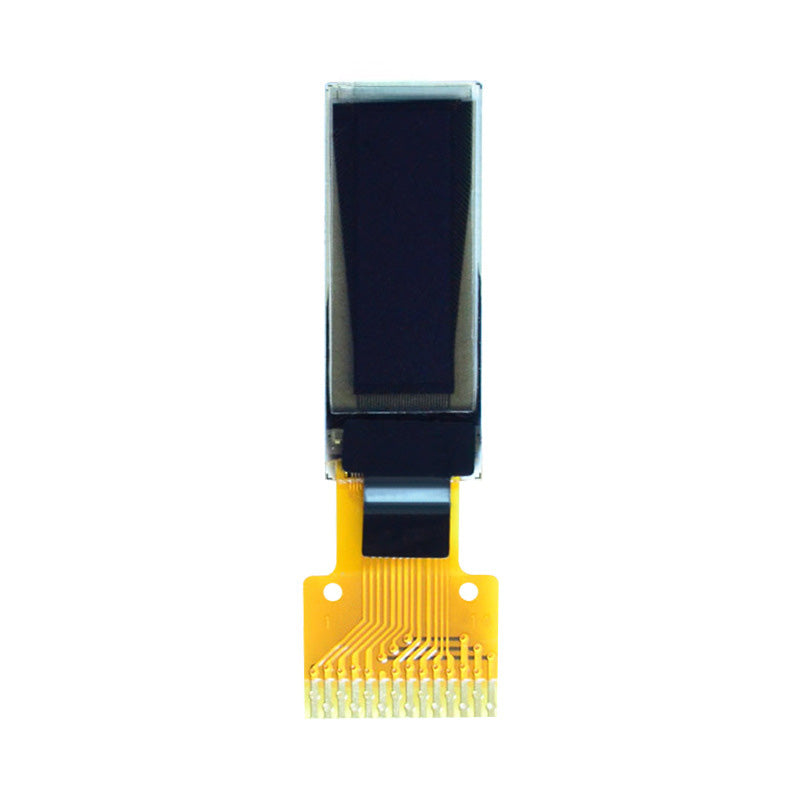

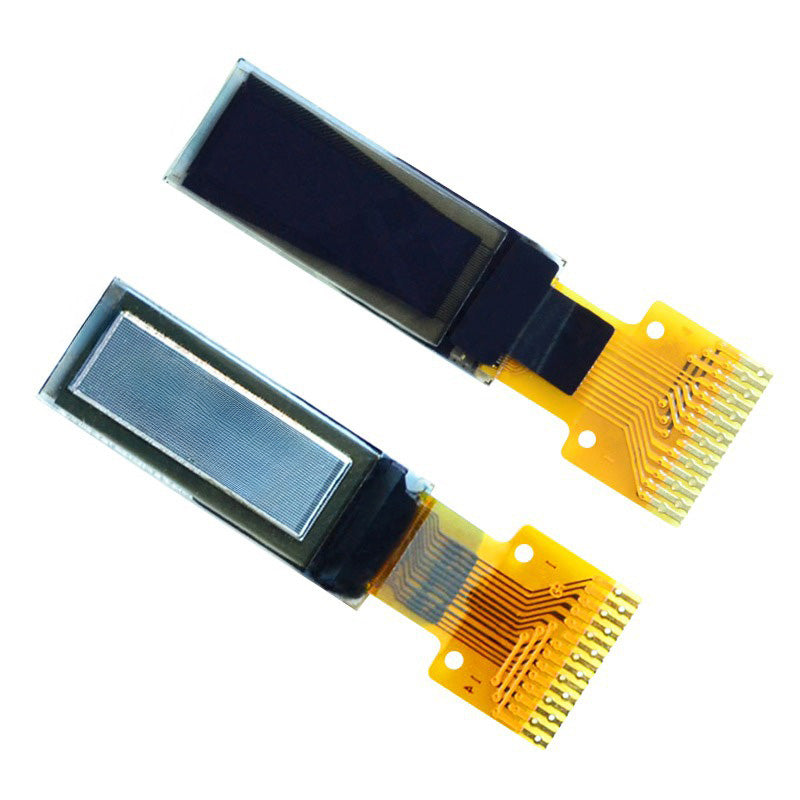

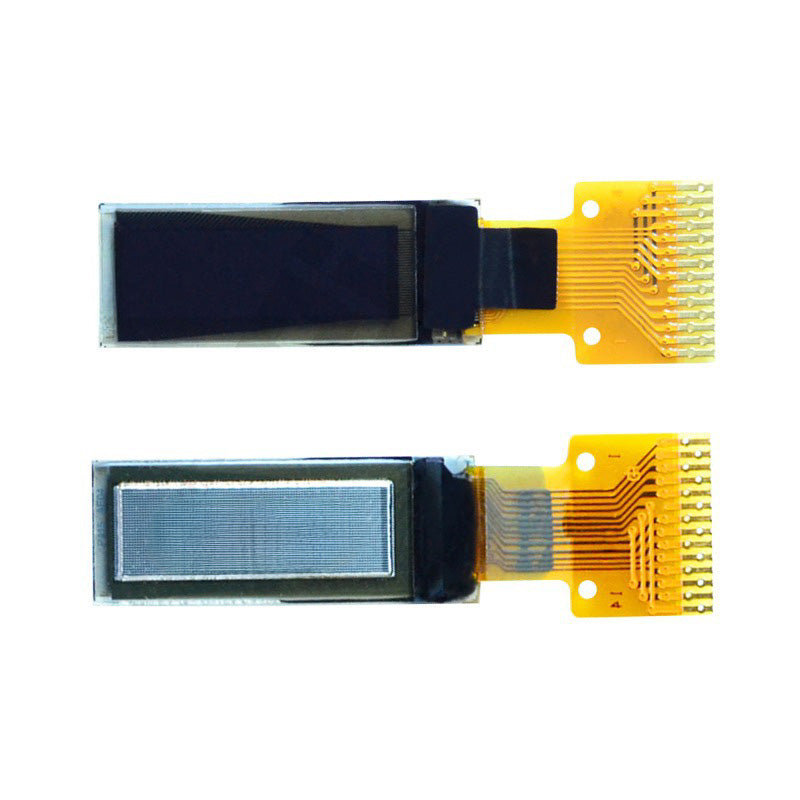

The GLO054-D-M2001 is a graphic OLED display module with a diagonal size of 0.66 inches. It features a resolution of 96x32 individual white pixels. The module utilizes the CH1115 controller IC, which supports communication via 4-wire serial interfaces.
Since the OLED display generates its own light, there is no need for a backlight. This unique feature results in lower power
consumption and contributes to the display's high contrast, extremely wide viewing angle, and exceptional operating temperature range.
The FPC (Flexible Printed Circuit) of the GLO054-D-M2001 is designed for soldering directly onto a PCB, eliminating therequirement for a separate connector. Simply solder the FPC onto your PCB to establish a secure connection.. This display module can be easily controlled by various microcontroller units (MCUs) such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. Its versatility allows it to be integrated into a wide range of applications, including embedded systems, industrial devices, security systems, consumer electronics, medical equipment, and handheld devices.
For further customization, SWI offers the option to customize the FPC and provide integrated cover lens, touch screen, or driver board solutions according to specific customer requirements. This ensures a tailored and optimized display solution for individual needs.
