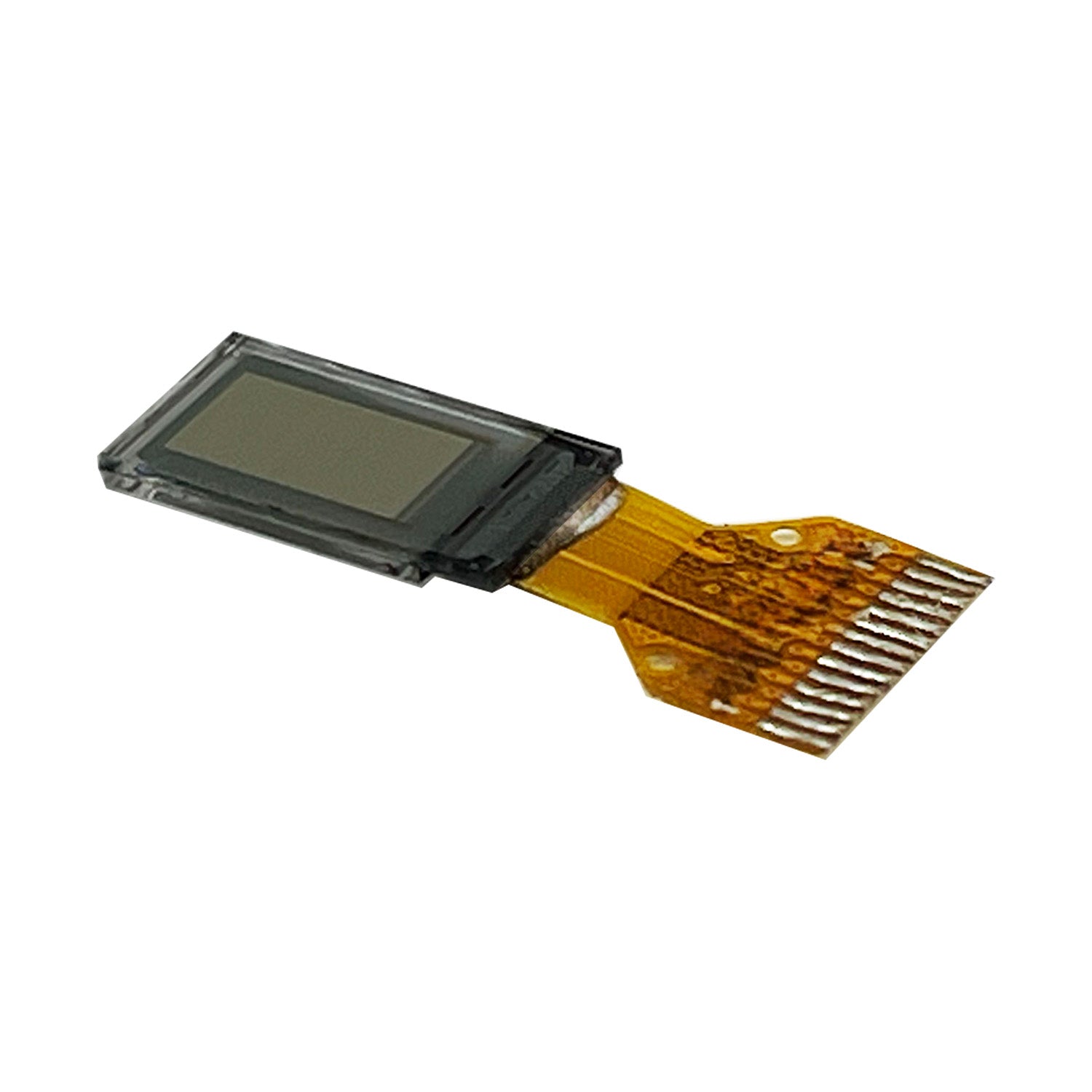

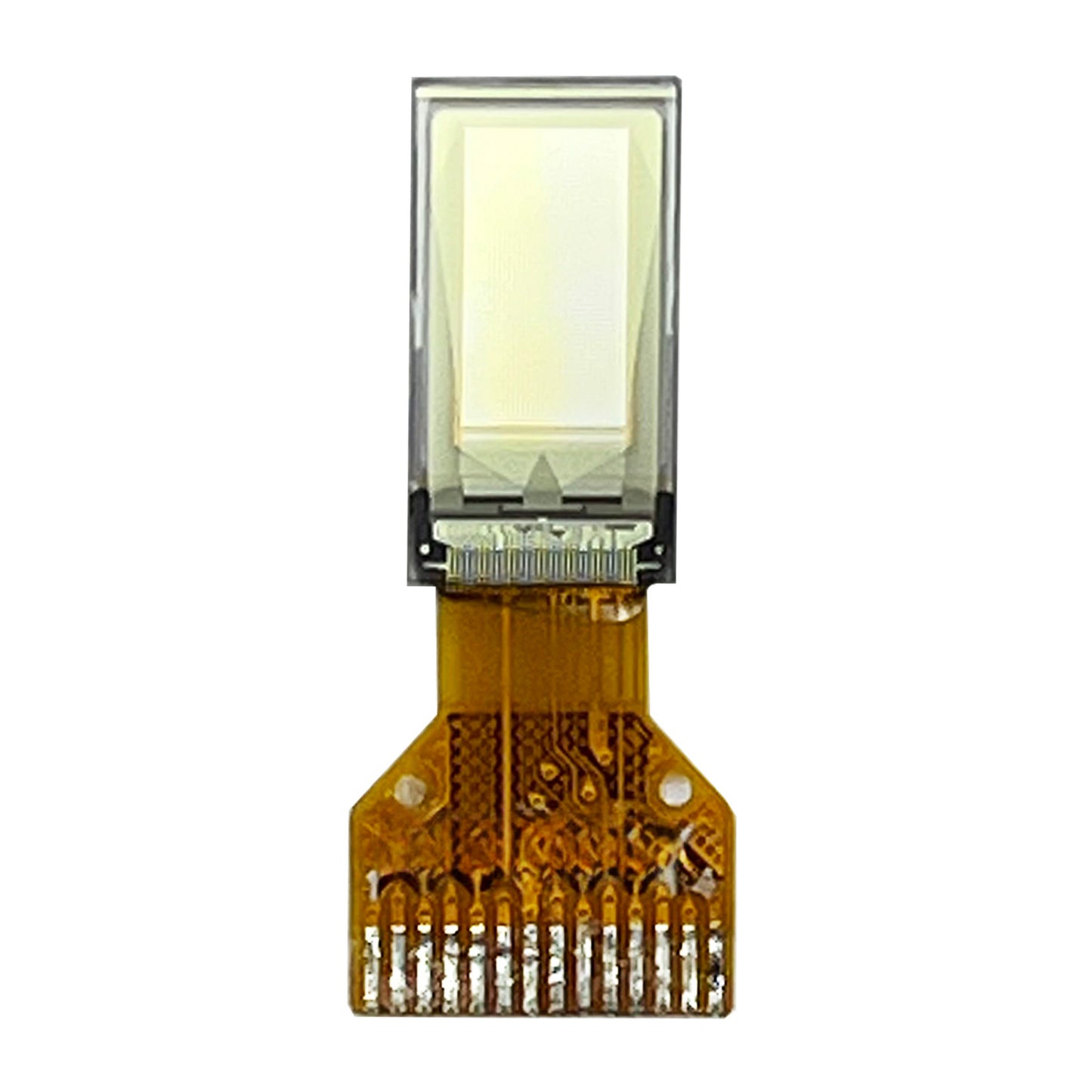

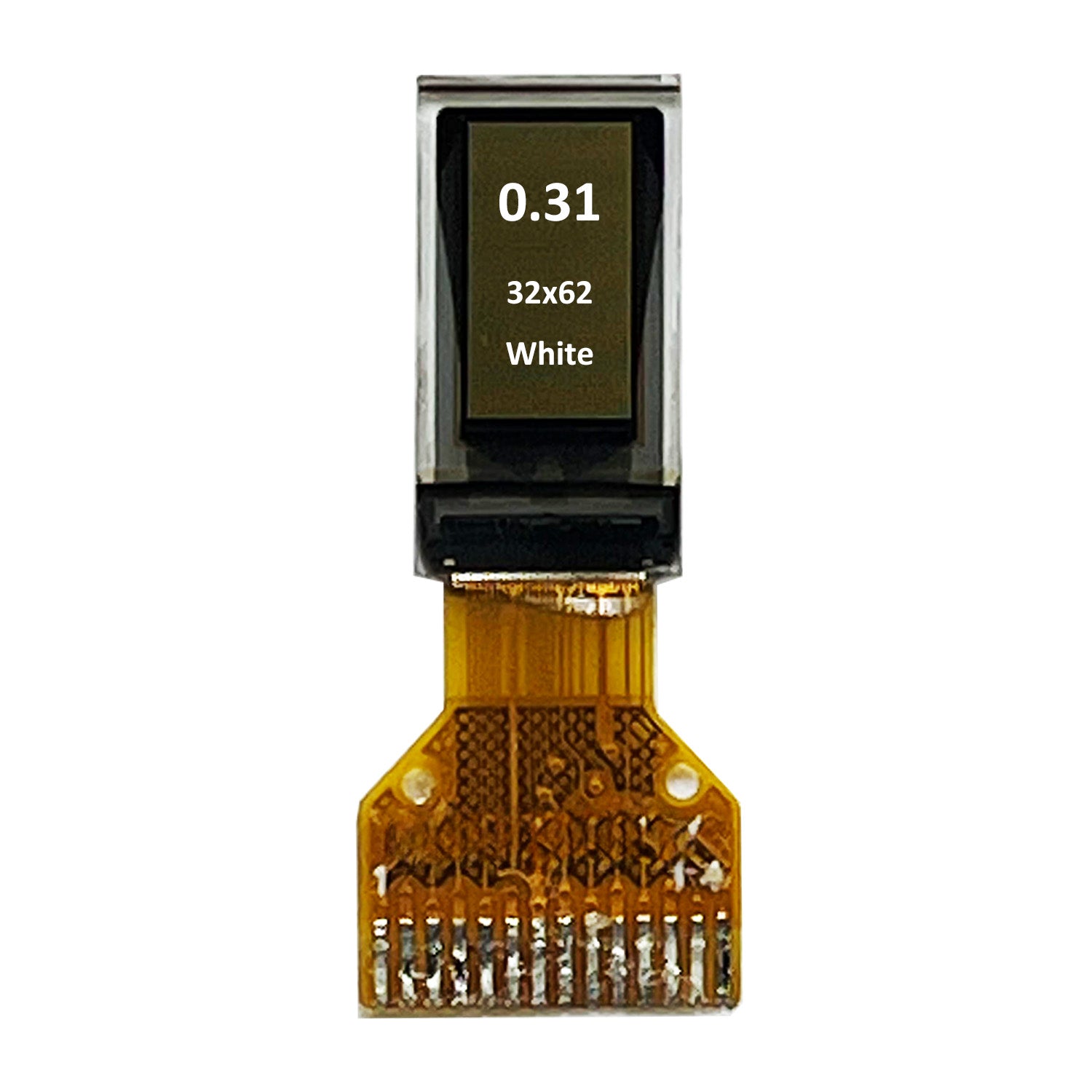

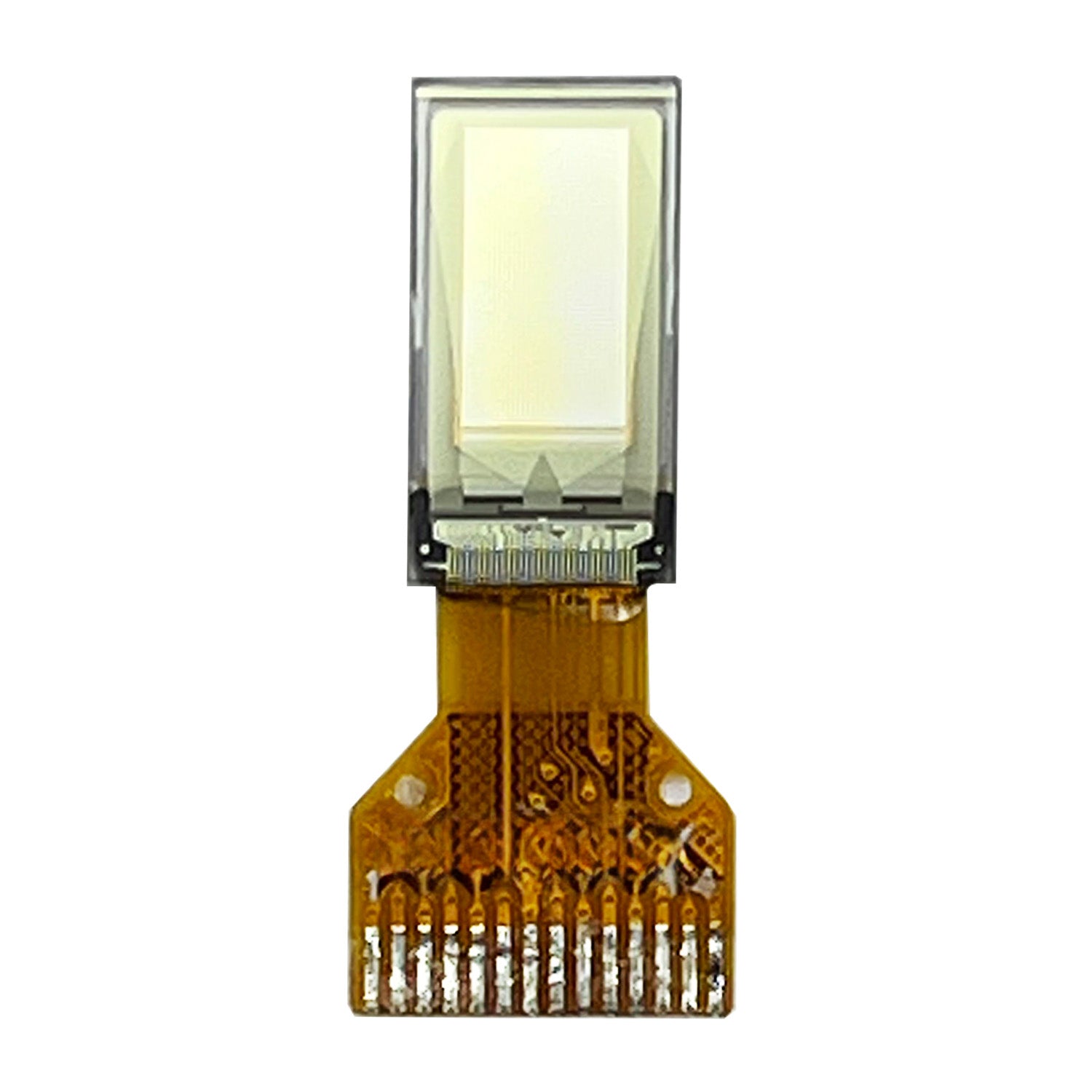

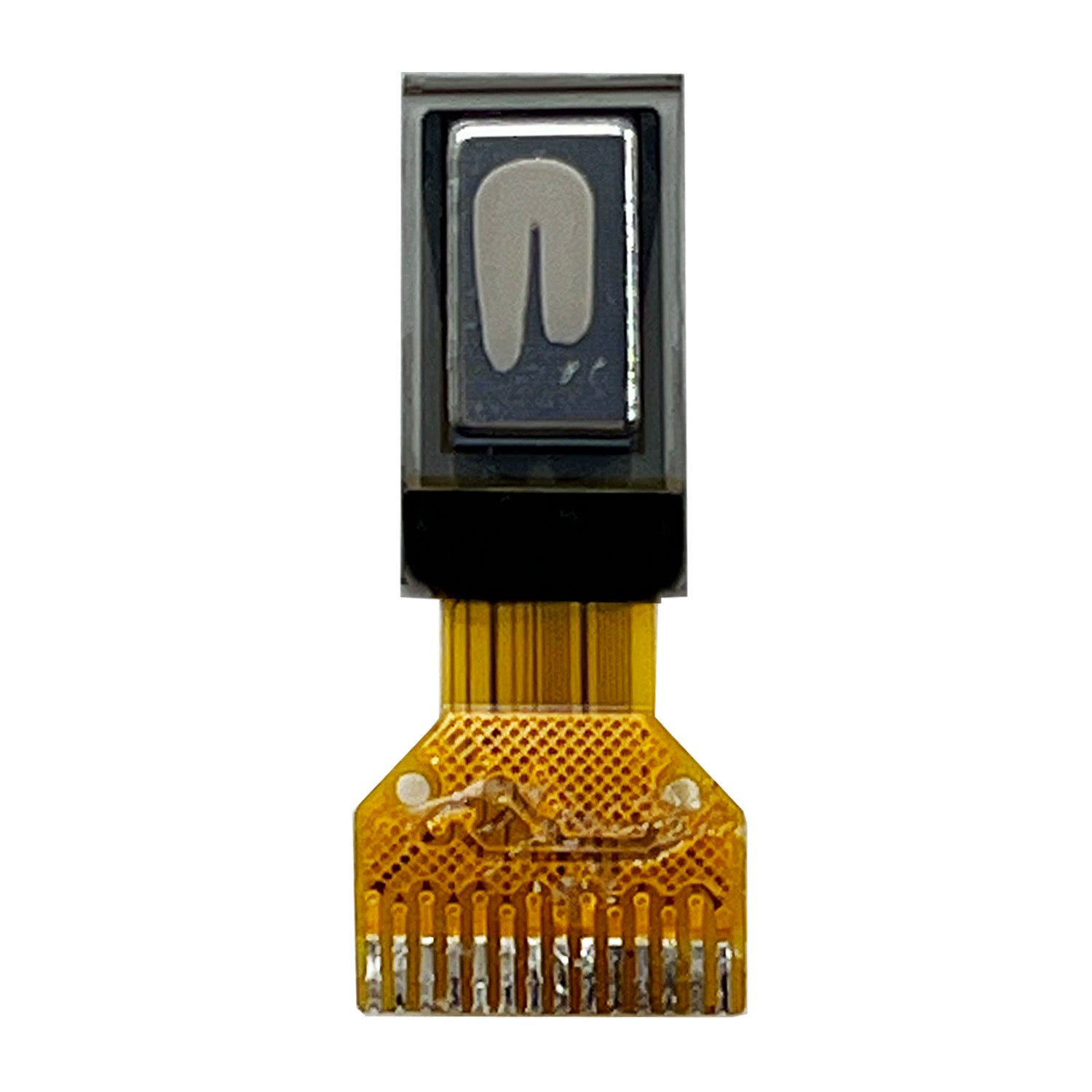

0.31-inch 32x62 OLED Display Module Ultra Small OLED Screen with ST7312 Driver for Wearable & Portable Devices

0.31-inch 32x62 OLED Display Module Ultra Small OLED Screen with ST7312 Driver for Wearable & Portable Devices

Model No.
  • GLO031-D-M2001
Resolution
Diagonal Size
Color

Please check stock availability with the seller before buying samples

Sample Price:
Regular price $2.25 USD
Regular price Sale price $2.25 USD
Sale Sold out
Send Inquiry View full details

The GLO031-D-M2001 from SWI is a highly versatile graphic OLED display module with a diagonal size of 0.31 inches. It offers a visually appealing display with a resolution of 32x642 individual pixels in yellow and blue dual colors. The module incorporates the efficient ST7312 controller IC, which supports the I2C interfaces for seamless communication.

NO. ITEM SPECIFICATIONS UNIT
1 Display Mode 显示模式 PMOLED -
2 Diagonal Size 尺寸 0.31 Inch
3 Resolution 分辨率 32(H)×62(V) Dots
4 Active Area 有效显示区域 3.82(W)×6.986(H) mm
5 Outline Dimension 外围尺寸 6.8(W)×11.88(H) mm
6 Thickness 厚度 1.0±0.1 mm
7 Pixel Pitch 像素间距 0.12(W)×0.113 (H) mm
8 Pixel Size 像素尺寸 0.1(W)×0.093(H) mm
9 Display Driver IC 显示驱动 IC ST7312 -
10 Touch Driver IC 触控驱动IC No Touch -
11 Display Color 显示色彩 White Color
12 Gray Scale 灰阶 1 bit
13 Brightness 亮度 650 (Typ.) cd/m2
14 Contrast Ratio 对比度 2000:1(Min.) -
15 Interface 接口 I2C -
16 IC Package Type IC 封装类型 COG -
17 Module Connecting Type 模块连接方式 Soldering -
18 Weight 重量 TBD±10% g
19 Duty占空比 1/32 -
20 Pins 引脚数 14 Pins
21 Operating Temperature 操作温度 -40~70
22 Storage Temperature 存储温度 -40~85

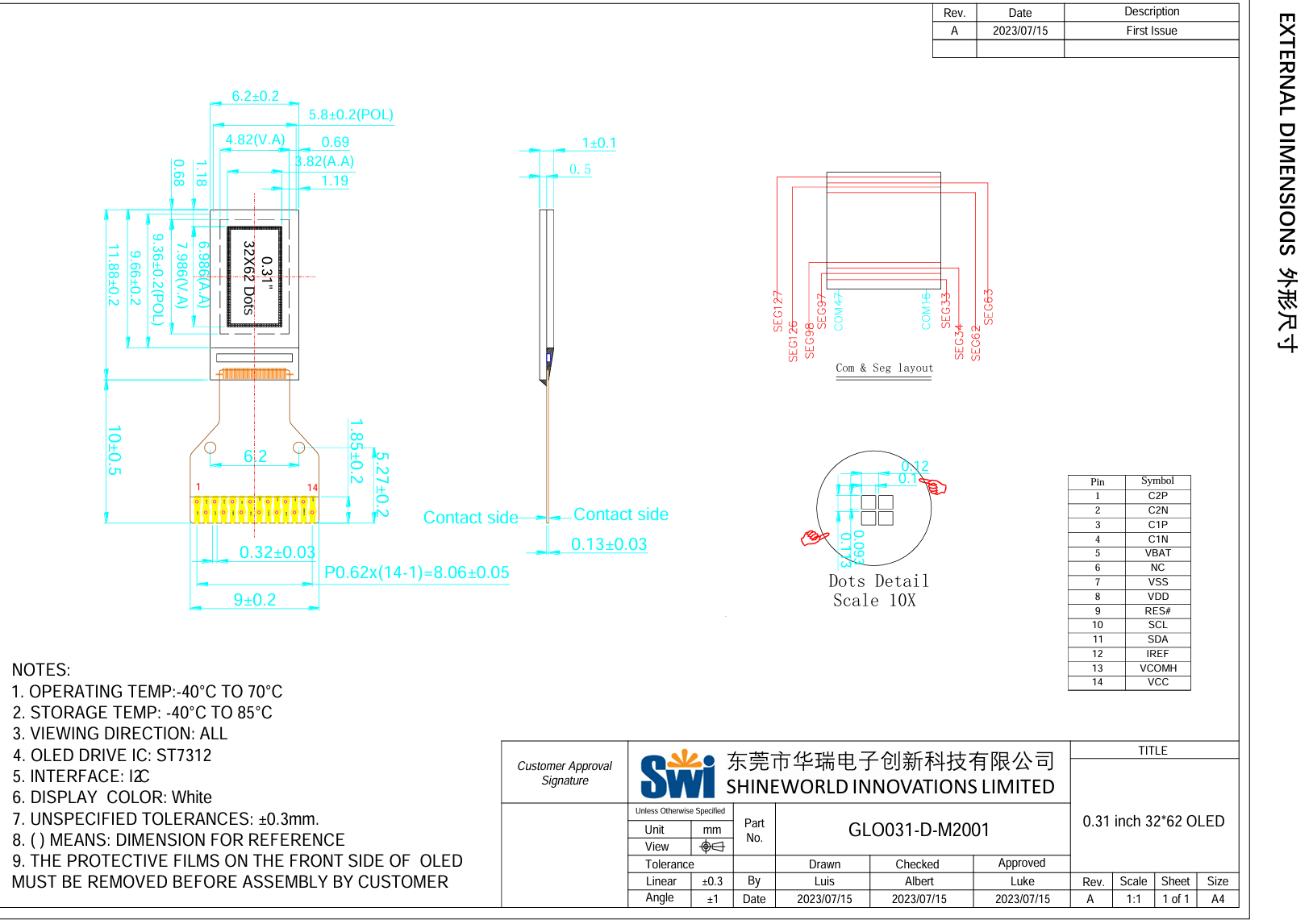

Drawings​
