When to Use ePaper Displays in Product Design

A display that consumes almost no power while holding a static image can change the economics of a battery-operated product. The question is not whether ePaper is more efficient than an LCD in general. It is when to use epaper displays instead of TFT, OLED, or another technology based on the information users need to see, how often that information changes, and the conditions where the device operates.

For OEMs and product developers, ePaper is a specification decision with direct effects on battery capacity, enclosure design, optical performance, firmware behavior, and bill of materials. It performs exceptionally well in the right product category, but it is not a substitute for a fast, emissive display.

When to Use ePaper Displays for the Best Result

ePaper displays use electrophoretic particles to form an image. Once the image is written, the panel can retain it without continuous power. This bistable behavior is the central reason to select ePaper. Power is primarily consumed during a screen update rather than while the image remains visible.

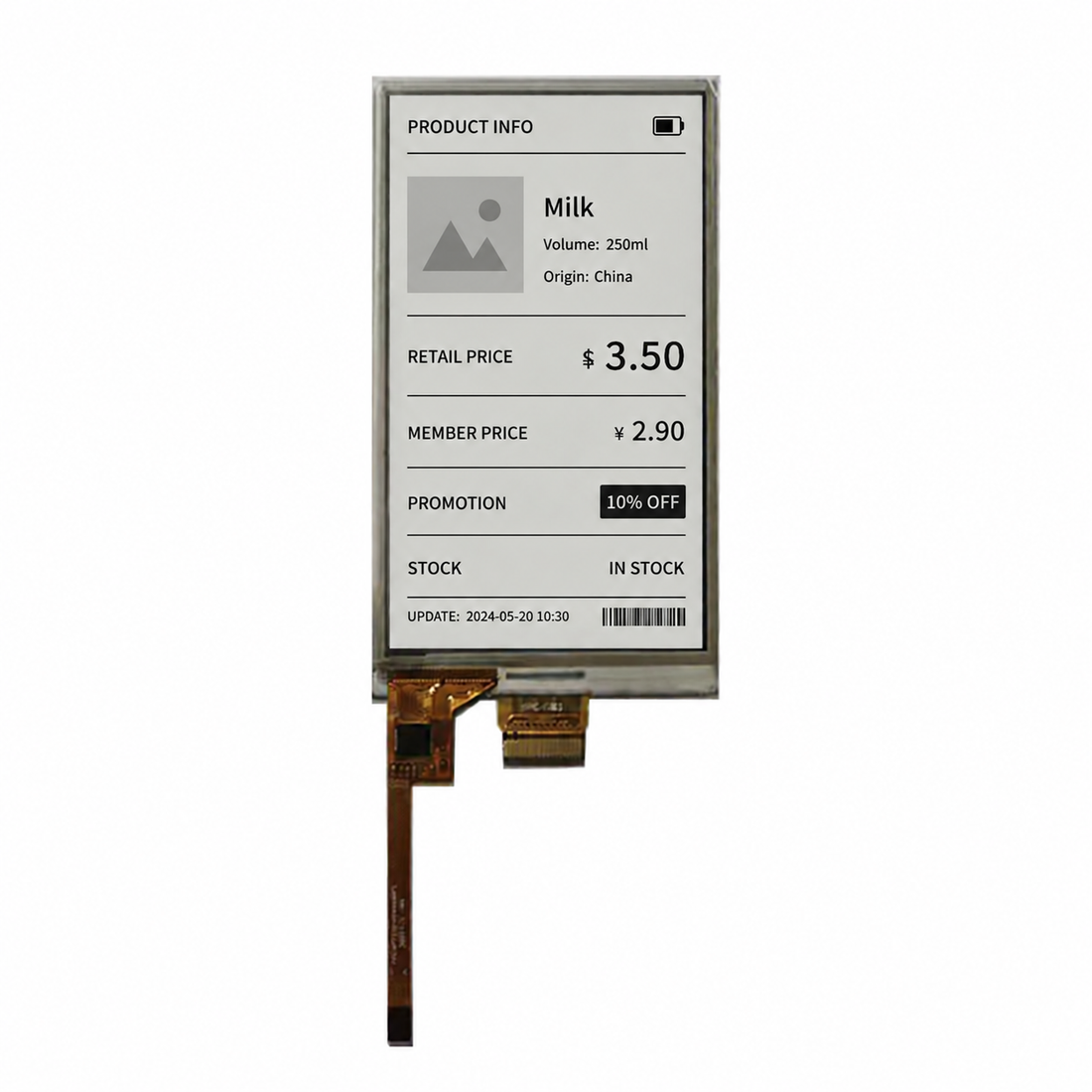

Choose ePaper when the device displays information that remains unchanged for seconds, minutes, hours, or longer. Electronic shelf labels, asset tags, smart badges, room scheduling panels, meter displays, shipping indicators, and electronic paper tablets are common examples. A logistics device showing a route code or handling instruction does not need 60 frames per second. It needs clear text that survives a long duty cycle with minimal battery drain.

The technology is also a strong fit when ambient-light readability matters more than backlit brightness. ePaper reflects available light, similar to printed paper. Under office lighting, warehouse lighting, and direct sunlight, text can remain highly legible without the washout associated with many conventional displays. For outdoor equipment, portable instruments, and low-power signage, this can reduce the need for high-brightness backlighting and the thermal load that comes with it.

Another practical reason to use ePaper is visual persistence during a power interruption. If a battery is depleted or a system is intentionally powered down, the most recently displayed information can remain visible. This is useful for status labels, medication instructions, access credentials, luggage tags, and maintenance indicators where the last known state still has value.

Products with infrequent updates

The best use cases have a low update frequency and a high need for readability. A smart thermostat that changes its main screen only when a user interacts with it may be a candidate. A utility meter that updates consumption data every 15 minutes may be an even better candidate. A medical device that needs to show a fixed instruction or operating state between measurements can also benefit, provided its user interface does not require rapid graphical feedback.

In these applications, assess the full update profile rather than only the number of updates per day. A panel may support partial refreshes for small changes such as time, temperature, or inventory count. However, periodic full refresh cycles are often needed to limit ghosting and restore image quality. Firmware should account for this behavior from the start.

Devices designed around long battery life

ePaper can materially extend battery life when display updates are controlled carefully. The benefit is greatest in products using coin cells, small rechargeable batteries, energy harvesting, or long replacement intervals. It can enable a smaller battery, but that decision should be validated against peak current during refresh, wireless transmission, processor activity, and required operating temperature.

Do not evaluate display power as an isolated specification. The system may spend more energy transmitting data over Bluetooth, Wi-Fi, cellular, or LoRa than updating the display. ePaper still reduces the idle display load, but the final battery-life calculation must reflect the complete duty cycle.

Readability-first industrial and commercial interfaces

Industrial equipment often presents alarm states, setpoints, identification data, work instructions, or a small set of measured values. If these values change slowly, ePaper provides a clean, paper-like interface that remains visible across wide viewing angles. It can be especially effective for instruments used outdoors, in bright production areas, or in locations without convenient access to mains power.

For commercial devices, the display can also improve operational flexibility. A reusable ePaper label can replace printed labels when product names, prices, locations, or ownership information must be updated remotely. The value comes from reducing manual relabeling, not simply from replacing one display technology with another.

Where ePaper Is the Wrong Choice

ePaper has clear trade-offs. Full-screen refresh is slower than a typical TFT or OLED display, and even faster ePaper modes are not designed for fluid animation, high-frame-rate video, or responsive scrolling. If a user expects a smartphone-like experience, rapid menu transitions, live camera output, or a moving dashboard, TFT or OLED is usually the better engineering path.

Color requires additional evaluation. Color ePaper can be suitable for charts, category coding, promotional labels, educational devices, and low-frequency dashboards. However, color saturation, refresh behavior, and optical appearance differ from LCD and OLED. Product teams should review the actual panel under expected lighting rather than making decisions from rendered images alone.

Low-light operation is another limitation. Because ePaper is reflective, it needs ambient light or a front-light system to be readable in darkness. A front light adds components, power consumption, mechanical stack-up requirements, and optical considerations. If a device is primarily used at night or in dim environments, an emissive display may be more practical.

Avoid ePaper where immediate visual response is critical. Examples include point-of-sale terminals with animated payment flows, fitness devices showing rapidly changing workout metrics, medical monitors with real-time waveforms, vehicle displays, and consumer control panels with frequent interaction. The display may still be used as a secondary low-power status screen, but not as the main dynamic interface.

Key Specifications to Evaluate Before Sourcing

Selecting ePaper involves more than choosing diagonal size and resolution. The controller, waveform support, panel type, interface, mechanical integration, and environmental requirements affect real product performance.

Start with the update requirement. Define whether the display needs full refresh, partial refresh, or both. Identify the maximum acceptable update time for normal user actions and for emergency state changes. Ask whether frequent partial updates could create visible ghosting and how often a full refresh can occur without disrupting the user experience.

Next, specify the optical requirement. Resolution and pixel density determine text clarity, while contrast ratio affects readability. For color panels, define whether color is functional, such as identifying alarm categories, or primarily decorative. This distinction can prevent an unnecessary cost increase or a technology mismatch.

Interface and controller architecture also need early attention. Many small and mid-size ePaper modules use SPI, while larger displays or integrated systems may require different controller arrangements. Confirm supply voltage, logic levels, memory requirements, waveform handling, and whether the host MCU can support the desired refresh strategy. A panel with an apparently simple interface can still require careful firmware development.

Mechanical construction matters as well. If the display will include a cover lens, capacitive touch panel, front light, adhesive stack, or protective housing, evaluate the total optical stack rather than the panel alone. Touch can be useful for settings screens and interactive labels, but the integration must preserve contrast and avoid unnecessary reflections. For industrial products, consider impact resistance, surface treatment, mounting method, and connector orientation.

Temperature performance deserves particular scrutiny. ePaper refresh behavior can vary with temperature because the electrophoretic particles respond differently in cold and hot conditions. A warehouse tag used in a controlled indoor environment has different requirements from an outdoor instrument or refrigerated logistics device. Define the actual operating range, storage range, and refresh expectations at temperature extremes before finalizing the module.

Building an ePaper Display Into a Production Program

The most effective approach is to align the display selection with the product requirement document before industrial design and firmware are fixed. Provide the target active area, resolution, update behavior, color requirement, interface, touch requirement, operating environment, expected annual volume, and certification constraints. This gives the display supplier enough information to recommend a standard module or develop a customized assembly.

Prototype testing should include more than basic power-on evaluation. Test screen updates in bright light, low light, cold conditions, and repeated-use scenarios. Measure current during full and partial refreshes. Review ghosting after extended operation. Verify that fonts, icons, QR codes, and fine lines remain readable at the intended viewing distance. These checks expose issues that a datasheet alone cannot resolve.

For products requiring a tailored display stack, Shineworld Innovations can support ePaper module selection and OEM/ODM integration involving cover lenses, touch panels, and application-specific mechanical requirements. The objective is to match the display to the operating profile rather than force the product around a standard part.

A well-chosen ePaper display is not defined by its low idle power alone. It earns its place when persistent information, daylight readability, and long operating life are core product requirements - and when the team has designed honestly around its refresh and lighting limits.
