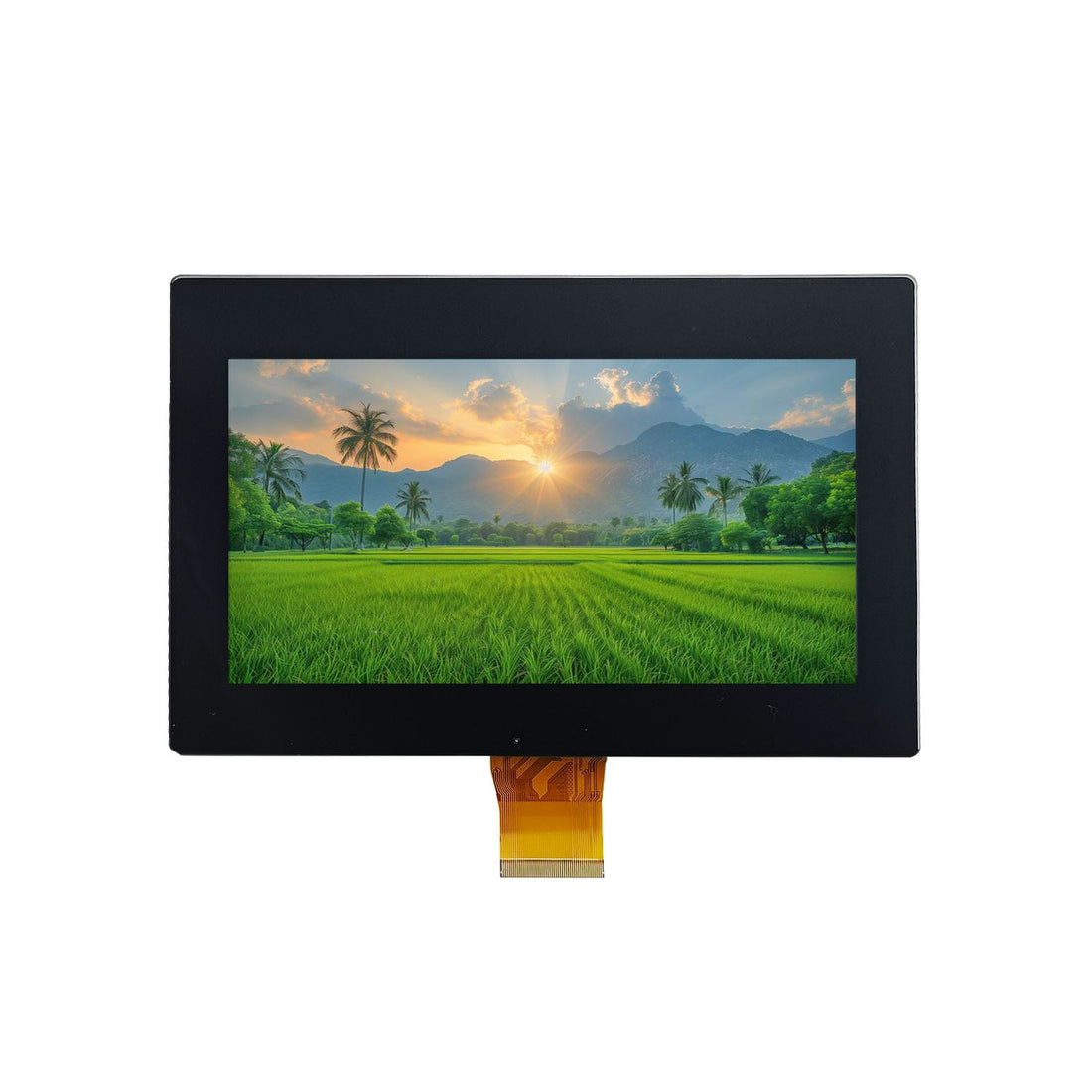

Choosing a Capacitive Touch Screen Module

A capacitive touch screen module can look straightforward on a spec sheet, yet it often becomes one of the most sensitive decisions in a device build. Small choices in cover lens thickness, controller compatibility, optical bonding, or interface routing can affect touch accuracy, EMC performance, assembly yield, and even product lifetime. For OEM buyers and hardware teams, the module is not just a user input surface. It is a functional layer that has to match the display, enclosure, firmware, and operating environment.

That is why selection should start with system requirements rather than diagonal size alone. In a handheld medical terminal, glove touch and surface cleanability may matter more than cosmetic edge design. In industrial equipment, noise immunity and long-term supply continuity usually carry more weight than a narrow bezel. In consumer electronics, response speed, cover glass finish, and industrial design constraints may drive the specification first. The right module depends on what the product must do, where it will operate, and how it will be manufactured at scale.

What a capacitive touch screen module includes

In most product development contexts, a capacitive touch screen module refers to the touch panel assembly used with a display, often as a projected capacitive touch solution. The core stack commonly includes a cover lens, sensor glass or sensor film, conductive patterns, controller IC, tail or FPC, and the electrical interface to the host system. In integrated builds, the touch panel may already be matched to a TFT display and mechanically aligned as one assembly.

This integrated approach matters because touch performance is not isolated from the display below it. LCD noise, backlight structure, grounding strategy, and the air gap or bonding method can all influence sensitivity and stability. A module that performs well in one stack-up may need tuning in another. For sourcing teams, that means comparing modules by assembly compatibility, not just touch panel dimensions.

Capacitive touch screen module options by structure

The first structural decision is usually G+G, G+F, or a more integrated display-plus-touch design. Glass-glass structures are widely used when surface hardness, optical quality, and premium feel are priorities. They are common in applications where durability and stable touch behavior matter over long use cycles. The trade-off is that glass-heavy structures can add thickness and weight, which may not suit every portable device.

Glass-film structures can help reduce thickness and cost in some designs, particularly where lighter assemblies are preferred. They may also offer more flexibility in customization depending on the industrial design. The compromise is that material choice can affect surface feel, impact resistance, and long-term environmental behavior.

For many OEM projects, the practical question is not which standalone touch construction is best, but whether the touch should be sourced as part of a complete display module. A matched display plus CTP assembly can reduce integration risk, shorten validation cycles, and simplify procurement. It also helps when the project requires controlled optical performance, consistent mechanical tolerances, and a single supplier path for touch and display coordination.

Cover lens and surface treatment

The cover lens is more than a cosmetic top layer. Its thickness, edge profile, print border, coating, and strengthening process all affect both user experience and engineering performance. A thicker lens may support higher impact resistance or a flush industrial design, but it can also require controller tuning to maintain sensitivity, especially for gloved or wet touch conditions.

Surface treatments should also match the use case. Anti-glare can improve readability in high ambient light, while anti-fingerprint coating can help in handheld or public-use devices. In medical and industrial environments, chemical resistance and ease of cleaning often deserve the same level of attention as optical appearance.

Interface and controller considerations

Many integration issues appear after a touch panel has already been shortlisted. Interface selection is one reason. I2C is common in compact and mid-range designs, while USB may be preferred in some system architectures that require easier host integration. The controller IC must also be evaluated against the host platform, operating system, firmware support, and expected touch features such as multi-touch gestures, water rejection, palm rejection, or glove operation.

Controller tuning is where experience matters. A touch module placed over one display may require different firmware parameters than the same touch structure used over another. Refresh noise, charger noise, metal frame proximity, and grounding paths can all shift behavior. This is especially relevant in industrial control panels, medical devices, and banking equipment where false triggers or inconsistent response are unacceptable.

EMI tolerance should be checked early, not after enclosure tooling is complete. Electrical noise from the display, power design, and nearby components can degrade touch performance if the module and system are not designed as a whole. For this reason, engineering teams often benefit from discussing stack-up, interface, and noise environment with the supplier before finalizing mechanical design.

Optical bonding, readability, and user experience

A touch module may meet electrical requirements and still underperform in the field if the optical stack is not optimized. Air gaps between the touch panel and display can increase internal reflection and reduce contrast under bright light. Optical bonding can improve readability, visual clarity, and perceived display quality while also supporting better mechanical stability.

That said, optical bonding is not mandatory for every product. It adds process complexity and cost, and for indoor devices with controlled lighting, the improvement may not justify the added expense. In outdoor equipment, portable terminals, marine applications, and certain medical devices, the value is much easier to justify. The decision depends on ambient light conditions, target image quality, and total system budget.

Touch feel is another factor that is often underestimated. Response speed, drag smoothness, and edge accuracy affect how users judge device quality. Even in B2B equipment, operators notice when touch response feels inconsistent. A technically acceptable module may still create a poor product impression if the stack-up is not tuned for the actual use scenario.

Reliability requirements by application

A capacitive touch screen module for a home appliance does not face the same stress profile as one used in factory equipment or a patient-facing medical device. Application context should shape the specification from the beginning.

In industrial systems, buyers usually prioritize wide operating temperature range, long supply availability, vibration resistance, and stable touch response in noisy electrical environments. In medical equipment, teams often focus on cleanability, glove operation, optical clarity, and consistent performance during repeated use. In consumer products and wearables, industrial design, thin structure, and responsive interaction may take priority, though drop resistance and cosmetic durability remain critical.

Public-use devices such as kiosks and banking terminals add another layer of concern. These products face heavy usage, contamination, and a higher risk of impact or vandalism. Here, thicker cover glass, stronger surface treatment, and more conservative mechanical design may be justified even if they increase cost.

Standard module or custom development?

Standard modules are often the fastest route for prototyping and early production, particularly when common sizes, interfaces, and aspect ratios fit the product concept. They reduce lead time and make early validation easier. For teams under launch pressure, this can remove weeks from sourcing and integration.

Custom development becomes more attractive when the product has strict requirements around outline dimensions, cover lens shape, printing, high brightness pairing, connector position, waterproofing strategy, or enclosure integration. It is also common when the touch module must align with a specific display, unusual housing geometry, or specialized firmware behavior.

The trade-off is straightforward. Standard modules usually reduce NRE and accelerate early progress, while custom modules provide a better mechanical and electrical fit for the final product. Many device makers start with a standard path for proof of concept, then shift to a customized assembly once the industrial design and production forecast are stable.

For companies building across multiple SKUs, supplier flexibility matters as much as the touch specification itself. A partner that can support both off-the-shelf modules and custom display-plus-touch assemblies can simplify platform planning and future revisions. This is one reason many OEMs work with manufacturers such as Shineworld Innovations Limited when they need both catalog breadth and customization capability.

How to evaluate a supplier beyond the datasheet

A good touch module datasheet tells you dimensions, interface, transmittance, hardness, and operating conditions. A reliable supplier gives you more than that. They can discuss controller tuning, stack-up compatibility, bonding options, test methodology, and long-term supply planning in practical terms.

For B2B buyers, validation support is part of the product. Ask how the supplier handles touch tuning with your target display, whether they can modify FPC routing, what customization options exist for the cover lens, and how they manage pilot builds before mass production. If the application is sensitive, ask about EMC experience, environmental testing, and process controls during assembly.

Manufacturing capability also matters. Cleanroom production, quality consistency, and experience with integrated display modules can reduce variation between samples and volume shipments. That becomes especially important when the touch layer is part of a larger OEM assembly and rework is expensive.

A capacitive touch screen module should fit the product on paper, on the bench, and on the production line. The strongest choice is usually the one that reduces downstream risk as much as it meets the initial specification.
