Touch Panel Integration Guide for OEM Devices

A touch panel is not a separate add-on once it reaches production. It affects the display stack, mechanical enclosure, firmware behavior, EMC performance, optical appearance, and long-term field reliability. This touch panel integration guide is designed for OEM teams that need to move from a display requirement to a qualified, manufacturable touch display module without creating avoidable redesign cycles.

The right approach starts with the application, not the panel size. A handheld medical device, outdoor payment terminal, factory HMI, and smart home controller may use similar LCD dimensions, but their touch requirements can be materially different. Define the operating environment, user interaction, enclosure constraints, and validation expectations before selecting a sensor or controller.

Touch Panel Integration Guide: Start With the Use Case

The first decision is whether the product requires projected capacitive touch, resistive touch, or another specialized sensing method. For most modern consumer, industrial, and medical interfaces, projected capacitive touch, often called PCAP or CTP, is the preferred option. It supports multi-touch gestures, has a flat front surface, and can be integrated with cover glass for a clean, durable user interface.

Resistive touch remains practical where users wear heavy gloves, require stylus input, or need operation at a lower system cost. It may also suit equipment that prioritizes simple point selection over multi-touch interaction. The trade-off is a less refined front surface and potentially lower optical quality compared with a bonded capacitive construction.

Specify the actual interaction conditions early. Will the interface be operated with bare fingers, nitrile gloves, work gloves, a passive stylus, or wet hands? Is palm rejection needed? Does the product need two-point touch, five-point touch, or more? These inputs determine sensor pattern, controller capability, firmware tuning, and the amount of integration work required.

Touch performance is also affected by the cover lens. Thick glass, decorative printing, coatings, and narrow border areas can all change sensitivity. A controller that performs well with a 1.1 mm clear glass sample may require adjustment when used behind a thicker chemically strengthened lens with a black silk-screen border. Treat the lens, sensor, controller, and firmware as one system.

Define the Display and Touch Stack-Up

A complete touch display stack commonly includes the TFT or OLED panel, optical films, touch sensor, cover lens, bonding material, FPCs, and supporting mechanical frame. Every layer affects thickness, appearance, and yield. Sending only a display diagonal and resolution to a supplier is rarely enough for a production-ready recommendation.

Provide the visible area, outer dimensions, active area, viewing direction, brightness target, and display interface. Also identify the permitted total module thickness and whether the touch panel must fit inside an existing bezel. A few tenths of a millimeter can determine whether a design uses air-gap assembly, optical bonding, or a revised enclosure.

Air-gap construction places a physical space between the display and touch assembly. It is generally simpler and can reduce module cost, but it introduces internal reflections and can make the display appear less readable in bright conditions. Optical bonding fills that space with a clear adhesive, improving contrast, reducing reflections, and strengthening the assembly. It is often the better choice for outdoor equipment, vehicle-adjacent devices, medical instruments, and premium handheld products.

Optical bonding has trade-offs. It increases process complexity, requires controlled materials and cleanroom handling, and can make rework more difficult. For a protected indoor control panel with moderate brightness requirements, an air-gap design may be commercially appropriate. For an application that will be judged by sunlight readability and front-surface quality, bonding usually deserves consideration from the prototype stage.

Cover Lens Selection Is an Engineering Decision

Cover lens material is more than a cosmetic choice. Glass provides scratch resistance, dimensional stability, and a premium surface. PMMA and polycarbonate can reduce breakage risk and support shaped designs, although their scratch and chemical resistance characteristics differ. The required impact performance, cleaning agents, operating temperature, and expected service life should guide the decision.

Printed borders, logos, icons, and transparent windows should be reviewed against the touch sensor layout. Conductive traces, grounding structures, and the printed black area must be coordinated so that the final assembly has consistent sensitivity across the active area. If the product requires water resistance, the lens perimeter, adhesive path, and enclosure compression design must be engineered together rather than added after the display module is selected.

Match Electrical Interfaces and Firmware Early

The display and touch controller normally operate through separate interfaces. The display may use RGB, MIPI DSI, LVDS, SPI, or MCU interfaces, while the touch controller commonly communicates through I2C and may use an interrupt and reset line. Confirm that the host processor has sufficient available pins, supported voltage levels, and firmware resources for both functions.

I2C is widely used because it is simple and efficient for touch coordinate reporting. However, bus routing, pull-up resistor values, cable length, and electrical noise still matter. In compact systems, the touch FPC may run near switching power supplies, display clocks, wireless antennas, or motor drivers. Poor routing can create false touches, missed touches, or intermittent behavior that appears only during certain operating modes.

Controller firmware should be treated as a configurable part of the module, not an afterthought. Parameters may need adjustment for cover lens thickness, glove mode, water tolerance, scan frequency, reporting rate, and noise filtering. Ask whether the controller configuration is fixed, whether it can be updated in production, and how version control will be managed across pilot and mass-production builds.

For custom designs, document the connector position, FPC length, pin assignment, bending area, and keep-out zones. An FPC that fits electrically but folds sharply against a housing feature can fail during assembly or after repeated thermal cycling. Mechanical drawings should show the full module envelope, not only the display active area.

Control EMI, ESD, and Grounding Risk

Capacitive touch systems are sensitive to electrical noise. The sensor detects very small changes in capacitance, so the module grounding strategy, charger quality, enclosure materials, and nearby circuitry can influence operation. Metal housings often require a deliberate grounding approach. Plastic housings may need shielding or design changes if the product includes high-noise electronics.

ESD performance should be verified at the system level. A touch panel can pass a component test but behave differently after installation because the final bezel, gap, grounding spring, and power architecture alter the discharge path. Review the applicable product standard early, especially for medical, industrial, payment, and public-access equipment.

Useful engineering controls include a properly connected sensor ground, low-impedance chassis paths where appropriate, careful routing away from noisy traces, and filtering designed for the selected controller. These are not universal fixes. Excessive filtering can affect touch response, while grounding decisions must align with the product safety architecture.

Build Validation Around Real Operating Conditions

A prototype that responds to a finger on a lab bench is not yet a qualified interface. Validation should test the integrated device in conditions that reflect actual use. At minimum, assess touch accuracy, response time, edge performance, multi-touch behavior where required, and operation across the specified temperature range.

Environmental testing should match the market and product category. Temperature and humidity cycling can reveal adhesive stress, lens distortion, and FPC reliability issues. Drop, vibration, and torsion testing are relevant for handheld and portable equipment. Chemical resistance testing matters when users clean the lens with disinfectants, industrial solvents, or common household agents.

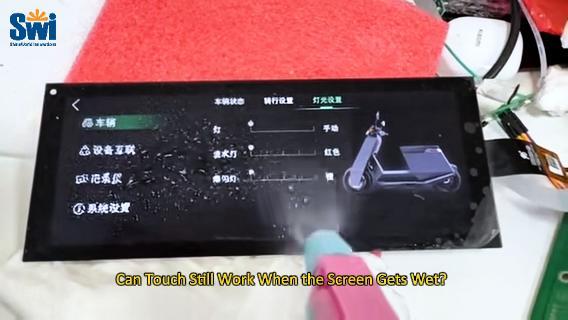

Test every intended input condition, including gloves, moisture, charging state, wireless transmission, and full display brightness. A common failure pattern is acceptable touch behavior on battery power followed by erratic operation when a low-quality external power supply is connected. Another is reduced sensitivity near the edge after the final enclosure applies uneven pressure to the lens.

Define measurable acceptance criteria before sampling. For example, specify the maximum permitted missed-touch rate, acceptable coordinate deviation, minimum response speed, cosmetic standard, and dead-pixel policy for the display. Clear criteria help the OEM, module manufacturer, and contract assembler evaluate the same product standard.

Plan for Production, Not Only Prototype Fit

A development sample may use a manually adjusted controller setting or a limited-availability display panel. Production requires controlled materials, traceable revisions, repeatable assembly, and a defined quality plan. Confirm display lifecycle expectations, touch controller availability, cover lens material source, bonding process, and tooling ownership before finalizing the design.

For a custom display plus CTP assembly, the supplier should be able to control the critical interfaces: mechanical drawings, lens printing, sensor selection, bonding method, FPC design, controller tuning, and outgoing inspection. Shineworld Innovations Limited supports both standard modules and customized display-plus-touch builds, allowing OEM teams to select a suitable starting platform while tailoring the stack-up where the application requires it.

Pilot builds are the right point to confirm assembly yield and process capability. Inspect for bubbles, contamination, alignment offset, visible Newton rings in air-gap designs, FPC damage, and inconsistent touch behavior. If the module will be installed by another factory, provide handling instructions, protection-film requirements, connector insertion guidance, and limits for bezel compression.

The best touch panel integration decision is rarely the lowest-cost component on a quotation sheet. It is the configuration that performs consistently in the finished device, fits the production process, and remains supportable through the product lifecycle. Start with the operating conditions, validate the full stack, and let the module design reflect the real demands placed on the product.
