IPS Versus TN: Choosing the Right LCD Panel

A display panel can determine whether a device remains readable on a production floor, presents accurate diagnostic information, or meets a demanding target cost. In an IPS versus TN decision, the panel type is not simply a visual preference. It affects viewing performance, response behavior, mechanical integration, supply strategy, and the end user's perception of product quality.

For OEMs and product developers, the right choice starts with the operating environment and the display's role in the device. A handheld medical device, an industrial HMI, a point-of-sale terminal, and a compact consumer control panel can have very different requirements, even when they use similar display sizes and resolutions.

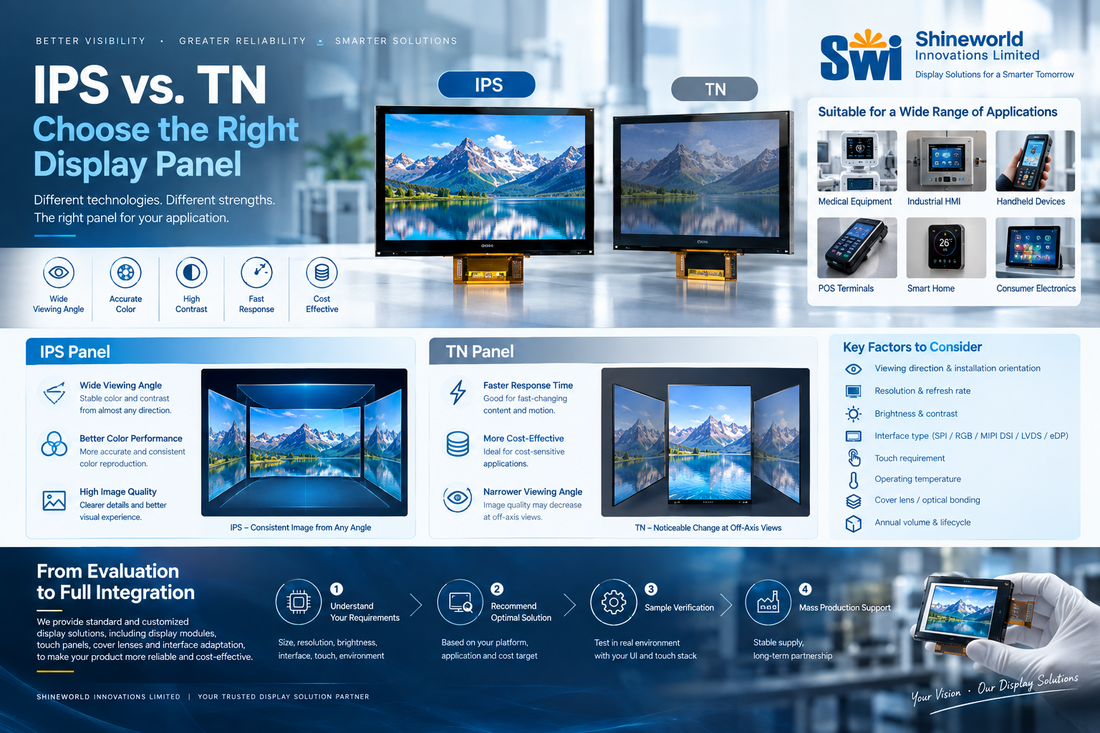

IPS Versus TN: Core Technology Differences

IPS, or in-plane switching, and TN, or twisted nematic, are two common TFT LCD panel technologies. Both require a backlight and can be built into modules with touch panels, cover lenses, and customized interfaces. Their liquid-crystal alignment and switching behavior, however, produce different optical and performance characteristics.

A TN panel changes the orientation of liquid crystals in a twisted structure when voltage is applied. This architecture has long been valued for efficient, fast pixel transitions and a relatively economical manufacturing profile. TN remains a practical option when the display is viewed primarily from the front and the product has strict cost or response-time requirements.

In an IPS panel, liquid crystals rotate parallel to the substrate plane. This design improves off-axis image stability, meaning color and contrast remain more consistent when the viewer moves to the side, above, or below the display. IPS technology is commonly specified for products where more than one user may view the screen or where the device position cannot be tightly controlled.

Neither technology is automatically better. The correct panel is the one that meets the product specification without adding unnecessary cost, power demand, or integration risk.

Viewing Angle and Image Consistency

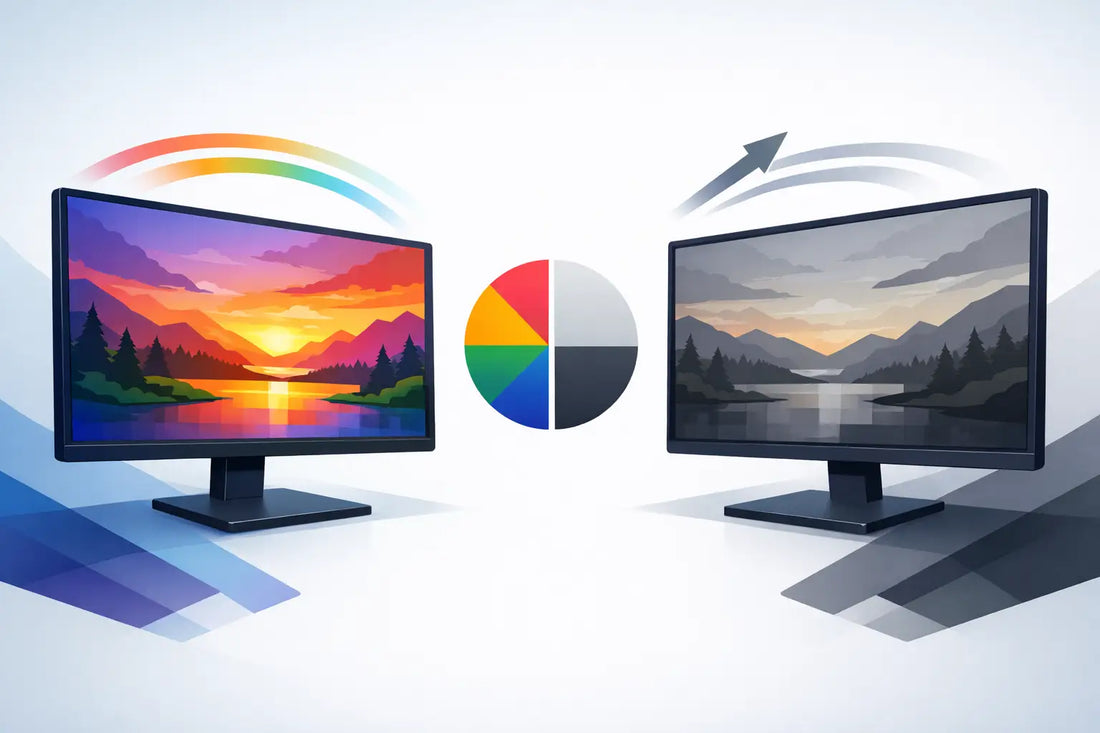

Viewing angle is usually the clearest separation between IPS and TN. Standard IPS TFT displays can provide wide viewing performance in all directions, often specified near 80 degrees or greater relative to the display normal. Colors, grayscale, and contrast remain comparatively stable across that range.

TN panels generally have narrower useful viewing angles. When viewed away from the intended direction, they can show contrast reduction, color shift, or grayscale inversion. The exact result depends on the panel construction, polarizer arrangement, and viewing direction. A TN display optimized for a top-view installation may not perform the same way when mounted vertically or viewed from below.

This distinction matters in real equipment. An operator standing in front of a fixed industrial controller may have a predictable viewing position, making TN suitable. A wall-mounted access terminal, portable diagnostic instrument, or shared smart-home panel is more likely to be viewed from multiple positions. In those cases, IPS reduces usability issues before they reach the field.

Viewing angle also affects optical bonding and cover-lens decisions. A custom lens, anti-glare treatment, or capacitive touch panel can influence perceived contrast and reflections, but these additions cannot fully correct the inherent off-axis limitations of a TN panel. Panel technology should be selected first, then optimized through the complete display stack.

Response Time and Motion Performance

TN has traditionally been associated with faster response times. Its pixel transitions can be advantageous for rapidly changing content, moving graphics, and interfaces where motion clarity is a primary requirement. This is one reason TN technology remains familiar in speed-focused display applications.

For most industrial, medical, banking, and control-device interfaces, however, response time alone is rarely the deciding factor. Status screens, menus, measurements, static images, and moderate UI animation do not normally require the fastest available pixel switching. Many IPS panels provide response performance that is fully adequate for these applications.

The specification should be reviewed in context. Response time can vary with temperature, drive conditions, refresh rate, and the particular gray-to-gray transition being measured. A single quoted response-time figure should not replace testing with the intended content, operating temperature range, and display driver configuration.

Color, Contrast, and Readability

IPS panels are typically selected when color consistency and image quality are central to the product experience. They can provide stable color appearance across viewing positions and are well suited to graphical user interfaces, product images, multi-color status information, and applications where screen quality supports the value of the finished device.

TN panels can still deliver clear and effective images when viewed from the designed angle. For monochrome-like interfaces, numerical data, simple menus, and cost-sensitive embedded products, their color performance may be more than sufficient. The requirement is not always wide color gamut. It may be reliable legibility of text and alarm states under controlled use conditions.

Contrast ratio and brightness must be evaluated separately from panel type. An IPS display is not automatically brighter than a TN display, and a TN display is not automatically lower contrast under every condition. Backlight design, transmittance, surface treatment, ambient light, and cover glass all influence final readability.

For outdoor or high-ambient-light equipment, brightness selection is especially important. A higher-brightness TFT, suitable optical treatment, and controlled reflection can have more effect on field readability than choosing IPS or TN alone. If the display must operate in direct or variable sunlight, prototype evaluation is recommended before production release.

Power, Cost, and Production Considerations

Panel cost is often a meaningful factor in the IPS versus TN comparison. TN technology is commonly the more economical path for standard embedded displays, particularly where viewing constraints are acceptable and volumes are cost-sensitive. IPS pricing has become more accessible across many sizes, but it may still carry a premium depending on resolution, brightness, interface, and availability.

Power consumption should be assessed at the module level rather than assumed from panel technology. In many TFT designs, the LED backlight is the main power contributor. A bright backlight, touch controller, display interface, and application processor can have a larger impact than the difference between IPS and TN liquid-crystal behavior.

For battery-operated devices, define the required luminance under actual ambient conditions, then evaluate dimming range, backlight current, duty cycle, and sleep behavior. Selecting an unnecessarily high-brightness module can create more power pressure than selecting the wrong panel technology.

Production planning also deserves attention. A display selected for an early prototype must remain supportable through qualification and volume manufacturing. Buyers should confirm the active area, outline dimensions, connector position, interface type, driver IC, viewing direction, luminance, operating temperature, and lifecycle expectations. A small change in any of these parameters can affect the mechanical design or firmware.

When a standard module does not meet the full requirement, customization can combine the panel with a projected capacitive touch panel, cover lens, optical bonding, custom FPC, interface adaptation, or defined brightness level. This is often more practical than redesigning a device around an unsuitable catalog display.

Selecting the Right Panel for the Application

IPS is usually the stronger choice when the display will be viewed from different angles, when image quality is customer-facing, or when the device is portable and its orientation varies. It is widely suited to medical monitors, handheld instruments, smart control panels, premium consumer devices, kiosks, and graphical industrial interfaces.

TN can be the more efficient choice when users view the display from a consistent direction, the interface is primarily functional, and cost or fast response is a major constraint. It remains relevant for fixed-position controls, basic instrumentation, compact embedded systems, and products with well-defined installation geometry.

Before issuing a request for quotation, provide the intended viewing direction and installation orientation rather than specifying only "IPS" or "TN." Include the target size, resolution, brightness, interface, touch requirement, operating temperature, cover-lens needs, annual volume, and expected product lifecycle. These details allow a display manufacturer to recommend a module that is technically appropriate and commercially sustainable.

The best display decision is made on a working sample, not on a panel label alone. Evaluate the module in the enclosure, under expected lighting, with the final UI and touch stack in place. That process turns IPS or TN from a general technology choice into a display solution that supports reliable production and a better finished device.
