How to Choose Touch Integration for Your Device

A touch panel that works well on a bench can become a field failure after the display is bonded, the enclosure is sealed, and users begin operating it with gloves or wet hands. That is why knowing how to choose touch integration should begin with the finished product, not with a touch sensor datasheet. The right choice depends on the user interface, display stack-up, operating environment, mechanical design, electronics architecture, and expected production volume.

For product developers and sourcing teams, touch integration is not simply a choice between capacitive and resistive technology. It is an engineering decision that affects optical quality, front-panel durability, firmware effort, certification planning, and long-term manufacturability.

Start With the Actual User and Operating Conditions

Define how the device will be touched before selecting a sensor. A consumer smart home panel used with bare fingers has very different requirements from a factory HMI operated by gloved technicians, or a medical device that must continue responding after frequent cleaning.

Projected capacitive touch, commonly called PCAP or CTP, is the preferred option for most modern products requiring a smooth glass surface, multi-touch gestures, high light transmission, and a premium user experience. It is widely used in handheld devices, smart home controls, retail terminals, banking equipment, and many industrial products. However, standard PCAP tuning may not be suitable for thick gloves, heavy water exposure, metal enclosures, or aggressive electromagnetic conditions.

Resistive touch remains a practical choice where users wear gloves, require stylus input, or need reliable operation with minimal control complexity. It is usually single-touch and has lower optical transmission than capacitive touch, but it can provide a cost-effective and dependable interface for industrial instruments, legacy equipment, and specialized controls.

Infrared and optical touch technologies are also relevant for larger displays where a bezel is acceptable. These approaches avoid placing a sensing film over the active display area, but they require consideration of frame depth, contamination, and mechanical integration.

The key question is not which technology is newest. It is which technology will reliably recognize the intended touch input throughout the device's operating life.

How to Choose Touch Integration for the Display Stack

Touch performance is shaped by the complete optical stack: display, air gap or bonding layer, touch sensor, cover lens, ink treatment, and enclosure. Specifying these elements separately often creates avoidable integration risk.

Decide Between Air Bonding and Optical Bonding

Air bonding leaves an air gap between the display and touch panel or cover lens. It can reduce cost and simplify rework, making it appropriate for controlled indoor applications where reflection and impact resistance are not major concerns. The trade-off is a more visible gap, increased internal reflections, and a higher risk of condensation or dust entering the stack if sealing is inadequate.

Optical bonding fills the gap with a transparent adhesive. It improves contrast, reduces reflections, supports better outdoor readability, and strengthens the assembled display module. It is often the stronger choice for medical equipment, portable terminals, industrial controls, and devices used in high-brightness environments. The process adds cost and requires tighter process control, particularly when display flatness, adhesive selection, and yield are critical.

For products used outdoors or near windows, evaluate the touch panel together with display brightness and surface treatment. A high-brightness TFT alone will not solve glare caused by an unoptimized cover lens.

Match Cover Lens Material and Thickness to the Application

The cover lens protects the touch sensor and defines the front appearance of the device. Chemically strengthened glass is commonly selected for scratch resistance, optical clarity, and a premium surface finish. Thickness must be coordinated with the selected touch controller. A thicker lens may improve impact resistance but can reduce capacitive sensitivity unless the sensor pattern and firmware are designed for it.

Acrylic and polycarbonate can be appropriate where low weight, curved geometry, or impact resistance is more important than scratch performance. Their optical and chemical properties differ from glass, so they should be validated against cleaning agents, UV exposure, and expected wear.

Also define the border treatment early. Silk-screen printing, black masking, transparent windows, logos, and icon areas can affect sensor routing, adhesive coverage, and visible-area tolerances. A display plus touch panel is easier to source than a completed front assembly only when those visual and mechanical requirements have been fully documented.

Evaluate Electrical and Firmware Compatibility

A touch panel is not complete without a controller, interface definition, and firmware plan. The controller must be compatible with the host processor, display assembly, enclosure, and anticipated noise environment.

I2C is common for compact embedded products because it uses few pins and is supported by many microcontrollers and application processors. USB may be preferred for systems that need standard HID behavior or faster integration with operating systems. Other interface options may be needed for larger or specialized platforms.

Confirm the controller's operating voltage, connector type, flex cable orientation, pinout, and reset or interrupt requirements. These details can delay a prototype build even when the touch sensor itself is correct. For custom modules, the FPC shape and length should be developed with the PCB location and assembly process in mind.

Firmware tuning deserves equal attention. Capacitive touch algorithms can be configured for water rejection, glove operation, palm rejection, noise immunity, sensitivity thresholds, and gesture recognition. These features are not universal defaults. A requirement such as "works with gloves" should state glove material, thickness, moisture condition, and expected touch behavior.

Design for Environmental and Reliability Requirements

The enclosure changes touch behavior. Metal frames can alter the capacitive field. Grounding strategy, gasket compression, conductive coatings, nearby antennas, switching power supplies, and display noise can all affect sensitivity and false-touch performance.

For industrial and medical applications, define the operating temperature range, humidity, vibration, shock, cleaning chemicals, ingress protection target, and EMC requirements before finalizing the touch solution. A panel intended for an indoor office terminal may not maintain stable operation in a cold warehouse, a high-humidity production area, or a vehicle-mounted device.

Water handling requires precise definition. A system may need to reject accidental droplets, continue working with a wet screen, or recognize deliberate touch through water. These are different conditions and may require different controller tuning, sealing methods, and test procedures.

Mechanical reliability should cover more than the cover lens. Review FPC bend radius, connector retention, adhesive aging, edge sealing, and resistance to repeated pressing near the display perimeter. In a field device, these details often determine whether the front assembly reaches its expected service life.

Balance Standard Modules Against Custom Integration

A standard display with an existing capacitive touch panel can shorten development time, reduce non-recurring engineering cost, and simplify early prototyping. It is a strong option when the product can accept standard dimensions, interface positions, and cover-lens geometry.

Custom integration becomes justified when the product needs a unique outline, nonstandard viewing area, special printing, a different FPC exit direction, enhanced brightness, optical bonding, waterproof sealing, or touch tuning for a demanding environment. The objective is not customization for its own sake. It is to remove compromises that would affect usability, reliability, or assembly efficiency.

For a custom project, provide the mechanical drawing, display selection, active area and viewing area requirements, cover-lens material and thickness, interface preference, operating conditions, and annual volume estimate. Early information helps the manufacturer assess whether an existing sensor design can be adapted or whether a new tooling and engineering path is needed.

Qualify the Supplier for Production, Not Only Samples

A sample can prove basic function. It does not prove that the same touch assembly can be supplied consistently through product launch and volume production. Evaluate whether the supplier controls the display, touch panel, lens, bonding, and final assembly process, or whether multiple parties are involved.

Ask for dimensional tolerances, optical specifications, touch controller details, drawing revision control, incoming inspection standards, reliability test coverage, and change-notification procedures. For OEM programs, production support matters as much as initial technical fit. A supplier should be able to maintain component traceability, manage approved substitutions carefully, and support engineering communication when a host-board or enclosure change affects touch behavior.

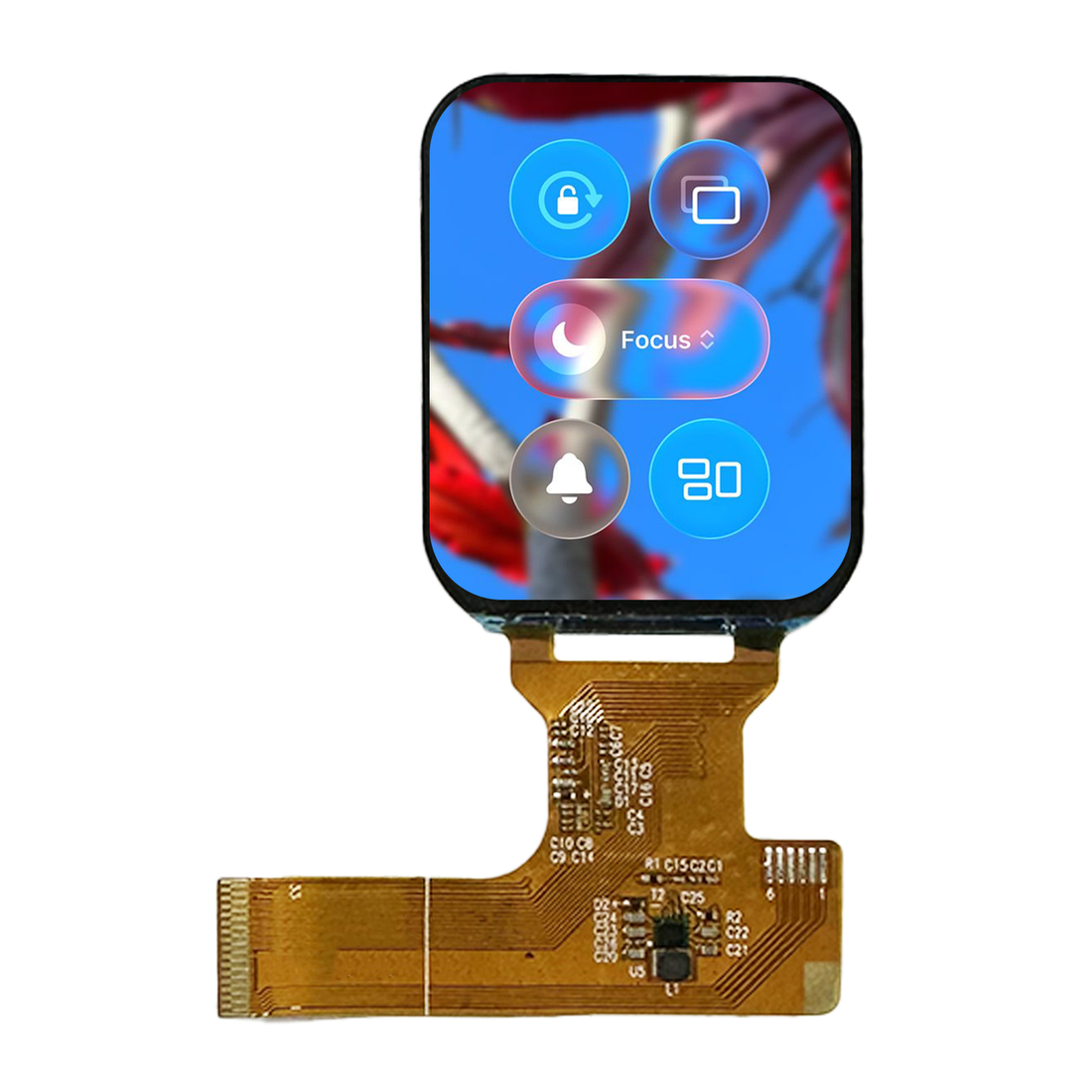

Shineworld Innovations can support standard display modules as well as display plus CTP, display plus lens, and fully integrated display assemblies, allowing teams to align touch selection with the broader display and manufacturing plan.

The best touch integration decision is made before industrial design, electronics, and sourcing become separate workstreams. Define the real use case, validate the full stack under realistic conditions, and choose a solution that can be built consistently at the volume your product requires.
