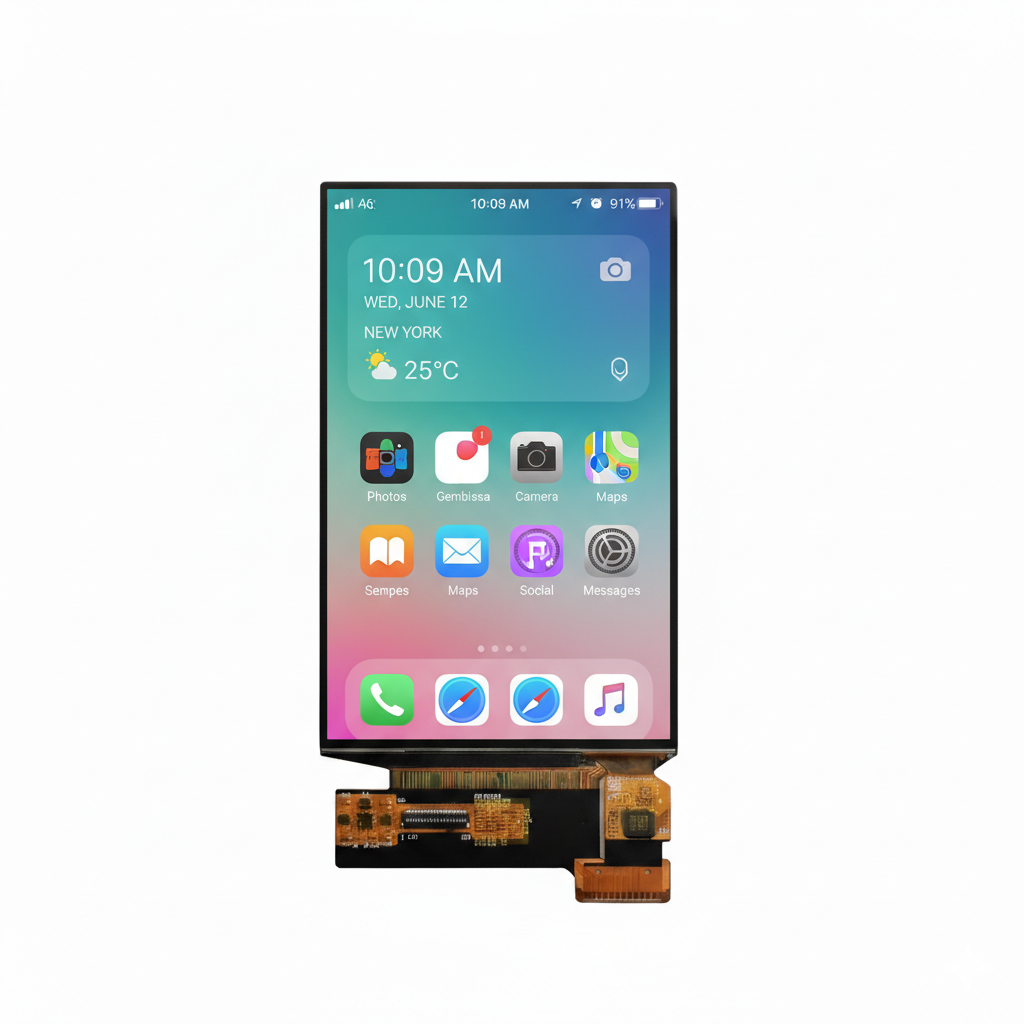

How to Choose a TFT Display Module

A TFT display that looks right on a spec sheet can still fail your product at the integration stage. The real question in how to choose TFT display module options is not just panel size or resolution. It is whether the module fits your electrical design, mechanical envelope, viewing environment, user interface, and production plan without creating avoidable redesign risk.

For product teams, this choice affects more than image quality. It affects development speed, EMC performance, touch behavior, thermal margin, long-term sourcing, and total build cost. A suitable TFT module should support the product as a complete system, not force compromises later in EVT, DVT, or mass production.

How to choose TFT display module requirements first

The most efficient way to choose a TFT display module is to define the application constraints before comparing part numbers. Many teams start with diagonal size, then narrow by price. That often leads to poor matches because the display is only one part of a larger hardware stack.

Start with the operating context. A handheld medical device, a smart thermostat, and an industrial HMI may all use TFT technology, but they require very different brightness levels, viewing angles, touch behavior, and environmental tolerance. If the product is battery powered, display current and backlight efficiency become more important. If the product is mounted outdoors or near a window, sunlight readability moves near the top of the list.

It also helps to define whether you need a standard module or a customized assembly. A standard TFT can shorten lead time and reduce NRE cost. A customized module may be the better commercial choice when your product needs a bonded touch panel, a cover lens, a unique FPC shape, special interface routing, or a longer product lifecycle commitment.

Size and resolution should match the use case

Bigger is not always better, and higher resolution is not always useful. The right display size depends on viewing distance, UI density, enclosure dimensions, and power budget. A compact wearable or handheld controller may need a small module with a tight outline and low power draw. An industrial terminal may benefit from a larger active area that improves readability and reduces user input errors.

Resolution should be chosen based on content. If the interface uses simple icons, large numerals, or status graphics, excessive pixel density can increase processing demand without improving usability. If the screen must display detailed waveforms, small text, product images, or a richer graphical UI, higher resolution becomes more valuable.

Aspect ratio matters as well. A wide display can work well for modern control interfaces and menu layouts, while a square or near-square format may fit compact equipment better. Mechanical fit should be evaluated using active area, outline dimension, thickness, and connector position, not diagonal size alone.

Interface selection affects the whole hardware design

One of the most common mistakes in choosing a TFT module is treating the interface as a secondary detail. In practice, interface selection can determine PCB complexity, signal integrity risk, processor compatibility, and software effort.

For simpler systems, SPI can be attractive because it reduces pin count, but it is usually better suited to smaller displays or lower refresh demands. RGB interfaces remain common in many embedded designs where a host processor directly drives the panel. MIPI DSI is often preferred for higher-end products that need fast data transfer, compact routing, and support from modern application processors. LVDS may be suitable for larger modules or applications that require stable transmission over specific system architectures.

The correct choice depends on the host platform you already use or plan to adopt. A low-cost display can become expensive if it forces a processor change, an additional bridge IC, or a complex PCB revision. This is why hardware teams should review timing, voltage, pin definition, initialization requirements, and driver support early in selection.

Brightness and viewing angle are application-critical

Brightness should be specified according to the real installation environment. For indoor consumer or smart home devices, moderate luminance may be adequate. For industrial equipment, medical instruments, POS terminals, or devices used near direct light, higher brightness is often necessary.

At the same time, higher brightness usually increases power consumption and thermal load. That trade-off matters in sealed housings and battery-powered products. It may also affect LED lifetime and backlight design. Choosing the brightest module available is not always the correct engineering decision.

Viewing angle is equally important. Standard TN panels can be cost-effective for some products, but color shift and contrast loss may limit performance in multi-user or off-axis viewing conditions. IPS TFT modules usually provide wider viewing angles and more stable image quality, which is valuable for medical, industrial, and premium consumer interfaces. If display readability from different positions matters, panel mode should be reviewed carefully rather than treated as a cosmetic preference.

Touch, cover lens, and optical integration

If the display is part of the user interface, touch structure should be considered from the start. Resistive touch may still be suitable in some industrial or glove-based applications, but projected capacitive touch is typically preferred for modern products because it supports better optical clarity, multi-touch capability, and a more refined user experience.

Even here, the decision depends on environment and use conditions. Capacitive touch can require tuning for gloves, moisture, thick cover lenses, or EMC-heavy environments. A standard touch panel may work during prototyping but need adjustment once installed in the final enclosure.

Optical bonding can improve contrast, reduce internal reflection, and strengthen perceived display quality, especially in brighter environments. Integrated structures such as display plus CTP or display plus lens can also simplify assembly and improve consistency. However, they add cost and may increase customization lead time. For many OEM programs, that trade-off is justified because it reduces assembly complexity and improves final product performance.

Reliability, lifecycle, and supply continuity

A TFT module should not be evaluated only on first-sample performance. For commercial products, long-term supply stability matters just as much. Buyers should confirm operating temperature range, storage temperature range, vibration tolerance where relevant, backlight lifetime, and any application-specific compliance expectations.

Lifecycle planning is especially important in medical, industrial, and banking devices, where products may remain in the field for years. A module that is easy to source today but difficult to secure next year can create qualification risk and expensive redesign work. This is one reason many OEMs prefer partners that offer both standard products and customization capability. If a catalog part changes or reaches end-of-life, engineering support and migration options become far more valuable.

It is also worth checking whether the supplier can support sample validation, technical documentation, interface guidance, and volume production consistency. A display is not just a component purchase. In many programs, it is an ongoing supply relationship.

Cost should be measured across the project, not just per unit

Unit price matters, but experienced buyers know it is only one part of the decision. A lower-cost TFT module can increase total project cost if it creates layout revisions, touch tuning issues, higher rejection rates, or field performance complaints.

The more practical approach is to evaluate total implementation cost. That includes tooling, NRE, integration time, software adaptation, certification impact, and assembly efficiency. A slightly higher module price can be commercially better if it reduces engineering effort and shortens launch timing.

This is also where OEM and ODM support can change the equation. A supplier with broad module options and custom integration capability can often help reduce development friction by aligning the display structure to the product, rather than forcing the product team to design around a fixed module.

A practical evaluation path for buyers and engineers

If you need a workable process for how to choose TFT display module candidates, define the non-negotiables first: mechanical size, interface type, brightness target, touch requirement, operating environment, and lifecycle expectation. Then compare module options against those constraints before discussing cosmetic preferences or marginal price differences.

Once you have a shortlist, validate the modules in the actual use case. Check readability under real lighting, review touch response in the enclosure, confirm signal stability on the target PCB, and assess thermal behavior during continuous operation. Bench testing alone rarely reveals every integration issue.

For teams moving from prototype to mass production, supplier capability should be part of final selection. A partner with strong engineering support, standard product breadth, and custom module experience can reduce sourcing risk as requirements evolve. For many OEM buyers, that is where a manufacturer such as Shineworld Innovations Limited becomes relevant - not only as a catalog source, but as a practical display development partner.

The best TFT module is rarely the one with the longest spec table. It is the one that fits your product, your production plan, and your reliability target with the fewest compromises.
