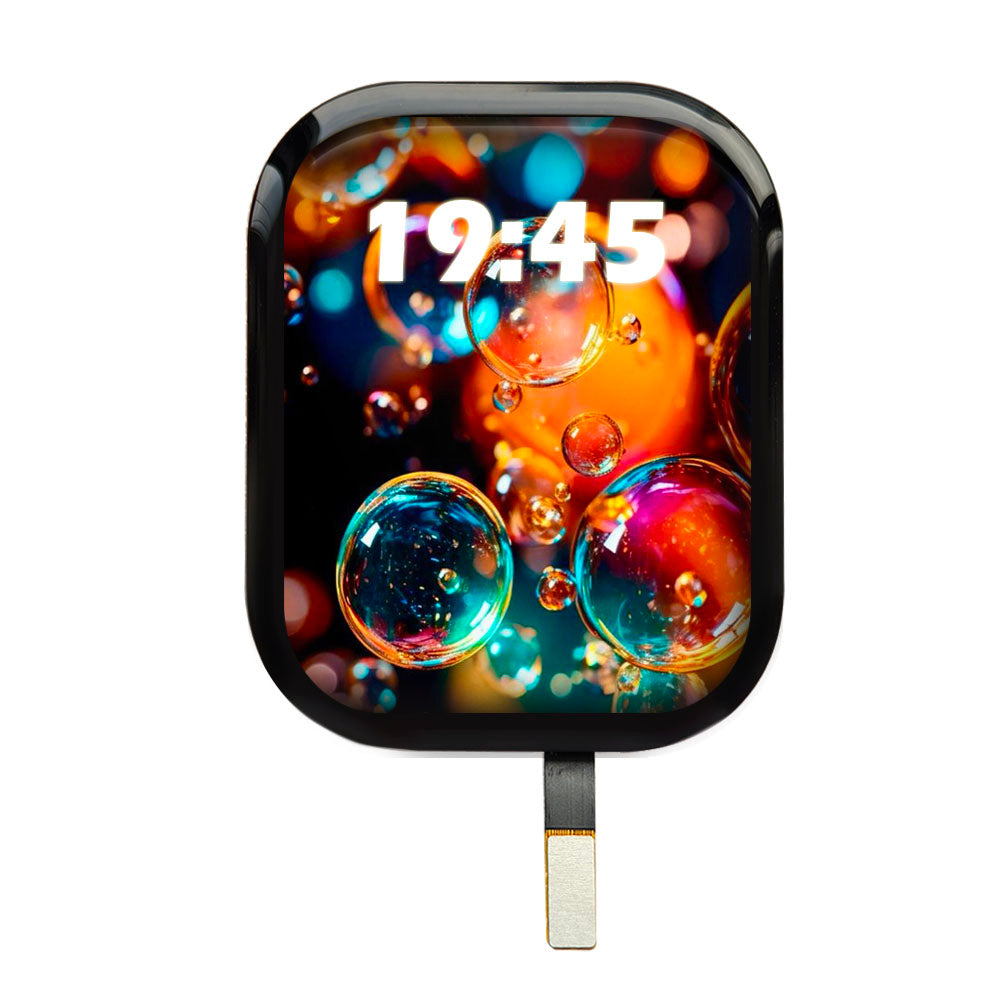

How to Integrate Touch Display Systems

A touch display can look straightforward on a spec sheet and still become a major source of delay once it reaches the enclosure, PCB, and firmware stage. That is why understanding how to integrate touch display systems early matters for product managers, hardware engineers, and sourcing teams. The display, touch sensor, cover lens, controller, mechanical stack, and software all affect yield, usability, and long-term production stability.

For OEM devices, touch integration is not only about making a screen respond to input. It is about balancing optical performance, electrical compatibility, industrial design, environmental resistance, and manufacturing repeatability. A module that works in a lab may fail in the field if glove touch, EMI, condensation, or mechanical stress were not addressed during design.

Start with the use case, not the panel

The first decision is not panel size. It is the operating context of the device. A medical handheld, a banking terminal, and an industrial controller may all use projected capacitive touch, but their integration requirements are very different. Indoor consumer products usually prioritize appearance and responsiveness. Industrial and medical products often place more weight on brightness, chemical resistance, false-touch rejection, and lifecycle support.

Before selecting a module, define the interaction model clearly. Ask how many touch points are needed, whether users wear gloves, whether water exposure is expected, and how often the UI is used in direct sunlight or low light. If the answer includes wet operation, thick cover glass, or high EMI conditions, the touch architecture and controller tuning need to be considered from the beginning.

This is where many projects go off track. Teams compare display resolution and brightness first, then try to force touch performance to fit later. In practice, touch performance depends on the full stack-up, not just the touch panel itself.

How to integrate touch display into the hardware stack

A touch display integration usually includes the LCD or OLED panel, touch sensor, touch controller, cover lens, optical bonding or air gap structure, display driver interface, connector strategy, and host processor support. These elements should be reviewed as a system.

Match the display interface to the host platform

Start with the display interface and controller compatibility. Common interfaces such as RGB, LVDS, MIPI DSI, SPI, and MCU each affect bandwidth, cable routing, PCB complexity, and software effort. A compact embedded product may favor SPI or MCU for simpler control, but that choice can limit refresh performance and UI smoothness. Higher-resolution HMIs often require MIPI DSI or LVDS, especially when video content or responsive graphics are part of the user experience.

At the same time, confirm how the touch controller communicates with the mainboard. I2C is common for capacitive touch, but USB, UART, and SPI also appear depending on the platform. The key is to evaluate display and touch interfaces together, because integration issues often come from connector count, FPC routing, or processor pin limitations rather than from the display panel itself.

Choose the right touch technology

Projected capacitive touch is the standard choice for most modern devices because it supports multi-touch, better optical design, and clean front surfaces. Resistive touch still has a place in some cost-sensitive or stylus-driven equipment, but it is less common in new premium designs. If the product requires operation through gloves or thick cover lenses, projected capacitive remains viable, but controller tuning and sensor design become more critical.

For industrial equipment, touch sensitivity is only one part of the decision. Noise immunity matters just as much. Motor drives, switching power supplies, long cable runs, and metal enclosures can all interfere with touch accuracy. In these cases, a touch panel with poor noise tolerance can create intermittent field failures that are difficult to diagnose.

Design the mechanical stack-up carefully

The mechanical stack determines both reliability and user perception. Cover lens thickness, adhesive selection, bezel pressure, gasket design, and enclosure flatness all affect touch behavior. Even small distortions can change sensor performance near edges or corners. If the lens is too thick or the adhesive layer is inconsistent, touch sensitivity may drop or require aggressive firmware tuning.

Optical bonding often improves readability, impact resistance, and perceived quality by reducing internal reflections and air gaps. It is especially useful for outdoor or high-brightness applications. However, it adds cost and process complexity, so it is not automatically the best choice for every product. For indoor equipment with moderate brightness requirements, an air-bonded structure may be sufficient if glare and condensation are controlled.

Electrical integration is where risk usually appears

A touch display that fits mechanically can still fail electrically. Power rail stability, grounding strategy, FPC routing, shielding, and noise coupling all influence display image quality and touch performance.

Plan for EMI early

Touch controllers are sensitive to noise, especially in compact products where the display, battery, processor, wireless module, and power stage share limited space. If EMI is treated as a late validation issue, the project may need shielding changes, firmware rework, or even controller replacement.

Good integration starts with clean grounding, short return paths, and careful separation between noisy power circuits and sensitive touch lines. Cable routing matters. So does the connector location. If the product includes Wi-Fi, LTE, motors, or high-current switching, test for touch stability under real operating conditions rather than idle bench conditions.

Verify power and timing margins

Display initialization and touch startup sequences must match the host design. A panel that powers up out of order may show unstable images, slow wake behavior, or intermittent failure after temperature cycling. The same applies to touch reset timing and firmware loading.

Engineering teams should validate brownout behavior, sleep mode recovery, ESD response, and hot-plug scenarios if applicable. It is easy to assume the module is stable because it works during normal boot, but edge cases are where production issues usually emerge.

Firmware and UI affect integration more than many teams expect

When buyers ask how to integrate touch display modules, they often focus on mechanical and electrical fit. That is only part of the answer. Firmware tuning has a direct effect on the end product.

Touch controllers need parameter tuning based on sensor design, cover lens thickness, grounding environment, and user conditions. A default configuration may be acceptable during prototyping but unreliable in final production. Glove mode, water rejection, palm rejection, and gesture response should be evaluated against the real application, not only the controller data sheet.

The display side also matters. If the UI uses small touch targets, dense menus, or heavy animation, the hardware selection must support the intended experience. A lower-cost module may meet basic resolution requirements but still feel sluggish if interface bandwidth or processing capacity is too limited. Integration should support actual usability, not just nominal specifications.

Qualification should reflect the final environment

A touch display should be qualified as part of the full device, not as an isolated component. Environmental and reliability testing need to reflect how the product will be used and transported.

For industrial, medical, and commercial equipment, that usually includes temperature cycling, humidity exposure, ESD, vibration, drop testing where relevant, and long-duration touch operation. Outdoor or semi-outdoor products may need UV considerations, high-brightness validation, and condensation checks. Banking and self-service devices may require tougher cover glass and stronger vandal resistance.

There is always a trade-off between performance, cost, and qualification depth. A standard module can reduce lead time and NRE, but a custom structure may lower integration risk if the device has unusual mechanical, optical, or environmental requirements. The correct choice depends on production volume, product lifetime, and the cost of field failure.

Standard module or custom integrated solution

For many projects, a standard display plus standard touch panel is enough to get through prototype and pilot stages. This approach is faster and easier for early validation. But once the product moves toward volume production, teams often find that cable length, mounting geometry, brightness, lens printing, interface position, or touch tuning needs adjustment.

That is where integrated solutions become more practical. A display plus CTP assembly, display plus lens structure, or complete module can reduce assembly variables and simplify supply chain control. It can also improve consistency across batches. For OEM and ODM buyers, the value is not only customization. It is fewer integration unknowns between display sourcing, touch sourcing, and final device assembly.

A manufacturer with broad module experience can usually identify these risks earlier. Companies such as Shineworld Innovations Limited work across standard and custom display programs, which is useful when a project starts with catalog evaluation but later needs changes in bonding, brightness, interface, or touch structure.

How to integrate touch display projects without slowing launch

The most effective way to keep schedules under control is to align supplier review with the product architecture phase. Share enclosure constraints, interface requirements, brightness targets, environmental conditions, and controller platform early. Ask for stack-up recommendations, not just part quotations.

Then build the validation plan around the final use case. Test the display and touch module in the actual housing, with the actual power design, and with realistic firmware. That approach costs more upfront than a simple bench evaluation, but it usually reduces redesign cycles later.

A touch display is not a standalone purchase. It is a subsystem that affects UX, reliability, assembly, and service life. Teams that treat it that way tend to reach production with fewer surprises and stronger field performance.

The best integration decisions are usually made before the first sample arrives - when the electrical, mechanical, optical, and sourcing requirements are still flexible enough to solve the real problem instead of working around it.
