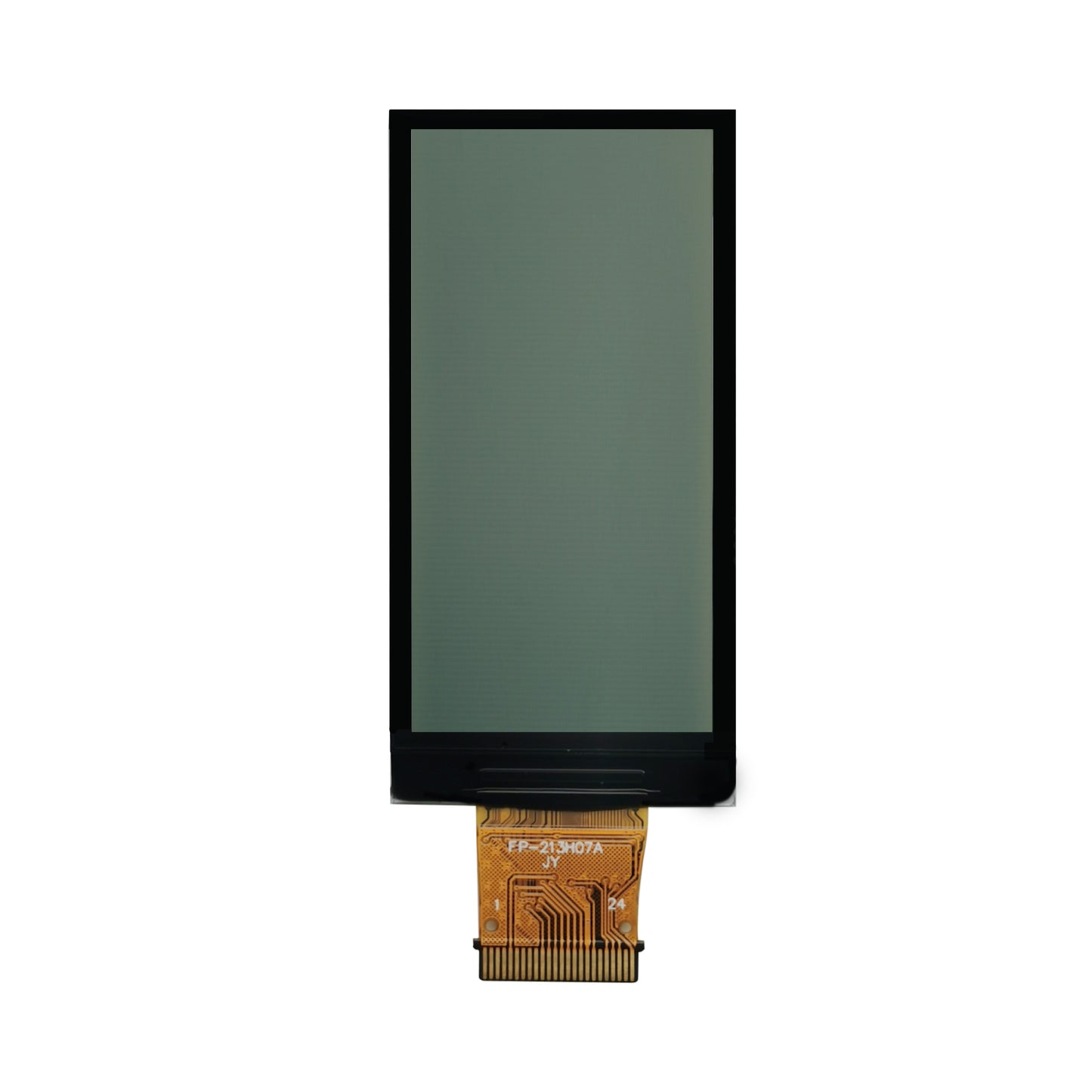

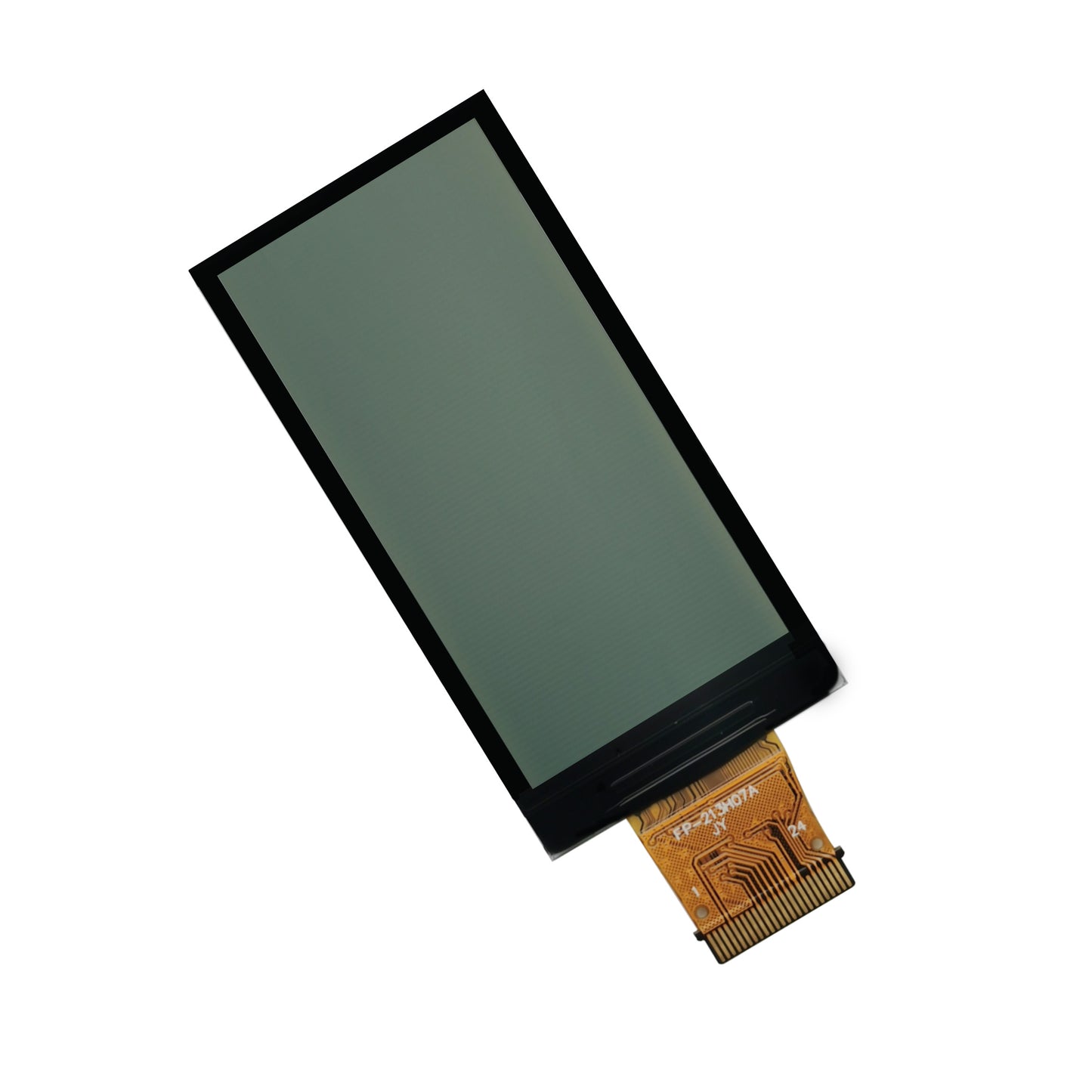

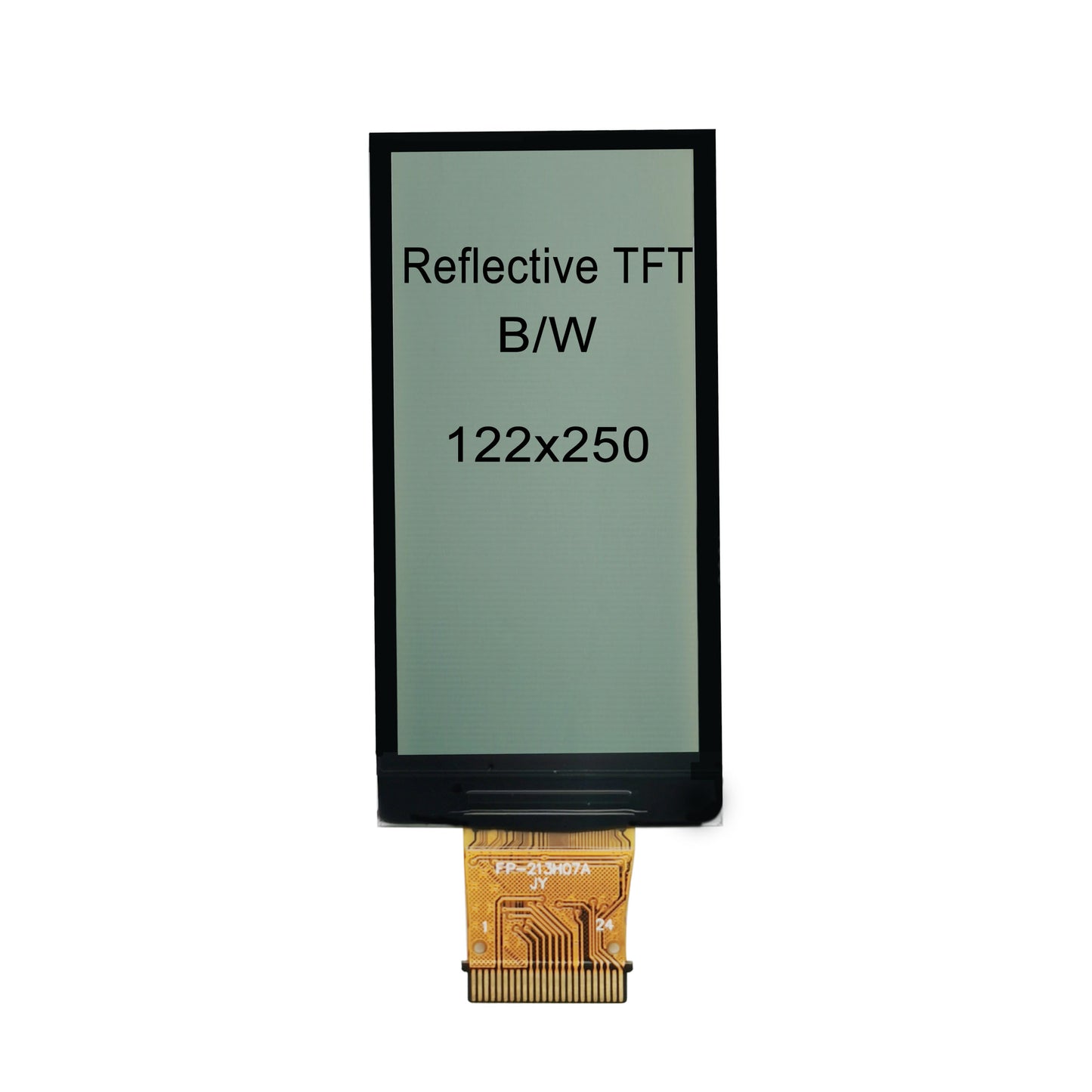

The SWI LHF213TB-F07 is a reflective mode graphic monochrome TFT display module. It features a 2.13-inch diagonal size and
showcases 122x250 black pixels on a white background. The module incorporates the ST7305 controller IC and supports a seamless 4-
wire SPI interface for communication. By default, it is connected via a connector.
In reflective mode, this Mono TFT module from SWICN offers lower power consumption, making it ideal for environments with high
ambient light. It delivers excellent readability even in sunlight and comes with enhanced features such as improved contrast,
wider viewing angle, increased brightness, and faster response time. It can be easily controlled by a variety of MCUs, including
8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. Its versatility enables it to be used in various applications such as embedded systems,
industrial devices, wearables, MP3 players, security systems, medical devices, consumer electronics, and handheld devices.
To further meet specific customer requirements, Shineworld Innovations Limited provides customization options for the display solution.
This includes the ability to customize the FPC and offer integrated cover lenses, touch screens, or driver boards. Such flexibility ensures
that customers receive an optimized display solution tailored precisely to their individual needs and preferences.
* FPC Customization: Customers can request modifications to the Flexible Printed Circuit according to their needs.
* Driver Board Customization: SWI provides the option to customize the driver boards based on customer requirements.
* Cover Lens Incorporation: SWICN has incorporated cover lenses into this display and can provide customizations based on specific
requirements.
