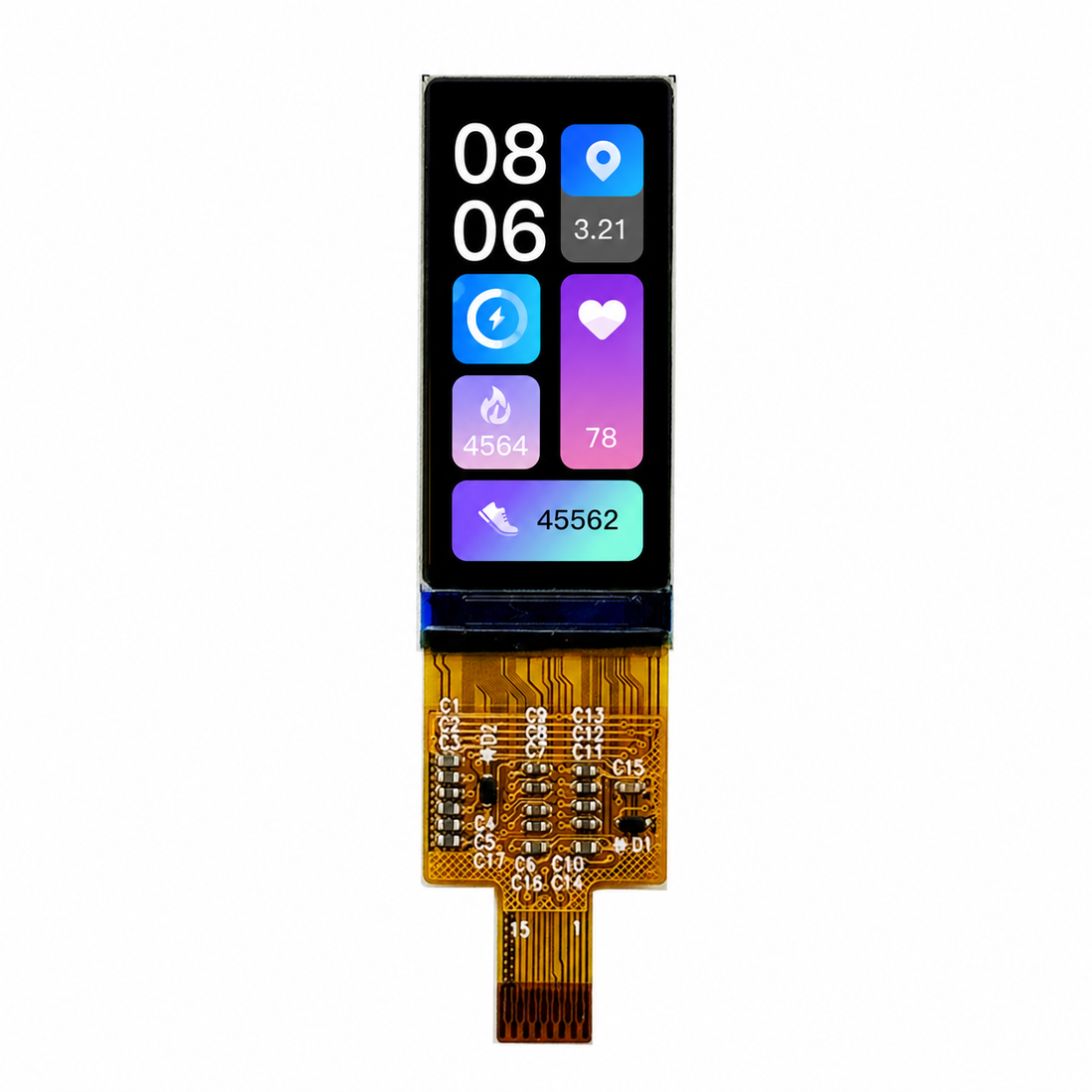

How to Customize OLED Display Panel Specs

A custom OLED project usually starts the same way: the standard module is close, but not close enough. The outline is a few millimeters off, the interface does not match the mainboard, the brightness is marginal for the use case, or the mechanical stack-up creates integration risk. If you are evaluating how to customize OLED display panel options for a new device, the right approach is not to start with appearance. It is to define electrical, mechanical, optical, and manufacturing constraints in the order they affect product success.

How to customize OLED display panel requirements first

For OEM and ODM projects, customization works best when the display is treated as part of the full product architecture, not as a standalone component. That means the first discussion should cover where the panel sits in the system, what the user needs to see, how the product will be assembled, and what production volume justifies tooling or engineering changes.

A practical specification set usually begins with display size, active area, resolution, viewing direction, interface, operating voltage, and target luminance. After that, the details become more application-specific: touch integration, cover lens, optical bonding, connector type, flex cable shape, mounting method, and environmental requirements. In medical or industrial equipment, long-term supply stability may matter as much as visual performance. In wearables or handheld products, thickness, power consumption, and curved routing space can take priority.

This is why customization is rarely one single change. Most projects involve a combination of small adjustments that have to work together without creating cost or lead-time problems elsewhere.

Start with the application, not the panel

The most common mistake in OLED selection is choosing a module based on diagonal size alone. A 1.54-inch or 2.42-inch panel may look suitable on paper, but system integration can fail if the bezel opening, PCB keep-out area, or connector location does not match the enclosure.

Define the application conditions before locking in a display format. Ask what information the screen must present, how far the user will be from the device, whether the UI is static or animated, and whether the product runs on battery or external power. A compact consumer product may need a high-contrast monochrome OLED for low power and thin structure. A diagnostic handheld may need a larger active area, wider viewing angle, and stronger brightness consistency. A banking or industrial terminal may need a panel that fits a specific cutout and communicates through a stable, already-approved interface.

Once the use case is clear, the customization path becomes more efficient. Engineering time goes toward the constraints that actually matter.

Mechanical customization

Mechanical fit is often the first reason buyers move from a standard OLED to a custom solution. The visible area may need to align with an existing housing window. The outer dimensions may need adjustment to fit a compact PCB layout. The FPC length, bending direction, and pin definition may need to work around batteries, speakers, or antennas.

In many projects, the panel itself is only part of the mechanical decision. The stack may also include a cover glass, touch panel, adhesive structure, gasket, or support frame. Even a small change in lens thickness or bonding method can affect optical performance, assembly yield, and drop resistance. If the end product must meet a tight industrial design target, the display supplier should review full stack-up drawings early.

This is also where tolerances matter. A custom outline that looks simple in CAD can become difficult in volume if the mating parts leave no assembly margin. Good customization balances precision with manufacturability.

Electrical and interface customization

If your mainboard is already defined, interface compatibility may be the key decision. Many OLED modules use common communication options such as SPI, I2C, or parallel interfaces, but the exact implementation still affects firmware effort, signal integrity, connector choice, and EMC behavior.

Customizing the FPC pinout, connector orientation, or controller arrangement can reduce redesign work on the host side. That can be more valuable than selecting a visually ideal panel that forces a board respin. In some projects, integrating driver IC requirements into the module design also helps stabilize power sequencing and simplify bring-up.

There are trade-offs. A highly customized FPC can improve assembly and routing, but it may increase NRE cost or reduce interchangeability with standard modules. For lower-volume programs, it is often smarter to modify only the pin assignment or cable length instead of changing the full electrical architecture.

Optical performance should match the environment

OLED technology is often selected for high contrast, fast response, and attractive visual quality, but optical customization still depends heavily on the operating environment. Indoor control panels, bedside medical equipment, battery-powered wearables, and smart home devices do not need the same brightness target.

Set optical priorities based on actual use. Brightness, contrast perception, viewing angle, color or monochrome preference, and display uniformity all affect user experience. If the device will be viewed from below or above, the viewing direction and mounting angle matter. If the product uses a cover lens, the lens material and bonding approach can change reflection and readability.

It also helps to define whether the screen will show mostly static icons, text, or dynamic graphics. OLED panels are strong in crisp, high-contrast presentation, but UI content influences driver selection, power budgeting, and lifetime expectations. A design that keeps large bright areas on continuously may need more careful discussion than one showing occasional status information.

Touch and cover lens integration

Many buyers no longer want to source the OLED and front assembly separately. Integrating the display with a capacitive touch panel, cover lens, or full front module can reduce assembly steps and improve cosmetic consistency.

This approach is especially useful in smart home interfaces, handheld instruments, and branded consumer devices where front-surface quality matters. A custom lens can add printing, shape features, logo windows, or stronger protection. A touch layer can be tuned for glove use, moisture resistance, or specific controller requirements.

The trade-off is that integrated modules require earlier cross-functional alignment. Industrial design, electrical design, touch tuning, and mechanical support features all need to be defined together. If one team changes a housing detail late, the display stack may need revalidation.

How to customize OLED display panel for production, not just prototype

A prototype-ready display is not always production-ready. That gap matters. Some customizations are easy to sample but difficult to scale consistently across mass production, especially when they involve new tooling, tight optical appearance criteria, or multi-part lamination.

When discussing how to customize OLED display panel builds, ask not only whether a supplier can make the sample, but whether the design can hold yield, consistency, and lead time at your target volume. Review the expected MOQ, NRE charges, tooling scope, sample schedule, and change control process. Confirm whether critical materials are standard, alternate-qualified, or single-source.

For commercial buyers, this is where supplier capability becomes part of the design decision. A module partner with stable engineering support, cleanroom production, and experience across standard and customized display programs can reduce development friction significantly. Shineworld Innovations Limited works in this space because many customers need more than a catalog part - they need an OLED module adapted to a real device platform and a production plan behind it.

Reliability and compliance considerations

For industrial, medical, or banking equipment, the display cannot be evaluated on dimensions and image quality alone. Operating temperature, storage conditions, vibration exposure, ESD tolerance, and long-term visual stability may all affect the custom design.

If the product enters regulated or semi-regulated markets, confirm early what documentation, validation, and traceability are needed. A custom lens adhesive, touch controller, or connector change may influence downstream compliance work. It is better to identify these dependencies before sampling than after pilot build.

What information to prepare before sending an inquiry

A strong RFQ shortens the path to a workable OLED solution. At minimum, prepare the target size, active area, resolution, interface, voltage, brightness target, operating environment, and estimated annual volume. If available, include mechanical drawings, enclosure constraints, PCB placement, and any requirements for touch, lens, or bonding.

It also helps to state what can and cannot change. If the housing is fixed but the PCB is flexible, say so. If cost matters more than cosmetic perfection, say that too. The more clearly priorities are ranked, the easier it is to propose the right customization path instead of an overengineered one.

A good custom OLED project is not defined by how many things were changed. It is defined by how well the display fits the device, the production plan, and the commercial target. The best next step is usually a technical review that turns broad requirements into a manufacturable specification.
