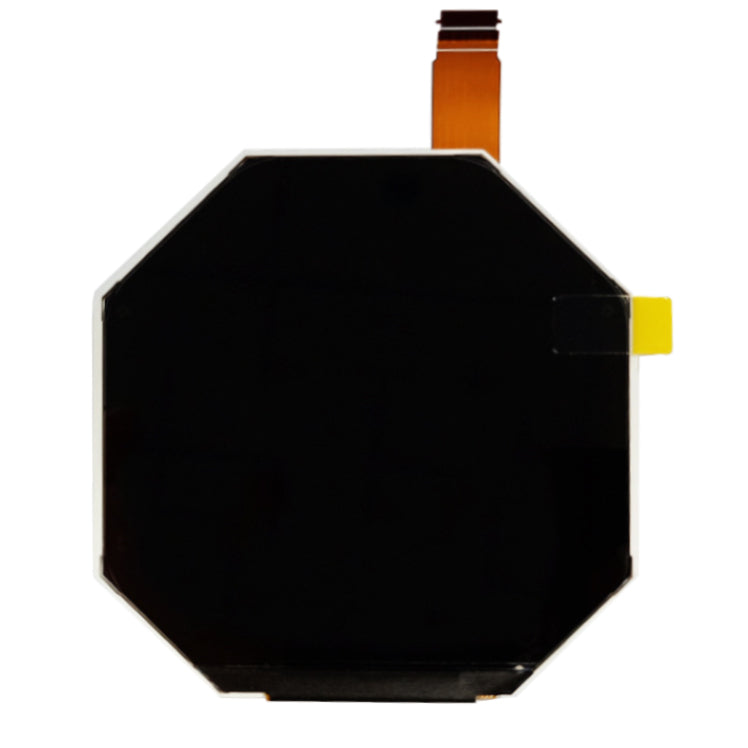

Custom Display Manufacturing Guide

A display that looks acceptable on a sample bench can fail quickly once it is exposed to heat, vibration, gloves, sunlight, cleaning agents, or a tight mechanical stack-up. That is why a custom display manufacturing guide matters early in product development, not after the housing is frozen and the PCB is already routed. For OEM buyers, hardware teams, and sourcing managers, the display is not just a component. It is an optical, electrical, mechanical, and manufacturing decision that affects the entire device.

What a custom display manufacturing guide should answer

The right guide does not start with panel size alone. It starts with the product requirement and works backward into display architecture, interface selection, touch integration, cover lens design, brightness targets, and production constraints. A consumer handheld, a medical controller, and an industrial terminal may all need a 5-inch display, but they rarely need the same stack.

At the specification stage, the main question is whether a standard module can meet the requirement with minor adjustments or whether a full custom build is justified. This is where many projects either save time or create avoidable delays. If the application can use an existing TFT, OLED, or ePaper platform with a modified FPC, connector, or lens, lead time and tooling cost are usually lower. If the product requires a unique outline, unusual interface routing, wide temperature operation, high brightness, optical bonding, or a combined display and touch structure, a custom path becomes more practical.

Start with the operating conditions, not the display type

Engineers often compare TFT, OLED, and ePaper too early. The more reliable approach is to define the operating environment first. Indoor consumer products prioritize appearance, viewing quality, and cost. Industrial and medical devices usually place more weight on readability, stability, service life, and long-term supply continuity.

Brightness is one of the clearest examples. A display that performs well at 300 to 500 nits indoors may be unreadable in strong ambient light. Raising brightness improves visibility, but it also increases power draw and thermal load. That change can affect battery size, enclosure ventilation, LED lifetime, and the overall power budget. There is no universal best option. The right target depends on use conditions, display size, and the optical design of the front surface.

Temperature range creates another common trade-off. Wider operating ranges support industrial and outdoor use, but they can narrow component choices and increase qualification demands. The same is true for shock and vibration resistance. If the final device will be mounted in equipment, carried in the field, or exposed to transport stress, the display structure and interconnect method need to be chosen with manufacturing reliability in mind.

Defining the display stack in a custom display manufacturing guide

A practical custom display manufacturing guide should break the stack into layers and interfaces. This is where design decisions become real production variables.

Display technology selection

TFT LCD remains the most common choice for full-color applications because it offers a wide range of sizes, resolutions, and interface options. It is usually the most flexible path for equipment manufacturers balancing performance and cost.

OLED is attractive when deep contrast, thin design, and strong visual impact matter. However, the lifetime profile, burn-in risk in static-image use cases, and cost structure should be reviewed carefully for industrial products or interfaces that stay on for long periods.

EPaper fits low-power applications where static content and sunlight readability are more important than refresh speed or full-motion graphics. It works well in labels, instruments, and battery-sensitive systems, but it is not suited to every UI environment.

Touch and cover integration

For many OEM products, the display itself is only part of the requirement. Capacitive touch, cover lens material, thickness, ink printing, surface treatments, and bonding method all affect the final module. A display plus CTP solution can simplify sourcing and assembly, but it also means the optical and mechanical tolerances must be managed as one system.

A thicker cover lens may improve impact resistance, but touch sensitivity can be affected, especially with gloves, moisture, or electromagnetic noise nearby. Optical bonding improves contrast and can reduce internal reflection, but it adds process complexity and cost. These are not reasons to avoid integration. They are reasons to evaluate integration early.

Mechanical and electrical interfaces

Many custom display delays come from late changes in connector direction, FPC shape, mounting points, or backlight driver assumptions. Mechanical space is often tighter than expected, especially in handheld devices, smart home panels, banking terminals, and compact medical instruments.

A display module should be reviewed as part of the full assembly. That includes active area, outline dimensions, bezel allowance, viewing window, gasket space, connector location, EMI considerations, and serviceability. Electrically, the team should confirm interface type, pin definition, power sequence, logic voltage, driver compatibility, and backlight requirements before prototype release.

Prototype decisions that affect mass production

A sample that proves image output is only an early checkpoint. Manufacturing readiness depends on whether the display can be built consistently at the required volume, with stable materials and controlled yields.

This is where supplier capability matters. A manufacturer with experience in both standard products and ODM/OEM development can usually reduce friction because it can compare the project against existing platforms while still supporting custom adaptation. Shineworld Innovations Limited, for example, operates across standard modules and customized display solutions, which is useful when a project needs to move from concept validation into scalable production without changing partners.

From a sourcing perspective, the key questions are straightforward. Can the manufacturer support engineering review before tooling is committed? Can it control bonding, assembly, and inspection in-house? Can it handle pilot runs and then scale for production orders? Can it maintain continuity if the project grows or needs revision?

A strong custom manufacturing process also includes design-for-manufacturing feedback. Sometimes the best recommendation is not to approve the first requested structure. Small changes in FPC routing, adhesive design, lens tolerance, or module thickness can improve assembly yield and long-term reliability without changing the user experience.

Validation points buyers should not skip

A useful custom display manufacturing guide should make validation practical, not theoretical. Teams should confirm optical performance, electrical behavior, touch performance, and mechanical fit under expected use conditions. If the application is medical, industrial, or exposed to public use, testing should reflect that environment rather than ideal lab conditions.

Sunlight readability, viewing angle, glove touch, condensation response, ESD behavior, and startup consistency are all worth checking when relevant. It also helps to validate cable routing and connector stress during assembly. A display that passes functional testing can still fail later if the interconnect is strained by enclosure design.

Long-term supply support deserves equal attention. For many B2B products, the display lifecycle matters almost as much as the display specification. A low-cost module is not necessarily low-risk if it requires frequent redesign due to component changes or limited availability. Buyers should ask how the supplier manages component continuity, alternate material planning, and product revision control.

When custom is the right choice, and when it is not

Custom development is justified when the display must fit the product, not the other way around. That usually means unusual dimensions, integrated touch and lens requirements, specific brightness or optical targets, interface constraints, environmental demands, or branding-related industrial design needs.

But custom is not always the smart first move. If a standard module already meets the electrical and optical requirements, using it can reduce NRE cost, speed up prototyping, and lower risk. In many cases, the best path is semi-custom: start from a proven standard display and modify the integration details that matter most.

That approach works well for teams trying to balance launch timing with product differentiation. It also gives procurement and engineering a more controlled path into validation, because the baseline display performance is already known.

A better way to approach display sourcing

The most effective display programs are built around requirement clarity, early engineering alignment, and supplier feedback before too many upstream decisions become fixed. That means sharing real use-case data, not just a size request and a target price. It means discussing interface limits, brightness expectations, touch conditions, and mechanical restrictions at the start.

A good manufacturing partner should be able to respond with more than a quote. It should identify risk, propose alternatives, explain trade-offs, and help shape a display solution that can move from prototype to volume with fewer surprises.

If you are evaluating display options for a new device, the strongest starting point is simple: define the environment, define the integration constraints, and let those facts drive the module design. That is how custom display development becomes a production decision, not just a sourcing exercise.
