Best Screen Interfaces for Embedded Systems

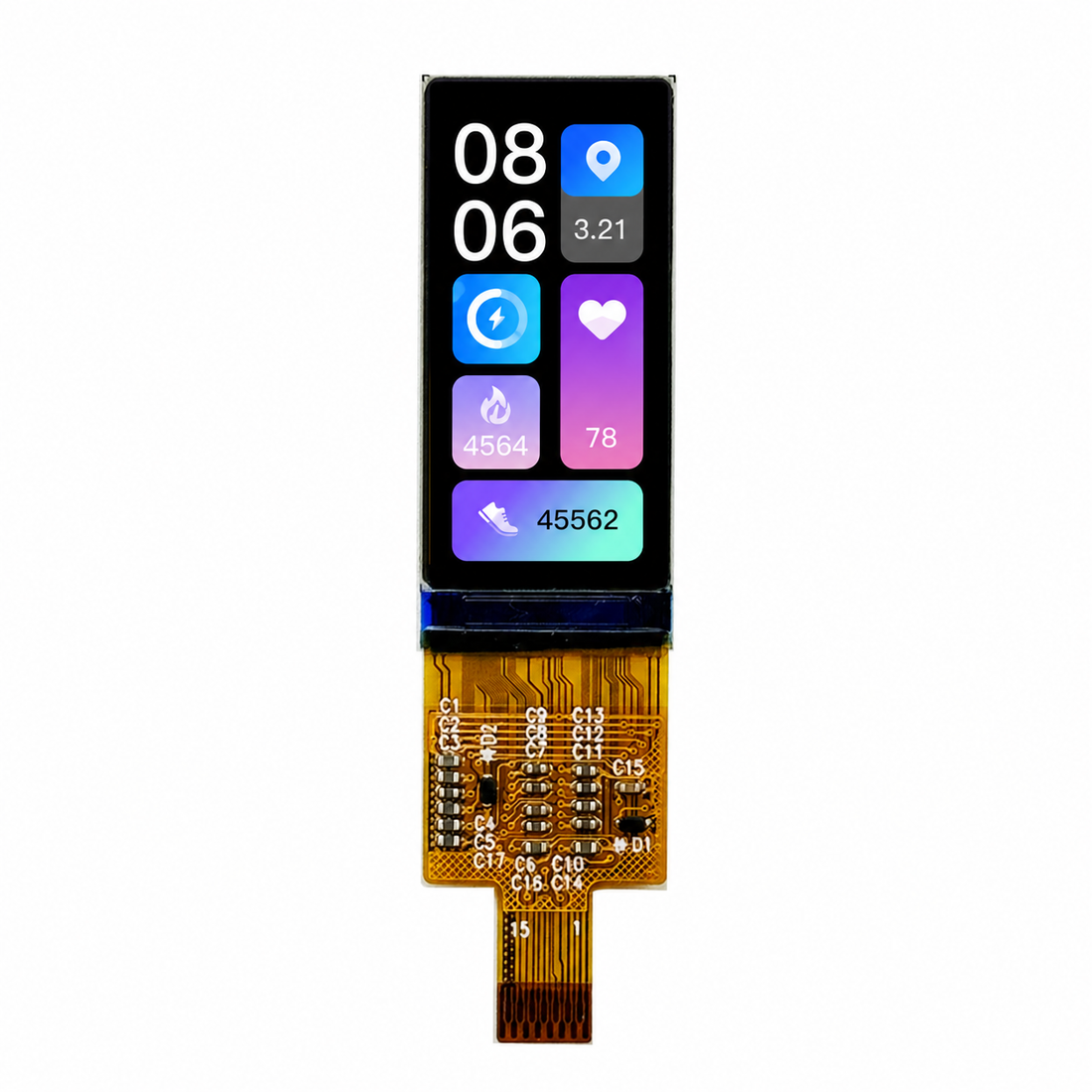

A display interface can determine whether an embedded product has a clean, manufacturable architecture or an expensive late-stage redesign. The best screen interfaces for embedded systems are not defined by a single standard. They depend on display resolution, refresh requirements, processor capability, cable length, mechanical layout, power budget, and the production volumes the device must support.

For an industrial HMI, a parallel RGB TFT interface may provide direct control and predictable timing. For a compact handheld device with a high-resolution display, MIPI DSI can reduce pin count and support higher data rates. A low-power control panel may need nothing more than SPI. Selecting the interface early helps engineering teams align the display module, host board, touch solution, and enclosure before tooling decisions become difficult to change.

How to Select a Screen Interface for an Embedded System

Start with the pixels that must be moved every second. Resolution, color depth, frame rate, and blanking intervals determine the data bandwidth the host must deliver. A small monochrome OLED and a 10.1-inch, 1280 × 800 TFT place very different demands on the same processor.

The physical architecture matters just as much. A display mounted directly to the main PCB can use fine-pitch connectors and high-speed differential pairs. A screen placed in a door-mounted control panel or a separate enclosure may require a cable strategy that limits noise and preserves signal integrity. Environmental requirements, including temperature range, vibration, and electromagnetic interference, further narrow the appropriate interface options.

Buyers should also distinguish between display data, touch data, and backlight control. A TFT module may use RGB, LVDS, MIPI DSI, or SPI for image data, while its capacitive touch panel communicates through I2C. LED backlight current and dimming are typically managed through separate power and PWM connections. Treating these functions as one interface is a common source of specification gaps during sourcing.

Best Screen Interfaces for Embedded Systems by Use Case

SPI for compact, low-data-rate displays

SPI remains one of the most practical choices for small displays, particularly OLEDs, monochrome LCDs, and lower-resolution color TFT modules. It uses relatively few pins, is widely available on microcontrollers, and simplifies board routing. For battery-powered instruments, wearables, compact appliances, and simple control panels, SPI can lower both hardware complexity and firmware effort.

Its limitation is throughput. As resolution, color depth, or animation requirements increase, a serial SPI bus can become a bottleneck. A 240 × 240 color display may be acceptable for static screens and limited updates, but full-screen motion or frequent graphical refreshes can expose visible delays. SPI is usually the right answer when interface simplicity matters more than high frame rate.

MCU parallel interface for cost-sensitive control products

The MCU parallel interface, often called 8080 or 6800 interface, is common in smaller-to-mid-size TFT displays with integrated display memory and controller ICs. The host writes commands and pixel data to the display controller over an 8-bit, 16-bit, or occasionally wider bus. This approach supports faster updates than SPI while keeping the display timing largely inside the module.

It is well suited to medical instruments, handheld terminals, point-of-sale devices, and industrial controls that need responsive graphical screens without the complexity of a high-speed video interface. The trade-off is pin count. Data lines plus control signals consume valuable GPIO resources, and board routing becomes less attractive as the system grows more compact.

RGB interface for real-time TFT graphics

Parallel RGB is a direct pixel interface. The host processor continuously supplies red, green, and blue data along with pixel clock, horizontal sync, vertical sync, and data-enable signals. Because the display typically has no full frame buffer for the host to write into, RGB is effective for real-time graphical user interfaces, video-capable applications, and medium-size TFTs.

This interface is widely used when an MPU or application processor includes an LCD controller. It offers straightforward timing visibility and can support a broad range of standard TFT resolutions. However, RGB requires many pins and careful layout. Clock frequency, trace matching, connector quality, and cable length must be evaluated during design validation. It is generally best for displays mounted close to the controller board rather than across a long internal cable.

MIPI DSI for high-resolution, space-constrained products

MIPI DSI is a high-speed differential interface designed for mobile-style displays and compact embedded devices. It uses fewer signal pairs than parallel RGB while carrying significantly higher bandwidth. That makes it a strong option for high-resolution TFT or OLED displays in handheld equipment, smart home panels, portable medical devices, and consumer electronics.

MIPI DSI can reduce connector pin count and simplify routing density, but it requires a compatible host, controlled-impedance PCB design, and close attention to lane configuration, display initialization, and driver support. It is not automatically the lowest-risk option for every project. If the selected processor has incomplete DSI software support or the team lacks high-speed layout experience, an RGB or LVDS solution may deliver a faster path to production.

LVDS for larger industrial displays

LVDS transfers display data over differential pairs and is commonly used for larger TFT panels, especially in industrial equipment, vehicle-adjacent systems, kiosks, and diagnostic instruments. Its differential signaling supports longer cable runs and offers better noise tolerance than single-ended parallel RGB in electrically demanding environments.

LVDS is particularly relevant for display sizes where resolution and physical separation make raw RGB routing impractical. Common panel formats may use single-channel or dual-channel LVDS, depending on resolution and pixel clock. The system still needs correct impedance control, proper cable selection, and a compatible serializer or processor output. For a panel installed away from the main board, LVDS often provides a more workable electrical architecture than high-pin-count RGB.

eDP and HDMI for processor-driven equipment

Embedded DisplayPort and HDMI are practical when the host platform is based on an SBC, x86 architecture, or application processor with standard video outputs. eDP is frequently used internally for high-resolution panels, while HDMI is useful for externally connected monitors, evaluation systems, and equipment that must support commercial display hardware.

These interfaces can speed platform integration, particularly where operating-system graphics support already exists. Their disadvantages are power consumption, connector size, protocol overhead, and limited suitability for very small microcontroller-based products. They are normally selected for compute-heavy equipment rather than simple embedded controllers.

Interface Selection Is Also a Display Module Decision

The electrical interface cannot be separated from the display module specification. A supplier should confirm active area, outline dimensions, viewing direction, luminance, operating temperature, optical bonding requirements, and touch-panel construction alongside the interface type. A display with the correct connector but inadequate brightness or an unsuitable flex-cable direction still creates an integration problem.

For outdoor or high-ambient-light equipment, higher brightness and a suitable cover lens may be more valuable than choosing the newest interface standard. For medical and industrial products, long-term availability, controlled documentation, and change management can carry more weight than a marginal bandwidth advantage. For low-power devices, OLED or ePaper technologies may change the interface calculation entirely because update behavior and refresh expectations differ from conventional TFT designs.

Integrated assemblies also reduce coordination risk. A display plus capacitive touch panel, cover lens, and bonded optical stack can be engineered around the required connector position, interface timing, and enclosure dimensions. This approach is especially useful when a product needs a nonstandard shape, logo printing, custom glass thickness, or defined optical performance.

Questions to Settle Before Requesting a Display Quote

A useful display inquiry defines more than diagonal size and resolution. Engineering and sourcing teams should provide the host processor or controller part number, preferred interface, target frame rate, available connector location, cable length, operating environment, and expected annual volume. If touch is required, specify whether the design needs projected capacitive touch, glove operation, water tolerance, or a particular cover-lens treatment.

It is also worth stating whether the project is in prototype, pilot, or mass-production phase. A standard module can shorten early validation, while a customized FPC, backlight, lens, or touch assembly may better serve the finished product. Shineworld Innovations supports both standard display modules and customized assemblies, allowing teams to validate the electrical approach before committing to a tailored mechanical configuration.

The right interface is the one that supports the full product requirement without adding avoidable pins, bandwidth, cost, or validation risk. Define the operating conditions and host capabilities first, then choose a display module and interface combination that can be supplied consistently through production.
